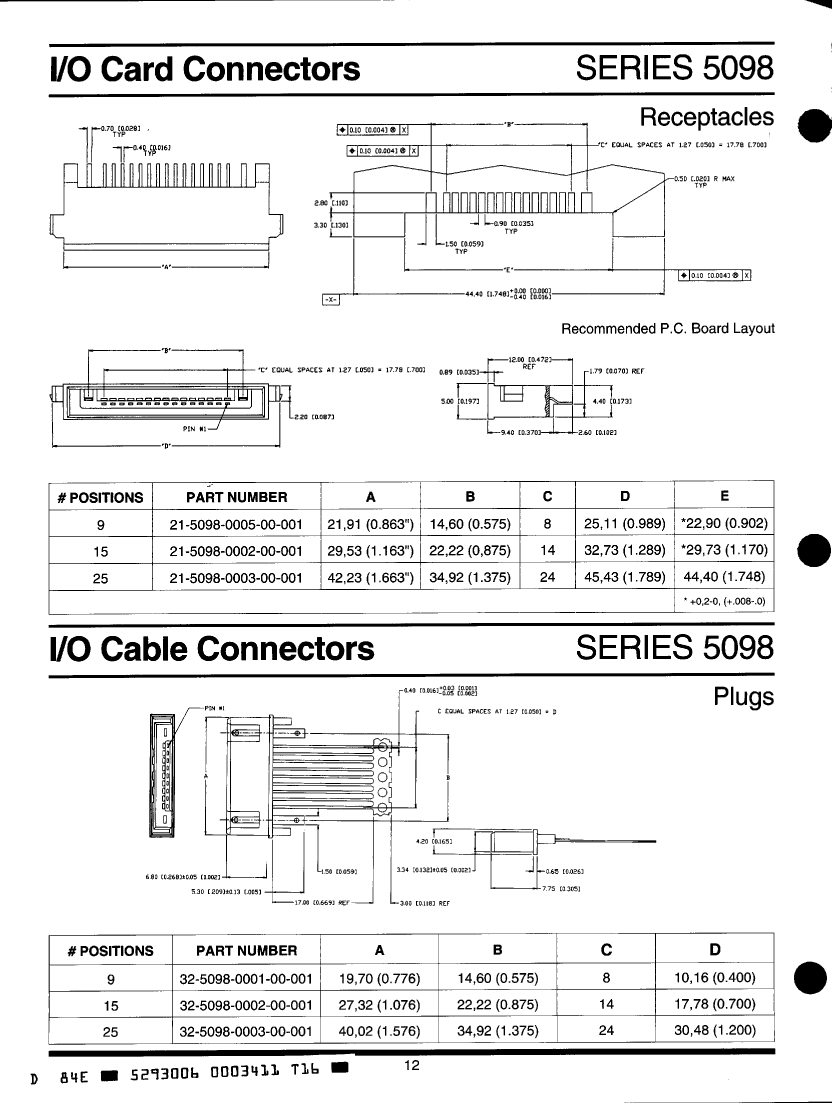

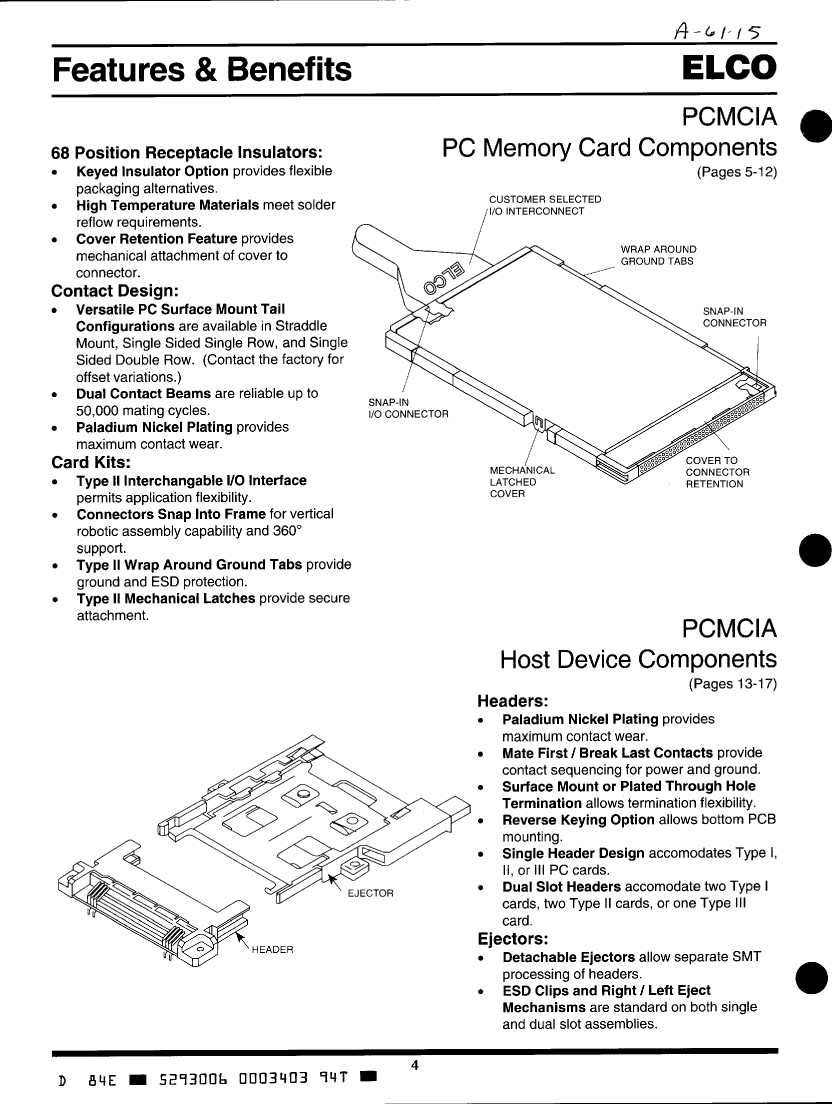

Board Connector, 25 Contact(s), 1 Row(s), Male, 0.05 inch Pitch, Solder Lug Terminal, Guide Pin, Black Insulator, Receptacle

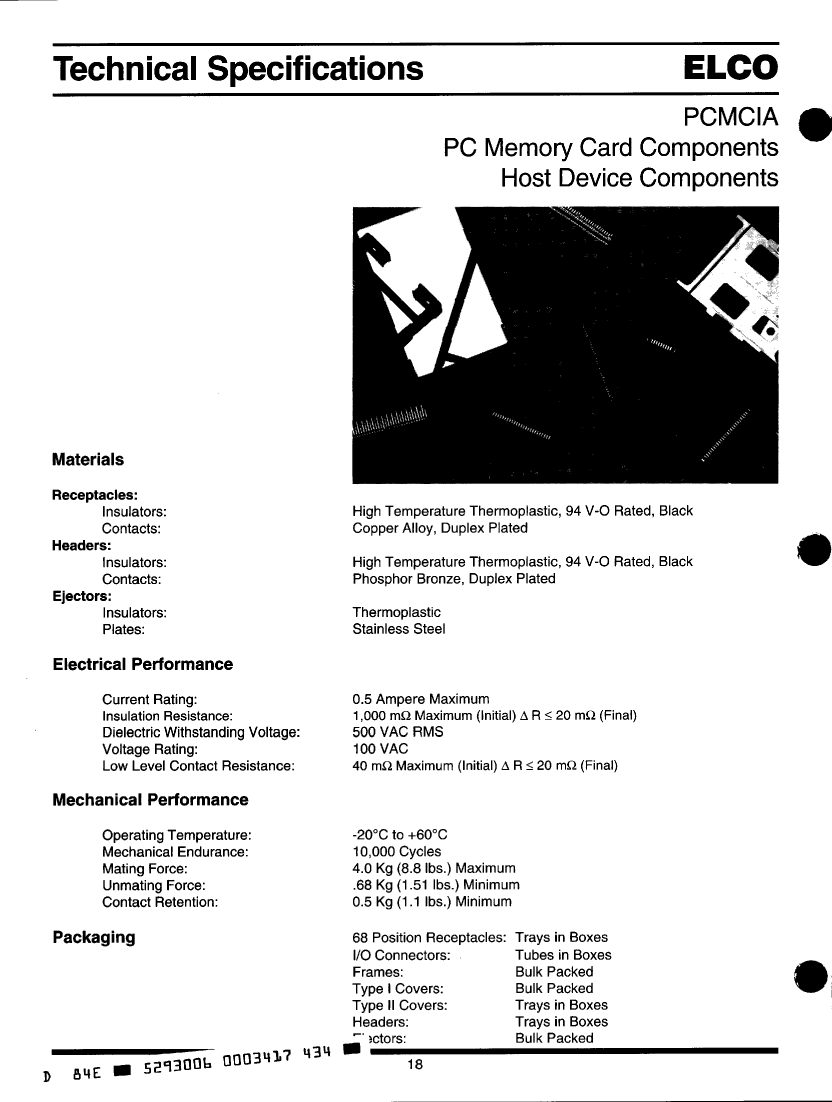

| Parameter Name | Attribute value |
| Maker | Kyocera |
| Reach Compliance Code | unknown |
| Other features | PACKAGING -TUBES IN BOXES |
| body width | 0.165 inch |
| body length | 1.576 inch |
| Body/casing type | RECEPTACLE |
| Connector type | BOARD CONNECTOR |
| Contactor design | PREASSEM CONN |
| Contact to complete cooperation | PD-NI ON NI |
| Contact completed and terminated | PD-NI OVER NI |
| Contact point gender | MALE |
| Contact material | COPPER ALLOY |
| contact mode | RECTANGULAR |
| Contact resistance | 60 mΩ |
| Contact style | SQ PIN-SKT |
| Dielectric withstand voltage | 500VAC V |
| Durability | 10000 Cycles |
| maximum insertion force | 39.1424 N |
| Insulation resistance | 1000000000 Ω |
| Insulator color | BLACK |
| insulator material | THERMOPLASTIC |
| Manufacturer's serial number | 5098 |
| Plug contact pitch | 0.05 inch |
| Installation option 1 | GUIDE PIN |
| Installation type | PANEL |
| Number of rows loaded | 1 |
| Maximum operating temperature | 60 °C |
| Minimum operating temperature | -20 °C |
| polarization key | POLARIZED HOUSING |
| Rated current (signal) | 0.5 A |
| Guideline | UL |
| reliability | COMMERCIAL |
| Termination type | SOLDER LUG |
| Total number of contacts | 25 |
| Evacuation force-minimum value | 6.672 N |
| Base Number Matches | 1 |
| 32-5098-0003-00-001 | 21-5098-0002-00-001 | 32-5098-0002-00-001 | 21-5098-0003-00-001 | |
|---|---|---|---|---|
| Description | Board Connector, 25 Contact(s), 1 Row(s), Male, 0.05 inch Pitch, Solder Lug Terminal, Guide Pin, Black Insulator, Receptacle | PCMCIA Connector, 15 Contact(s), 1 Row(s), Female, Right Angle, 0.05 inch Pitch, Black Insulator, Plug | Board Connector, 15 Contact(s), 1 Row(s), Male, 0.05 inch Pitch, Solder Lug Terminal, Guide Pin, Black Insulator, Receptacle | PCMCIA Connector, 25 Contact(s), 1 Row(s), Female, Right Angle, 0.05 inch Pitch, Black Insulator, Plug |
| Reach Compliance Code | unknown | unknown | unknown | unknown |
| Other features | PACKAGING -TUBES IN BOXES | PACKAGING -TUBES IN BOXES | PACKAGING -TUBES IN BOXES | PACKAGING -TUBES IN BOXES |
| body width | 0.165 inch | 0.197 inch | 0.165 inch | 0.197 inch |
| body length | 1.576 inch | 1.289 inch | 1.076 inch | 1.789 inch |
| Body/casing type | RECEPTACLE | PLUG | RECEPTACLE | PLUG |
| Connector type | BOARD CONNECTOR | PCMCIA CONNECTOR | BOARD CONNECTOR | PCMCIA CONNECTOR |
| Contactor design | PREASSEM CONN | PREASSEM CONN | PREASSEM CONN | PREASSEM CONN |
| Contact point gender | MALE | FEMALE | MALE | FEMALE |
| Contact material | COPPER ALLOY | COPPER ALLOY | COPPER ALLOY | COPPER ALLOY |
| contact mode | RECTANGULAR | RECTANGULAR | RECTANGULAR | RECTANGULAR |
| Contact resistance | 60 mΩ | 60 mΩ | 60 mΩ | 60 mΩ |
| Dielectric withstand voltage | 500VAC V | 500VAC V | 500VAC V | 500VAC V |
| Durability | 10000 Cycles | 10000 Cycles | 10000 Cycles | 10000 Cycles |
| maximum insertion force | 39.1424 N | 39.1424 N | 39.1424 N | 39.1424 N |
| Insulation resistance | 1000000000 Ω | 1000000000 Ω | 1000000000 Ω | 1000000000 Ω |
| Insulator color | BLACK | BLACK | BLACK | BLACK |
| insulator material | THERMOPLASTIC | THERMOPLASTIC | THERMOPLASTIC | THERMOPLASTIC |
| Manufacturer's serial number | 5098 | 5098 | 5098 | 5098 |
| Plug contact pitch | 0.05 inch | 0.05 inch | 0.05 inch | 0.05 inch |
| Number of rows loaded | 1 | 1 | 1 | 1 |
| Maximum operating temperature | 60 °C | 60 °C | 60 °C | 60 °C |
| Minimum operating temperature | -20 °C | -20 °C | -20 °C | -20 °C |
| Rated current (signal) | 0.5 A | 0.5 A | 0.5 A | 0.5 A |
| Guideline | UL | UL | UL | UL |
| reliability | COMMERCIAL | COMMERCIAL | COMMERCIAL | COMMERCIAL |
| Total number of contacts | 25 | 15 | 15 | 25 |
| Evacuation force-minimum value | 6.672 N | 6.672 N | 6.672 N | 6.672 N |
| Base Number Matches | 1 | 1 | 1 | 1 |
