PK2W0507-153K

Description
General Purpose Inductor, 15000uH, 1 Element, Ferrite-Core, RADIAL LEADED
CategoryPassive components    inductor
File Size71KB，1 Pages
ManufacturerFenfa Electronics Ltd
Websitehttp://www.coilsfenfa.com
Download Datasheet Parametric Compare View All

PK2W0507-153K Overview

General Purpose Inductor, 15000uH, 1 Element, Ferrite-Core, RADIAL LEADED

PK2W0507-153K Parametric

Parameter NameAttribute value
MakerFenfa Electronics Ltd
Reach Compliance Codeunknown
ECCN codeEAR99
core materialFERRITE
DC Resistance52 Ω
Nominal inductance(L)15000 µH
Inductor ApplicationsHIGH CURRENT INDUCTOR
Inductor typeGENERAL PURPOSE INDUCTOR
Manufacturer's serial numberPK2W0507
Number of functions1
Number of terminals2
Maximum operating temperature105 °C
Minimum operating temperature-20 °C
Minimum quality factor (at nominal inductance)65
Maximum rated current0.03 A
Shape/Size DescriptionCYLINDRICAL PACKAGE
shieldNO
surface mountNO
Terminal locationRADIAL
Terminal shapeFLAT
Test frequency2.52 MHz
Base Number Matches1

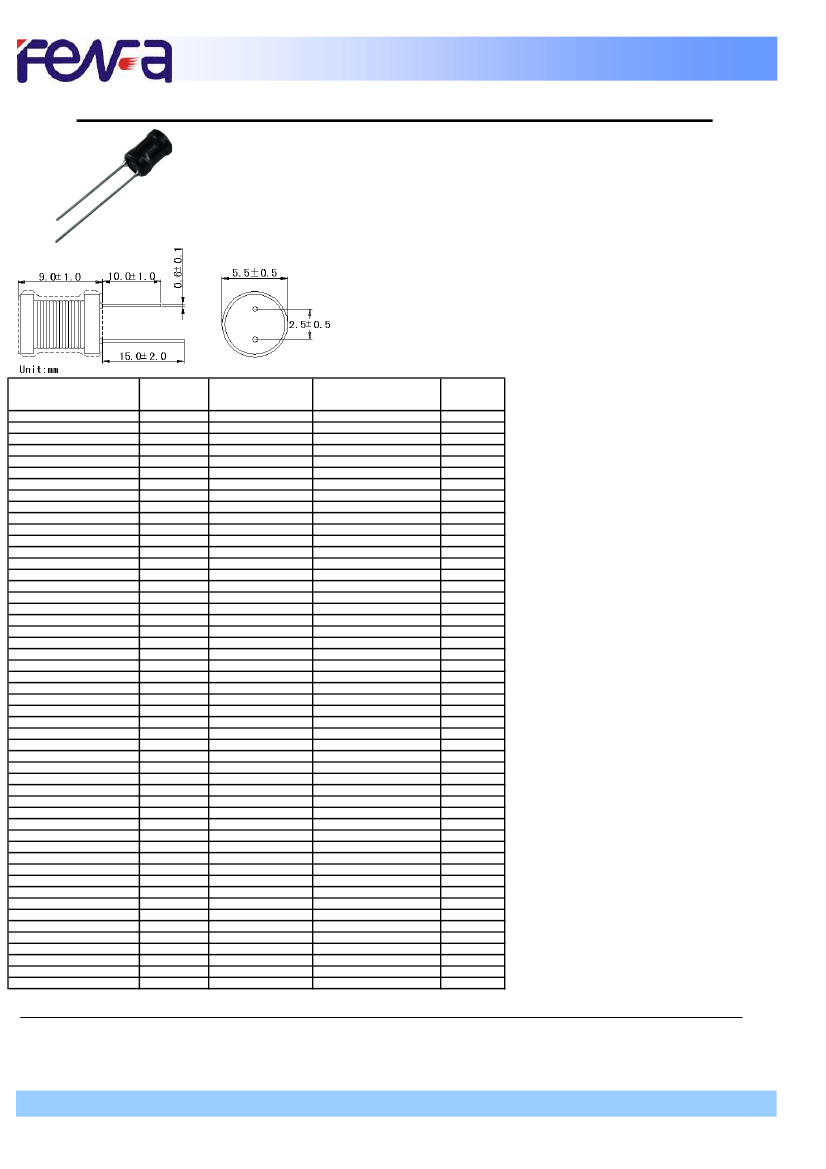

Preview

Download Datasheet
Radial Type Choke Inductors PK2W0507 Series
PK2W0507 Series ,Contain high-frequency ferrite.
Comparatively large rated current. Power supplies,DC-DC
converters. TVs,VTRs,computers. Computer Peripherals.
Telephones,Air-Conditions. Home Electric Appliance.
Electronic toys and games.
P/N
PK2W0507-1R0M
PK2W0507-1R5M
PK2W0507-2R2M
PK2W0507-3R3M
PK2W0507-4R7M
PK2W0507-6R8M
PK2W0507-100K
PK2W0507-120K
PK2W0507-150K
PK2W0507-180K
PK2W0507-220K
PK2W0507-270K
PK2W0507-330K
PK2W0507-390K
PK2W0507-470K
PK2W0507-560K
PK2W0507-680K
PK2W0507-820K
PK2W0507-101K
PK2W0507-121K
PK2W0507-151K
PK2W0507-181K
PK2W0507-221K
PK2W0507-271K
PK2W0507-331K
PK2W0507-391K
PK2W0507-471K
PK2W0507-561K
PK2W0507-681K
PK2W0507-821K
PK2W0507-102K
PK2W0507-122K
PK2W0507-152K
PK2W0507-182K
PK2W0507-222K
PK2W0507-272K
PK2W0507-332K
PK2W0507-392K
PK2W0507-472K
PK2W0507-562K
PK2W0507-682K
PK2W0507-822K
PK2W0507-103K
PK2W0507-123K
PK2W0507-153K
PK2W0507-183K
PK2W0507-223K
PK2W0507-273K
PK2W0507-333K
PK2W0507-393K
PK2W0507-473K
L (uH)
1.0
1.5
2.2
3.3
4.7
6.8
10
12
15
18
22
27
33
39
47
56
68
82
100
120
150
180
220
270
330
390
470
560
680
820
1000
1200
1500
1800
2200
2700
3300
3900
4700
5600
6800
8200
10000
12000
15000
18000
22000
27000
33000
39000
47000
Q
(min)
85
85
85
85
80
75
70
70
65
50
50
50
50
45
45
35
35
35
20
20
20
20
20
25
25
25
25
25
25
25
50
65
65
65
65
80
75
70
65
65
65
65
65
65
65
65
65
65
55
55
55
DCR(mohm)
14.0
20.0
20.0
30.0
40.0
60.0
80.0
100.0
110.0
110.0
120.0
140.0
160.0
180.0
200.0
220.0
300.0
340.0
360.0
440.0
520.0
650.0
750.0
100.0
1300.0
1400.0
1600.0
2000.0
2300.0
2700.0
3100.0
4600.0
5300.0
6200.0
6800.0
10000.0
12000.0
13000.0
15000.0
22000.0
25000.0
28000.0
35000.0
45000.0
52000.0
58000.0
80000.0
90000.0
135000.0
150000.0
170000.0
MAX
Isat
(A)
3.50
3.00
2.50
2.00
1.70
1.30
1.00
0.98
0.90
0.80
0.70
0.60
0.55
0.50
0.50
0.45
0.45
0.40
0.40
0.35
0.30
0.30
0.25
0.24
0.20
0.18
0.16
0.16
0.14
0.13
0.12
0.11
0.10
0.09
0.08
0.06
0.06
0.055
0.055
0.050
0.045
0.045
0.035
0.030
0.030
0.030
0.020
0.020
0.015
0.015
0.015
1.Inductance tested at 2.52MHz,0.1V;
2.SRF>13MHz measured using
Agilent / HP8753D network
Analyzer;
3.Inductance drop = 10% typ.
at rated Isat;
4.△T=40℃ rise typ. at Irms;
5.Operating temperature range
-20℃ to +105℃;
6. Electrical specifitions at +25℃;
In Bulk Packing
Special inquiries besides the above common used types can be met on your requirement.
FENFA ELECTRONICS LTD.
Address: Rm 621, 6/F., Shing Yip Industrial Building,
19-21 Shing Yip Street, Kwun Tong, Hong Kong
Tel:
(852) 2372 0880, Fax: (852) 2372 0131
http://www.coilsfenfa.com
fenfa@coilsfenfa.com
FENFA ELECTRONICS (DONGGUAN) CO., LTD.
Address: Xiakeng Industrial District,Changping Town,
Dongguan City,Guangdong,China
Tel:
86-769-86291668 Fax:86-769-83999028
© 2009 FENFA ELECTRONICS LTD. ALL RIGHTS RESERVED.
