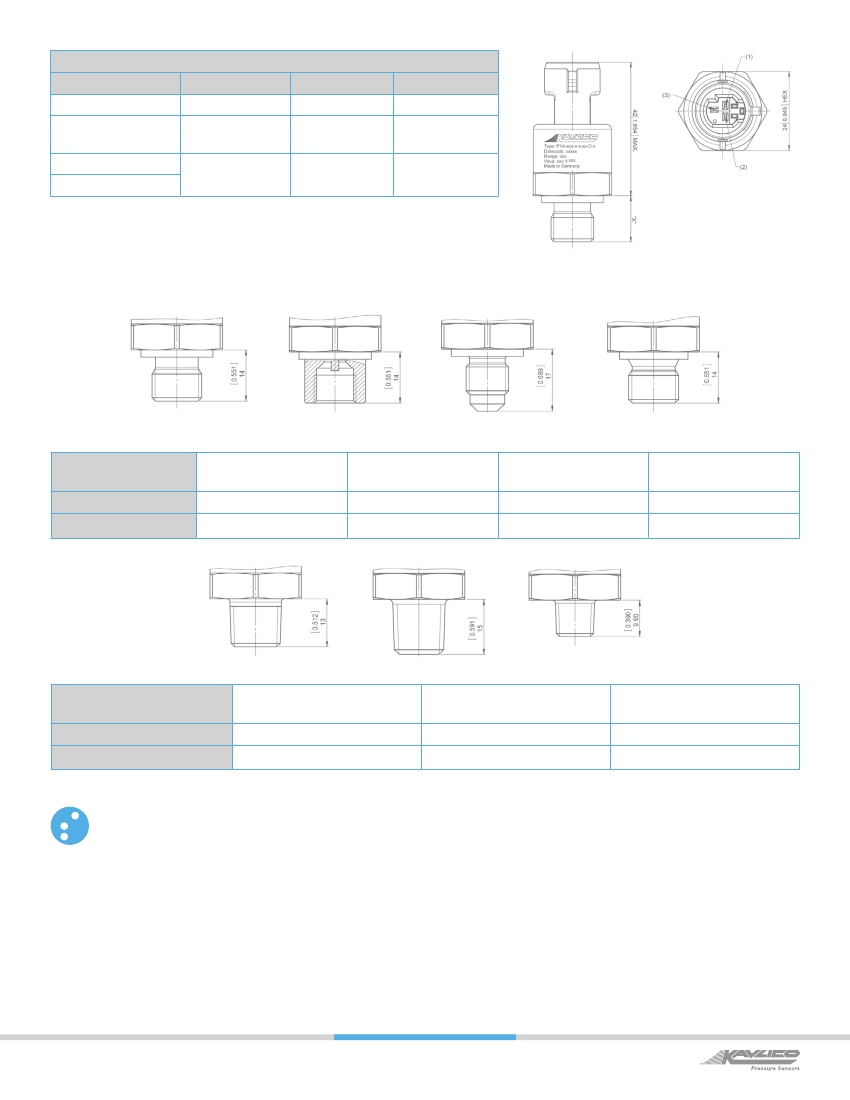

Pressure Connections and Recommended Installation Torque
Name
Thread
Torque
G1/4A DIN 3852-E
External
20 Nm
7/16-20 UNF-2B
SAE J1926-1
Internal
20 Nm
7/16-20 UNF-2A
SAE J1926-2
External
20 Nm
G1/4A DIN 3852-A
External
20 Nm
Name
Thread
Torque
1/4-19 BSPT
R1/4 PER DIN EN 10226
External
20 Nm
1/4-18 NPTF
External
20 Nm
1/8-27 NPTF
Internal
20 Nm
Note: Recommended torque may varify according to material and specific application
GENERAL NOTES
* for more options see How to Order
2
Including non-linearity, hysteresis, non-repeatability, zero point and full scale error (corresponds to error of measurement per IEC 61298-2). Adjusted in vertical mounting position with
pressure port down.
3
BFSL according to IEC 61298-2 reference conditions to EN 61298-1
4
Others on request
4
Unit shall be supplied by a power supply with double/reinforced insulation (SELV) and limited energy in accordance to UL/EN/IEC 61010-1 or LPS in accordance to UL/EN/IEC 60950-1 or
class 2 per UL1310/UL1585 (NEC or CEC). The power supply shall be approved for usage above 2000m if the pressure sensor is used in this enviroment.
For indoor and outdoor use, not exposed to direct sunlight.

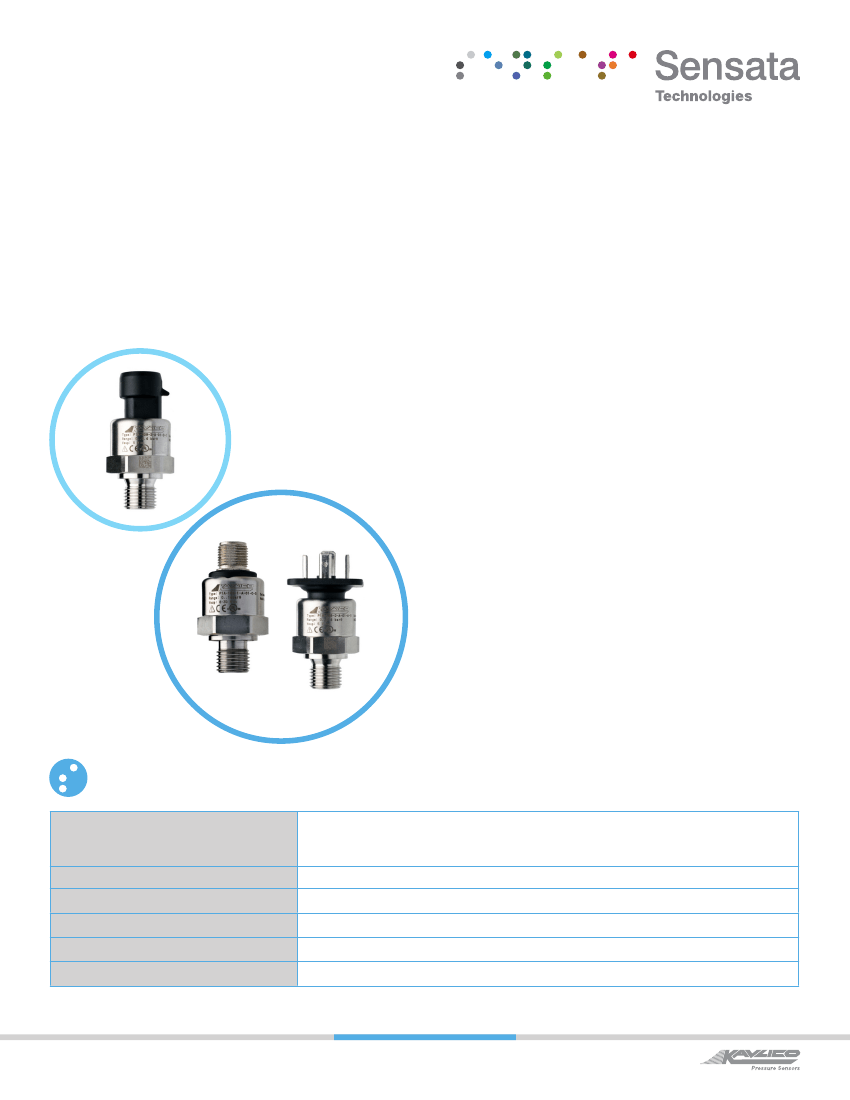

P1A Sensor, 0 - 2.5 bar Gage, 4 - 20 mA Output, No External Seal Ring, G1/4
DIN 3852-E Pressure Connection, with 18mm, EN 175301-803-A003MS, 4 pole
Electrical Connector and Fluorocarbon FKM Internal Seal Ring
Family
P1A
P1A
06
G
1
A
01
A
D
Pressure Ranges
01
0 - 0.25 Bar
02
0 - 0.4 Bar
03
0 - 0.6 Bar
04
0 - 1 Bar
05
0 - 1.6 Bar
06
0 - 2.5 Bar
07
0 - 4 Bar
08
0 - 6 Bar
09
0 - 10 Bar
10
0 - 16 Bar
30
-1 - 0 Bar
31
-1 - 1 Bar
50
0 - 5 PSI
51
0 - 10 PSI
52
0 - 15 PSI
53
0 - 20 PSI
54
0 - 30 PSI
55
0 - 50 PSI
56
0 - 75 PSI
57
0 - 100 PSI
58
0 - 150 PSI
59
0 - 200 PSI
Reference
A:
Absolute
G:
Gage
Output
1:
4-20 mA
2:
0.5-4.5 VDC radiometric
3:
0-5 VDC
4:
0-10 VDC
External Seal Ring
A:
None
B:
Fluorocarbon FKM (Viton)
Only for pressure connection port option 1 lower temperature limited to -20°C
C:
Aluminium Washer G1/4
Only for pressure connection port option 4
D:
Copper Washer G1/4
Only for pressure connection port option 4
F:
Ethylene Propylene - EPDM
Only for pressure connection port option 1
Pressure Connection (Port)
01:
G 1/4A DIN 3852-E
05:
1/4-19 BSPT
02:
7/16-20UNF-2B (female) SAE J1926-1 (modified)
Is equivalent to 1/4-19PT and R1/4 per DIN EN 10226 5
With 45° cone and schrader
06:
1/4-18 NPTF
03:
7/16-20UNF-2A (male) SAE J1926-2 (modified)
11:
1/8-27 NPTF
With 45° cone
04:
G1/4A DIN 3852-A

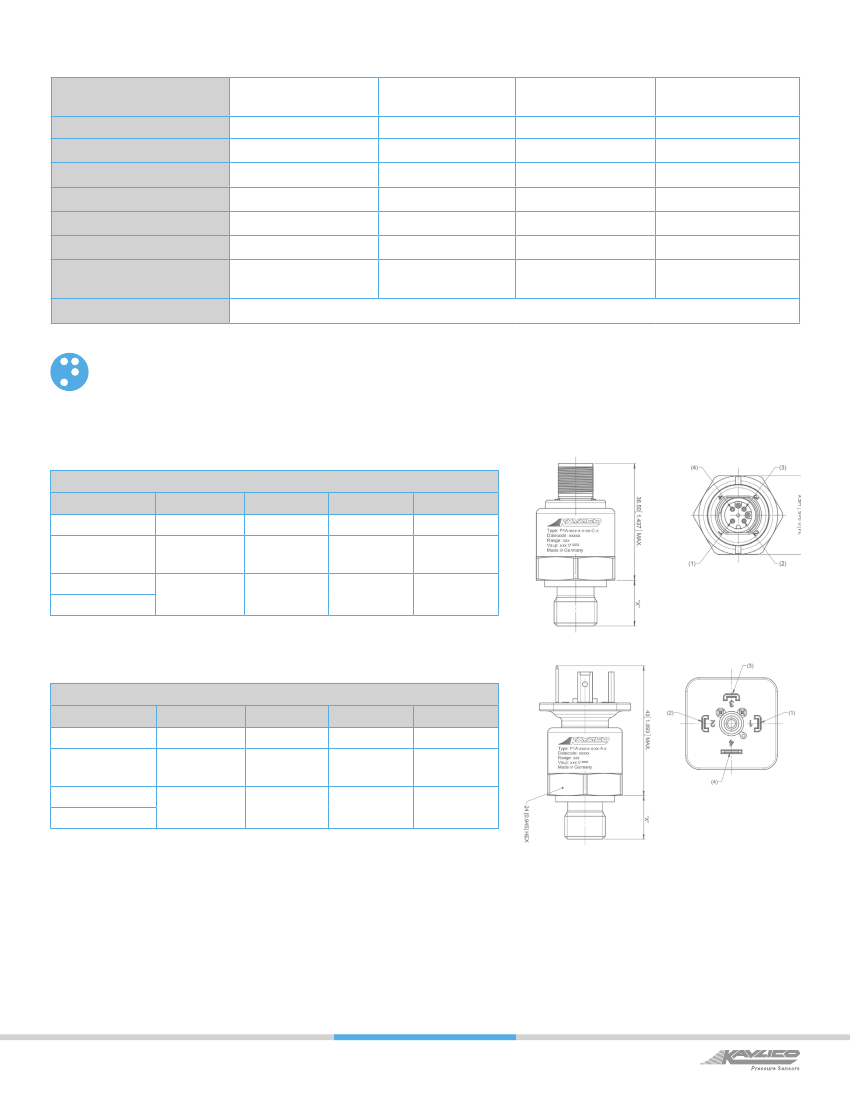

Built-In Electrical Connection
A:
18mm, EN 175301-803-A003MS, 4 pole
D:
Packard Metri-Pack 150, 3 pole
Sensor delivered without mating connector
Sensor delivered without mating connector
C:
M12, 4 pole according to IEC 61076-2-101
Sensor delivered without mating connector
Internal Seal Ring
C:
Neoprene - CR
Operating Temp: - 30 to 120°C
D:
Fluorocarbon - FKM (VITON)
Operating Temp: - 20 to 120°C
E:
Fluorosilicone - FVMQ
Operating Temp: - 30 to 120°C
F:
Ethylene Propylene - EPDM
Operating Temp: - 30 to 120°C
Before installation and operation, ensure that the appropriate pressure sensor has been selected in terms of pressure range, design and specific measuring conditions. Non-
compliance can result in serious injury and/or damage to the equipment.
Warning:
The product information contained in this catalogue is given purely as information and does not constitute a representation, warranty or any form of contractual
commitment. Kavlico reserve the right to modify their products without notice. It is imperative that we should be consulted over any particular use or application of our
products and it is the responsibility of the buyer to establish, particularly through all the appropriate tests, that the product is suitable for the use or application. Under
no circumstances will our warranty apply, nor shall we be held responsible for any application (such as any modification, addition, deletion, use in conjunction with other
electrical or electronic components, circuits or assemblies, or any other unsuitable material or substance) which has not been expressly agreed by us prior to the sale of
