FUJITSU SEMICONDUCTOR
DATA SHEET
DS07-12533-1E
8-bit Proprietary Microcontroller
CMOS
F MC-8L MB89610R Series
MB89613R/615R
s
DESCRIPTION
MB89610R series has been developed as a general-purpose version of the F
2
MC*-8L family of proprietary 8-bit,
single-chip microcontrollers.
In addition to the F
2
MC-8L CPU core which can operate at low voltage but at high speed, the microcontrollers
contain peripheral resources such as timers, serial interfaces, and an external interrupt.
The MB89610R series is applicable to a wide range of application from welfare products to industrial equipment,
including portable devices.
*: F
2
MC stands for FUJITSU Flexible Microcontroller.
2
s
FEATURES
• Various package options
Three types of QFP packages (0.5-mm, 0.65-mm, 1-mm pitch)
SDIP package
• High-speed processing at low voltages
Minimum execution time: 0.4
µs/3.5
V and 0.8
µs/2.7
V
• F
2
MC-8L family CPU core
Instruction set optimized for controllers
Multiplication and dividion instructions
16-bit arithmetic operations
Test and branch instructions
Bit manipulation instructions, etc.
(Continued)
s

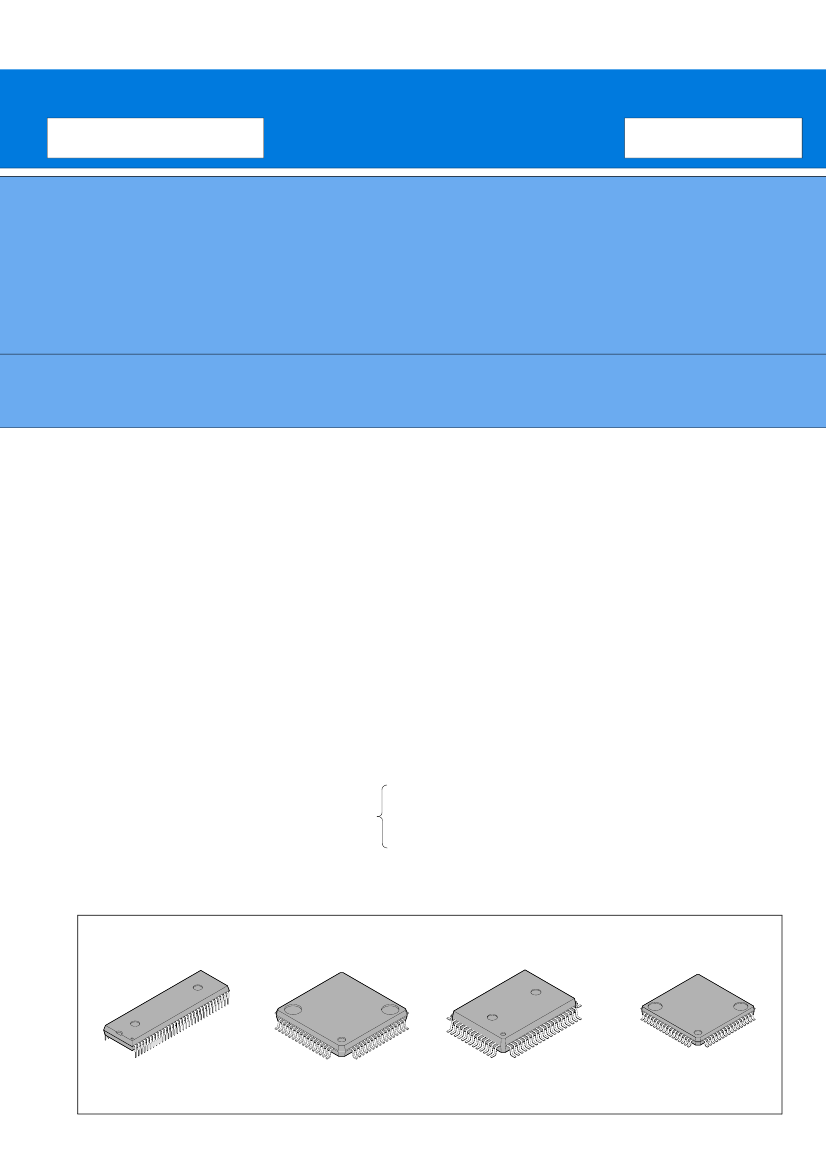

PACKAGES
64-pin Plastic SH-DIP
64-pin Plastic SQFP
64-pin Plastic QFP
64-pin Plastic QFP
(DIP-64P-M01)
(FPT-64P-M03)
(FPT-64P-M06)
(FPT-64P-M09)
MB89610R Series
(Continued)
• Four types of timers
8-bit PWM timer (also usable a reload timer)
8-bit pulse-width count timer (Continuous measurement capable, applicable to remote control, etc)
16-bit timer/counter
20-bit time-base timer
• Two serial interfaces
Switchable transfer direction allows communication with various equipment.
• External interrupt: 4 channels
Four channels are independent and capable of wake-up from low-power consumption modes (with an edge
detection function).
• Low-power consumption modes
Stop mode (Oscillation stops to minimize the current consumption.)
Sleep mode (The CPU stops to reduce the current consumption to approx. 1/3 of normal.)
• Bus interface function
Including hold and ready functions
s
PRODUCT LINEUP
Part number
MB89613R
Parameter
MB89615R
MB89P625/W625
*1
One-time PROM
product/EPROM
product
MB89PV620
*1
Pggyback/evaluation
product (for evaluation
and development)
32 K
×
8 bits
(external ROM)
1 K
×
8 bits
Classification
Mass production product
(mask ROM products)
ROM size
16 K
×
8 bits
(internal PROM,
8 K
×
8 bits
16 K
×
8 bits
programming with
(internal mask ROM) (internal mask ROM)
general-purpose
EPROM programmer)
256
×
8 bits
Number of instructions:
Instruction bit length:
Instruction length:
Data bit length:
Minimum execution time:
Interrupt processing time:
Input ports:
Output ports (N-ch open-drain):
I/O ports (N-ch open-drain):
Output ports (CMOS):
I/O ports (CMOS):
Total:
512
×
8 bits
136
8 bits
1 to 3 bytes
1, 8, 16 bits
0.4
µs/10
MHz
3.6
µs/10
MHz
RAM size
CPU functions
Ports
5 (4 ports also serve as peripherals)
8
8 (4 ports also serve as peripherals)
8 (All also serve as bus control pins)
24 (All also serve as bus pins or peripherals)
53
8-bit PWM timer
8-bit reload timer operation (toggled output capable, operating clock cycle: 0.4
µs
to 3.3 ms)
8-bit resolution PWM operation (conversion cycle: 10
µs
to 839 ms)
(Continued)
2
MB89610R Series
(Continued)
Part number
Parameter
MB89613R
MB89615R
MB89P625/W625
*1
MB89PV620
*1
Pulse width count
timer
8-bit timer operation (overflow output capable, operating clock cycle: 0.4
µs
to 12.8
µs)
8-bit reload timer operation (toggled output capable, operating clock cycle: 0.4
µs
to 12.8
µs)
8-bit pulse width measurement operation
(continuous measurement capable: “H” pulse width/“L” pulse width/from
↑
to
↑/from ↓
to
↓)
16-bit timer/
counter
8-bit Serial I/O 1
8-bit Serial I/O 2
16-bit timer operation (operating clock cycle: 0.4
µs)
16-bit event counter operation (rising edge/falling edge/both edges selectability)
8 bits
LSB first/MSB first selectability
One clock selectable from four transfer clocks
(one external shift clock, three internal shift clocks: 0.8
µs,
3.2
µs,
12.8
µs)
Four independent channels (edge selection, interrupt vector, and interrupt source flag)
Rising edge/falling edge selectability
Used also for wake-up from stop/sleep mode (edge detection is also permitted in stop mode)
External interrupt
Standby mode
Process
Operating
voltage
*2
EPROM for use
2.2 V to 6.0 V
Sleep mode and stop mode
CMOS
2.7 V to 6.0 V
—
MBM27C256A-20CZ
MBM27C256A-20TV
*1: One-time PROM product/EPROM product, and piggyback/evaluation product are applicable to the MB89620
series.
*2: Varies with conditions such as the operating frequency (See section “s Electrical Characteristics.”) In the case
of the MB89PV620, the voltage varies with the restrictions the ICE or EPROM for use.
s
PACKAGE AND CORRESPONDING PRODUCTS
Package
DIP-64P-M01
DIP-64C-A06
FPT-64P-M03
FPT64P-M06
FPT-64P-M09
MDP-64C-P02
MQF-64C-P01
: Available
×
×
×
: Not available
×
×
×
×
×*
×*
×
×*
×
×
MB89613R
MB89615R
MB89P625
MB89W625
×
MB89PV620
×
×
×*
×
×*
* : Lead pitch converter sockets (manufacturer: Sun Hayato Co., Ltd.) are available.
64SD-64SQF-8L: For conversion from DIP-64P-M01 or DIP-64C-A06 to FPT-64P-M03
64SD-64QF2-8L: For conversion from DIP-64P-M01 or DIP-64C-A06 to FPT-64P-M09
Inquiry: Sun Hayato Co., Ltd.: TEL 81-3-3802-5760
Notes:
•
For more information about each package, see section “s Package Dimensions.”
•
One-time PROM product/EPROM product, and piggyback/evaluation product are applicable to the
MB89620 series.
3
MB89610R Series
s
DIFFERENCES AMONG PRODUCTS
1. Memory Size
Before evaluating using the piggyback product, verify its differences from the product that will actually be used.
Take particular care on the following points:
• On the MB89613R, the upper half of the register bank cannot be used.
• The stack area, etc., is set at the upper limit of the RAM.
• External area is used.
2. Current Consumption
• In the case of the MB89PV620, add the current consumed by the EPROM which is connected to the top socket.
• When operated at low speed, the product with an OTPROM (one-time PROM) or an EPROM will consume
more current than a product with a mask ROM.
• However, the current consumption in sleep/stop modes is the same. (For more information, see sections
“s Electrical Characteristics” and “s Example Characteristics.”
3. Mask Options
Functions that can be selected as options and how to designate these options vary by the product.
Before using options check section “s Mask Options.”
Take particular care on the following points:
• Pull-up resistor cannot be set for P40 to P47 on the MB89P625 and MB89W625.
• Options are fixed on the MB89PV620.
4. Differences between the MB89610 and MB89610R Series
• Memory access area
Memory access area of both the MB89615 and MB89615R is the same.
The access area of the MB89613 is different from that of the MB89613R when using in external bus mode.
See below.
Address
0000
H
to 007F
H
0080
H
to 017F
H
0180
H
to 027F
H
0280
H
to BFFF
H
C000
H
to DFFF
H
E000
H
to FFFF
H
ROM area
External area
I/O area
RAM area
Memory area
MB89613
I/O area
RAM area
Access prohibited
External area
Access prohibited
ROM area
MB89613R
• Other specifications
Both the MB89610 and MB89610R is the same.
• Electrical specifications/electrical characteristics
Electrical specifications of the MB89610R series are the same with that of the MB89610 series.
For electrical characteristics, refer to the MB89620R series data sheet.
4
MB89610R Series
s
CORRESPONDENCE BETWEEN THE MB89610 AND MB89610R SERIES
• The MB89610R series is the reduction version of the MB89610 series.
• The MB89610 and MB89610R series consist of the following products:
MB89610 series
MB89610R series
MB89613
MB89613R
MB89615
MB89615R
5
