3D100W-30F datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Wireless rf/communication> Radio frequency and microwave> 3D100W-30F

3D100W-30F: DescriptionFixed Attenuator, 0MHz Min, 3000MHz Max,; CategoryWireless rf/communication Radio frequency and microwave; File Size39KB，1 Pages; ManufacturerAPI Technologies; Websitehttp://www.apitech.com/about-api

Download Datasheet Parametric View All

3D100W-30F Overview

Fixed Attenuator, 0MHz Min, 3000MHz Max,

3D100W-30F Parametric

Parameter Name	Attribute value
Maker	API Technologies
Reach Compliance Code	compliant
Other features	7/16-F, I/P POWER-MAX(PEAK)=2000W
Nominal attenuation	30 dB
Characteristic impedance	50 Ω
structure	COAXIAL
Maximum input power (CW)	50 dBm
Maximum operating frequency	3000 MHz
Minimum operating frequency
Maximum operating temperature	125 °C
Minimum operating temperature	-54 °C
RF/Microwave Device Types	FIXED ATTENUATOR
Maximum voltage standing wave ratio	1.35
Base Number Matches	1

Preview

Download Datasheet

View All

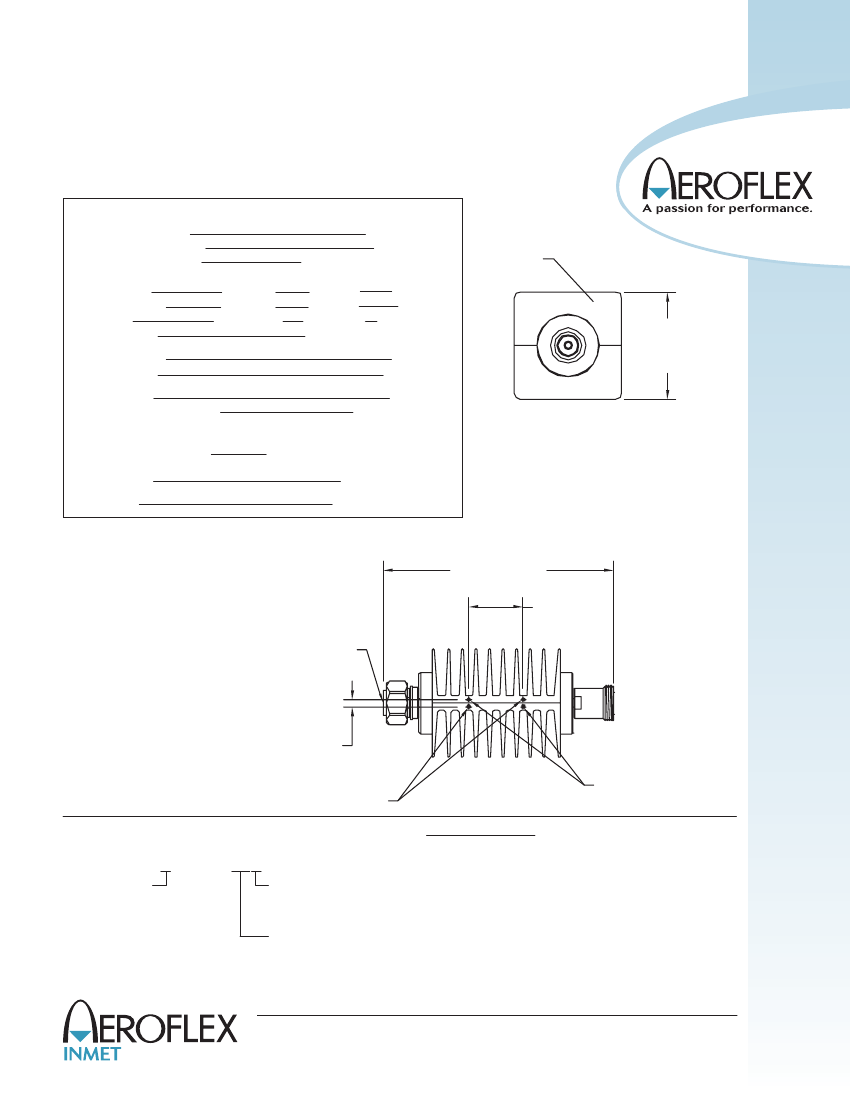

ATTENUATORS

7/16 - DIN, up to 3 GHz, 100 Watts

SPECIFICATIONS:

Models: XD100W-XX, XD100W-XXF & XD100W-XXM

Electrical:

Frequency Range

Standard Freq. Values

Standard dB Values*

Attenuation Accuracy

1 - 6 dB

10 - 40 dB

VSWR

Input Power

Output Power

Peak Power

Impedance

Operating Temp Range

DC - 3.0 GHz

1.5 & 3 GHz

1, 3, 6, 10, 20, 30 & 40 dB

1.5 - 2.5 GHz 2.5 - 3 GHz

±0.75 dB

±0.50 dB

±1.5 dB

±1.00 dB

1.35:1 Max.

1.25:1 Max.

100 Watts Avg. @ +25°C

Custom Mtg. hole Config.

may be Added to this

Surface

DC - 1.5 GHz

±0.50 dB

±0.75 dB

1.15:1 Max.

Derated Linearly to 20 Watts @ +125 C

20 Watts

2 kW Max.

(5uSec Pulse, .05% Duty Cycle)

3.46±.02

[87.88±0.51]

SQUARE

50 Ohms

-54°C to +125°C

Mechanical:

7/16 - DIN Connectors

Mates with DIN 47 223

Conductors

Housing

Silver Plated or White Bronze Alloy

Finished Brass

Silver or Gold Plated

Beryllium Copper or Brass

Anodized Aluminum

END VIEW

TYPICAL

Units must be Mounted in such a way as to

Allow for Free Air Flow Around fins to Assure

Performance

Note: Units are Unidirectional, Therefore Input Connector MUST be Specified & will be Indicated on Unit

Model Number:

XD100W-XX

Male/Female Connectors

Length: 7.41 ±.08 [188.2 ±2.0]

Pictured

7.41±.08

[188.24±2.03]

1.75 [44.45]

Model Number:

XD100W-XXF

Female/Female Connectors

Length: 7.55 ±.08 [191.8 ±2.0]

INPUT

Model Number:

XD100W-XXM

Male/Male Connectors

Length: 7.27 ±.08 [184.7 ±2.0]

.23 [5.84]

2X 8-32UNC-2B TAP

x .50 [12.7] DP.

Ordering Examples:

Model Number:

1D100W-30

DC - 1.5 GHz, 30 dB; 7/16 - DIN, Male/Fem

Connector Configuration

= Male/Female

F = Fem/Fem

M = Male/Male

dB Value

Model Number:

3D100W-3F

DC - 3 GHz, 3 dB; 7/16 - DIN, Fem/Fem

Model Number:

3D100W-20M

DC - 3 GHz, 20 dB; 7/16 - DIN, Male/Male

2X M4x0.7 TAP

x .50 [12.7] DP.

HOW TO ORDER:

Model Number:

XD100W-XXY

Freq. Range

1 = DC - 1.5 GHz

3 = DC - 3 GHz

Note: Dimensions in Brackets are Expressed in Millimeters and are for Reference Only.

*Other dB units are also available. Units that operate over a more specific frequency band and/or

offer very low return loss (VSWR) are available.

XD100W-ATT: REV H

Aeroflex / Inmet, Inc.

• 300 Dino Drive, Ann Arbor, MI 48103 • U.S.A.

888-244-6638 or 734-426-5553 • FAX: 734-426-5557

www.aeroflex-inmetcorp.com • sales@aeroflex-inmetcorp.com
