Bulletin I2789 rev. A 10/02
IR4GBU..LS Series
4.0 Amps Single Phase Full Wave
Features
Diode chips are glass passivated
Suitable for Universal hole mounting
Easy to assemble & install on P.C.B.
Surge Current Capability - 90A
PK
High Isolation between terminals and molded case (1500V
RMS
)
Lead free terminals solderable as per MIL-STD-750, Method 2026
Terminals suitable for High Temperature soldering guaranteed at
260°C/ 8-10secs
UL E160375 approved
Bridge Rectifier
I
O(AV)
= 4A
V
RRM
= 200/ 600V
Description
These IR4GBU.. Series of Single Phase Bridges
consist of four glass passivated silicon junction
connected as a Full Wave Bridge. These four
junctions are encapsulated by plastic molding
technique. These Bridges are mainly used in Switch
Mode power supply and in industrial and consumer
equipment.
Major Ratings and Characteristics
Parameters
I
O
@ T
C
I
FSM
@ 50Hz
@ 60Hz
I
2
t
@ 50Hz
@ 60Hz
V
RRM
T
J
range
IR4GBU..LS
4
100
90
94
40
36
200 to 600
- 55 to 150
Units
A
°
C
A
A
A
2
s
A
2
s
V
o
GBU
C
www.irf.com
1
IR4GBU..LS Series
Bulletin I2789 rev. A 10/02
ELECTRICAL SPECIFICATIONS
Voltage Ratings
Voltage
Type number Code
V
RRM
, max repetitive
peak rev. voltage
T
J
= T
J
max.
V
200
400
600
V
RSM
, max non-repetitive
peak rev. voltage
T
J
= T
J
max.
V
300
500
700
I
RRM
max.
@ rated V
RRM
T
J
= 25°C
µA
5
5
5
I
RRM
max.
@ rated V
RRM
T
J
= 150°C
µA
250
250
250
IR4GBU..LS
IR4GBU..LSF
02
04
06
Forward Conduction
Parameters
I
O
I
FSM
Maximum DC output current
Maximum peak, one-cycle
non-repetitive surge current,
following any rated load condition
and with rated V
RRM
reapplied
I
2
t
V
FM
I
RM
V
RRM
Maximum I
2
t for fusing,
initial T
J
= T
J
max
Maximum peak forward voltage
per diode
Typical peak reverse leakage
curren t per diode
Maximum repetitive peak
reverse voltage range
40
36
0.975
5
200 to 600
V
µA
V
A
2
s
t = 10ms
t = 8.3ms
T
J
= 25
o
C, I
FM
= 2A
T
J
= 25
o
C, 100% V
RRM
94
t = 8.3ms, 16.7ms
T
J
= 150°C
IR4GBU..LS
4
3.2
90
Unit
A
Conditions
T
C
= 100°C, Resistive & inductive load
T
C
= 100°C, Capacitive load
t = 10ms, 20ms
Thermal and Mechanical Specifications
Parameters
T
J
T
stg
R
thJC
R
thJA
W
T
Operating and storage
temperature range
Max. thermal resistance
junction to case
Thermal resistance,
junction to ambient
Approximate weight
Mounting Torque
4 (0.14)
1.0
9.0
g (oz)
Nm
Lb.in
Bridge to Heatsink
26
°C/ W
DC rated current through bridge (1)
5.0
°C/ W
DC rated current through bridge (1)
IR4GBU..LS
-55 to 150
Unit
o
Conditions
C
Note (1): Devices mounted on 40x 40x1.5mm aluminum plate; use silicon thermal compound for maximum heat
transfer and bolt down using 3mm screw
2
www.irf.com
IR4GBU..LS Series
Bulletin I2789 rev. A 10/02
Maximum Allowable Case Temperature (°C)
150
140
130
120
110
100
90
0
1
2
3
4
5
Average Forward Current (A)
Fig. 1 - Current Ratings Characteristics
Instantaneous Forward Current (A)
100
10
T
J
= 25˚C
180˚
(Rect)
180˚
(Sine)
1
T
J
= 150˚C
0.1
0.5
1
1.5
2
2.5
3
Instantaneous Forward Voltage (V)
Fig. 2 - Forward Voltage Drop Characteristics
Maximum Average Forward Power Loss (W)
8
7
6
5
4
3
2
1
0
0
1
2
3
4
Average Forward Current (A)
Fig. 3 - Total Power Loss Characteristics
Peak Half Sine Wave Forward Current (A)
100
90
80
70
60
50
40
30
20
1
180˚
(Sine)
180˚
(Rect)
At Any Rated Load Condition And With
Rated Vrrm Applied Following Surge.
Initial Tj = 150˚C
@ 60 Hz 0.0083 s
@ 50 Hz 0.0100 s
T
J
= 150˚C
10
100
Number of Equal Amplitude Half Cycle Current Pulses (N)
Fig. 4 - Maximum Non-Repetitive Surge Current
www.irf.com
3
IR4GBU..LS Series
Bulletin I2789 rev. A 10/02
Ordering Information Table
Device Code
IR
1
1
2
3
4
5
6
-
-
-
-
-
-
4
2
GBU
3
06
4
LS
5
F
6
IR Bridge
4 Amps
Basic Part Number
Voltage Code: code x 100 = V
RRM
Low surge
Lead Forming:7.5 mm
Outline Table
IR4GBU..LS
4
www.irf.com
IR4GBU..LS Series
Bulletin I2789 rev. A 10/02

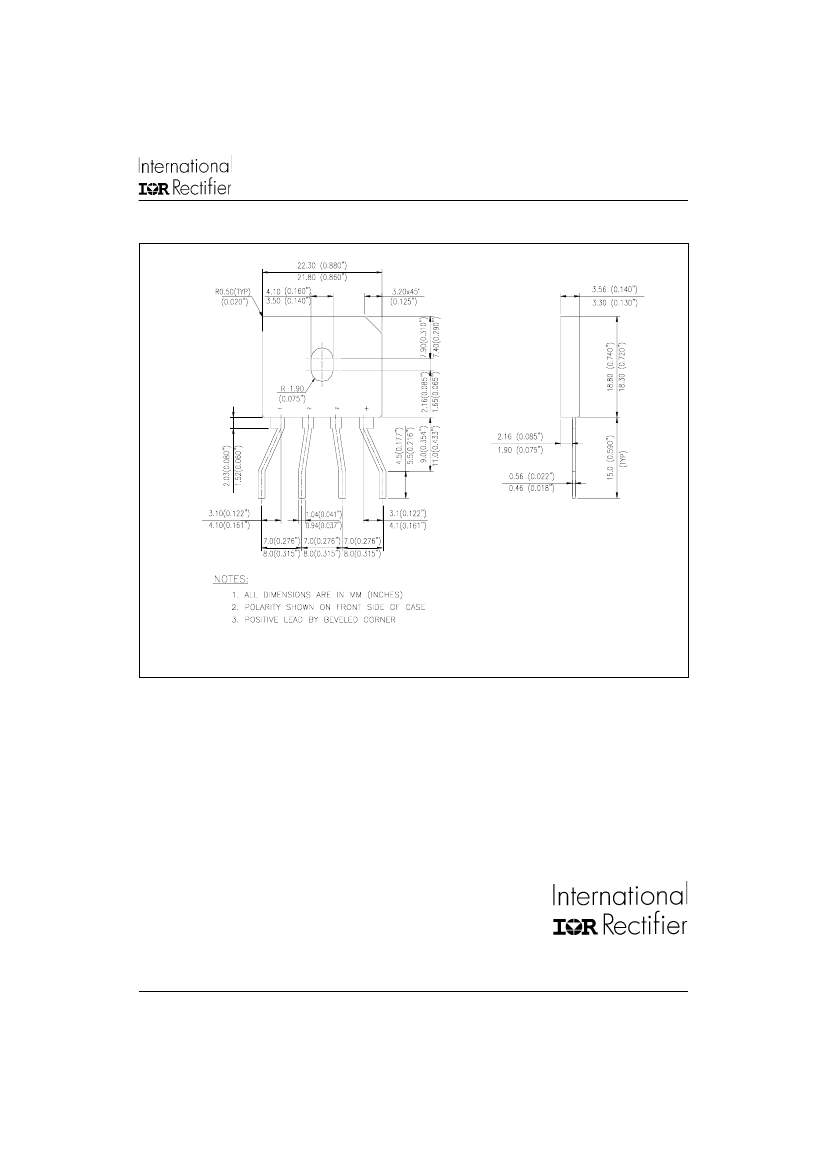

Outline Table
IR4GBU..LSF
Add suffix "F" for 7.5 mm equal space lead forming
Data and specifications subject to change without notice.
This product has been designed and qualified for Industrial and Consumer Level.
Qualification Standards can be found on IR's Web site.
