630S031XM0419 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> 630S031XM0419

630S031XM0419: DescriptionCircular Connector Adapter, 19 Contact(s); CategoryThe connector The connector; File Size72KB，1 Pages; ManufacturerGlenair; Websitehttp://www.glenair.com/

Download Datasheet Parametric View All

630S031XM0419 Overview

Circular Connector Adapter, 19 Contact(s)

630S031XM0419 Parametric

Parameter Name	Attribute value
Maker	Glenair
Reach Compliance Code	compliant
Connector type	CIRCULAR CONNECTOR ADAPTER
Coupling type	THREADED
DIN compliance	NO
empty shell	NO
Filter function	NO
IEC compliance	NO
MIL compliance	NO
Manufacturer's serial number	630
Mixed contacts	NO
Installation type	PANEL
Options	GENERAL PURPOSE
Total number of contacts	19
Base Number Matches	1

Preview

Download Datasheet

View All

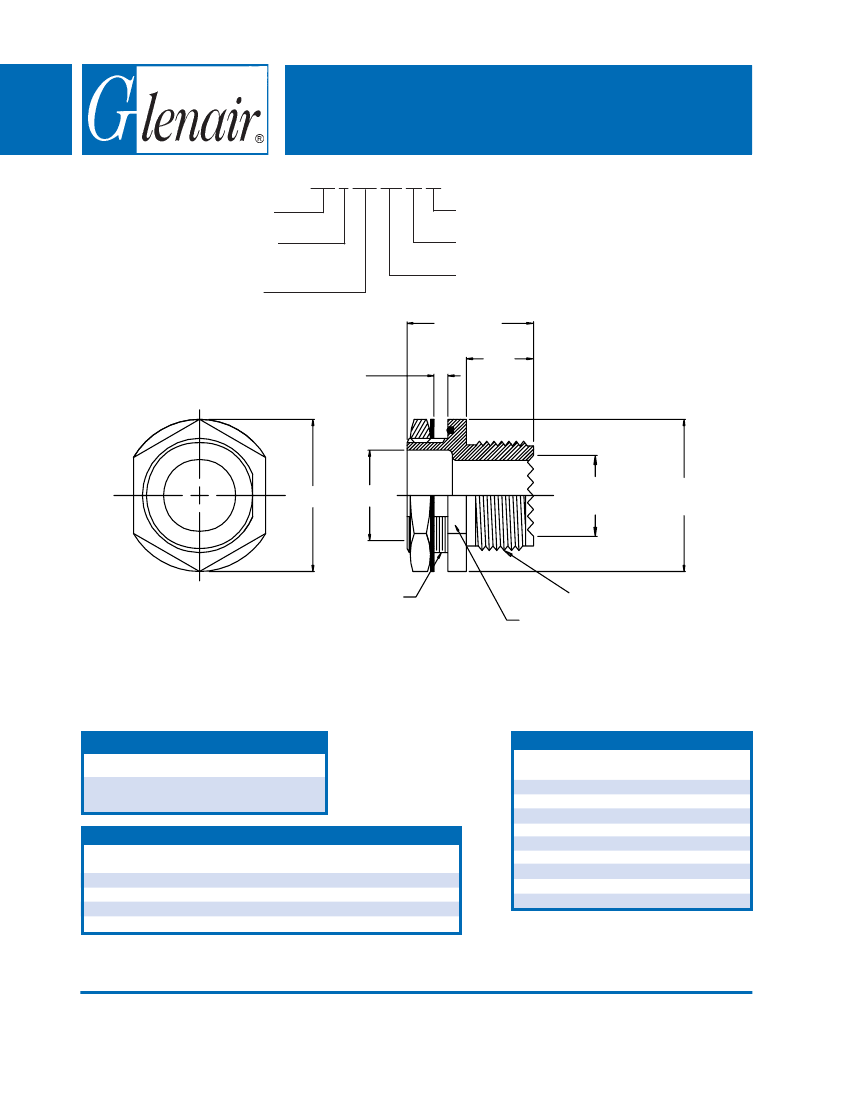

637-031

Composite Thru-Box, Panel and Bulkhead

Universal Environmental Adapter

630 S 031 XM 04 17

Product Series

Angular Function

S = Straight

Basic Part No.

1.06 (26.9)

.39

(10)

Connector Shell Size (Table III)

Bulkhead Thread Size (Table II)

Finish (Table I)

Thru-Box

Fittings

.256 (6.5) Max

Panel Thickness

C Ref.

A Thread

M Thread, See Note 2

Wrench Flats

1. Metric dimensions (mm) are indicated in parentheses.

2. MIL-C-38999 Series 3 & 4 Accessory Interface, Glenair Code H.

TABLE III: CONNECTOR SHELL SIZE

Shell

Size

M Thread

ISO Metric

M 12 x 1.0-6g

M 15 x 1.0-6g

M 18 x 1.0-6g

M 22 x 1.0-6g

M 25 x 1.0-6g

M 28 x 1.0-6g

M 31 x 1.0-6g

M 34 x 1.0-6g

M 37 x 1.0-6g

D Min

.250

(6.4)

.375

(9.5)

.500 (12.7)

.625 (15.9)

.750 (19.1)

.812 (20.6)

.938 (23.8)

1.062 (27.0)

1.188 (30.2)

TABLE I: FINISH

Electroless Nickel

Cadmium Olive Drab Over

Electroless Nickel

TABLE II: BULKHEAD THREAD SIZE

Dash

No.

A Thread

ISO Metric

M 16 x 1.5-6g

M 20 x 1.5-6g

M 27 x 2.0-6g

M 36 x 2.0-6g

B Dia.

Min.

.394 (10.0)

.551 (14.0)

.866 (22.0)

1.181 (30.0)

C Max.

1.070 (27.2)

1.200 (30.5)

1.510 (38.4)

2.010 (51.1)

Max Entry

Table 3

CAGE Code 06324

Printed in U.S.A.

GLENAIR, INC.

•

1211 AIR WAY

•

GLENDALE, CA 91201-2497

•

818-247-6000

•

FAX 818-500-9912

www.glenair.com

E-Mail: sales@glenair.com

G-4
