JANTXV2N3635 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Discrete semiconductor> The transistor> JANTXV2N3635

JANTXV2N3635: DescriptionSmall Signal Bipolar Transistor, 1A I(C), 140V V(BR)CEO, 1-Element, PNP, Silicon, TO-39, TO-39, 3 PIN; CategoryDiscrete semiconductor The transistor; File Size49KB，2 Pages; ManufacturerMicrosemi; Websitehttps://www.microsemi.com

Download Datasheet Parametric Compare View All

JANTXV2N3635 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	JANTXV2N3635	-	-	View	Buy Now

JANTXV2N3635 Overview

Small Signal Bipolar Transistor, 1A I(C), 140V V(BR)CEO, 1-Element, PNP, Silicon, TO-39, TO-39, 3 PIN

JANTXV2N3635 Parametric

Parameter Name	Attribute value
Is it lead-free?	Contains lead
Is it Rohs certified?	incompatible
Objectid	2078586673
Parts packaging code	BCY
package instruction	TO-39, 3 PIN
Contacts	2
Reach Compliance Code	unknown
ECCN code	EAR99
Maximum collector current (IC)	1 A
Collector-emitter maximum voltage	140 V
Configuration	SINGLE
Minimum DC current gain (hFE)	60
JEDEC-95 code	TO-39
JESD-30 code	O-MBCY-W3
JESD-609 code	e0
Number of components	1
Number of terminals	3
Maximum operating temperature	175 °C
Package body material	METAL
Package shape	ROUND
Package form	CYLINDRICAL
Polarity/channel type	PNP
Maximum power dissipation(Abs)	1 W
Certification status	Qualified
Guideline	MIL-19500/357H
surface mount	NO
Terminal surface	TIN LEAD
Terminal form	WIRE
Terminal location	BOTTOM
transistor applications	SWITCHING
Transistor component materials	SILICON
Nominal transition frequency (fT)	200 MHz
Maximum off time (toff)	650 ns
Maximum opening time (tons)	200 ns

Preview

Download Datasheet

View All

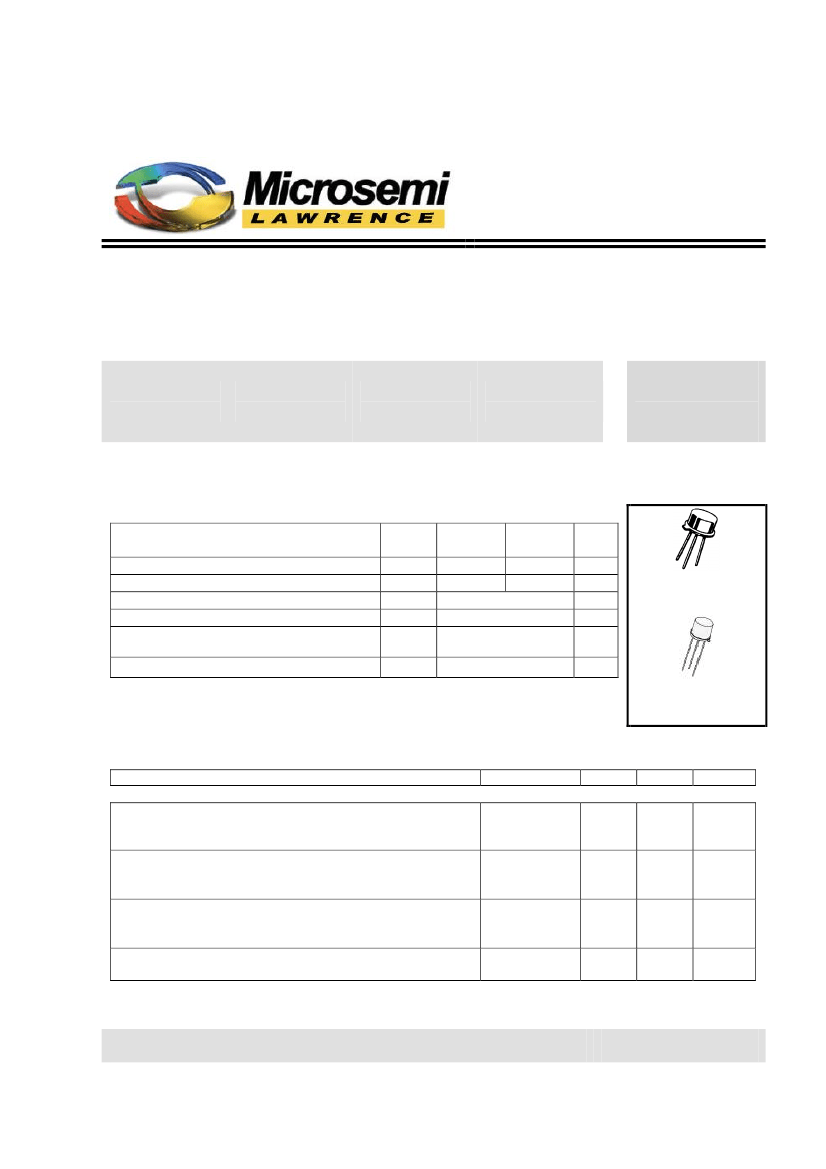

TECHNICAL DATA

PNP SILICON AMPLIFIER TRANSISTOR

Qualified per MIL-PRF-19500/357

Devices

2N3634

2N3634L

2N3635

2N3635L

2N3636

2N3636L

2N3637

2N3637L

Qualified Level

JAN

JANTX

JANTXV

JANS

MAXIMUM RATINGS

Ratings

Collector-Emitter Voltage

Collector-Base Voltage

Emitter-Base Voltage

Collector Current

Total Power Dissipation

Symbol

CEO

CBO

EBO

2N3634*

2N3635*

140

2N3636*

2N3637*

175

Unit

TO-39* (TO-205AD)

2N3634, 2N3635

2N3636, 2N3637

Vdc

5.0

Vdc

1.0

Adc

0 (1)

@ T

= +25 C

1.0

0 (2)

@ T

= +25 C

5.0

Operating & Storage Junction Temperature Range

-65 to +200

stg

*Electrical characteristics for “L” suffix devices are identical to the “non L” corresponding devices

1) Derate linearly 5.71 mW/

C for T

> +25

2) Derate linearly 28.6 mW/

C for T

> +25

TO-5*

2N3634, 2N3635

2N3636, 2N3637

*See appendix A for

package outline

ELECTRICAL CHARACTERISTICS (T

= 25

C unless otherwise noted)

Characteristics

Symbol

Min.

Max.

Unit

OFF CHARACTERISTICS

Collector-Emitter Breakdown Current

= 10 mAdc

Collector-Base Cutoff Current

= 100 Vdc

= 140 Vdc

Emitter-Base Cutoff Current

= 3.0 Vdc

= 5.0 Vdc

Collector-Emitter Cutoff Current

= 100 Vdc

2N3634, 2N3635

2N3636, 2N3637

(BR)

CEO

140

175

100

Vdc

ηAdc

µAdc

ηAdc

µAdc

CBO

2N3634, 2N3635

EBO

CEO

6 Lake Street, Lawrence, MA 01841

1-800-446-1158 / (978) 794-1666 / Fax: (978) 689-0803

120101

Page 1 of 2
