Note: Unbalanced is measured between ground-signal-ground conductors.
Environmental
Temperature Rating:
-20°C to +105°C
Canada: FT1
Flammability Rating:
USA: VW-1
Regulatory Classification:
EU: Compliant, see RIA note E1
CN: , see RIA note C1
Regulatory Information Appendix (RIA) attached
UL File No.: E42769, Style No: 2682
3
Interconnect Solutions
http://www.3M.com/interconnects/
3M is a trademark of 3M Company.
For technical, sales or ordering information call
800-225-5373
3M
™

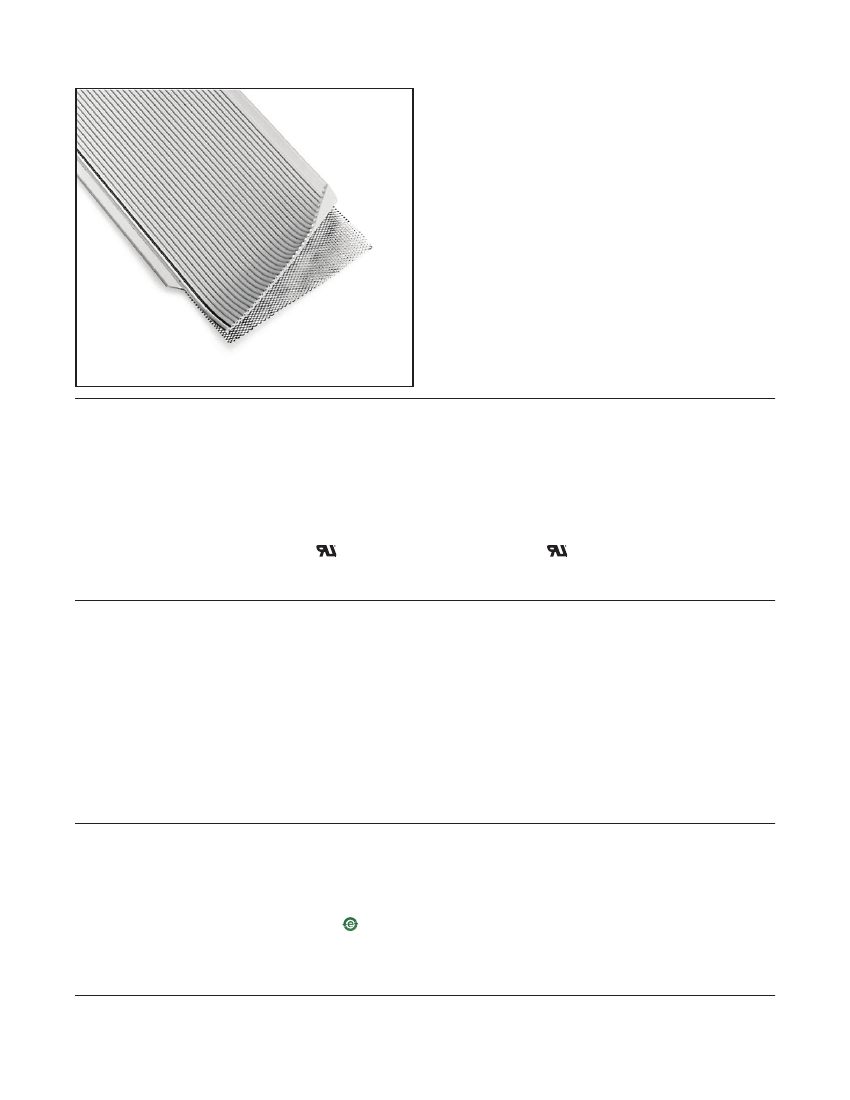

Ground Plane Cable
.050" 28 AWG Stranded, One Drain, PVC
Number of
Conductors
10
14
15
C
(OPTIONAL)
3476 Series
3M Part
Number
3476/10
3476/14
3476/15
3476/16
3476/20
3476/24
3476/25
3476/26
3476/34
3476/37
3476/40
3476/50
3476/60
3476/64
Dimension A
0.750 ± .015 [ 19.05 ]
0.950 ± .015 [ 24.13 ]
1.000 ± .015 [ 25.40 ]
1.050 ± .015 [ 26.67 ]
1.250 ± .015 [ 31.75 ]
1.450 ± .015 [ 36.83 ]
1.500 ± .015 [ 38.10 ]
1.550 ± .015 [ 39.37 ]
1.950 ± .015 [ 49.53 ]
2.100 ± .015 [ 53.34 ]
2.250 ± .015 [ 57.15 ]
2.750 ± .015 [ 69.85 ]
3.250 ± .015 [ 82.55 ]
3.450 ± .015 [ 87.63 ]
Dimension B
0.450 ± .010 [ 11.43 ]
0.650 ± .010 [ 16.51 ]
0.700 ± .010 [ 17.78 ]
0.750 ± .010 [ 19.05 ]
0.950 ± .010 [ 24.13 ]
1.150 ± .010 [ 29.21 ]
1.200 ± .010 [ 30.48 ]
1.250 ± .010 [ 31.75 ]
1.650 ± .010 [ 41.91 ]
1.800 ± .010 [ 45.72 ]
1.950 ± .010 [ 49.53 ]
2.450 ± .010 [ 65.23 ]
2.950 ± .010 [ 74.93 ]
3.150 ± .010 [ 80.01 ]
16
20
24
25
26
Inch
[mm]
Tolerance Unless Noted
.0
Inch
±.1
.00
±.01
.000
±.005
34
37
40
50
60
64
[ ] Dimensions for Reference Only
A
.150 ± .010
[ 3.81 ]
.050 ± .007
[ 1.27 ]
.047 ± .003
[ 1.19 ]
B
.050 ± .002 Typ
[ 1.27 ]
.005 [ 0.13 ] Expanded
Copper Ground Plane
PVC Insulation
28 AWG 7 X 36 [ 7 X 0.127 ] Tinned
Stranded Copper Conductors
Black Line Designates
Drain Wire
Red Line Designates Wire #1
Ordering Information
3476 / XX XX
Blank = Standard
C = Canadian Certified
Version
Number of Conductors
(See Table)
Blank = Standard
SF = Splice Free
Note: Available in standard 100 ft or 300 ft rolls, please
specify when ordering. Contact 3M for availability of
additional conductor counts and/or custom roll lengths.
TS-0071-C
Sheet 2 of 2
3
Interconnect Solutions
