CAT24C16J14I-2.7TE13 datasheet, PDF

CAT24C16J14I-2.7TE13: DescriptionEEPROM, 2KX8, Serial, CMOS, PDSO14, 0.150 INCH, SOIC-14; Categorystorage storage; File Size367KB，8 Pages; ManufacturerCatalyst; Websitehttp://www.catalyst-semiconductor.com/

Download Datasheet Parametric View All

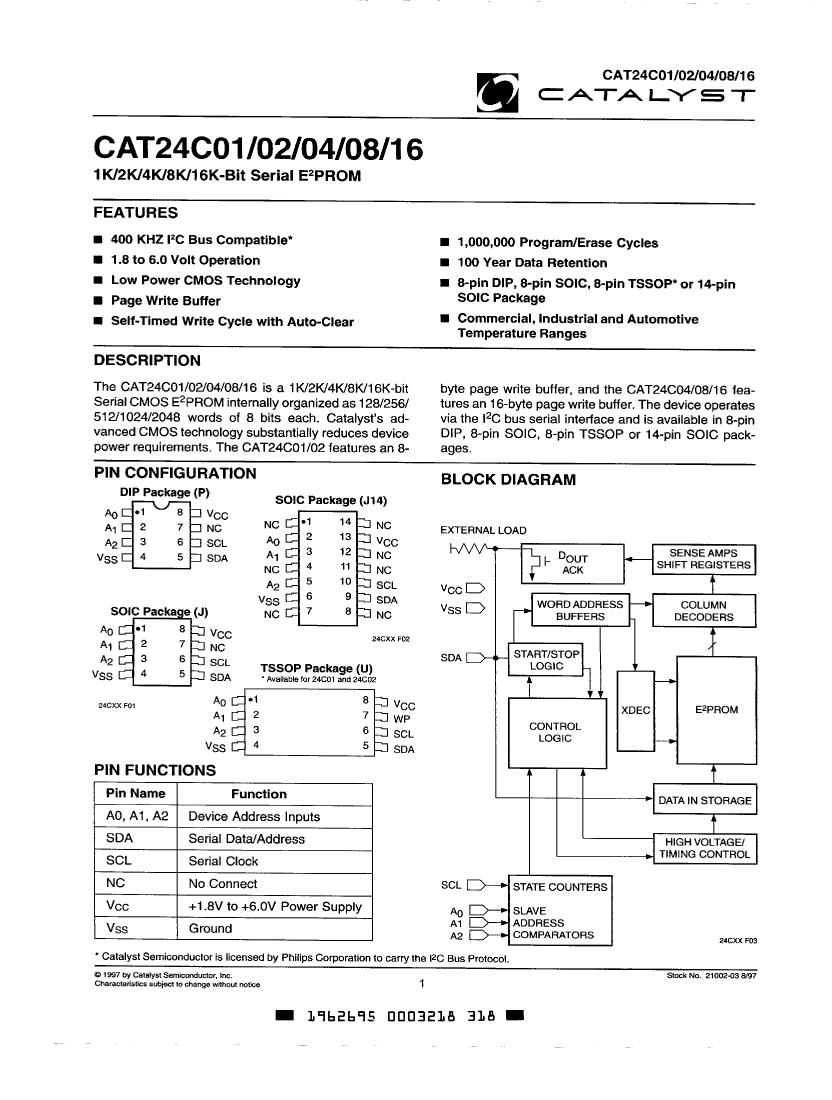

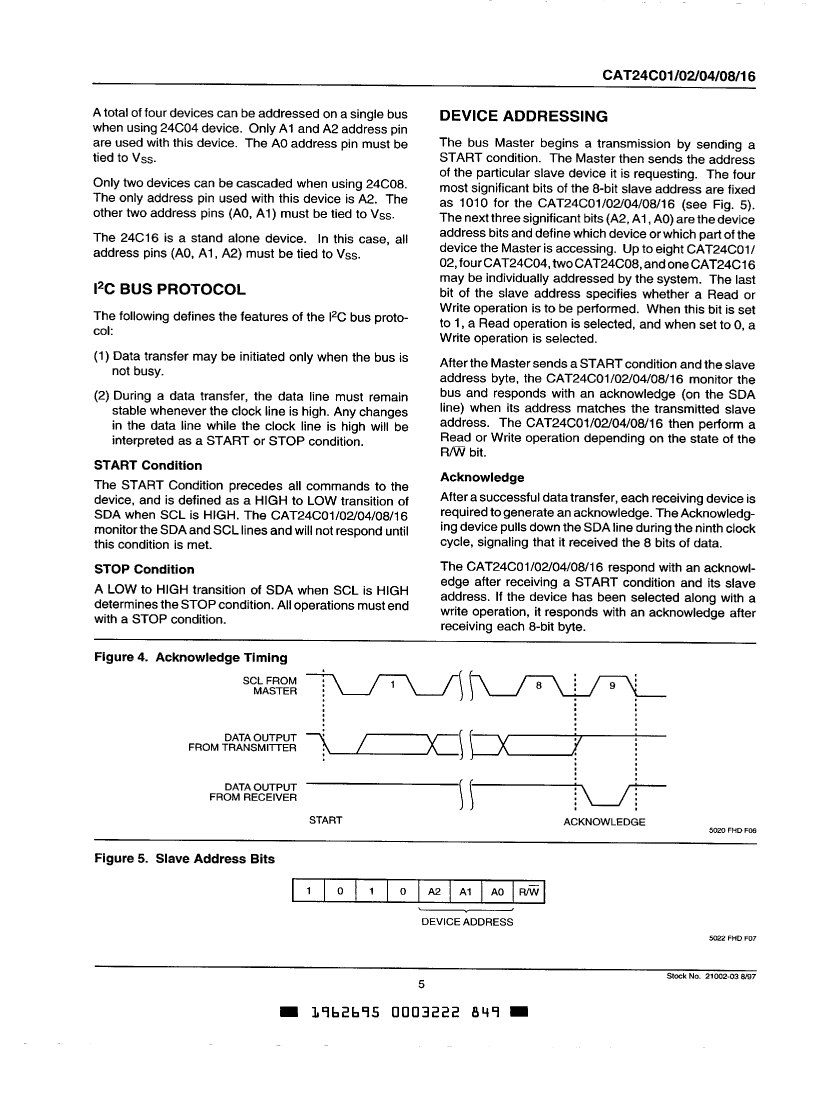

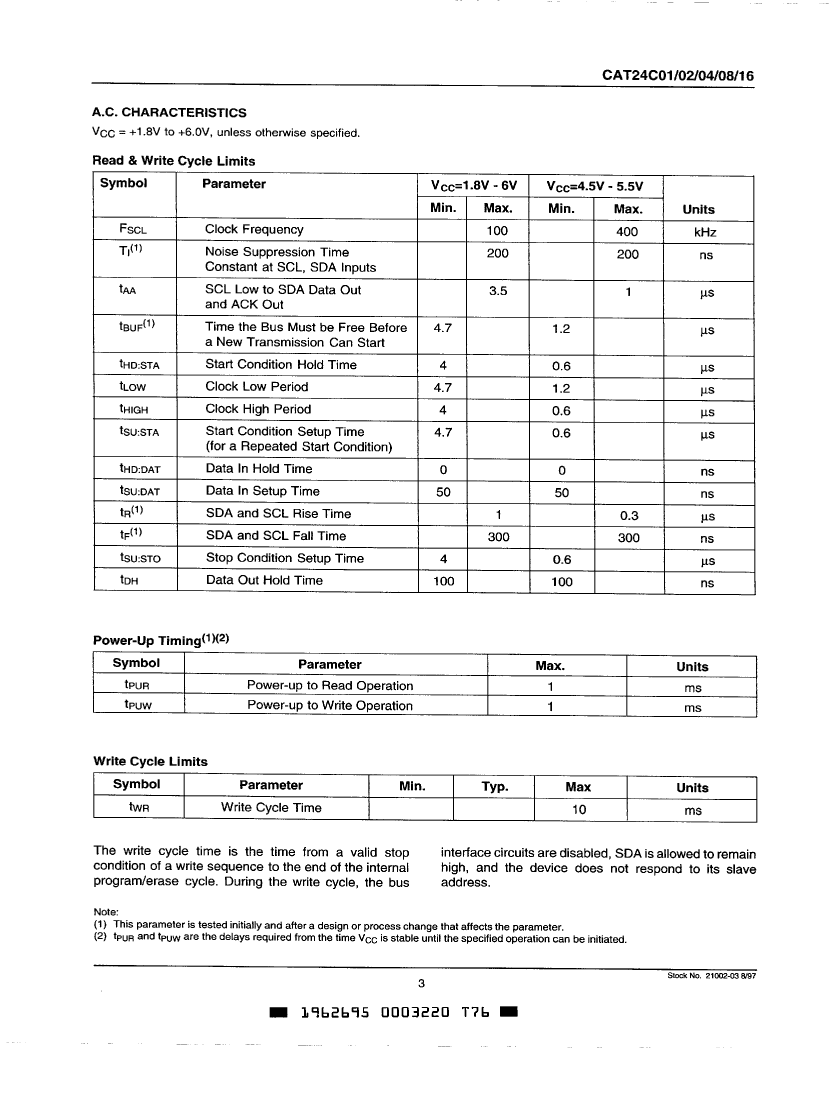

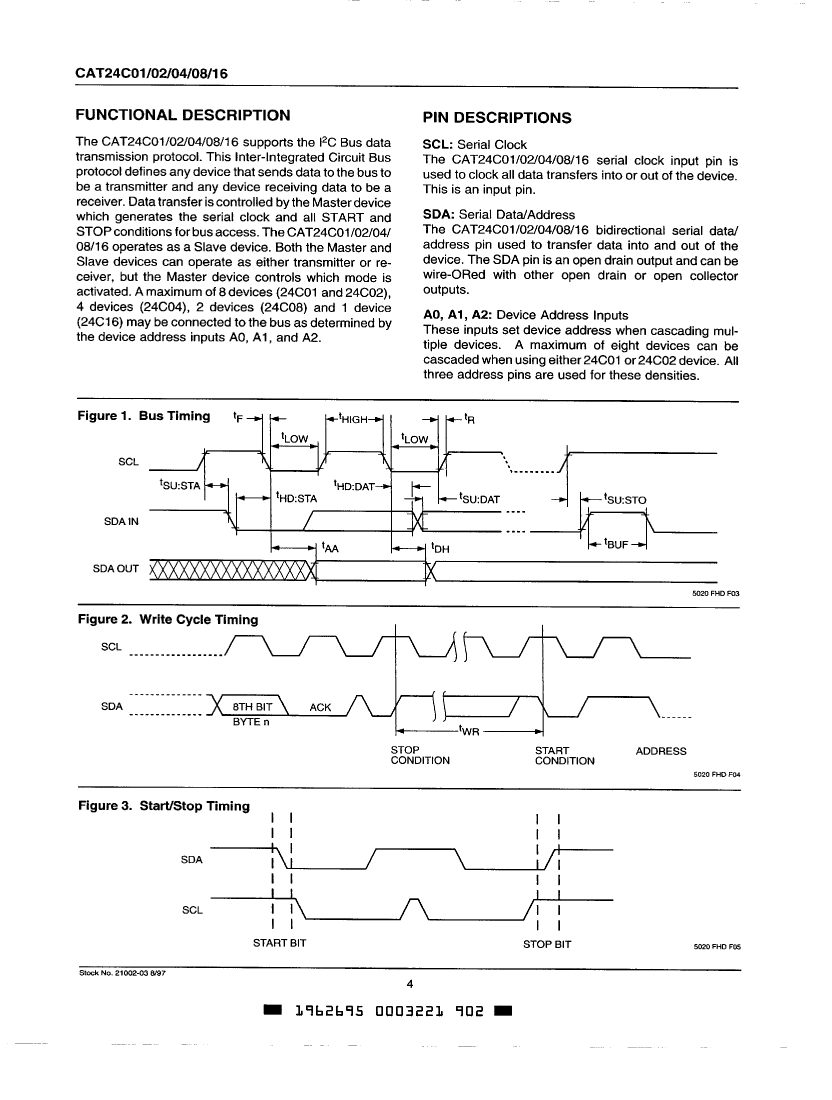

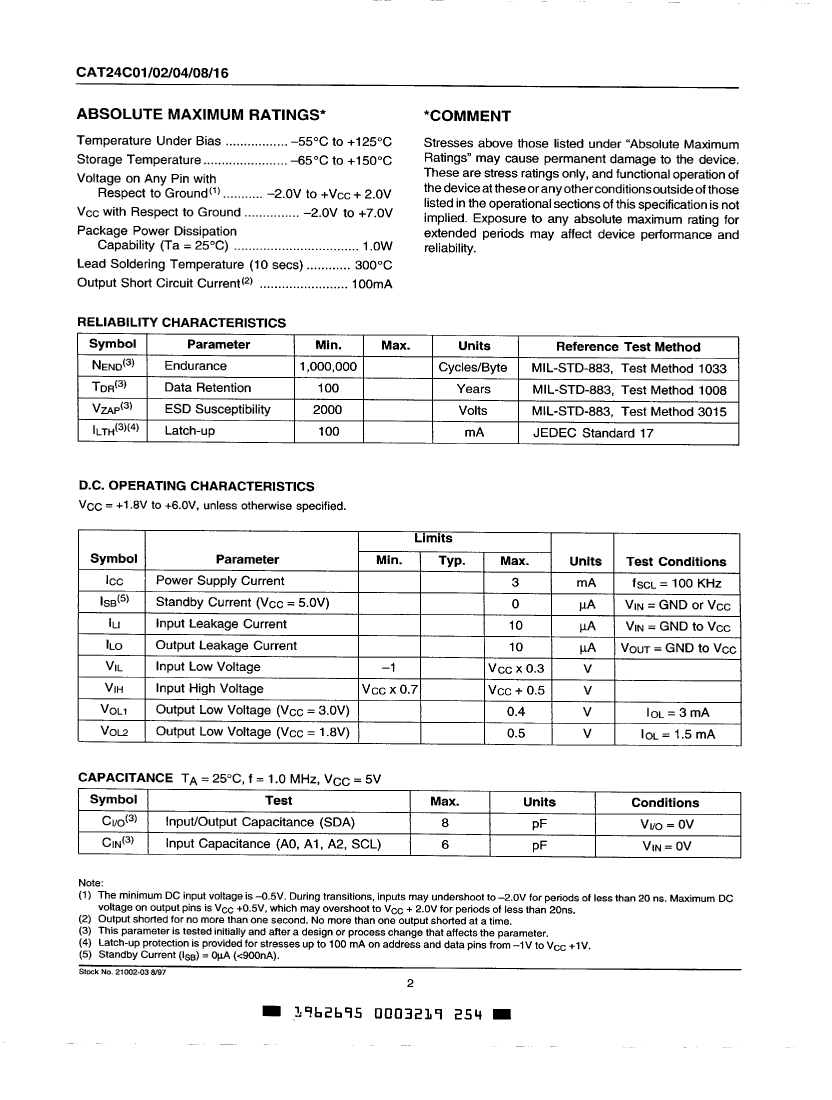

CAT24C16J14I-2.7TE13 Overview

EEPROM, 2KX8, Serial, CMOS, PDSO14, 0.150 INCH, SOIC-14

Parameter Name	Attribute value
Maker	Catalyst
Parts packaging code	SOIC
package instruction	SOP,
Contacts	14
Reach Compliance Code	unknown
ECCN code	EAR99
Other features	I2C BUS SERIAL INTERFACE; AUTOMATIC WRITE
Maximum clock frequency (fCLK)	0.1 MHz
JESD-30 code	R-PDSO-G14
length	8.65 mm
memory density	16384 bit
Memory IC Type	EEPROM
memory width	8
Number of functions	1
Number of terminals	14
word count	2048 words
character code	2000
Operating mode	SYNCHRONOUS
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
organize	2KX8
Output characteristics	OPEN-DRAIN
Package body material	PLASTIC/EPOXY
encapsulated code	SOP
Package shape	RECTANGULAR
Package form	SMALL OUTLINE
Parallel/Serial	SERIAL
Certification status	Not Qualified
Maximum seat height	1.75 mm
Serial bus type	I2C
Maximum supply voltage (Vsup)	6 V
Minimum supply voltage (Vsup)	2.7 V
Nominal supply voltage (Vsup)	5 V
surface mount	YES
technology	CMOS
Temperature level	INDUSTRIAL
Terminal form	GULL WING
Terminal pitch	1.27 mm
Terminal location	DUAL
width	3.9 mm
Maximum write cycle time (tWC)	10 ms
Base Number Matches	1
