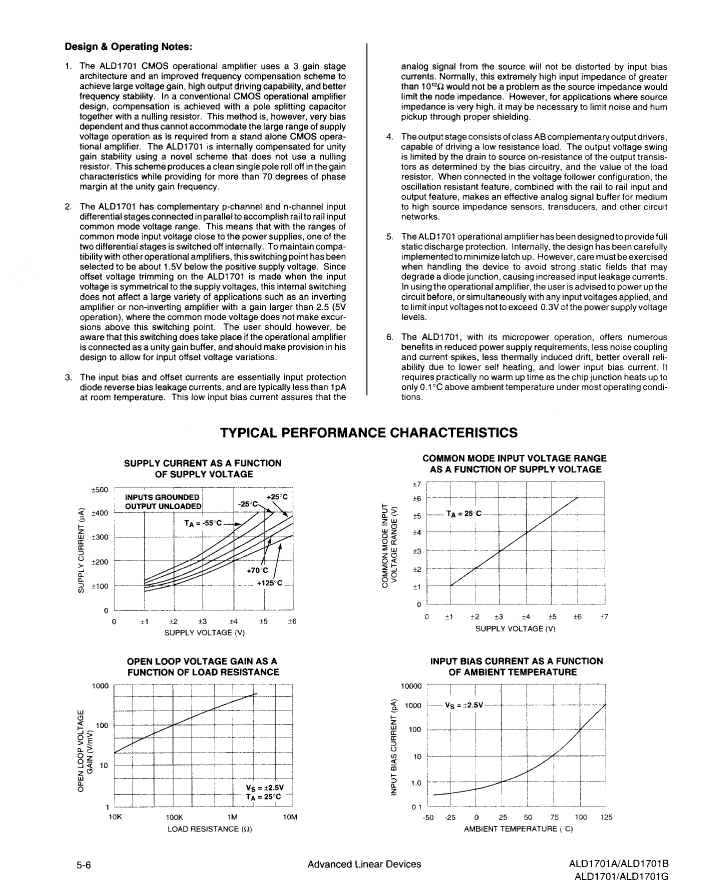

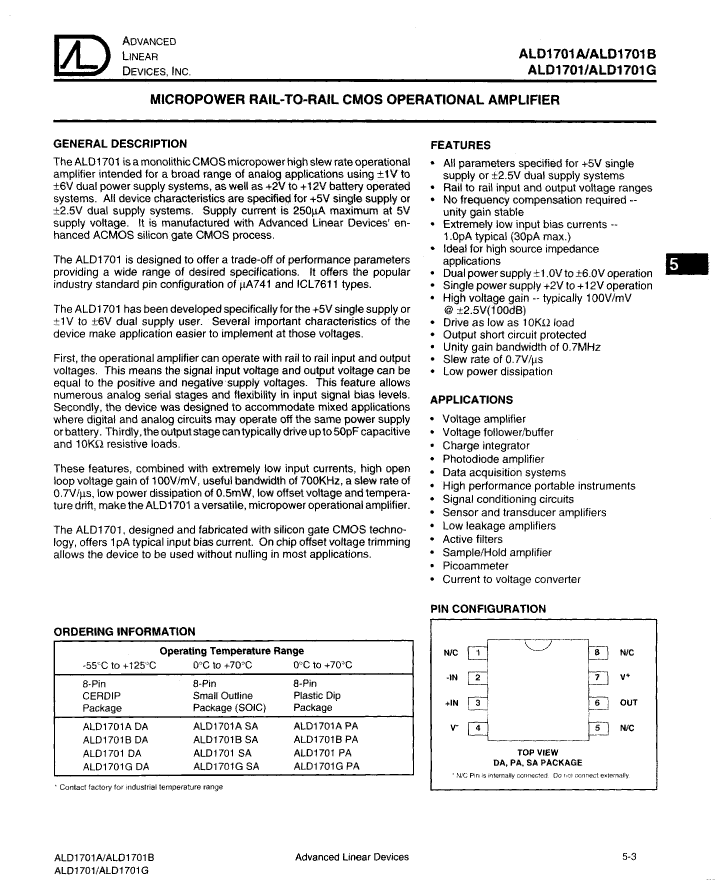

ALD1701ASAXXXX amplifier basic information:
ALD1701ASAXXXX is an OPERATIONAL AMPLIFIER.
ALD1701ASAXXXX amplifier core information:
The minimum operating temperature of the ALD1701ASAXXXX is and the maximum operating temperature is 70 °C. Its maximum average bias current is 0.0003 µA

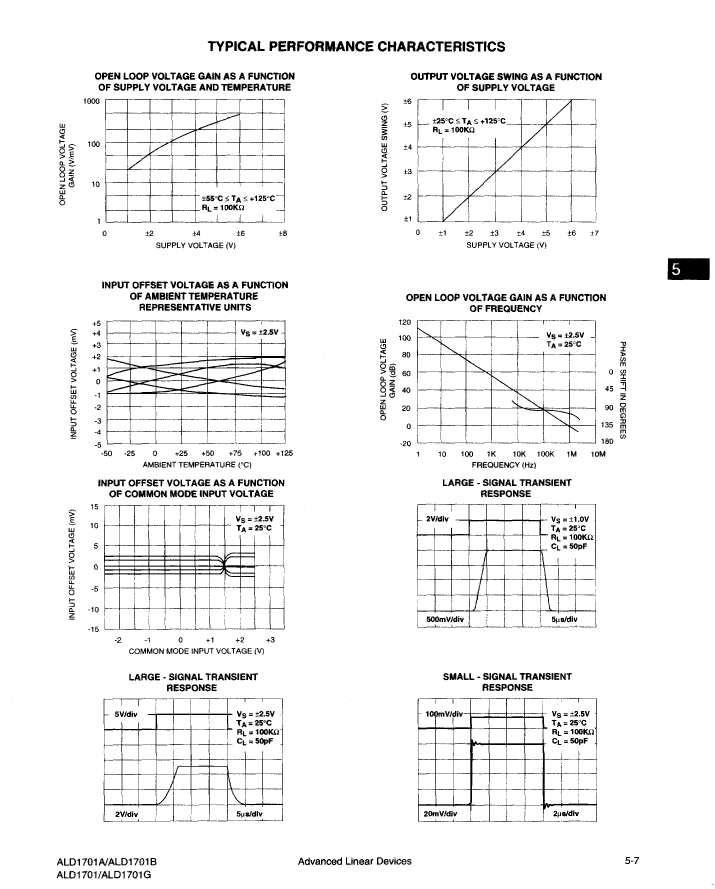

How to simply check the efficiency of an amplifier? Looking at its slew rate, the ALD1701ASAXXXX has a nominal slew rate of 0.7 V/us. When the op amp is used in a closed loop, at a certain closed-loop gain (usually 1 or 2, 10, etc.), the frequency when the ALD1701ASAXXXX gain becomes 0.707 times the low-frequency gain is 700 kHz.
The nominal supply voltage of the ALD1701ASAXXXX is 2.5 V, and its corresponding nominal negative supply voltage is -2.5 V. The upper limit of its supply voltage is 13.2 VALD1701ASAXXXX. The input offset voltage is 1700 µV (input offset voltage: the compensation voltage added between the two input terminals to make the output terminal of the operational amplifier 0V (or close to 0V).)
Related dimensions of ALD1701ASAXXXX:
ALD1701ASAXXXX has 8 terminals. Its terminal position type is: DUAL. Total pins: 8
ALD1701ASAXXXX amplifier additional information:
Its temperature grade is: COMMERCIAL. The corresponding JESD-30 code is: R-PDSO-G8. The packaging code of ALD1701ASAXXXX is: SOP. ALD1701ASAXXXX packaging materials are mostly PLASTIC/EPOXY. The package shape is RECTANGULAR.
The ALD1701ASAXXXX package pin formats are: SMALL OUTLINE. Its terminal forms are: GULL WING.
ALD1701ASAXXXX amplifier basic information:
ALD1701ASAXXXX is an OPERATIONAL AMPLIFIER.
ALD1701ASAXXXX amplifier core information:
The minimum operating temperature of the ALD1701ASAXXXX is and the maximum operating temperature is 70 °C. Its maximum average bias current is 0.0003 µA
How to simply check the efficiency of an amplifier? Looking at its slew rate, the ALD1701ASAXXXX has a nominal slew rate of 0.7 V/us. When the op amp is used in a closed loop, at a certain closed-loop gain (usually 1 or 2, 10, etc.), the frequency when the ALD1701ASAXXXX gain becomes 0.707 times the low-frequency gain is 700 kHz.
The nominal supply voltage of the ALD1701ASAXXXX is 2.5 V, and its corresponding nominal negative supply voltage is -2.5 V. The upper limit of its supply voltage is 13.2 VALD1701ASAXXXX. The input offset voltage is 1700 µV (input offset voltage: the compensation voltage added between the two input terminals to make the output terminal of the operational amplifier 0V (or close to 0V).)
Related dimensions of ALD1701ASAXXXX:
ALD1701ASAXXXX has 8 terminals. Its terminal position type is: DUAL. Total pins: 8
ALD1701ASAXXXX amplifier additional information:
Its temperature grade is: COMMERCIAL. The corresponding JESD-30 code is: R-PDSO-G8. The packaging code of ALD1701ASAXXXX is: SOP. ALD1701ASAXXXX packaging materials are mostly PLASTIC/EPOXY. The package shape is RECTANGULAR.
The ALD1701ASAXXXX package pin formats are: SMALL OUTLINE. Its terminal forms are: GULL WING.

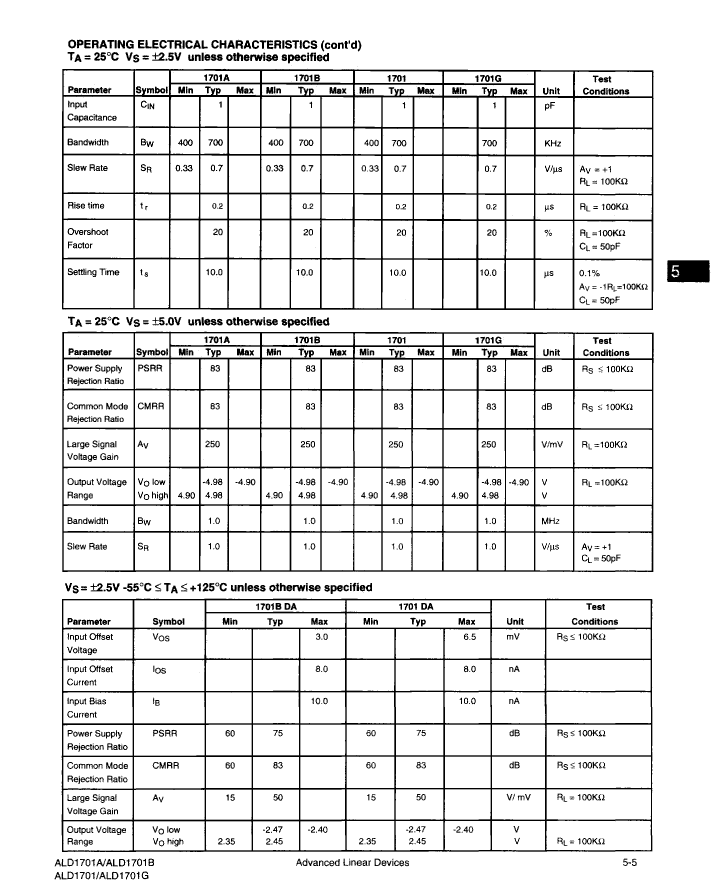

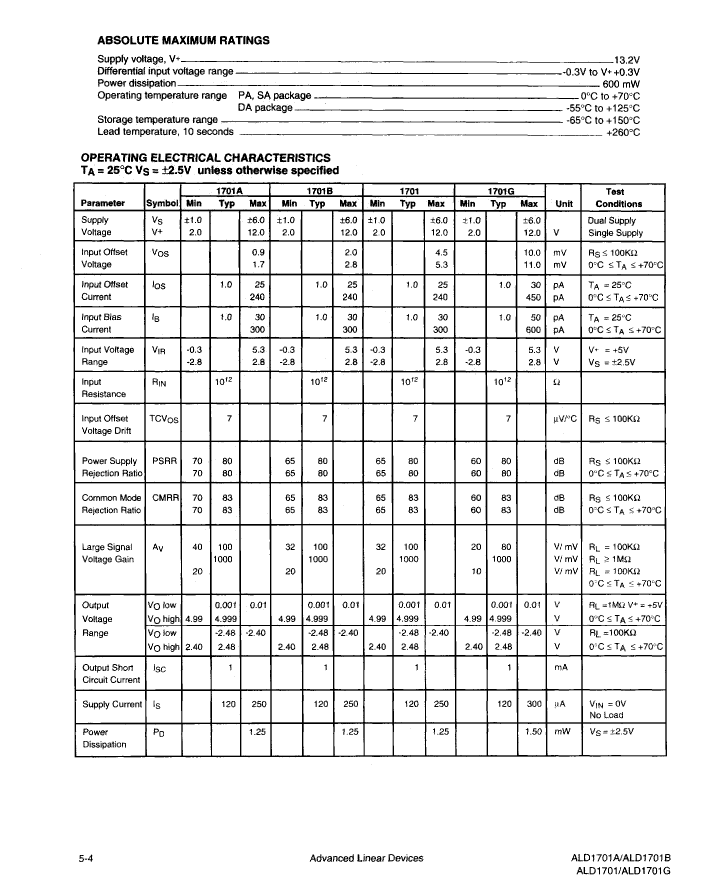

| Parameter Name | Attribute value |
| Parts packaging code | SOIC |
| Contacts | 8 |
| Reach Compliance Code | unknown |
| ECCN code | EAR99 |
| Amplifier type | OPERATIONAL AMPLIFIER |
| Maximum average bias current (IIB) | 0.0003 µA |
| Nominal Common Mode Rejection Ratio | 83 dB |
| Maximum input offset voltage | 1700 µV |
| JESD-30 code | R-PDSO-G8 |
| Nominal Negative Supply Voltage (Vsup) | -2.5 V |
| Number of functions | 1 |
| Number of terminals | 8 |
| Maximum operating temperature | 70 °C |
| Minimum operating temperature | |
| Package body material | PLASTIC/EPOXY |
| encapsulated code | SOP |
| Package shape | RECTANGULAR |
| Package form | SMALL OUTLINE |
| Certification status | Not Qualified |
| Nominal slew rate | 0.7 V/us |
| Supply voltage upper limit | 13.2 V |
| Nominal supply voltage (Vsup) | 2.5 V |
| surface mount | YES |
| technology | CMOS |
| Temperature level | COMMERCIAL |
| Terminal form | GULL WING |
| Terminal location | DUAL |
| Nominal Uniform Gain Bandwidth | 700 kHz |
| Base Number Matches | 1 |
