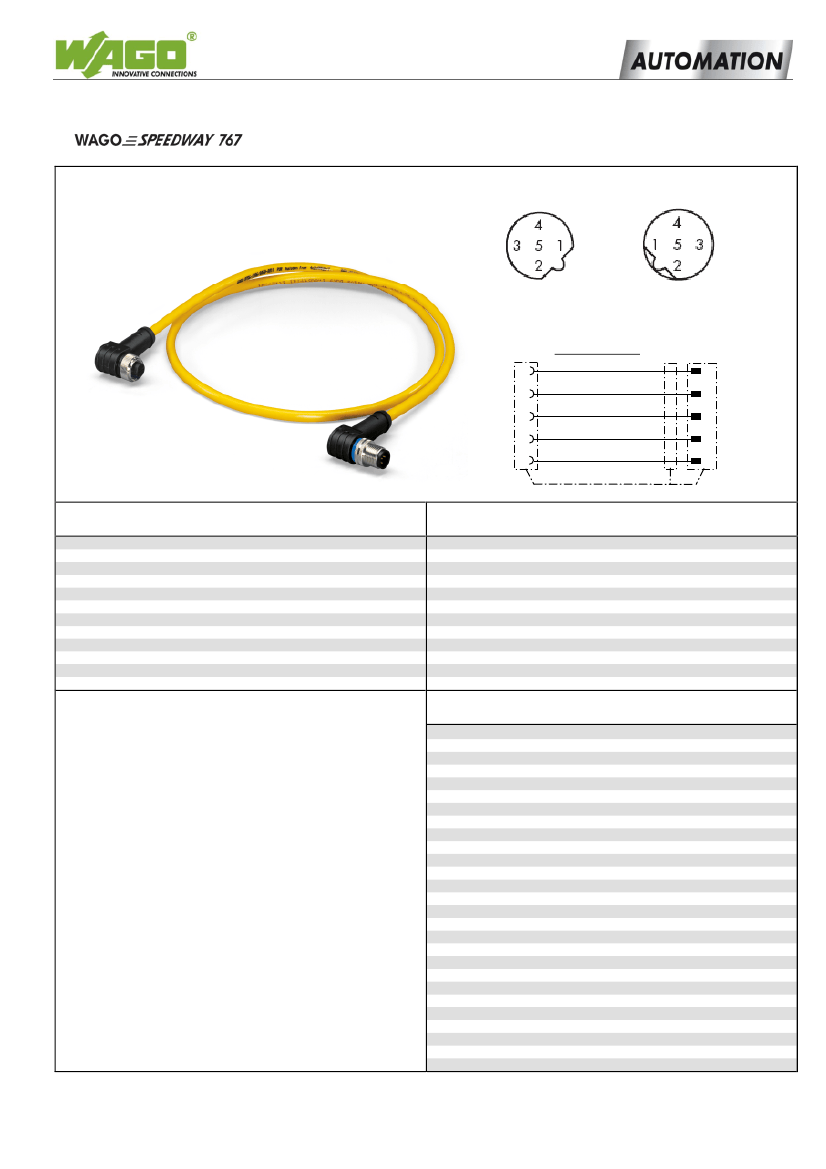

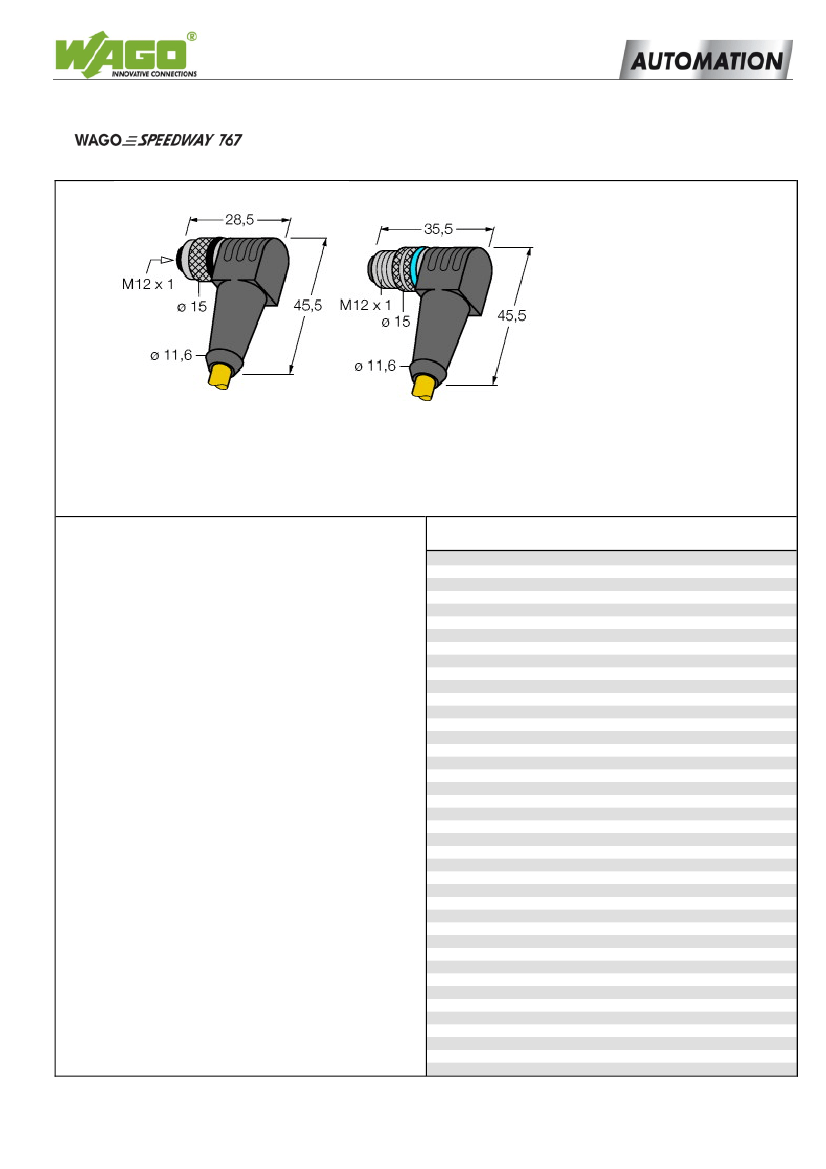

System Bus Cable

for

1/2

Data Sheet

M12 Socket

M12 Plug

Pin assignment

white/blue

red

blue

white/orange

orange

white/green,green,white/

brown,brown

shielded

(

)

Description

System bus cable, with both ends of cable fitted, B coded,

not drag chain suitable

M12 socket, right angle, M12 plug, right angle, 0.2 m

M12 socket, right angle, M12 plug, right angle, 0.3 m

M12 socket, right angle, M12 plug, right angle, 0.5 m

M12 socket, right angle, M12 plug, right angle, 1.0 m

M12 socket, right angle, M12 plug, right angle, 2.0 m

M12 socket, right angle, M12 plug, right angle, 5.0 m

M12 socket, right angle, M12 plug, right angle, 10.0 m

M12 socket, right angle, M12 plug, right angle, 20.0 m

M12 socket, right angle, M12 plug, right angle, 50.0 m

Item

no.

Pack. unit

pcs

756-1306/0060-0002

756-1306/0060-0003

756-1306/0060-0005

756-1306/0060-0010

756-1306/0060-0020

756-1306/0060-0050

756-1306/0060-0100

756-1306/0060-0200

756-1306/0060-0500

Short description:

•

PUR, halogen-free

Free of silicon and CFC

Good resistance to microbes, hydrolysis, oil, ozone and

UV radiation. Good chemical resistance.

Technical data

General

Operating voltage

Operating current

Rated surge voltage

Insulation resistance

Contact resistance

Resistance of conductor

Pollution degree

Degree of protection

Operating temperature

Min. bending radius

Cable

Type code

Note

Overall shield

Note

Conductor

Insulation

Outer jacket

Color

Cable diameter

≤

60 V

4 A acc. to IEC 60512-3

1.5 kV acc. to IEC 61076-2-101

≥

5x10

Ω

≤

10 mΩ acc. to IEC 61076-2-101

≤

145

Ω/km

3/2 acc. to IEC 60664-1

IP67 acc. to IEC 60529

-25 °C ... +60°C (static)

5 x cable Ø

KS-02YS(ST+C)11Y 4x2xAWG26/7-

100

Ω,

shielded

Constr. acc. to UL AWM Style 21586

Aluminum-laminated foil and

tinned copper braid, optical

coverage approx. 65 %

Better than Category 5 according to

EN 50228 and IEC 61156

Band width 200 MHz

Bare copper wire , AWG 26/7

Max. Ø 1.0 mm, foamed PE

Halogen-free polyurethane (PUR)

flame resistant acc. to IEC 60332-1-2

Yellow, RAL -1021

Approx. Ø 6.0 mm

info@wago.com

http://www.wago.com

WAGO Kontakttechnik GmbH & Co.KG

Subject to design changes

02.06.2010 / d07561306060en

Postfach 2880 • D-32385 Minden

Hansastr. 27 • D-32423 Minden

Phone: 05 71 / 8 87-0

E-Mail:

Fax:

05 71 / 8 87-169 Web:
