1N1591A datasheet, PDF - EEWORLD Datasheet

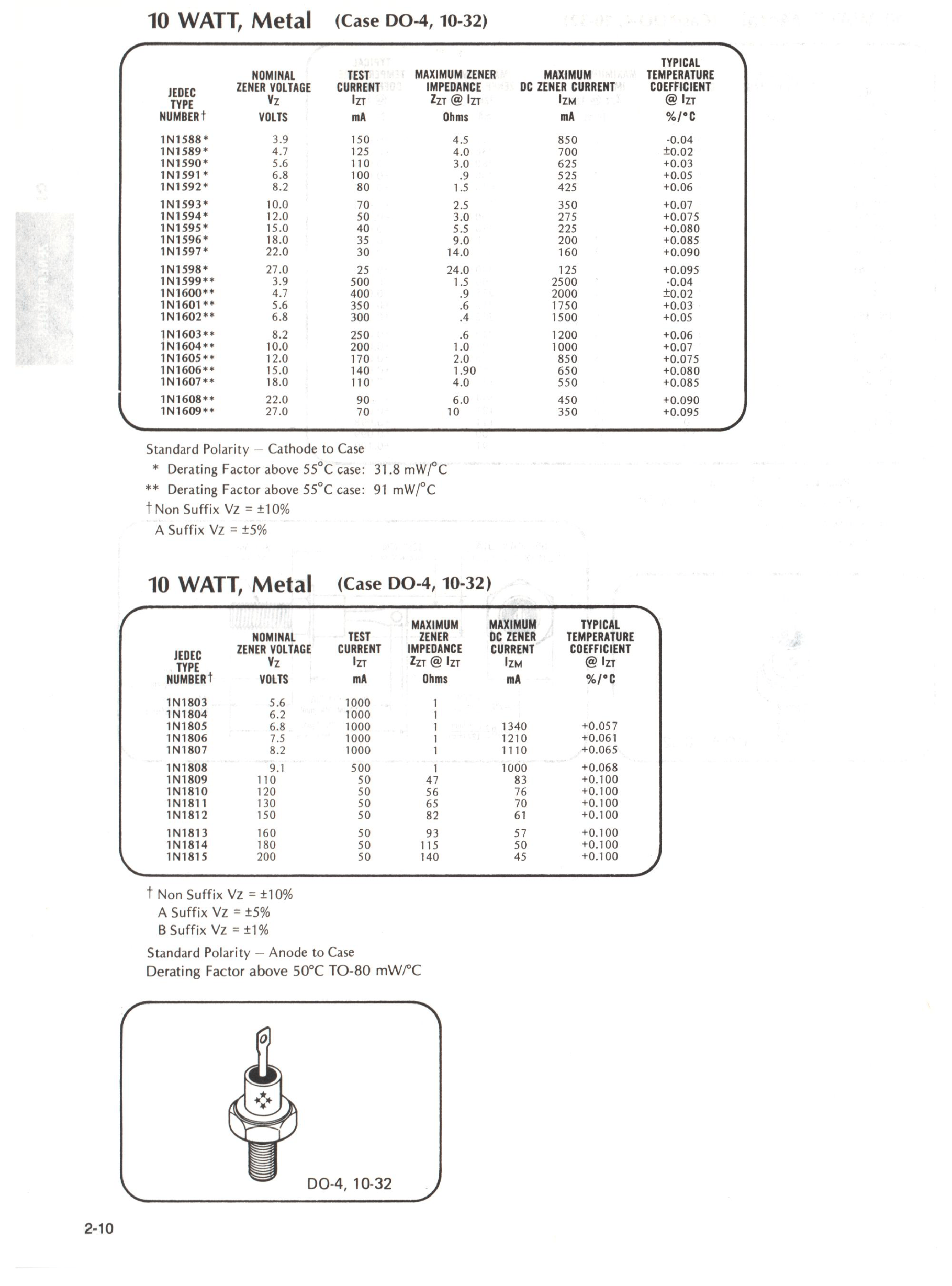

1N1591A: DescriptionZener Diode, 6.8V V(Z), 5%, 10W, Silicon, Unidirectional, DO-4, METAL PACKAGE-1; CategoryDiscrete semiconductor diode; File Size314KB，1 Pages; ManufacturerVishay; Websitehttp://www.vishay.com

Download Datasheet Parametric Compare View All

1N1591A Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	1N1591A	-	-	View	Buy Now

Zener Diode, 6.8V V(Z), 5%, 10W, Silicon, Unidirectional, DO-4, METAL PACKAGE-1

	1N1591A	1N1604A	1N1598A	1N1591
Description	Zener Diode, 6.8V V(Z), 5%, 10W, Silicon, Unidirectional, DO-4, METAL PACKAGE-1	Zener Diode, 10V V(Z), 5%, 10W, Silicon, Unidirectional, DO-4, METAL PACKAGE-1	Zener Diode, 27V V(Z), 5%, 10W, Silicon, Unidirectional, DO-4, METAL PACKAGE-1	Zener Diode, 6.8V V(Z), 10%, 10W, Silicon, Unidirectional, DO-4, METAL PACKAGE-1
Parts packaging code	DO-4	DO-4	DO-4	DO-4
package instruction	O-MUPM-D1	O-MUPM-D1	O-MUPM-D1	O-MUPM-D1
Contacts	1	1	1	1
Reach Compliance Code	unknow	unknow	unknow	unknow
ECCN code	EAR99	EAR99	EAR99	EAR99
Shell connection	CATHODE	CATHODE	CATHODE	CATHODE
Configuration	SINGLE	SINGLE	SINGLE	SINGLE
Diode component materials	SILICON	SILICON	SILICON	SILICON
Diode type	ZENER DIODE	ZENER DIODE	ZENER DIODE	ZENER DIODE
JEDEC-95 code	DO-4	DO-4	DO-4	DO-4
JESD-30 code	O-MUPM-D1	O-MUPM-D1	O-MUPM-D1	O-MUPM-D1
Number of components	1	1	1	1
Number of terminals	1	1	1	1
Package body material	METAL	METAL	METAL	METAL
Package shape	ROUND	ROUND	ROUND	ROUND
Package form	POST/STUD MOUNT	POST/STUD MOUNT	POST/STUD MOUNT	POST/STUD MOUNT
polarity	UNIDIRECTIONAL	UNIDIRECTIONAL	UNIDIRECTIONAL	UNIDIRECTIONAL
Maximum power dissipation	10 W	10 W	10 W	10 W
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Nominal reference voltage	6.8 V	10 V	27 V	6.8 V
surface mount	NO	NO	NO	NO
technology	ZENER	ZENER	ZENER	ZENER
Terminal form	SOLDER LUG	SOLDER LUG	SOLDER LUG	SOLDER LUG
Terminal location	UPPER	UPPER	UPPER	UPPER
Maximum voltage tolerance	5%	5%	5%	10%
Working test current	100 mA	200 mA	25 mA	100 mA
Base Number Matches	1	1	1	1
