HN28F4001T-15 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > storage> storage> HN28F4001T-15

HN28F4001T-15: DescriptionFlash, 512KX8, 150ns, PDSO32, PLASTIC, TSOP1-32; Categorystorage storage; File Size438KB，18 Pages; ManufacturerHitachi （Renesas ）; Websitehttp://www.renesas.com/eng/

Download Datasheet Parametric Compare View All

HN28F4001T-15 Overview

Flash, 512KX8, 150ns, PDSO32, PLASTIC, TSOP1-32

HN28F4001T-15 Parametric

Parameter Name	Attribute value
Is it lead-free?	Contains lead
Is it Rohs certified?	incompatible
Maker	Hitachi （Renesas ）
Parts packaging code	TSOP1
package instruction	PLASTIC, TSOP1-32
Contacts	32
Reach Compliance Code	unknown
ECCN code	EAR99
Maximum access time	150 ns
Other features	BULK ERASE; BLOCK ERASE; AUTOMATIC WRITE; BYTE PROGRAMMABLE
command user interface	NO
Data polling	YES
JESD-30 code	R-PDSO-G32
JESD-609 code	e0
length	18.4 mm
memory density	4194304 bit
Memory IC Type	FLASH
memory width	8
Number of functions	1
Number of departments/size	32
Number of terminals	32
word count	524288 words
character code	512000
Operating mode	ASYNCHRONOUS
Maximum operating temperature	70 °C
Minimum operating temperature
organize	512KX8
Output characteristics	3-STATE
Package body material	PLASTIC/EPOXY
encapsulated code	TSOP1
Encapsulate equivalent code	TSSOP32,.8,20
Package shape	RECTANGULAR
Package form	SMALL OUTLINE, THIN PROFILE
Parallel/Serial	PARALLEL
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
power supply	5 V
Programming voltage	12 V
Certification status	Not Qualified
Maximum seat height	1.2 mm
Department size	16K
Maximum standby current	0.00002 A
Maximum slew rate	0.1 mA
Maximum supply voltage (Vsup)	5.5 V
Minimum supply voltage (Vsup)	4.5 V
Nominal supply voltage (Vsup)	5 V
surface mount	YES
technology	CMOS
Temperature level	COMMERCIAL
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	GULL WING
Terminal pitch	0.5 mm
Terminal location	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED
switch bit	NO
type	NOR TYPE
width	8 mm
Base Number Matches	1

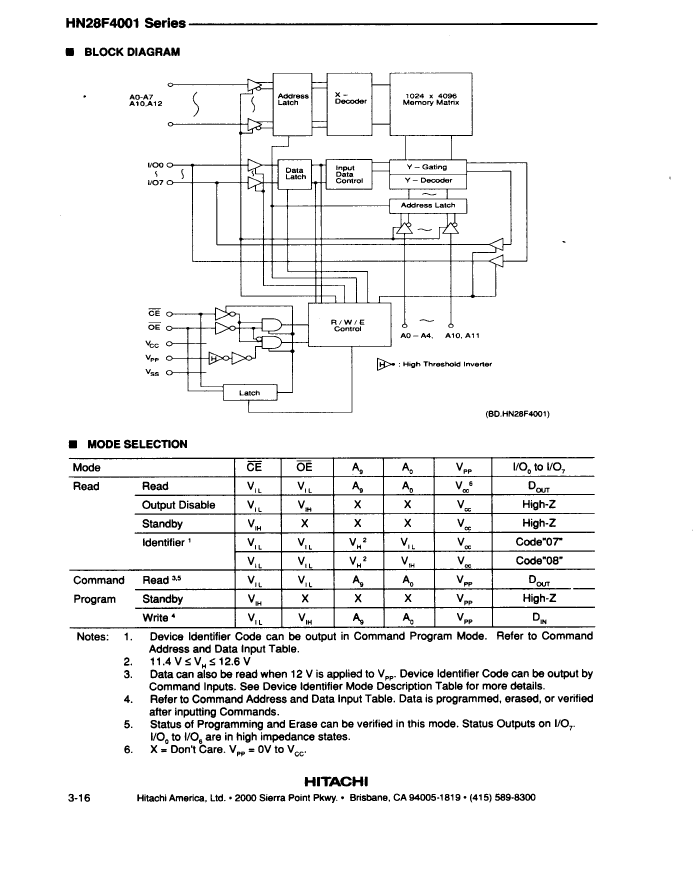

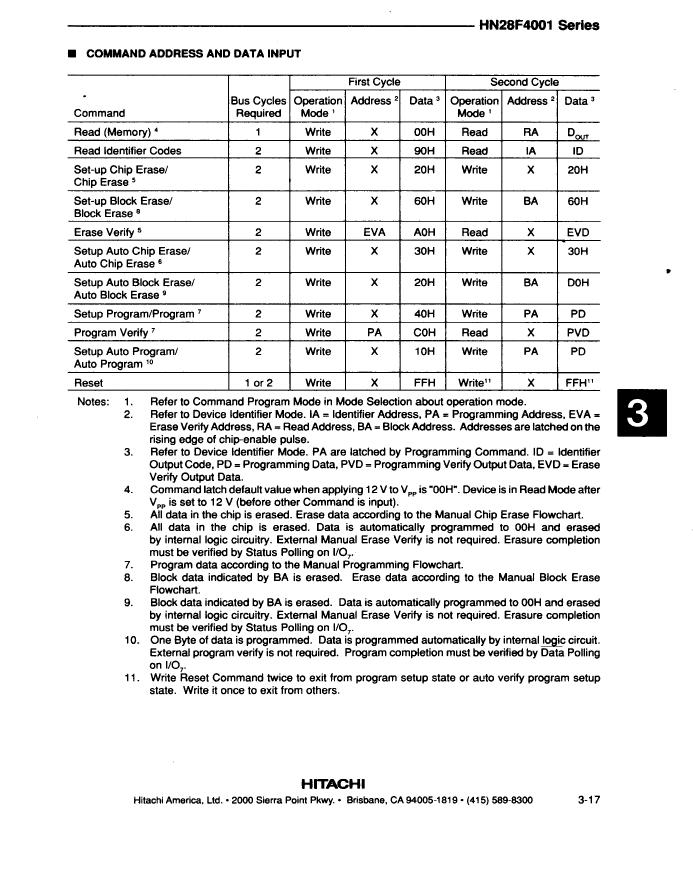

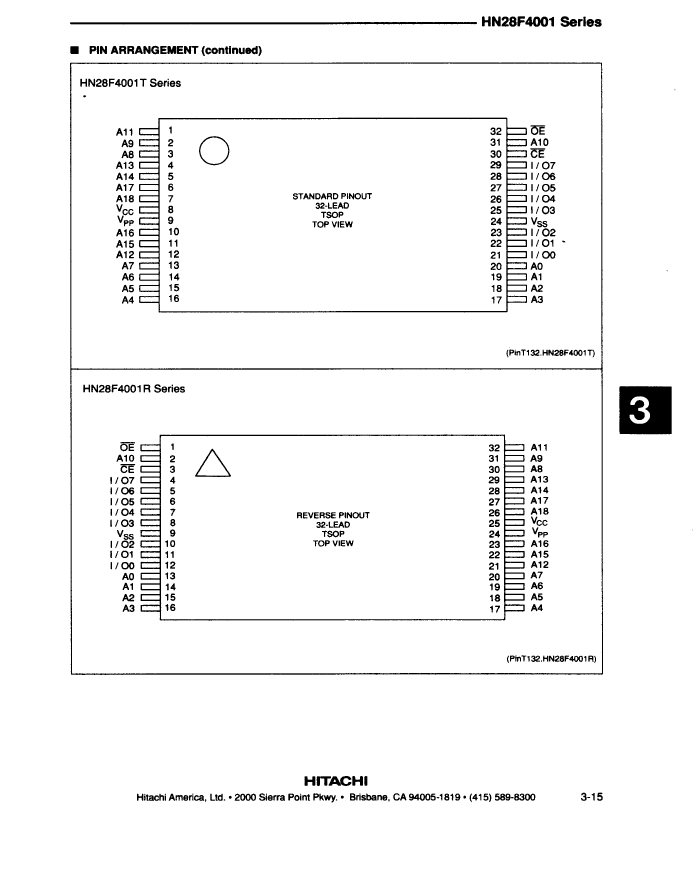

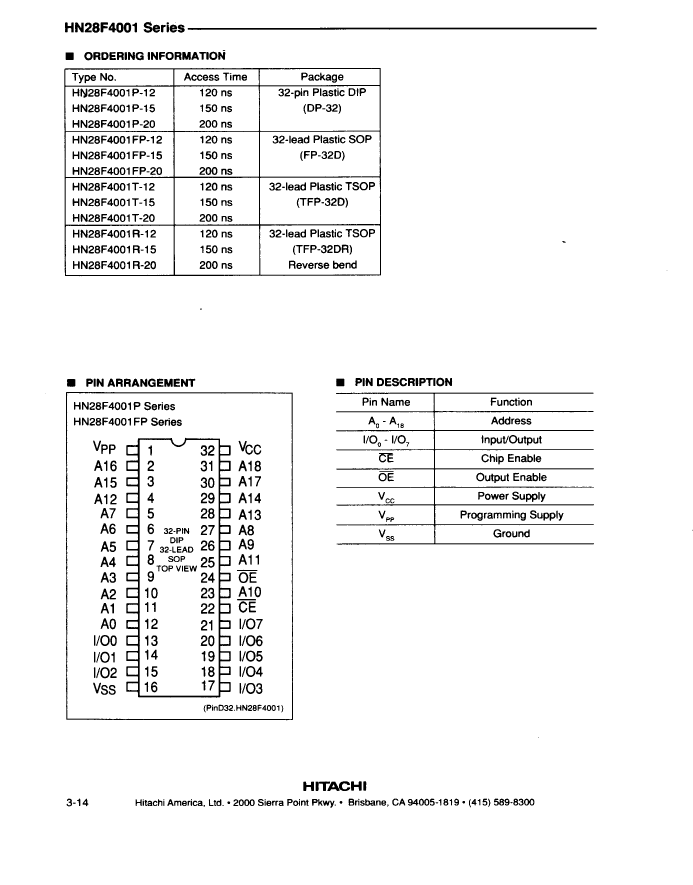

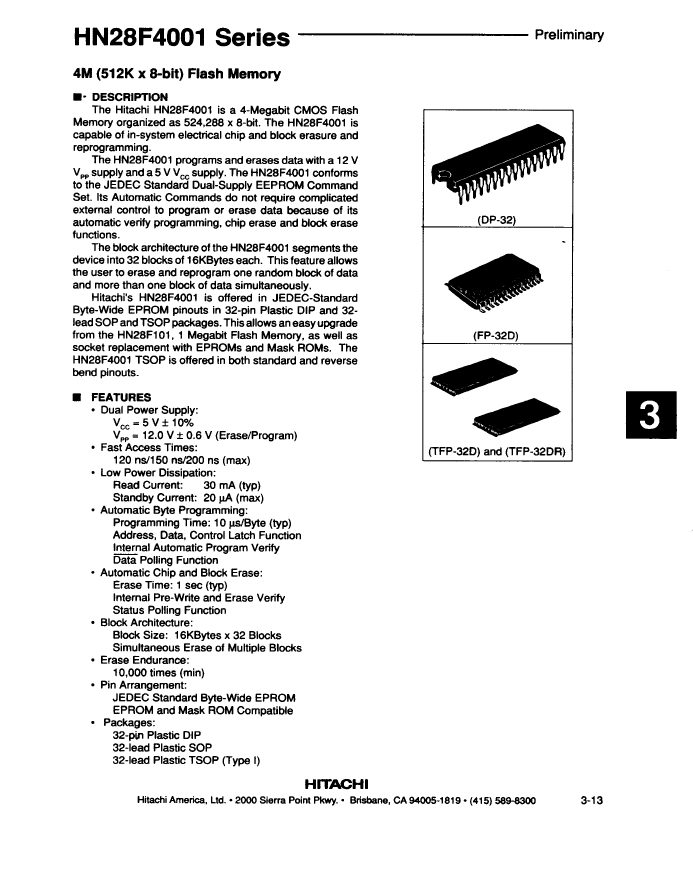

Preview

Download Datasheet

View All

This Material Copyrighted By Its Respective Manufacturer

HN28F4001T-15 Related Products

	HN28F4001T-15	HN28F4001P-20	HN28F4001FP-15	HN28F4001FP-12	HN28F4001R-12	HN28F4001FP-20	HN28F4001R-15	HN28F4001T-20	HN28F4001R-20
Description	Flash, 512KX8, 150ns, PDSO32, PLASTIC, TSOP1-32	Flash, 512KX8, 200ns, PDIP32, PLASTIC, DIP-32	Flash, 512KX8, 150ns, PDSO32, PLASTIC, SOP-32	Flash, 512KX8, 120ns, PDSO32, PLASTIC, SOP-32	Flash, 512KX8, 120ns, PDSO32, PLASTIC, REVERSE, TSOP1-32	Flash, 512KX8, 200ns, PDSO32, PLASTIC, SOP-32	Flash, 512KX8, 150ns, PDSO32, PLASTIC, REVERSE, TSOP1-32	Flash, 512KX8, 200ns, PDSO32, PLASTIC, TSOP1-32	Flash, 512KX8, 200ns, PDSO32, PLASTIC, REVERSE, TSOP1-32
Is it lead-free?	Contains lead	Contains lead	Contains lead	Contains lead	Contains lead	Contains lead	Contains lead	Contains lead	Contains lead
Is it Rohs certified?	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible
Parts packaging code	TSOP1	DIP	SOIC	SOIC	TSOP1	SOIC	TSOP1	TSOP1	TSOP1
package instruction	PLASTIC, TSOP1-32	DIP, DIP32,.6	PLASTIC, SOP-32	PLASTIC, SOP-32	PLASTIC, REVERSE, TSOP1-32	SOP, SOP32,.56	PLASTIC, REVERSE, TSOP1-32	PLASTIC, TSOP1-32	PLASTIC, REVERSE, TSOP1-32
Contacts	32	32	32	32	32	32	32	32	32
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknown
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99
Maximum access time	150 ns	200 ns	150 ns	120 ns	120 ns	200 ns	150 ns	200 ns	200 ns
command user interface	NO	NO	NO	NO	NO	NO	NO	NO	NO
Data polling	YES	YES	YES	YES	YES	YES	YES	YES	YES
JESD-30 code	R-PDSO-G32	R-PDIP-T32	R-PDSO-G32	R-PDSO-G32	R-PDSO-G32	R-PDSO-G32	R-PDSO-G32	R-PDSO-G32	R-PDSO-G32
JESD-609 code	e0	e0	e0	e0	e0	e0	e0	e0	e0
length	18.4 mm	41.9 mm	20.45 mm	20.45 mm	18.4 mm	20.45 mm	18.4 mm	18.4 mm	18.4 mm
memory density	4194304 bit	4194304 bit	4194304 bit	4194304 bit	4194304 bit	4194304 bit	4194304 bit	4194304 bit	4194304 bit
Memory IC Type	FLASH	FLASH	FLASH	FLASH	FLASH	FLASH	FLASH	FLASH	FLASH
memory width	8	8	8	8	8	8	8	8	8
Number of functions	1	1	1	1	1	1	1	1	1
Number of departments/size	32	32	32	32	32	32	32	32	32
Number of terminals	32	32	32	32	32	32	32	32	32
word count	524288 words	524288 words	524288 words	524288 words	524288 words	524288 words	524288 words	524288 words	524288 words
character code	512000	512000	512000	512000	512000	512000	512000	512000	512000
Operating mode	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS
Maximum operating temperature	70 °C	70 °C	70 °C	70 °C	70 °C	70 °C	70 °C	70 °C	70 °C
organize	512KX8	512KX8	512KX8	512KX8	512KX8	512KX8	512KX8	512KX8	512KX8
Output characteristics	3-STATE	3-STATE	3-STATE	3-STATE	3-STATE	3-STATE	3-STATE	3-STATE	3-STATE
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	TSOP1	DIP	SOP	SOP	TSOP1-R	SOP	TSOP1-R	LSSOP	TSOP1-R
Encapsulate equivalent code	TSSOP32,.8,20	DIP32,.6	SOP32,.56	SOP32,.56	TSSOP32,.8,20	SOP32,.56	TSSOP32,.8,20	TSSOP32,.8,20	TSSOP32,.8,20
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	SMALL OUTLINE, THIN PROFILE	IN-LINE	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE, THIN PROFILE	SMALL OUTLINE	SMALL OUTLINE, THIN PROFILE	SMALL OUTLINE, LOW PROFILE, SHRINK PITCH	SMALL OUTLINE, THIN PROFILE
Parallel/Serial	PARALLEL	PARALLEL	PARALLEL	PARALLEL	PARALLEL	PARALLEL	PARALLEL	PARALLEL	PARALLEL
Peak Reflow Temperature (Celsius)	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
power supply	5 V	5 V	5 V	5 V	5 V	5 V	5 V	5 V	5 V
Programming voltage	12 V	12 V	12 V	12 V	12 V	12 V	12 V	12 V	12 V
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Maximum seat height	1.2 mm	5.08 mm	3.05 mm	3.05 mm	1.2 mm	3.05 mm	1.2 mm	1.27 mm	1.2 mm
Department size	16K	16K	16K	16K	16K	16K	16K	16K	16K
Maximum standby current	0.00002 A	0.00002 A	0.00002 A	0.00002 A	0.00002 A	0.00002 A	0.00002 A	0.00002 A	0.00002 A
Maximum slew rate	0.1 mA	0.1 mA	0.1 mA	0.1 mA	0.1 mA	0.1 mA	0.1 mA	0.1 mA	0.1 mA
Maximum supply voltage (Vsup)	5.5 V	5.5 V	5.5 V	5.5 V	5.5 V	5.5 V	5.5 V	5.5 V	5.5 V
Minimum supply voltage (Vsup)	4.5 V	4.5 V	4.5 V	4.5 V	4.5 V	4.5 V	4.5 V	4.5 V	4.5 V
Nominal supply voltage (Vsup)	5 V	5 V	5 V	5 V	5 V	5 V	5 V	5 V	5 V
surface mount	YES	NO	YES	YES	YES	YES	YES	YES	YES
technology	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS
Temperature level	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
Terminal form	GULL WING	THROUGH-HOLE	GULL WING	GULL WING	GULL WING	GULL WING	GULL WING	GULL WING	GULL WING
Terminal pitch	0.5 mm	2.54 mm	1.27 mm	1.27 mm	0.5 mm	1.27 mm	0.5 mm	0.5 mm	0.5 mm
Terminal location	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
switch bit	NO	NO	NO	NO	NO	NO	NO	NO	NO
type	NOR TYPE	NOR TYPE	NOR TYPE	NOR TYPE	NOR TYPE	NOR TYPE	NOR TYPE	NOR TYPE	NOR TYPE
Maker	Hitachi （Renesas ）	-	-	Hitachi （Renesas ）	Hitachi （Renesas ）	Hitachi （Renesas ）	Hitachi （Renesas ）	Hitachi （Renesas ）	Hitachi （Renesas ）
Other features	BULK ERASE; BLOCK ERASE; AUTOMATIC WRITE; BYTE PROGRAMMABLE	-	BULK ERASE; BLOCK ERASE; AUTOMATIC WRITE; BYTE PROGRAMMABLE	BULK ERASE; BLOCK ERASE; AUTOMATIC WRITE; BYTE PROGRAMMABLE	BULK ERASE; BLOCK ERASE; AUTOMATIC WRITE; BYTE PROGRAMMABLE	-	BULK ERASE; BLOCK ERASE; AUTOMATIC WRITE; BYTE PROGRAMMABLE	-	-
width	8 mm	15.24 mm	-	-	8 mm	-	8 mm	8 mm	8 mm
