203803-1 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> 203803-1

203803-1: Description54 CONTACT(S), FEMALE, MULTIWAY RACK AND PANEL CONN, RECEPTACLE; CategoryThe connector The connector; File Size49KB，1 Pages; ManufacturerTE Connectivity; Websitehttp://www.te.com

Download Datasheet Parametric Compare View All

203803-1 Overview

54 CONTACT(S), FEMALE, MULTIWAY RACK AND PANEL CONN, RECEPTACLE

203803-1 Parametric

Parameter Name	Attribute value
Objectid	1420220797
Reach Compliance Code	unknown
Other features	COMPATIBLE CONTACTS:203816-1; 203816-2; 203802-1; 203802-2; 203875-1
Body/casing type	RECEPTACLE
Connector type	RACK AND PANEL CONNECTOR
Contact to complete cooperation	NOT SPECIFIED
Contact point gender	FEMALE
DIN compliance	NO
empty shell	NO
Filter function	NO
IEC compliance	NO
insulator material	PHENOLIC
MIL compliance	NO
Plug information	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO
Installation type	PANEL
Options	GENERAL PURPOSE
Total number of contacts	54

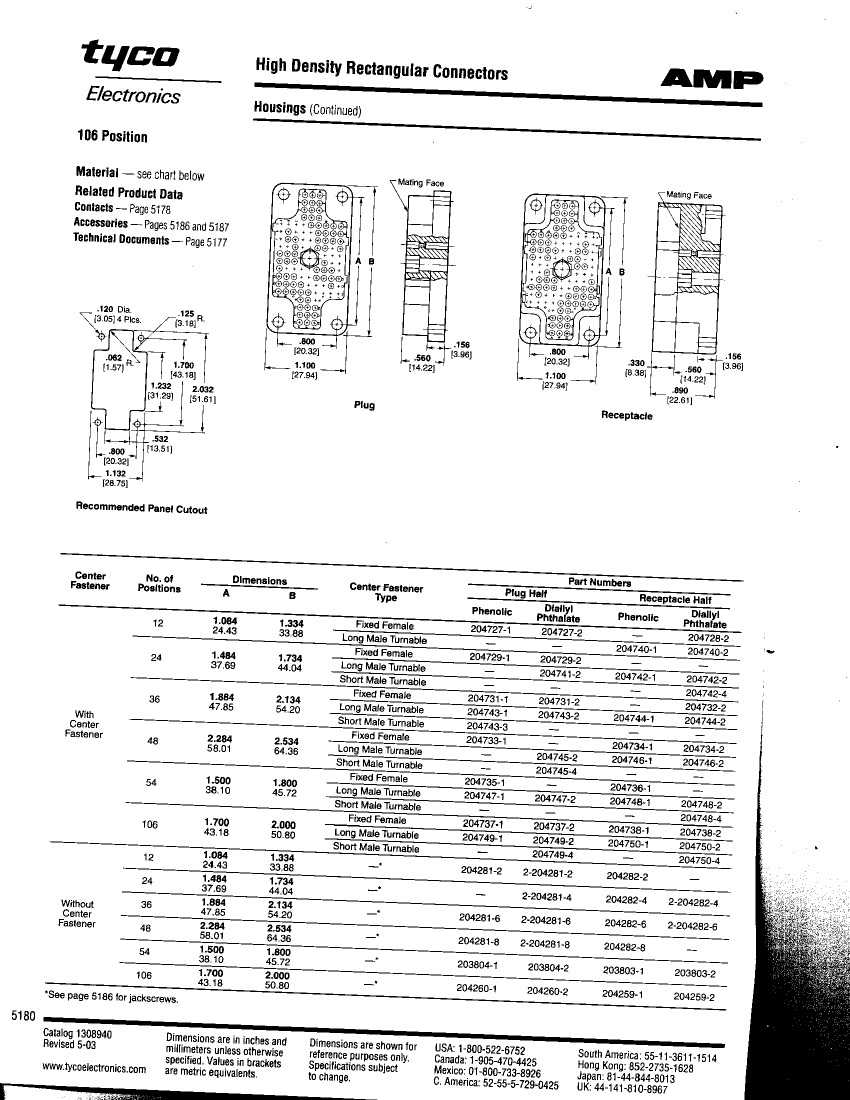

Preview

Download Datasheet

View All

203803-1 Related Products

	203803-1	2-204281-6	2-204282-6	204740-1	204281-6	204727-1	1213195	204735-1	204747-1
Description	54 CONTACT(S), FEMALE, MULTIWAY RACK AND PANEL CONN, RECEPTACLE	36 POS PLUG	36 POS PLUG	12 CONTACT(S), FEMALE, MULTIWAY RACK AND PANEL CONN, RECEPTACLE	36 POS PLUG	12 CONTACT(S), MALE, MULTIWAY RACK AND PANEL CONN, PLUG	SAFETY LIGHT CURTAINS	54 CONTACT(S), MALE, MULTIWAY RACK AND PANEL CONN, PLUG	54 CONTACT(S), MALE, MULTIWAY RACK AND PANEL CONN, PLUG
Reach Compliance Code	unknown	unknow	unknow	unknow	unknown	unknown	-	unknow	unknow
Other features	COMPATIBLE CONTACTS:203816-1; 203816-2; 203802-1; 203802-2; 203875-1	COMPATIBLE CONTACTS:203816-1; 203816-2; 203802-1; 203802-2; 203875-1	POLARIZED	COMPATIBLE CONTACTS:203816-1; 203816-2; 203802-1; 203802-2; 203875-1	COMPATIBLE CONTACTS:203816-1; 203816-2; 203802-1; 203802-2; 203875-1	COMPATIBLE CONTACTS:203816-1; 203816-2; 203802-1; 203802-2; 203875-1	-	COMPATIBLE CONTACTS:203816-1; 203816-2; 203802-1; 203802-2; 203875-1	COMPATIBLE CONTACTS:203816-1; 203816-2; 203802-1; 203802-2; 203875-1
Body/casing type	RECEPTACLE	PLUG	RECEPTACLE	RECEPTACLE	PLUG	PLUG	-	PLUG	PLUG
Connector type	RACK AND PANEL CONNECTOR	RACK AND PANEL CONNECTOR	RACK AND PANEL CONNECTOR	RACK AND PANEL CONNECTOR	RACK AND PANEL CONNECTOR	RACK AND PANEL CONNECTOR	-	RACK AND PANEL CONNECTOR	RACK AND PANEL CONNECTOR
Contact to complete cooperation	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	-	NOT SPECIFIED	NOT SPECIFIED
Contact point gender	FEMALE	MALE	FEMALE	FEMALE	MALE	MALE	-	MALE	MALE
DIN compliance	NO	NO	NO	NO	NO	NO	-	NO	NO
empty shell	NO	NO	NO	NO	NO	NO	-	NO	NO
Filter function	NO	NO	NO	NO	NO	NO	-	NO	NO
IEC compliance	NO	NO	NO	NO	NO	NO	-	NO	NO
MIL compliance	NO	NO	NO	NO	NO	NO	-	NO	NO
Plug information	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE	-	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO	NO	NO	NO	NO	NO	-	NO	NO
Installation type	PANEL	PANEL	PANEL	PANEL	PANEL	PANEL	-	PANEL	PANEL
Options	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	-	GENERAL PURPOSE	GENERAL PURPOSE
Total number of contacts	54	36	36	12	36	12	-	54	54
Manufacturer's serial number	-	204581	204282	204740	204281	204727	-	204735	204747
Shell material	-	DIALLYL PHTHALATE	DIALLYL PHTHALATE	PHENOLIC	PHENOLIC	PHENOLIC	-	PHENOLIC	PHENOLIC
Base Number Matches	-	1	1	1	1	1	-	-	-
