1N6700 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Discrete semiconductor> diode> 1N6700

1N6700: DescriptionRectifier Diode, Schottky, 1 Phase, 1 Element, 5A, Silicon, HERMETIC SEALED PACKAGE-2; CategoryDiscrete semiconductor diode; File Size268KB，2 Pages; ManufacturerMicrosemi; Websitehttps://www.microsemi.com

Download Datasheet Parametric Compare View All

1N6700 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	1N6700	-	-	View	Buy Now

1N6700 Overview

Rectifier Diode, Schottky, 1 Phase, 1 Element, 5A, Silicon, HERMETIC SEALED PACKAGE-2

1N6700 Parametric

Parameter Name	Attribute value
Is it lead-free?	Contains lead
Is it Rohs certified?	incompatible
package instruction	HERMETIC SEALED PACKAGE-2
Contacts	2
Reach Compliance Code	compli
ECCN code	EAR99
Other features	METALLURGICALLY BONDED
application	GENERAL PURPOSE
Shell connection	ISOLATED
Configuration	SINGLE
Diode component materials	SILICON
Diode type	RECTIFIER DIODE
JESD-30 code	O-XALF-W2
JESD-609 code	e0
Number of components	1
Phase	1
Number of terminals	2
Maximum output current	5 A
Package body material	UNSPECIFIED
Package shape	ROUND
Package form	LONG FORM
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
Certification status	Not Qualified
Guideline	MIL
surface mount	NO
technology	SCHOTTKY
Terminal surface	TIN LEAD
Terminal form	WIRE
Terminal location	AXIAL
Maximum time at peak reflow temperature	NOT SPECIFIED
Base Number Matches	1

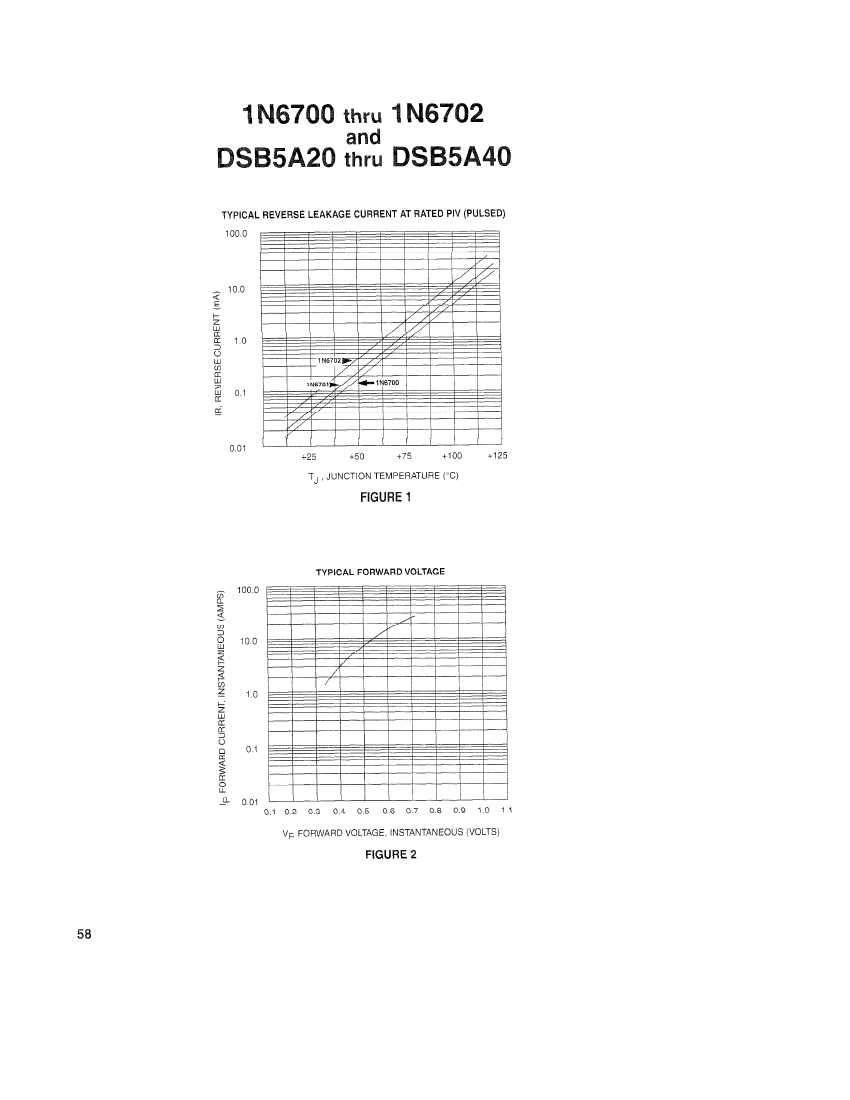

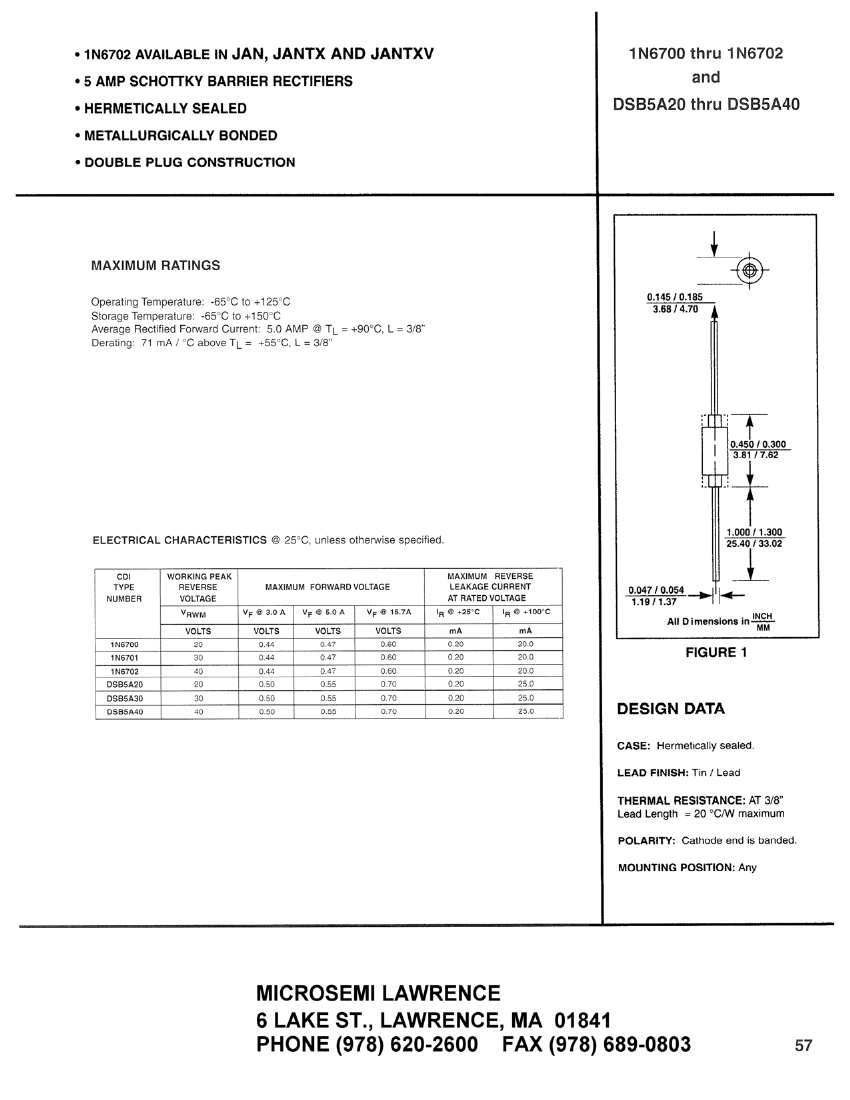

Preview

Download Datasheet

View All

1N6700 Related Products

	1N6700	1N6700E3	1N6701	JAN1N6702	JANTXV1N6702	DSB5A20	DSB5A30	DSB5A40
Description	Rectifier Diode, Schottky, 1 Phase, 1 Element, 5A, Silicon, HERMETIC SEALED PACKAGE-2	Rectifier Diode, Schottky, 1 Phase, 1 Element, 5A, Silicon, HERMETIC SEALED PACKAGE-2	Rectifier Diode, Schottky, 1 Phase, 1 Element, 5A, Silicon,	Rectifier Diode, Schottky, 1 Phase, 1 Element, 5A, 40V V(RRM), Silicon,	Rectifier Diode, Schottky, 1 Phase, 1 Element, 5A, 40V V(RRM), Silicon,	Rectifier Diode, Schottky, 1 Phase, 1 Element, 5A, 20V V(RRM), Silicon, HERMETIC SEALED PACKAGE-2	Rectifier Diode, Schottky, 1 Phase, 1 Element, 5A, 30V V(RRM), Silicon, HERMETIC SEALED PACKAGE-2	Rectifier Diode, Schottky, 1 Phase, 1 Element, 5A, 40V V(RRM), Silicon, HERMETIC SEALED PACKAGE-2
Reach Compliance Code	compli	compli	compli	not_compliant	not_compliant	compliant	compliant	compliant
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99
Other features	METALLURGICALLY BONDED	METALLURGICALLY BONDED	METALLURGICALLY BONDED	METALLURGICALLY BONDED	METALLURGICALLY BONDED	METALLURGICALLY BONDED	METALLURGICALLY BONDED	METALLURGICALLY BONDED
application	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE
Shell connection	ISOLATED	ISOLATED	ISOLATED	ISOLATED	ISOLATED	ISOLATED	ISOLATED	ISOLATED
Configuration	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE
Diode component materials	SILICON	SILICON	SILICON	SILICON	SILICON	SILICON	SILICON	SILICON
Diode type	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE
JESD-30 code	O-XALF-W2	O-XALF-W2	O-XALF-W2	O-XALF-W2	O-XALF-W2	O-XALF-W2	O-XALF-W2	O-XALF-W2
Number of components	1	1	1	1	1	1	1	1
Phase	1	1	1	1	1	1	1	1
Number of terminals	2	2	2	2	2	2	2	2
Maximum output current	5 A	5 A	5 A	5 A	5 A	5 A	5 A	5 A
Package body material	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED
Package shape	ROUND	ROUND	ROUND	ROUND	ROUND	ROUND	ROUND	ROUND
Package form	LONG FORM	LONG FORM	LONG FORM	LONG FORM	LONG FORM	LONG FORM	LONG FORM	LONG FORM
Guideline	MIL	MIL	MIL	MIL	MIL	MIL	MIL	MIL
surface mount	NO	NO	NO	NO	NO	NO	NO	NO
technology	SCHOTTKY	SCHOTTKY	SCHOTTKY	SCHOTTKY	SCHOTTKY	SCHOTTKY	SCHOTTKY	SCHOTTKY
Terminal form	WIRE	WIRE	WIRE	WIRE	WIRE	WIRE	WIRE	WIRE
Terminal location	AXIAL	AXIAL	AXIAL	AXIAL	AXIAL	AXIAL	AXIAL	AXIAL
package instruction	HERMETIC SEALED PACKAGE-2	HERMETIC SEALED PACKAGE-2	HERMETIC SEALED PACKAGE-2	O-XALF-W2	-	HERMETIC SEALED PACKAGE-2	HERMETIC SEALED PACKAGE-2	O-XALF-W2
Contacts	2	-	2	2	2	2	2	2
JESD-609 code	e0	-	e0	e0	e0	e0	e0	e0
Certification status	Not Qualified	-	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Terminal surface	TIN LEAD	-	TIN LEAD	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	TIN LEAD	TIN LEAD	TIN LEAD
Maker	-	-	-	Microsemi	Microsemi	Microsemi	Microsemi	Microsemi
Maximum forward voltage (VF)	-	-	-	0.47 V	0.47 V	0.55 V	0.55 V	0.55 V
Maximum operating temperature	-	-	-	125 °C	125 °C	125 °C	125 °C	125 °C
Maximum repetitive peak reverse voltage	-	-	-	40 V	40 V	20 V	30 V	40 V
