MAX134EQH datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Analog mixed-signal IC> converter> MAX134EQH

MAX134EQH: Description3 Digit DMM Circuit; CategoryAnalog mixed-signal IC converter; File Size974KB，20 Pages; ManufacturerMaxim; Websitehttps://www.maximintegrated.com/en.html

Download Datasheet Parametric Compare View All

MAX134EQH Overview

3 Digit DMM Circuit

MAX134EQH Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	Maxim
Parts packaging code	LCC
package instruction	QCCJ, LDCC44,.7SQ
Contacts	44
Reach Compliance Code	_compli
ECCN code	EAR99
Maximum analog input voltage	3.3 V
Minimum analog input voltage	2.8 V
Converter type	ADC, PROPRIETARY METHOD
JESD-30 code	S-PQCC-J44
JESD-609 code	e0
length	16.585 mm
Maximum linear error (EL)	1%
Nominal negative supply voltage	-5 V
Number of analog input channels	1
Number of digits	4
Number of functions	1
Number of terminals	44
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Output bit code	9\'S COMPLEMENT BINARY CODED DECIMAL
Output format	PARALLEL, WORD
Package body material	PLASTIC/EPOXY
encapsulated code	QCCJ
Encapsulate equivalent code	LDCC44,.7SQ
Package shape	SQUARE
Package form	CHIP CARRIER
power supply	9 V
Certification status	Not Qualified
Maximum seat height	4.57 mm
Nominal supply voltage	5 V
surface mount	YES
technology	BIPOLAR
Temperature level	INDUSTRIAL
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	J BEND
Terminal pitch	1.27 mm
Terminal location	QUAD
width	16.585 mm

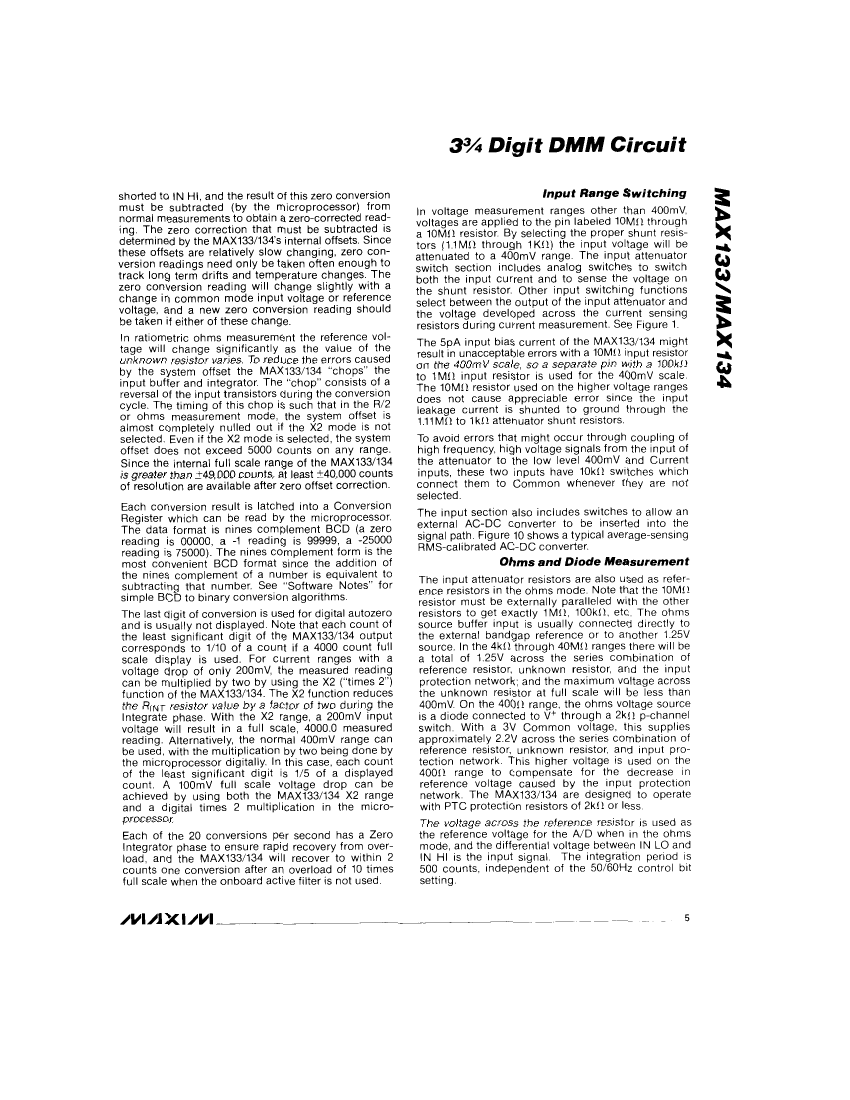

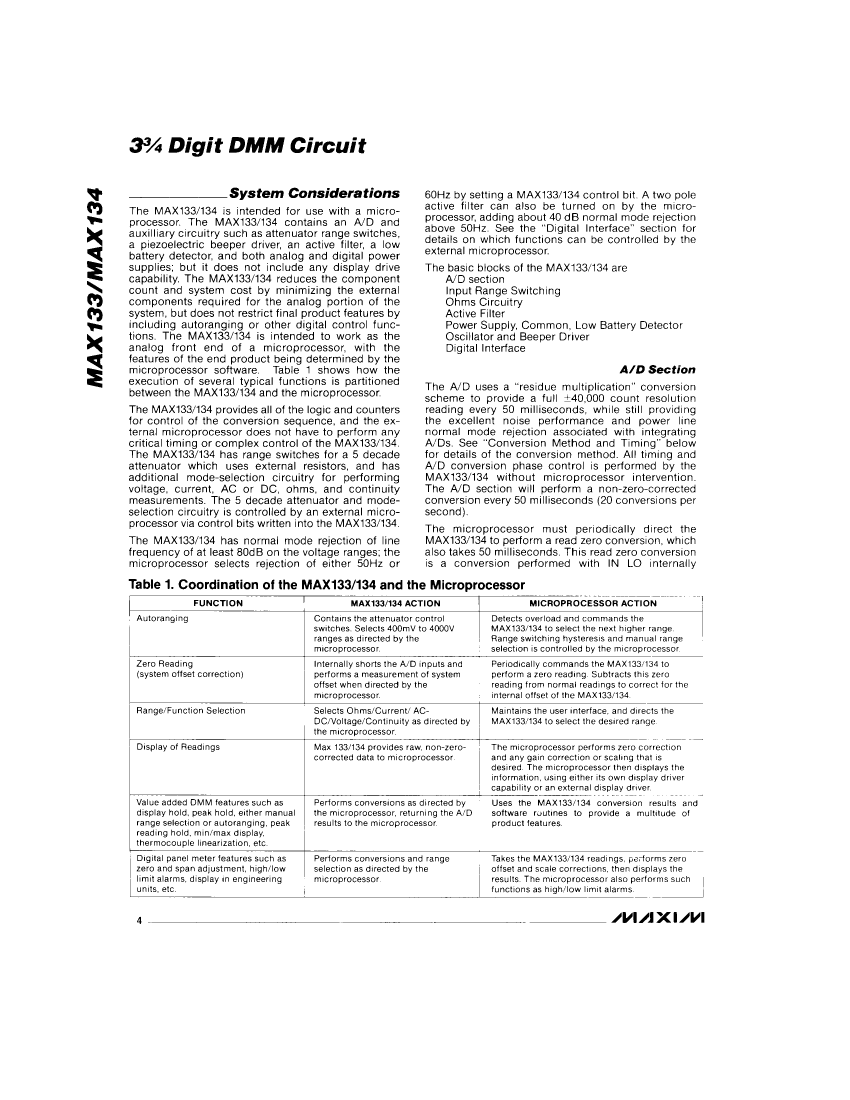

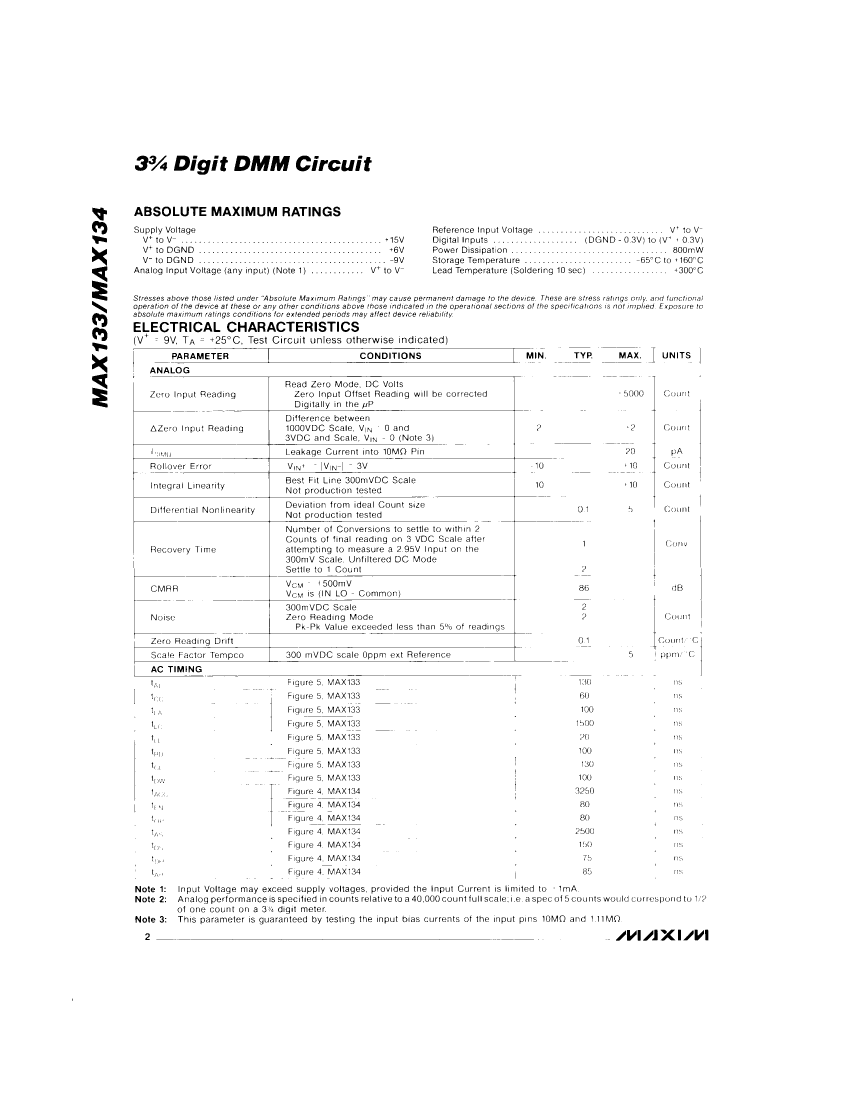

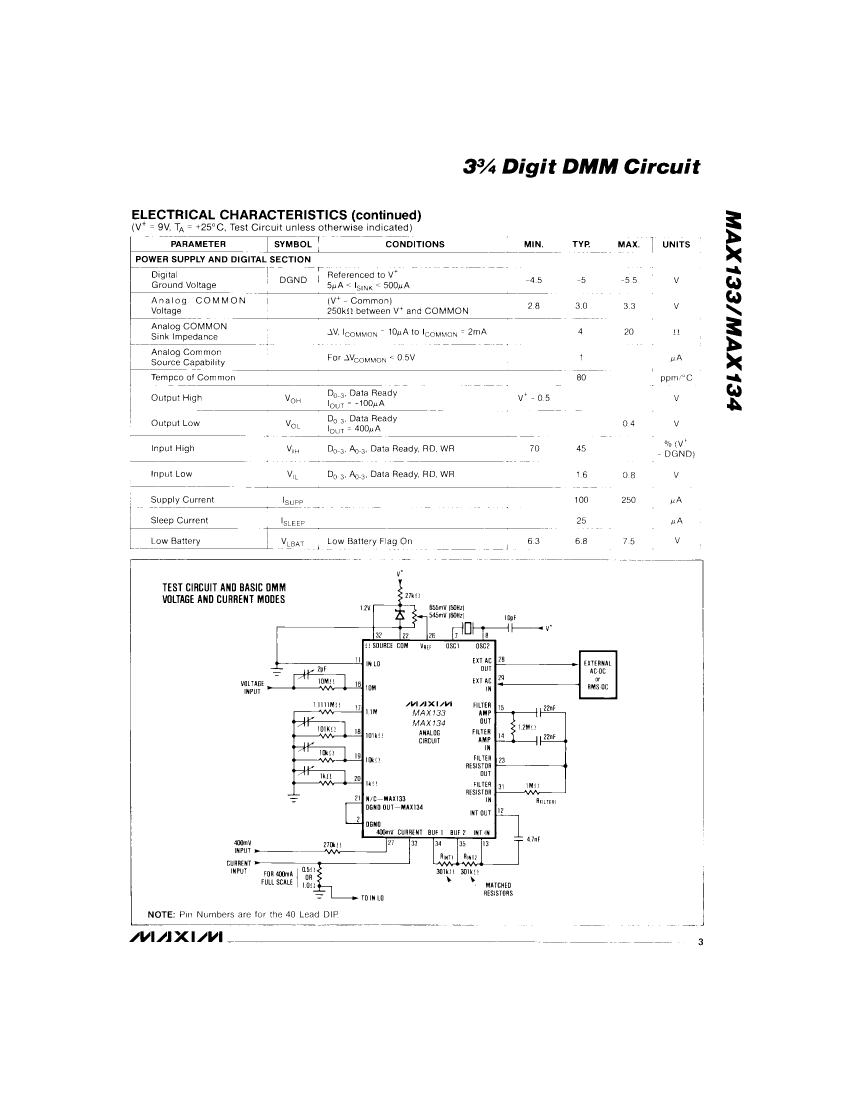

Preview

Download Datasheet

View All

TION KIT

EVALUA BLE

AVAILA

MAX134EQH Related Products

	MAX134EQH	MAX134	MAX133CQH	MAX134CQH	MAX133	MAX133EQH
Description	3 Digit DMM Circuit	3 Digit DMM Circuit	3 Digit DMM Circuit	3 Digit DMM Circuit	3 Digit DMM Circuit	3 Digit DMM Circuit
Is it Rohs certified?	incompatible	-	incompatible	incompatible	-	incompatible
Parts packaging code	LCC	-	LCC	LCC	-	LCC
package instruction	QCCJ, LDCC44,.7SQ	-	PLASTIC, LCC-44	PLASTIC, LCC-44	-	PLASTIC, LCC-44
Contacts	44	-	44	44	-	44
Reach Compliance Code	_compli	-	_compli	_compli	-	_compli
ECCN code	EAR99	-	EAR99	EAR99	-	EAR99
Maximum analog input voltage	3.3 V	-	3.3 V	3.3 V	-	3.3 V
Minimum analog input voltage	2.8 V	-	2.8 V	2.8 V	-	2.8 V
Converter type	ADC, PROPRIETARY METHOD	-	ADC, PROPRIETARY METHOD	ADC, PROPRIETARY METHOD	-	ADC, PROPRIETARY METHOD
JESD-30 code	S-PQCC-J44	-	S-PQCC-J44	S-PQCC-J44	-	S-PQCC-J44
JESD-609 code	e0	-	e0	e0	-	e0
length	16.585 mm	-	16.585 mm	16.585 mm	-	16.585 mm
Maximum linear error (EL)	1%	-	1%	1%	-	1%
Nominal negative supply voltage	-5 V	-	-5 V	-5 V	-	-5 V
Number of analog input channels	1	-	1	1	-	1
Number of digits	4	-	4	4	-	4
Number of functions	1	-	1	1	-	1
Number of terminals	44	-	44	44	-	44
Maximum operating temperature	85 °C	-	70 °C	70 °C	-	85 °C
Output bit code	9\'S COMPLEMENT BINARY CODED DECIMAL	-	9'S COMPLEMENT BINARY CODED DECIMAL	9\'S COMPLEMENT BINARY CODED DECIMAL	-	9'S COMPLEMENT BINARY CODED DECIMAL
Output format	PARALLEL, WORD	-	PARALLEL, WORD	PARALLEL, WORD	-	PARALLEL, WORD
Package body material	PLASTIC/EPOXY	-	PLASTIC/EPOXY	PLASTIC/EPOXY	-	PLASTIC/EPOXY
encapsulated code	QCCJ	-	QCCJ	QCCJ	-	QCCJ
Encapsulate equivalent code	LDCC44,.7SQ	-	LDCC44,.7SQ	LDCC44,.7SQ	-	LDCC44,.7SQ
Package shape	SQUARE	-	SQUARE	SQUARE	-	SQUARE
Package form	CHIP CARRIER	-	CHIP CARRIER	CHIP CARRIER	-	CHIP CARRIER
power supply	9 V	-	9 V	9 V	-	9 V
Certification status	Not Qualified	-	Not Qualified	Not Qualified	-	Not Qualified
Maximum seat height	4.57 mm	-	4.57 mm	4.57 mm	-	4.57 mm
Nominal supply voltage	5 V	-	5 V	5 V	-	5 V
surface mount	YES	-	YES	YES	-	YES
technology	BIPOLAR	-	BIPOLAR	BIPOLAR	-	BIPOLAR
Temperature level	INDUSTRIAL	-	COMMERCIAL	COMMERCIAL	-	INDUSTRIAL
Terminal surface	Tin/Lead (Sn/Pb)	-	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	-	Tin/Lead (Sn85Pb15)
Terminal form	J BEND	-	J BEND	J BEND	-	J BEND
Terminal pitch	1.27 mm	-	1.27 mm	1.27 mm	-	1.27 mm
Terminal location	QUAD	-	QUAD	QUAD	-	QUAD
width	16.585 mm	-	16.585 mm	16.585 mm	-	16.585 mm
