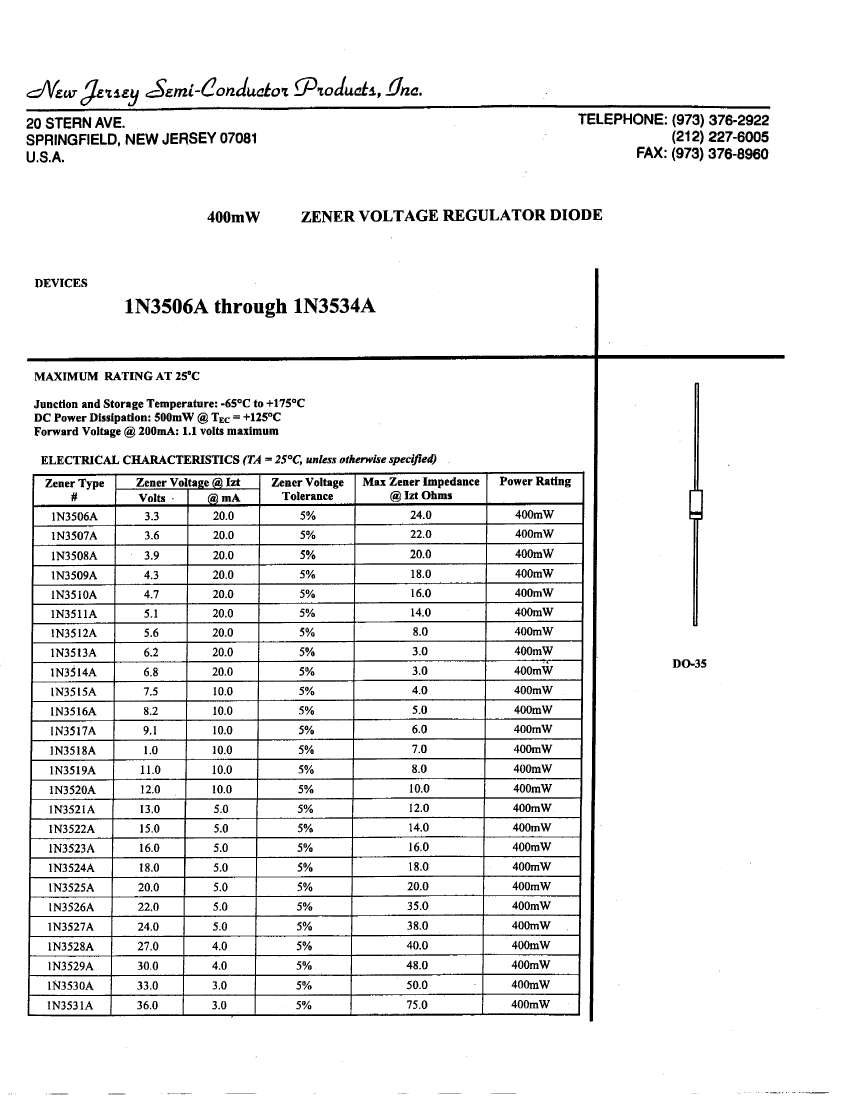

400mW
ZENER VOLTAGE REGULATOR DIODE
DEVICES
1N3506A through 1N3534A
MAXIMUM RATING AT 25
0
C
Junction and Storage Temperature: -6S°C to +175°C
DC Power Dissipation: SOOmW @ T
EC
= +125°C
Forward Voltage @ 200mA: 1.1 volts maximum
ELECTRICAL CHARACTERISTICS
(TA
-
25°C, unless otherwise specified)
Zener Type
#
1N3506A
1N3507A
1N3508A
1N3509A
1N3510A
1N3511A
1N3512A
1N3513A
1N3514A
1N3515A
1N3516A
1N3517A
1N3518A
1N3519A
1N3520A
1N3521A
1N3522A
1N3523A
1N3524A
1N3525A
1N3526A
1N3527A
1N3528A
1N3529A
1N3530A
1N3531A
Zener Voltage @ Izt
Volts
@mA
3.3
20.0
Zener Voltage
Tolerance
Max Zener Impedance
@ Izt Ohms
24.0
22.0
20.0
18.0
16.0
14.0
Power Rating
400mW
400mW
400mW
400mW
400mW
400mW
400mW
400mW
400mW
400mW
400mW
400mW
400mW
400mW
400raW
400mW
400mW
400mW
400mW
400mW
400mW
400mW
400mW
400mW
400mW
400mW
DO-35
3.6
3.9
4.3
4.7
5.1
5.6
6.2
6.8
7.5
8.2
9.1
1.0
11.0
12.0
13.0
15.0
16.0
18.0
20.0
22.0
24.0
27.0
30.0
33.0
36.0
20.0
20.0
20.0
20.0
20.0
20.0
20.0
20.0
10.0
10.0
10.0
10.0
10.0
10.0
5%
5%
5%
5%
5%
5%
5%
5%
5%
5%
5%
5%
5%
5%
5%
5%
5%
5%
5%
5%
5%
5%
5%
5%
5%
5%
[1
8.0
3.0
3.0
4.0
5.0
6.0
7.0
8.0
10.0
12.0
14.0
16.0
18.0
20.0
35.0
38.0
40.0
48.0
50.0
75.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
4.0
4.0
3.0
3.0
400mW

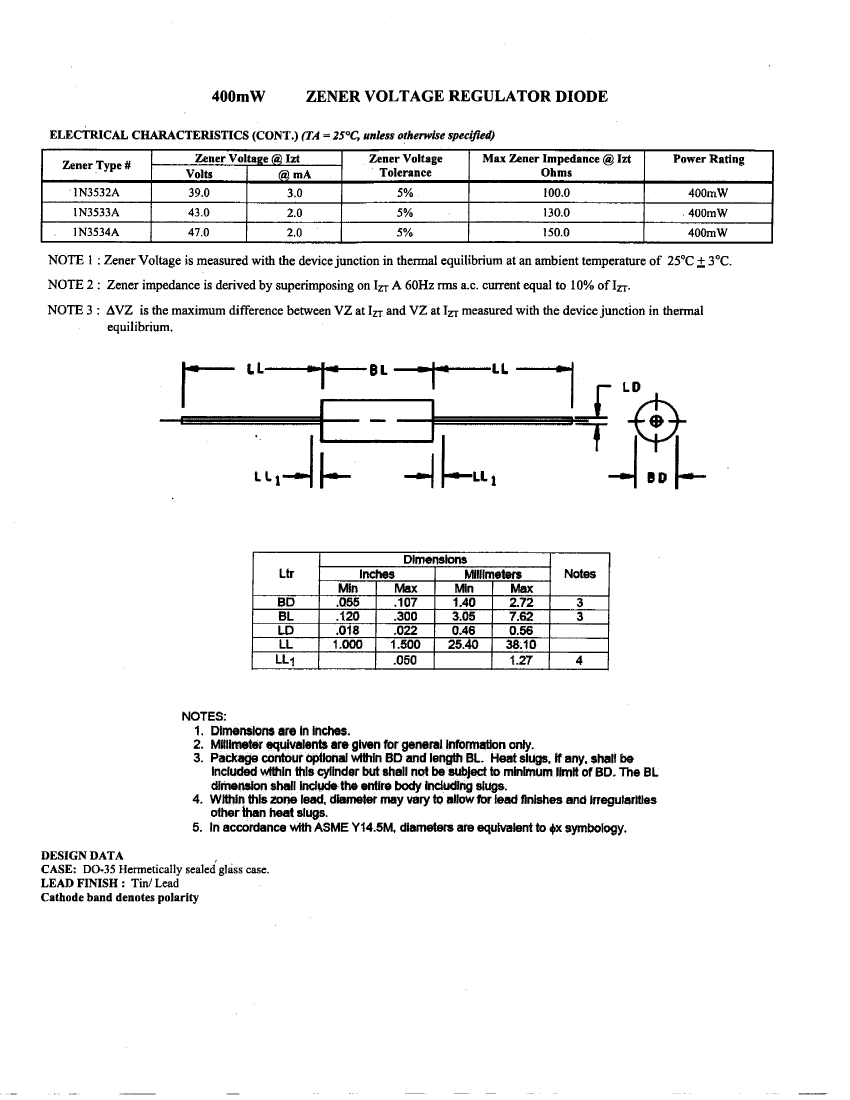

ZENER VOLTAGE REGULATOR DIODE
ELECTRICAL CHARACTERISTICS (CONT.)
(TA = 2S°C,
unless otherwise specified)
Zener Type #
1N3532A
1N3533A
1N3534A
Zener Voltage @ Izt
Volts
@mA
39.0
43.0
47.0
3.0
2.0
2,0
Zener Voltage
Tolerance
5%
5%
5%
Max Zener Impedance @ Izt
Ohms
100.0
130,0
150.0
Power Rating
400mW
400mW
400mW
.
NOTE 1 : Zener Voltage is measured with the device junction in thermal equilibrium at an ambient temperature of 25°C + 3°C.
NOTE 2 : Zener impedance is derived by superimposing on IZT A 60Hz rms a.c. current equal to 10% of IZT-
NOTE 3 : AVZ is the maximum difference between VZ at I
ZT
and VZ at IZT measured with the device junction in thermal
equilibrium.
1
«J
k -j
U,
Ltr
BD
BL
LD
LL
U-1
K
-~\
Notes
3
3
Dimensions
Inches
Millimeters
Min
Max
Min
Max
.056
.120
.018
1.000
.107
.300
.022
1.500
.050
1.40
3.05
0.46
2.72
7.62
0.56
38.10
1.27
25.40
4
NOTES:
1. Dimensions are in inches.
2. Millimeter equivalents are given for general Information only.
3. Package contour optional within BD and length BL. Heat slugs, if any. shall be
Included within this cylinder but shall not be subject to minimum limit of BD. The BL
dimension shall include the entire body including slugs.
4. Within this zone lead, diameter may vary to allow for lead finishes and irregularities
other than heat slugs.
5. In accordance with ASME Y14.5M, diameters are equivalent to <|>x syrrtbology.
DESIGN DATA
CASE:
DO-35 Hermetically sealed glass case.
LEAD FINISH:
Tin/Lead
Cathode band denotes polarity
