264-60303-12 datasheet, PDF - EEWORLD Datasheet

264-60303-12: DescriptionBoard Connector, 120 Contact(s), 4 Row(s), Female, Straight, 0.079 inch Pitch, Press Fit Terminal, Locking,; CategoryThe connector The connector; File Size51KB，1 Pages; Manufacturerept Connectors; Websitehttps://www.ept.de; Environmental Compliance

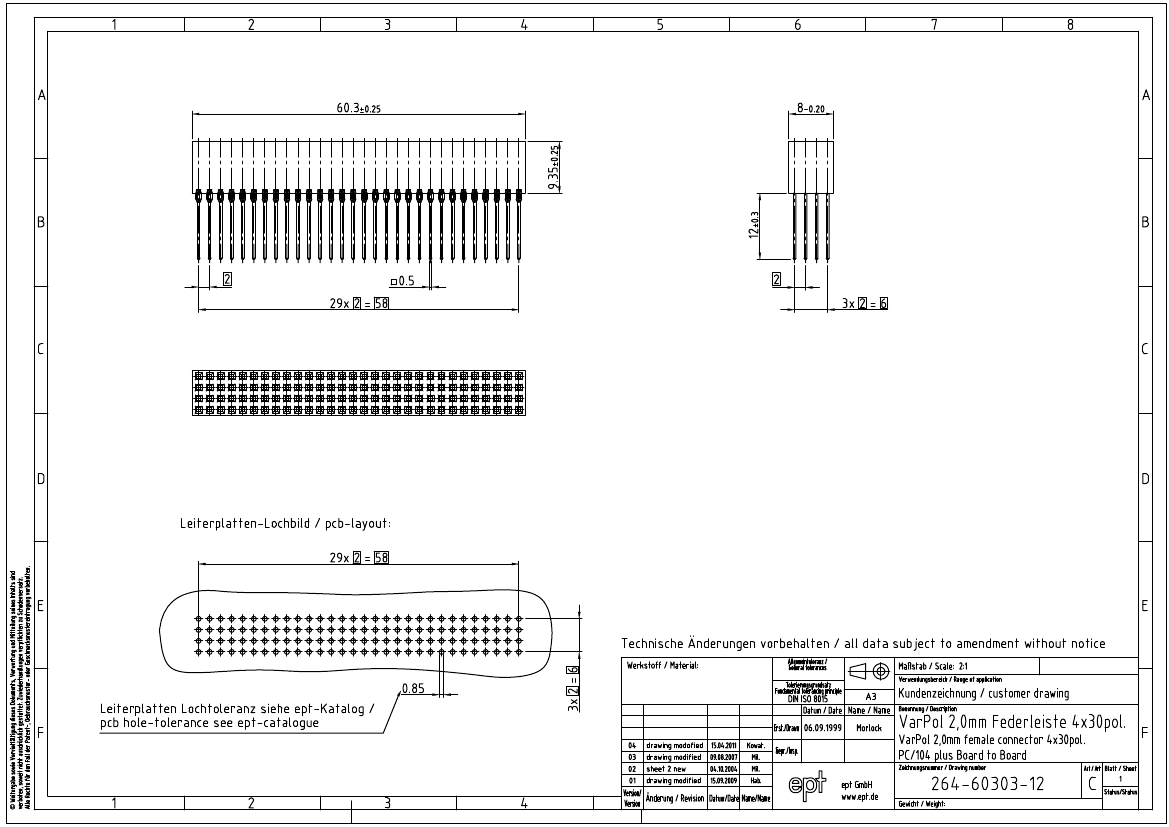

Download Datasheet Parametric View All

264-60303-12 Overview

Board Connector, 120 Contact(s), 4 Row(s), Female, Straight, 0.079 inch Pitch, Press Fit Terminal, Locking,

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Reach Compliance Code	compliant
body width	0.315 inch
subject depth	0.368 inch
body length	2.374 inch
Connector type	BOARD CONNECTOR
Contact to complete cooperation	NOT SPECIFIED
Contact point gender	FEMALE
Contact material	NOT SPECIFIED
contact mode	RECTANGULAR
Contact resistance	20 mΩ
Contact style	SQ PIN-SKT
DIN compliance	NO
Filter function	NO
IEC compliance	NO
maximum insertion force	1.5012 N
Insulation resistance	1000000000000 Ω
insulator material	GLASS FILLED POLYBUTYLENE TEREPHTHALATE
MIL compliance	NO
Plug contact pitch	0.079 inch
Match contact row spacing	0.079 inch
Mixed contacts	NO
Installation option 1	LOCKING
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB row number	4
Number of rows loaded	4
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Options	GENERAL PURPOSE
PCB contact pattern	RECTANGULAR
PCB contact row spacing	2.0066 mm
polarization key	POLARIZED HOUSING
Rated current (signal)	1.7 A
Guideline	UL
reliability	COMMERCIAL
Terminal length	0.472 inch
Terminal pitch	2 mm
Termination type	PRESS FIT
Total number of contacts	120
Evacuation force-minimum value	.3058 N
Base Number Matches	1
