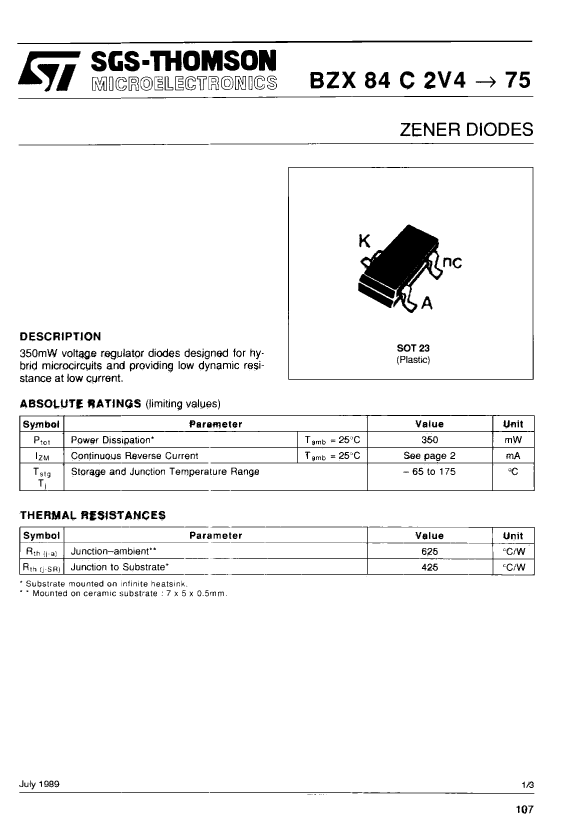

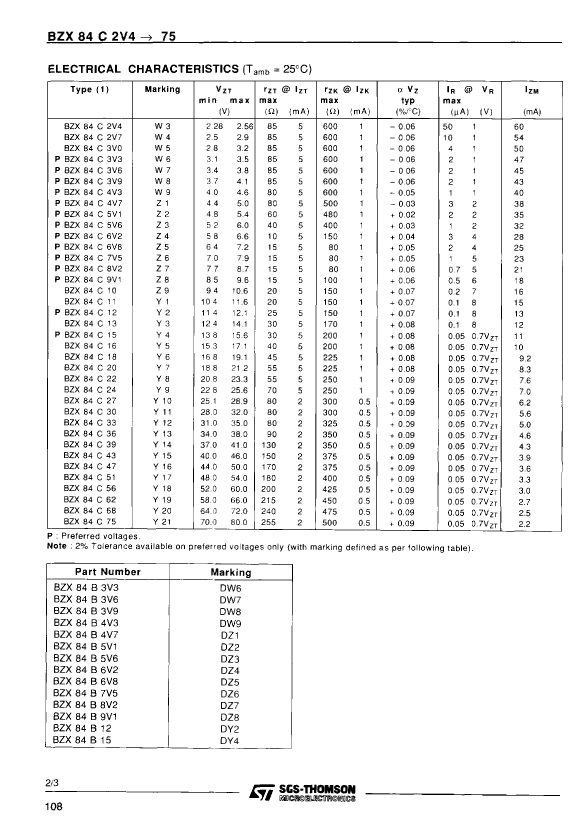

BZX84C75FILM datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Discrete semiconductor> diode> BZX84C75FILM

BZX84C75FILM: Description75V, 0.35W, SILICON, UNIDIRECTIONAL VOLTAGE REGULATOR DIODE; CategoryDiscrete semiconductor diode; File Size58KB，3 Pages; ManufacturerSTMicroelectronics; Websitehttp://www.st.com/

Download Datasheet Parametric Compare View All

BZX84C75FILM Overview

75V, 0.35W, SILICON, UNIDIRECTIONAL VOLTAGE REGULATOR DIODE

BZX84C75FILM Parametric

Parameter Name	Attribute value
Maker	STMicroelectronics
package instruction	R-PDSO-G3
Reach Compliance Code	unknown
ECCN code	EAR99
Configuration	SINGLE
Diode component materials	SILICON
Diode type	ZENER DIODE
JESD-30 code	R-PDSO-G3
Maximum knee impedance	500 Ω
Number of components	1
Number of terminals	3
Maximum operating temperature	175 °C
Minimum operating temperature	-65 °C
Package body material	PLASTIC/EPOXY
Package shape	RECTANGULAR
Package form	SMALL OUTLINE
polarity	UNIDIRECTIONAL
Maximum power dissipation	0.35 W
Certification status	Not Qualified
Nominal reference voltage	75 V
Maximum reverse current	0.05 µA
surface mount	YES
technology	ZENER
Terminal form	GULL WING
Terminal location	DUAL
Voltage temperatureCoeff-Max	67.5 mV/°C
Working test current	2 mA
Base Number Matches	1

Preview

Download Datasheet

View All

BZX84C75FILM Related Products

	BZX84C75FILM	BZX84C15FILM	BZX84B4V7	BZX84B8V2	BZX84B9V1	BZX84C2V7FILM
Description	75V, 0.35W, SILICON, UNIDIRECTIONAL VOLTAGE REGULATOR DIODE	15V, 0.35W, SILICON, UNIDIRECTIONAL VOLTAGE REGULATOR DIODE	4.7V, 0.35W, SILICON, UNIDIRECTIONAL VOLTAGE REGULATOR DIODE	8.2V, 0.35W, SILICON, UNIDIRECTIONAL VOLTAGE REGULATOR DIODE	9.1V, 0.35W, SILICON, UNIDIRECTIONAL VOLTAGE REGULATOR DIODE	2.7V, 0.35W, SILICON, UNIDIRECTIONAL VOLTAGE REGULATOR DIODE
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99
Configuration	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE
Diode component materials	SILICON	SILICON	SILICON	SILICON	SILICON	SILICON
Diode type	ZENER DIODE	ZENER DIODE	ZENER DIODE	ZENER DIODE	ZENER DIODE	ZENER DIODE
JESD-30 code	R-PDSO-G3	R-PDSO-G3	R-PDSO-G3	R-PDSO-G3	R-PDSO-G3	R-PDSO-G3
Maximum knee impedance	500 Ω	200 Ω	500 Ω	80 Ω	100 Ω	600 Ω
Number of components	1	1	1	1	1	1
Number of terminals	3	3	3	3	3	3
Maximum operating temperature	175 °C	175 °C	175 °C	175 °C	175 °C	175 °C
Minimum operating temperature	-65 °C	-65 °C	-65 °C	-65 °C	-65 °C	-65 °C
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE
polarity	UNIDIRECTIONAL	UNIDIRECTIONAL	UNIDIRECTIONAL	UNIDIRECTIONAL	UNIDIRECTIONAL	UNIDIRECTIONAL
Maximum power dissipation	0.35 W	0.35 W	0.35 W	0.35 W	0.35 W	0.35 W
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Nominal reference voltage	75 V	15 V	4.7 V	8.2 V	9.1 V	2.7 V
Maximum reverse current	0.05 µA	0.05 µA	3 µA	0.7 µA	0.5 µA	10 µA
surface mount	YES	YES	YES	YES	YES	YES
technology	ZENER	ZENER	ZENER	ZENER	ZENER	ZENER
Terminal form	GULL WING	GULL WING	GULL WING	GULL WING	GULL WING	GULL WING
Terminal location	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL
Voltage temperatureCoeff-Max	67.5 mV/°C	12 mV/°C	-	4.92 mV/°C	5.46 mV/°C	-
Working test current	2 mA	5 mA	5 mA	5 mA	5 mA	5 mA
Maker	STMicroelectronics	-	STMicroelectronics	-	STMicroelectronics	STMicroelectronics
package instruction	R-PDSO-G3	-	R-PDSO-G3	R-PDSO-G3	R-PDSO-G3	R-PDSO-G3
Base Number Matches	1	1	1	1	-	-
