IS80C52-20PQ datasheet, PDF - EEWORLD Datasheet

IS80C52-20PQ: DescriptionMicrocontroller, 8-Bit, MROM, 8051 CPU, 20MHz, CMOS, PQFP44; CategoryThe embedded processor and controller Microcontrollers and processors; File Size4MB，51 Pages; ManufacturerIntegrated Silicon Solution ( ISSI )

Download Datasheet Parametric View All

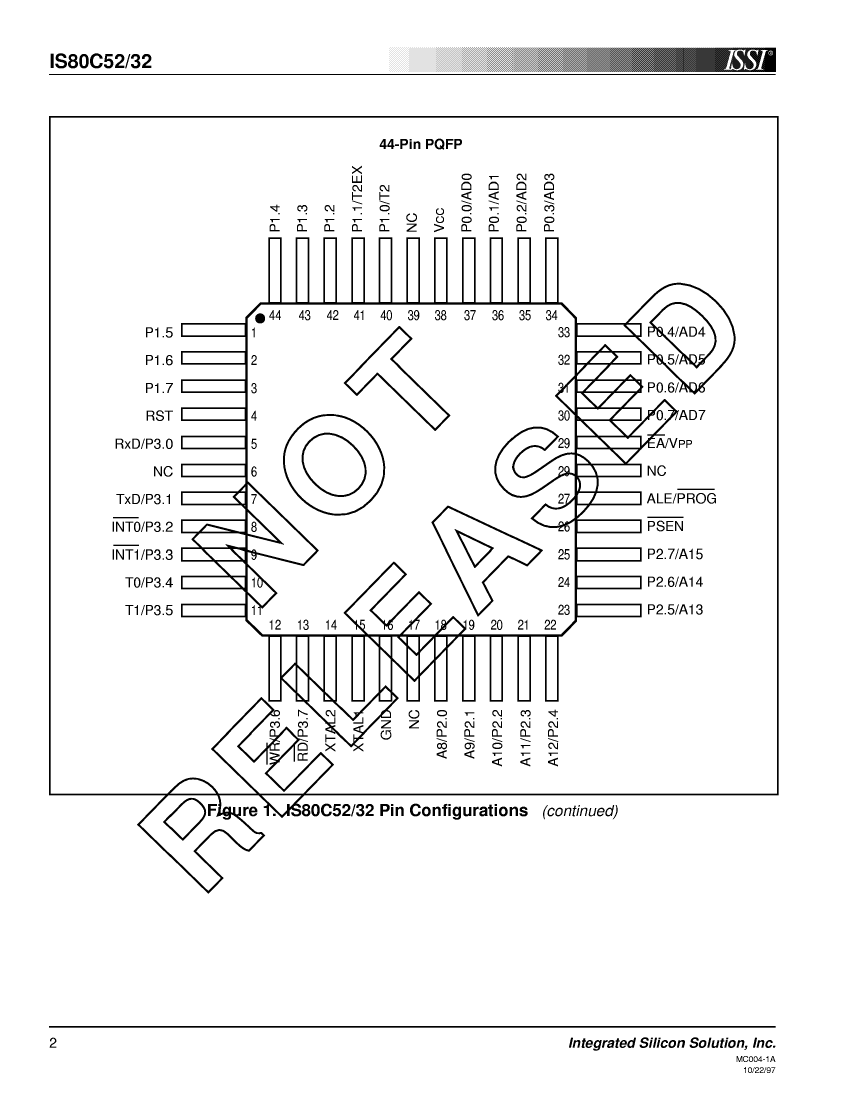

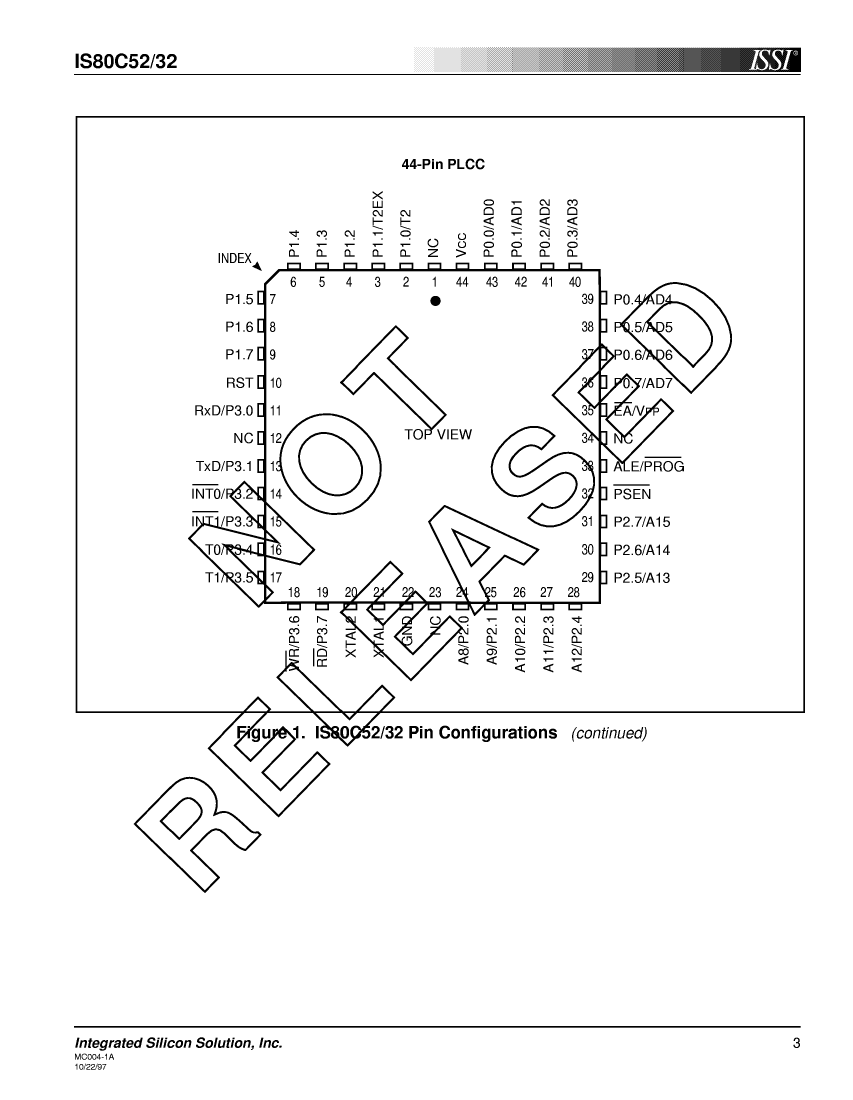

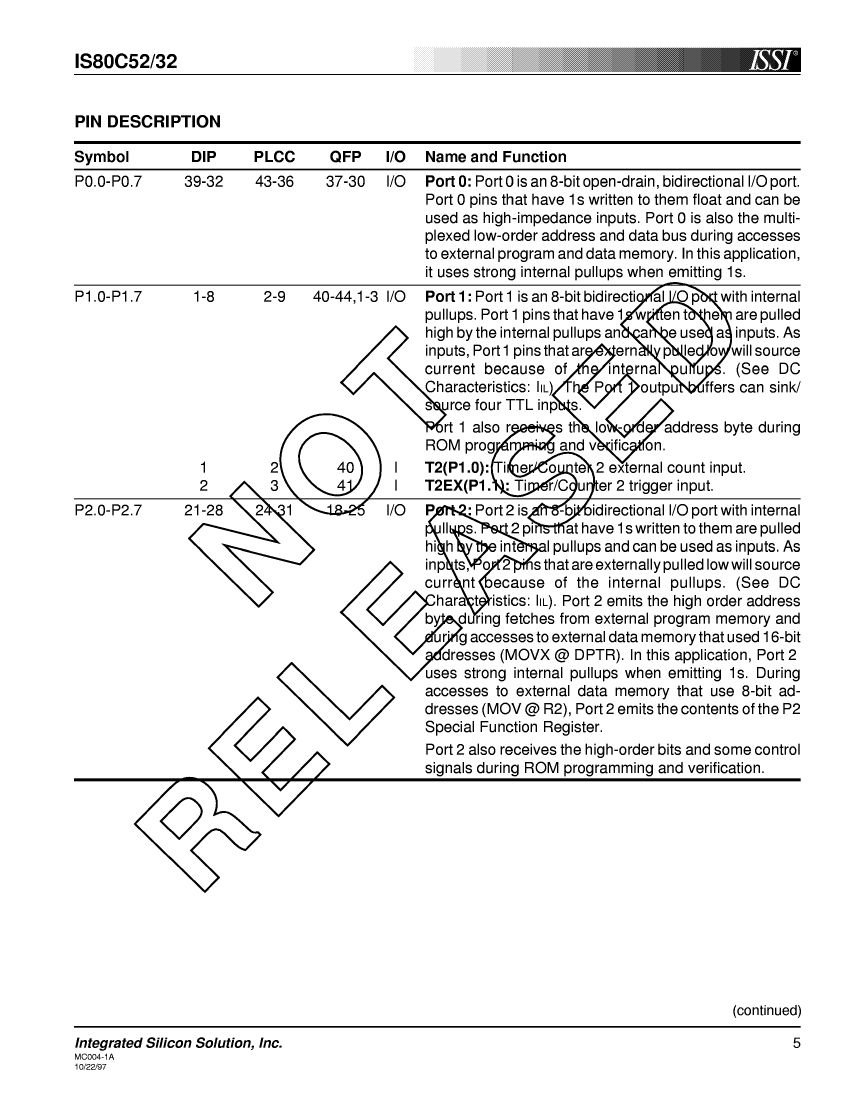

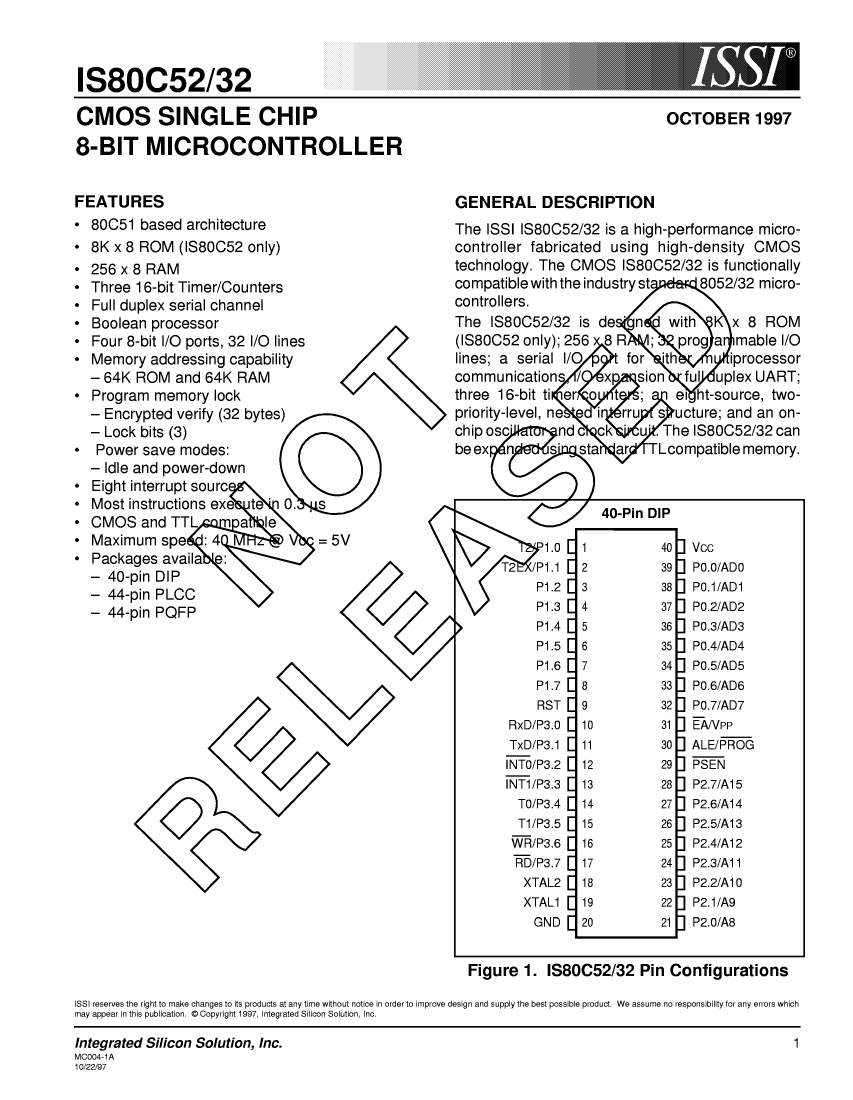

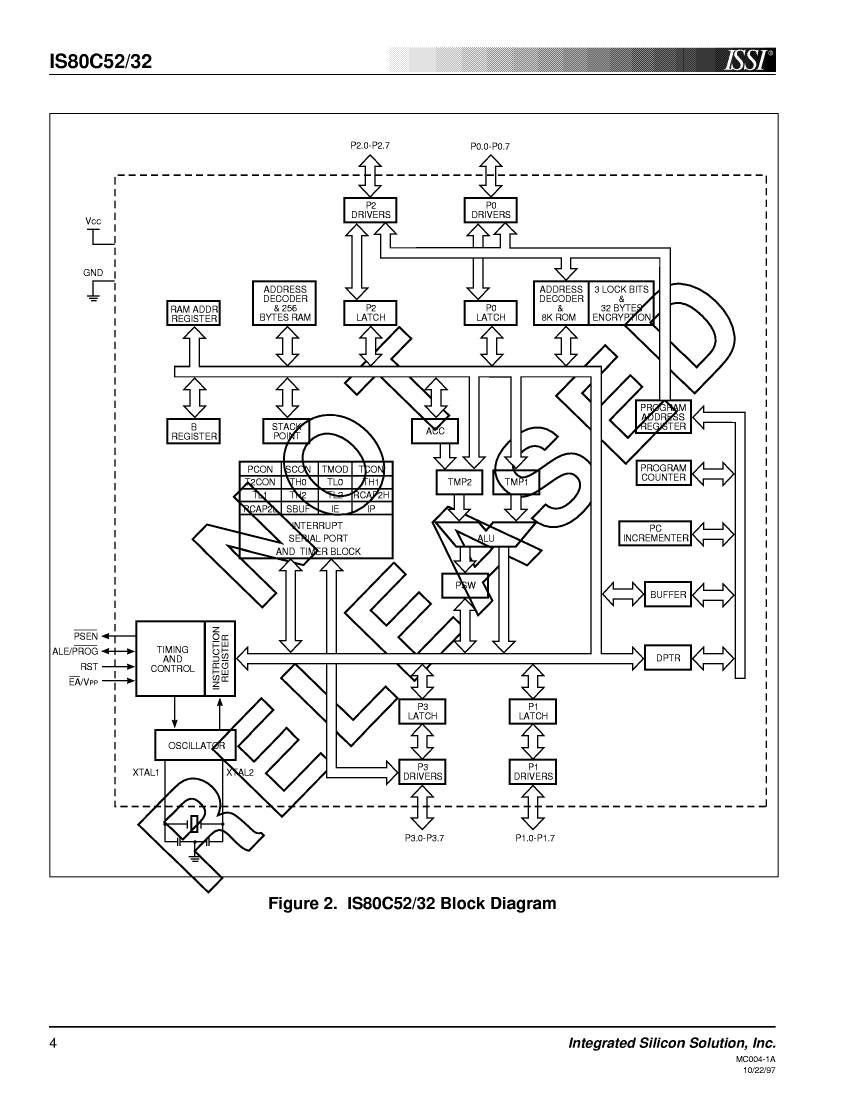

IS80C52-20PQ Overview

Microcontroller, 8-Bit, MROM, 8051 CPU, 20MHz, CMOS, PQFP44

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
package instruction	QFP, QFP44(UNSPEC)
Reach Compliance Code	compli
Has ADC	NO
Address bus width	16
bit size	8
CPU series	8051
maximum clock frequency	40 MHz
DAC channel	NO
DMA channel	NO
External data bus width	8
JESD-609 code	e0
length	10 mm
Number of I/O lines	32
Number of terminals	44
Maximum operating temperature	70 °C
Minimum operating temperature
PWM channel	NO
Package body material	PLASTIC/EPOXY
encapsulated code	QFP
Encapsulate equivalent code	QFP44(UNSPEC)
Package shape	SQUARE
Package form	FLATPACK
power supply	5 V
Certification status	Not Qualified
RAM (bytes)	256
rom(word)	8192
ROM programmability	MROM
speed	20 MHz
Maximum slew rate	32 mA
Maximum supply voltage	5.5 V
Minimum supply voltage	4.5 V
Nominal supply voltage	5 V
surface mount	YES
technology	CMOS
Temperature level	COMMERCIAL
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	GULL WING
Terminal pitch	0.8 mm
Terminal location	QUAD
width	10 mm
Base Number Matches	1
