MIL-C-55302/64LC20F datasheet, PDF

MIL-C-55302/64LC20F: DescriptionBoard Connector, 20 Contact(s), 2 Row(s), Female, Straight, 0.1 inch Pitch, Solder Terminal, Locking, Black Insulator, Socket,; CategoryThe connector The connector; File Size645KB，2 Pages; ManufacturerWinchester Electronics

Download Datasheet Parametric Compare View All

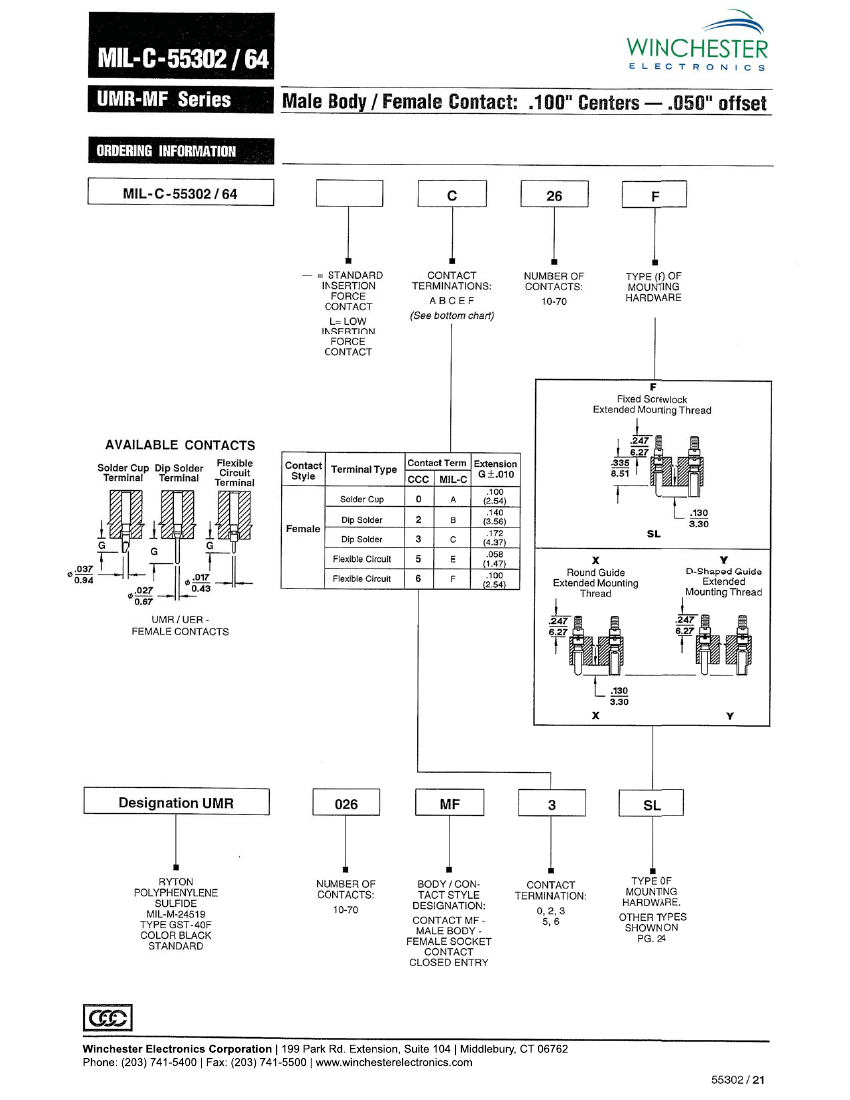

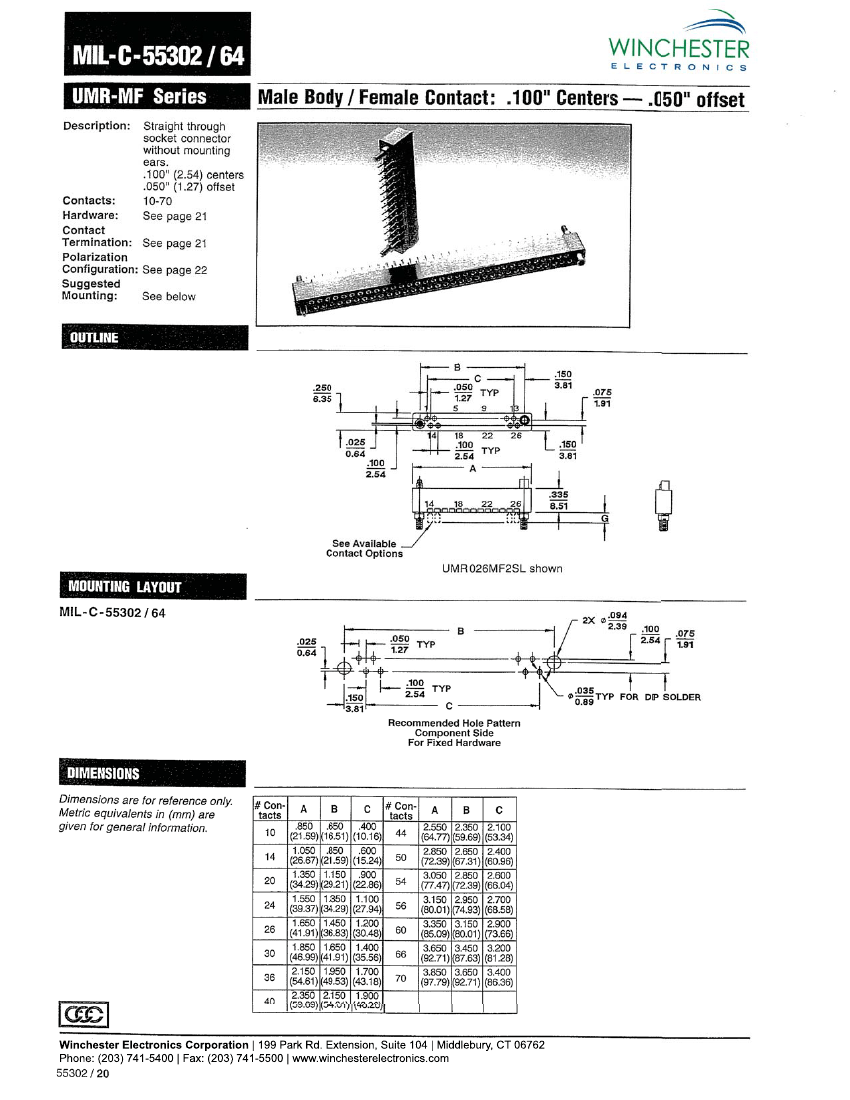

MIL-C-55302/64LC20F Overview

Board Connector, 20 Contact(s), 2 Row(s), Female, Straight, 0.1 inch Pitch, Solder Terminal, Locking, Black Insulator, Socket,

Parameter Name	Attribute value
Reach Compliance Code	unknow
ECCN code	EAR99
Other features	STANDARD: MIL-C-55302/64
body width	0.25 inch
subject depth	0.335 inch
body length	1.35 inch
Body/casing type	SOCKET
Connector type	BOARD CONNECTOR
Contact to complete cooperation	NOT SPECIFIED
Contact point gender	FEMALE
contact mode	STAGGERED
Contact style	RND PIN-SKT
DIN compliance	NO
Filter function	NO
IEC compliance	NO
maximum insertion force	LIF N
Insulator color	BLACK
MIL compliance	YES
Manufacturer's serial number	MIL-C-55302/64
Plug contact pitch	0.1 inch
Match contact row spacing	0.1 inch
Mixed contacts	NO
Installation option 1	LOCKING
Installation option 2	SCREWLOCKS
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB row number	2
Number of rows loaded	2
Options	GENERAL PURPOSE
PCB contact pattern	STAGGERED
PCB contact row spacing	2.54 mm
reliability	MIL-C-55302
Terminal length	0.172 inch
Terminal pitch	2.54 mm
Termination type	SOLDER
Total number of contacts	20
Evacuation force-minimum value	LIF N
Base Number Matches	1

	MIL-C-55302/64LC20F	MIL-C-55302/64-A30F	MIL-C-55302/64LC20X	MIL-C-55302/64LC20Y	MIL-C-55302/64LF56X	MIL-C-55302/64-F56X
Description	Board Connector, 20 Contact(s), 2 Row(s), Female, Straight, 0.1 inch Pitch, Solder Terminal, Locking, Black Insulator, Socket,	Board Connector	Board Connector	Board Connector	Board Connector	Board Connector
Reach Compliance Code	unknow	unknown	unknown	unknown	unknown	unknown
Connector type	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR
Manufacturer's serial number	MIL-C-55302/64	MIL-C-55302/64	MIL-C-55302/64	MIL-C-55302/64	MIL-C-55302/64	MIL-C-55302/64
Base Number Matches	1	1	1	1	1	1
