NJW1138
P R E L I M I N A LY
AUDIO PROCESSOR
s
GENERAL DESCRIPTION
The
NJW1138
is an audio processor. It includes all of
functions processing audio signal for TV, such as tone
control, balance, volume, mute, NJRC original surround, and
AGC functions.
The NJRC original surround system reproduces natural
surround sound and clear vocal orientation.
2
All of internal status and variables are controlled by I C
BUS interface.
s
PACKAGE OUTLINE
NJW1138L
NJW1138M
s
FEATURES
8 to 13V
q
Operating Voltage
2
q
I C BUS Interface
q
AGC Circuit (It reduces volume difference among input sources.)
q
eala(NJRC Original Surround)
q
Simulated Surround
q
Bi-CMOS Technology
SDIP30, SDMP30
q
Package Outline
s

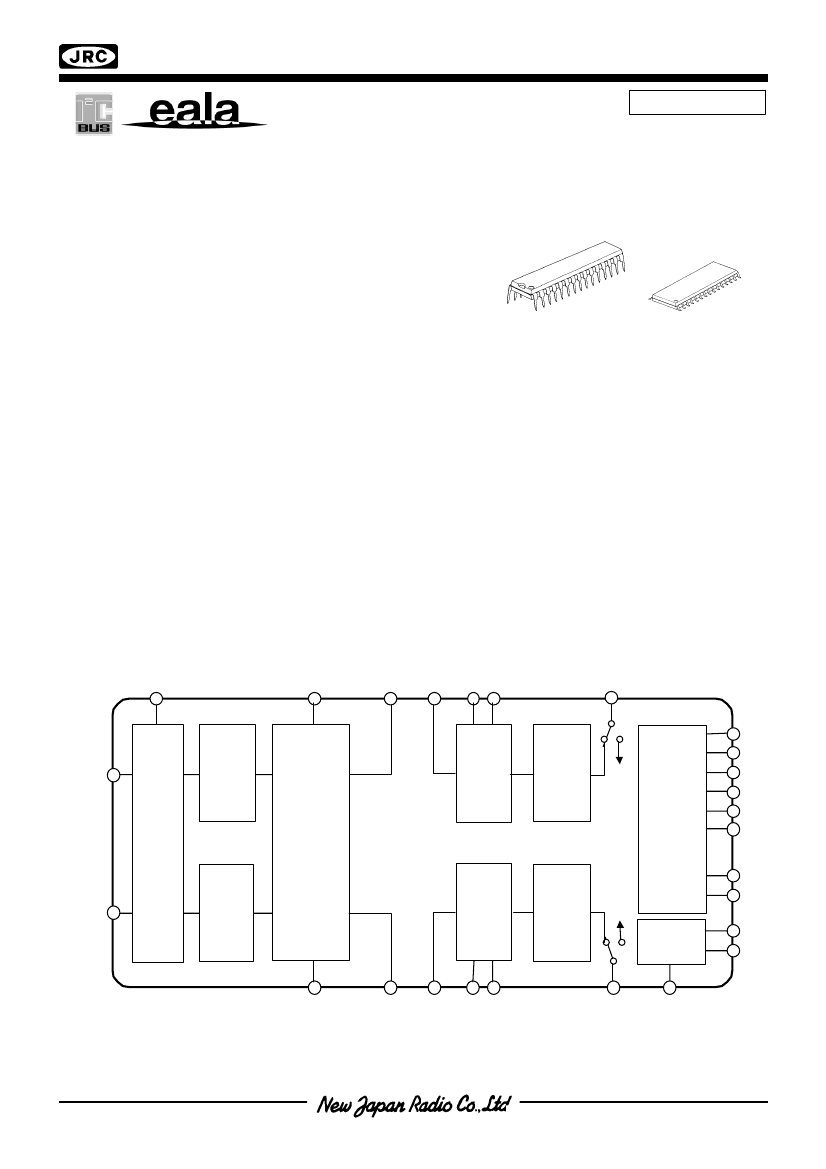

BLOCK DIAGRAM
VOL1
TONE
VOL2
AGC
eala
&
Sim ulated
Surround
I2C Bus
Interface
VOL1
TONE
VOL2
Bias
- 1 –F
NJW1138
s
PIN FUNCTION
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
INa
NC
NC
OUT1a
IN2a
TONE-Ha
TONE-La
OUT2a
AGC
SS-FIL
CVB
CVA
SDA
SCL
GND
INb
NC
NC
OUT1b
IN2b
TONE-Hb
TONE-Lb
OUT2b
SR-FIL
VREF
CTH
CTL
AUX0
AUX1
Vcc
30
29
28
27
26
25
24
23
22
21
20
19
18
17
16
No.
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
Symbol
IN1a
NC
NC
OUT1a
IN2a
TONE-Ha
TONE-La
OUT2a
AGC
SS-FIL
CVB
CVA
SDA
SCL
GND
Ach Input
Non Connect
Non Connect
Function
No
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
Symbol
Vcc
AUX1
AUX0
CTL
CTH
VREF
SR-FIL
OUT2b
TONE-Lb
TONE-Hb
IN2b
OUT1b
NC
NC
IN1b
Power Supply Pin
Auxiliary Output1
Auxiliary Output0
Function
Ach Output for the Other Accessories
Ach Input From the Other Accessories
Ach Treble Filter
Ach Bass Filter
Ach Output
AGC Filter
Simulated Stereo Filter
DAC Output for Bch Volume & Balance
DAC Output for Ach Volume & Balance
SDA Data Input (I
2
C BUS)
SCL Data Input (I
2
C BUS)
GND
DAC Output for Tone Low Frequency
DAC Output for Tone High Frequency
Reference Voltage
NJRC Original Surround Filter
Bch Output
Bch Bass Filter
Bch Treble Filter
Bch Input from the Other Accessories
Bch Output for the Other Accessories
Non Connect
Non Connect
Bch Input
-2-
NJW1138
s
ABSOLUTE MAXIMUM RATING (Ta=25°C)
PARAMETER
Supply Voltage
Power Dissipation
Operating Temperature Range
Storage Temperature Range
SYMBOL
V
+
RATING
14
700
-20 to +75
-40 to +125
UNIT
V
mW
°C
°C
P
D
Topr
Tstg
s
ELECTRICAL CHARACTERISTICS
( Ta=25°C, V+=9V, Rg=600Ω, R
L
=47kΩ, Vin=100mVrms/1kHz unless otherwise specified)
PARAMETER
Operating Voltage
Supply Current
Reference Voltage
Maximum Input Voltage
Maximum Output Voltage
Channel Balance
Balance Boost A
Balance Cut A
Balance Boost B
Balance Cut B
Total Harmonic Distortion
Maximum Gain
Minimum Gain
Channel Separation
Output Noise 1
Output Noise 2
SYMBOL
V
+
TEST CONDITION
MIN.
8.0
TYP.
9.0
10
4.5
3.0
2.5
0.0
0.0
-
0.0
-
-
0.0
-
-
-90
(31.6)
-106
(5.0)
-
-
MAX.
13.0
25
5.0
-
-
1.5
2.0
-70
2.0
-70
0.5
2.0
-70
-70
-85
(56.2)
-96
(15.8)
5.0
UNIT
V
mA
V
Vrms
Vrms
dB
dB
dB
dB
dB
%
dB
dB
dB
dBV
(µVrms)
dBV
(µVrms)
V
I
CC
V
REF
V
IM
V
OM
G
CB
BA
BST
BA
CUT
BB
BST
BB
CUT
THD
G
VMAX
G
VMIN
CS
V
NO1
V
NO2
V
AUX
No Signal
No Signal
VOL=-20dB,THD=1%
OUTPUT
VOL=0dB,THD=1%
VOL=0dB
CHS=”0”,BAL=”11111”
CHS=”1”,BAL=”11111”
Vin = 1Vrms
CHS=”1”,BAL=”11111”
CHS=”0”,BAL=”11111”
Vin = 1Vrms
Vo=0.5Vrms
BW=400Hz to 30kHz
VOL= 0dB
VOL= MUTE
Vin = 2Vrms
VOL = 0dB
BW=400Hz to 30kHz
VOL = MUTE
BW = 400Hz to 30kHz
Logic Output : High
-
4.0
2.8
-
-1.5
-2.0
-
-2.0
-
-
-2.0
-
-
-
-
-
-
4.5
0
AUX Output Voltage
Logic Output : Low
0.3
BW : Band Width
-3-
NJW1138
♦
TONE CONTROL
PARAMETER
High Frequency Boost
High Frequency Flat
High Frequency Cut
Low Frequency Boost
Low Frequency Flat
Low Frequency Cut
SYMBOL
HF
BST
HF
FLT
HF
CUT
LF
BST
LF
FLT
LF
CUT
TEST CONDITION
BCT=”1”,TREB=”1111”,
f=10kHz
TRBE=”0000”,f=10kHz
BCT=”0”,TRBE=”1111”,
f=10kHz
BCB=”1”,BASS=”1111”,
f=100Hz
BASS=”0000”,f=100Hz
BCB=”0”,BASS=”1111”,
f=100Hz
MIN.
12.5
-2.0
-17.5
12.5
-2.0
-17.5
TYP.
15.0
0.0
-15.0
15.0
0.0
-15.0
MAX.
17.5
2.0
-12.5
17.5
2.0
-12.5
UNIT
dB
dB
dB
dB
dB
dB
♦
SUB-TONE CONTROL
PARAMETER
High Frequency Boost
High Frequency Cut
Low Frequency Boost
Low Frequency Cut
SYMBOL
SHF
BST
SHF
CUT
SLF
BST
SLF
CUT
TEST CONDITION
BCST=”1”,
SUB-TREB=”11”,f=10kHz
BCST=”0”,
SUB-TREB=”11”,f=10kHz
BCSB=”1”,
SUB-BASS=”11”,f=100Hz
BCSB=”0”,
SUB-BASS=”11”,f=100Hz
MIN.
2.0
-4.0
2.0
-4.0
TYP.
3.0
-3.0
3.0
-3.0
MAX.
4.0
-2.0
4.0
-2.0
UNIT
dB
dB
dB
dB
♦
AGC CONTROL(AGC-ON)
PARAMETER
AGC Boost
AGC Flat1
AGC Flat2
AGC Flat3
AGC Flat4
AGC Cut
SYMBOL
AGC
BST
AGC
FLT1
AGC
FLT2
AGC
FLT3
AGC
FLT4
AGC
CUT
TEST CONDITION
Vin=50mVrms, f=1kHz
Vin=150mVrms, f=1kHz
Vin=300mVrms, f=1kHz
Vin=400mVrms, f=1kHz
Vin=540mVrms, f=1kHz
Vin=2Vrms, f=1kHz
MIN.
1.5
-2.5
-2.5
-2.5
-2.5
-14
TYP.
3.5
0.0
0.0
0.0
0.0
-10
MAX.
5.5
2.5
2.5
2.5
2.5
-6.0
UNIT
dB
dB
dB
dB
dB
dB
♦
SURROUND (SURROUND-ON)
PARAMETER
Surround Gain1
Surround Gain2
Surround Gain3
Surround Gain4
Simulated Surround Gain1
Simulated Surround Gain2
SYMBOL
SR
GAIN1
SR
GAIN2
SR
GAIN3
SR
GAIN 4
SR
SIM1
SR
SIM2
TEST CONDITION
Ain→Aout, f=100Hz
SUR0=”0”, SUR=”1”
Ain→Bout, f=100Hz
SUR0=”0”, SUR=”1”
Ain→Aout, f=100Hz
SUR0=”1”, SUR=”1”
Ain→Bout, f=100Hz
SUR0=”1”, SUR=”1”
Ain+Bin→Aout, f=1kHz
SUR0=”1”, SUR=”0”
Ain+Bin→Bout, f=1kHz
SUR0=”1”, SUR=”0”
MIN.
6.0
1.6
10.7
8.4
1.0
1.0
TYP.
8.0
3.6
12.7
10.4
3.0
3.0
MAX.
10.0
5.6
14.7
12.4
5.0
5.0
UNIT
dB
dB
dB
dB
dB
dB
-4-
NJW1138
s

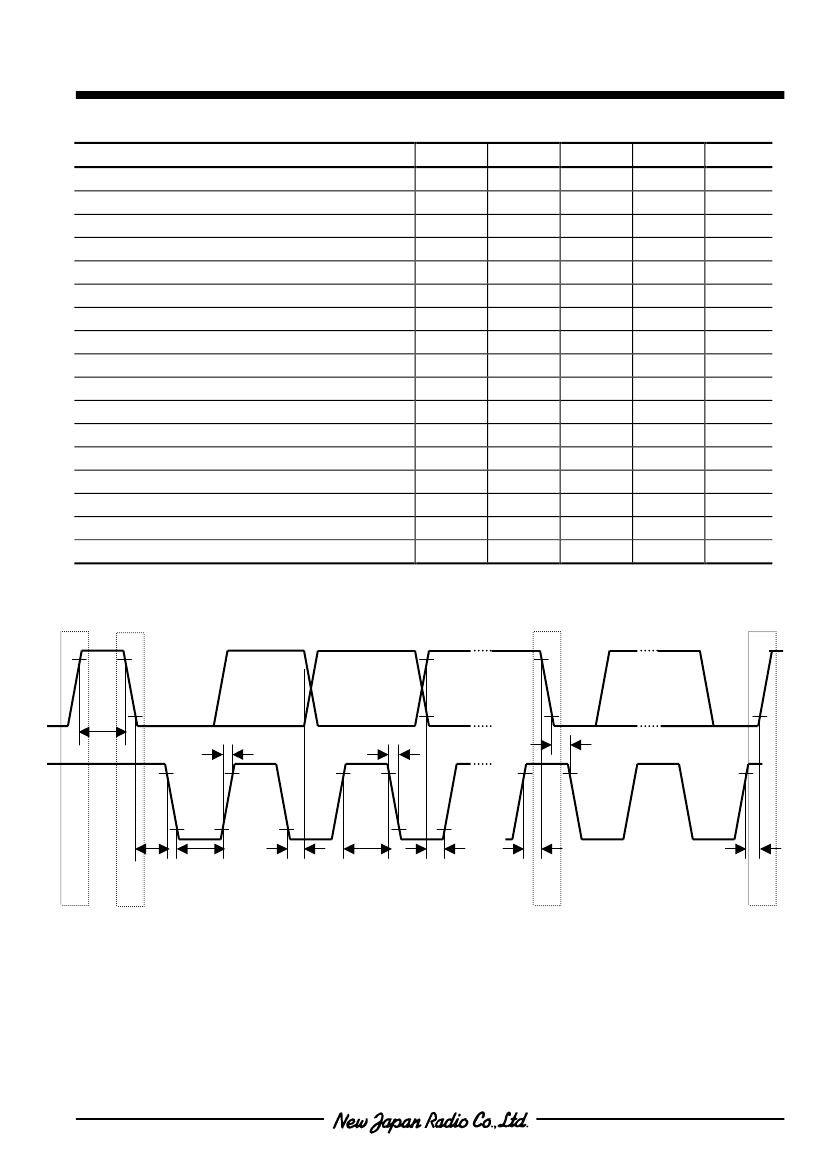

I C BUS BLOCK CHARACTERISTICS (SDA,SCL)
PARAMETER
High Level Input Voltage
Low Level Input Voltage
High Level Input Current
Low Level Input Current
Low Level Output Voltage (3mA at SDA pin)
Maximum Output Current
Maximum Clock Frequency
Data Change Minimum Waiting Time
Data Transfer Start Minimum Waiting Time
Low Level Clock Pulse Width
High Level Clock Pulse Width
Minimum Start Preparation Waiting Time
Minimum Data Hold Time
Minimum Data Preparation Time
Rise Time
Fall Time
Minimum Stop Preparation Waiting Time
I C BUS Load Condition:
2
2
SYMBOL
V
IH
V
IL
I
IH
I
IL
V
OL
I
OL
f
SCL
t
BUF
t
HD:STA
t
LOW
T
HIGH
t
SU:STA
t
HD:DAT
t
SU:DAT
t
R
t
F
t
SU:STO
MIN.
3.0
0
-
-
0
-3.0
0
4.7
4.0
4.7
4.0
4.7
5.0
250
-
-
4.7
TYP.
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
MAX.
5.0
1.5
10
10
0.4
-
100
-
-
-
-
-
-
-
1.0
300
-
UNIT
V
V
µA
µA
V
mA
kHz
µs
µs
µs
µs
µs
µs
ns
µs
ns
µs
Pull up resistance 4kΩ (Connected to +5V)
Load capacitance 200pF (Connected to GND)
SDA
t
BU
t
R
t
F
t
HD:ST
SCL
t
HD:ST
P
S
t
LOW
t
HD:DA
t
HIGH
t
SU:DA
Sr
t
SU:ST
t
SU:ST
P
-5-
