5962-8971102LA datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The embedded processor and controller> Microcontrollers and processors> 5962-8971102LA

5962-8971102LA: DescriptionCorrelator, 1-Bit, CMOS, CDIP24; CategoryThe embedded processor and controller Microcontrollers and processors; File Size420KB，12 Pages; ManufacturerTRW Inc

Download Datasheet Parametric Compare View All

5962-8971102LA Overview

Correlator, 1-Bit, CMOS, CDIP24

5962-8971102LA Parametric

Parameter Name	Attribute value
package instruction	,
Reach Compliance Code	unknown
ECCN code	3A001.A.2.C
Other features	2 X 1 BIT DATA INPUT BUS; 2 X 1 BIT DATA OUTPUT BUS; OPTEMP SPECIFIED AS TC
boundary scan	NO
maximum clock frequency	30 MHz
External data bus width	1
JESD-30 code	R-CDIP-T24
JESD-609 code	e0
low power mode	NO
Number of terminals	24
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Output data bus width	1
Package body material	CERAMIC, METAL-SEALED COFIRED
Package shape	RECTANGULAR
Package form	IN-LINE
Certification status	Not Qualified
Maximum slew rate	35 mA
Maximum supply voltage	5.5 V
Minimum supply voltage	4.5 V
Nominal supply voltage	5 V
surface mount	NO
technology	CMOS
Temperature level	MILITARY
Terminal surface	TIN LEAD
Terminal form	THROUGH-HOLE
Terminal location	DUAL
uPs/uCs/peripheral integrated circuit type	DSP PERIPHERAL, CORRELATOR
Base Number Matches	1

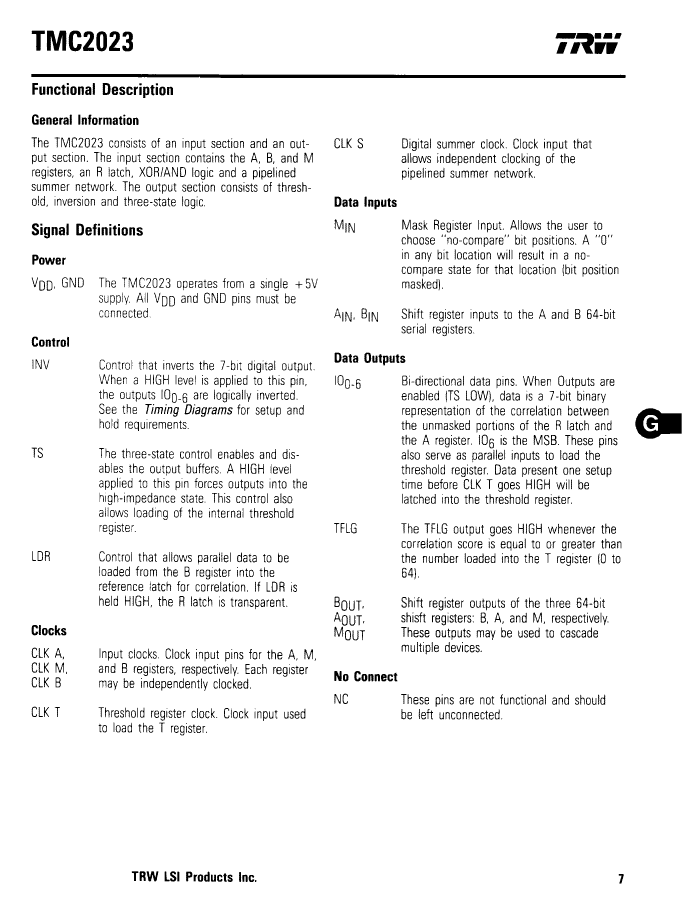

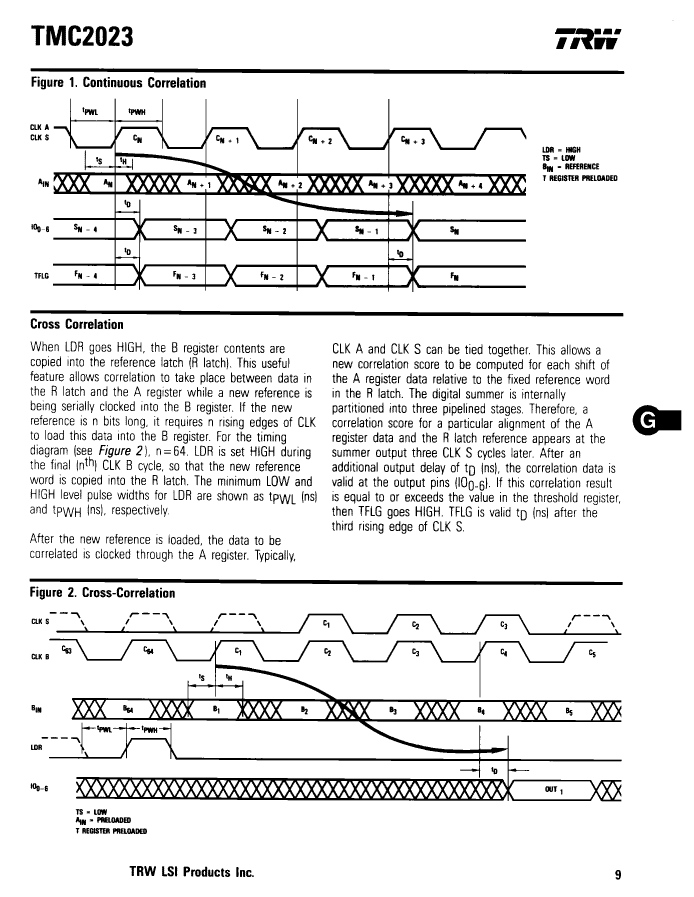

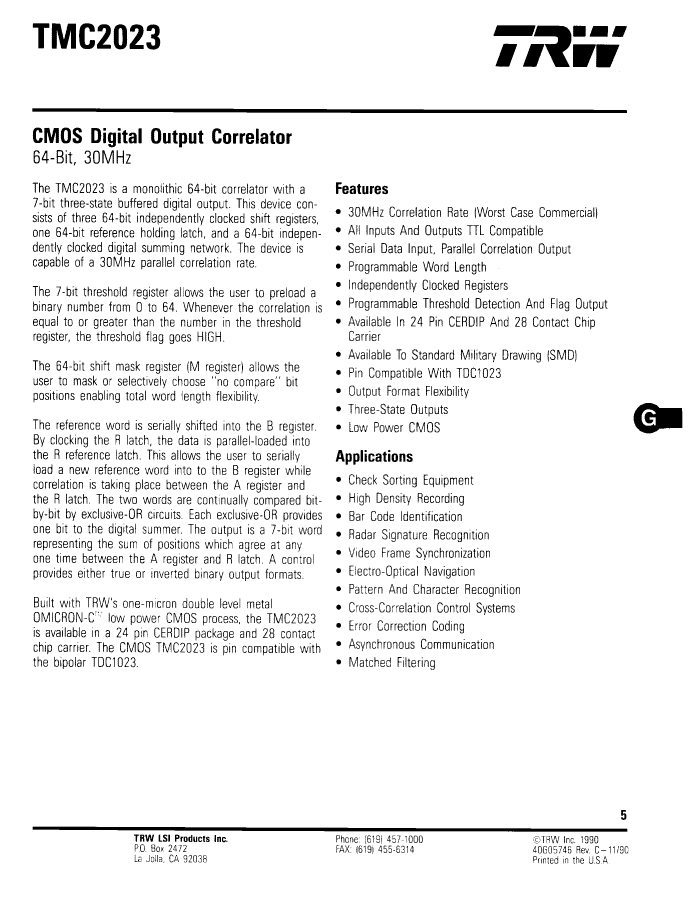

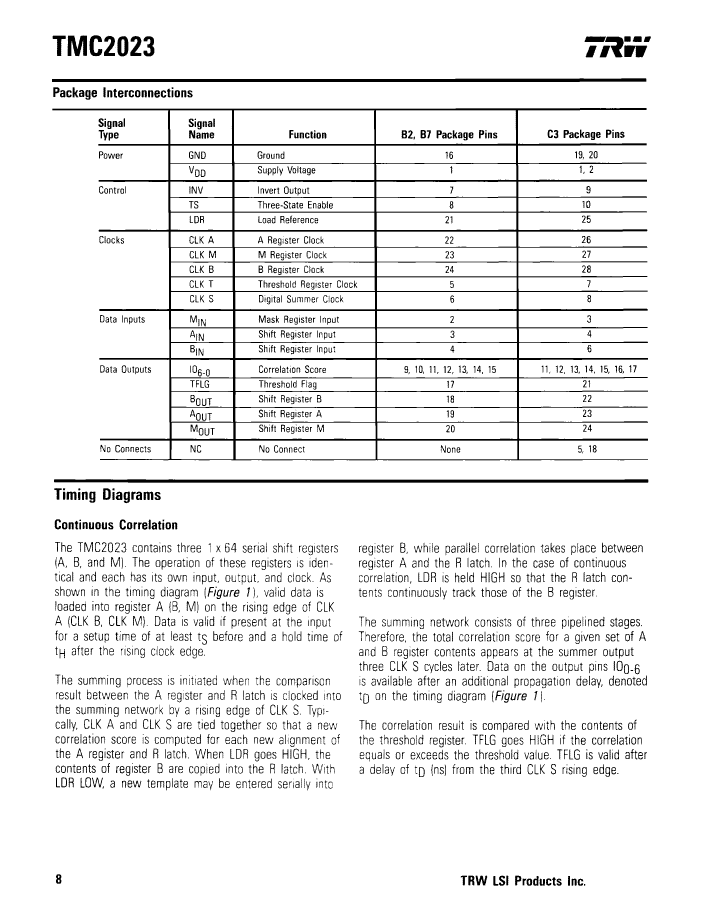

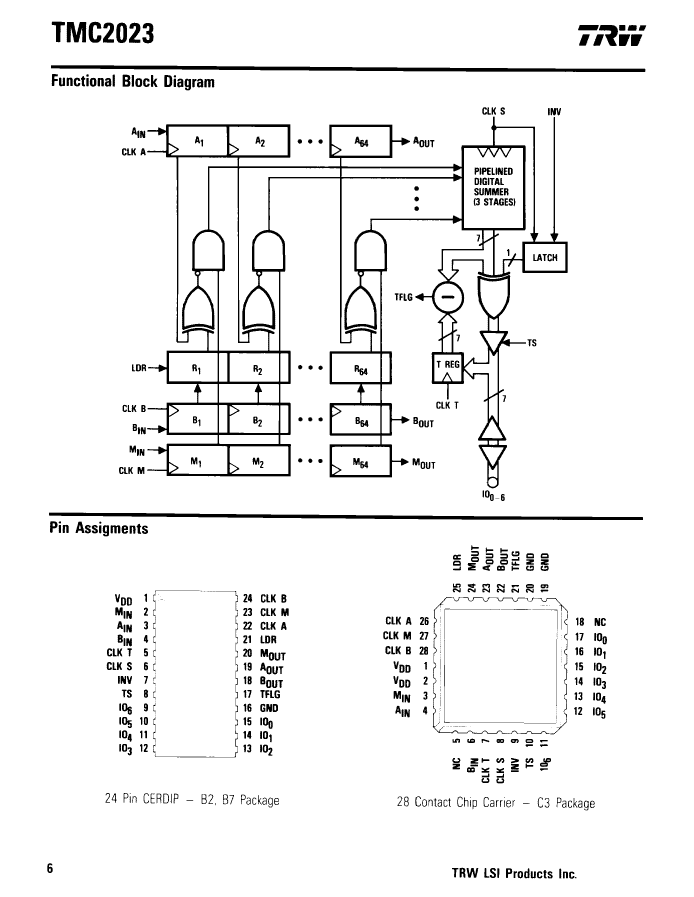

Preview

Download Datasheet

View All

5962-8971102LA Related Products

	5962-8971102LA	5962-8971102JA	5962-8971101JA	5962-89711013A	5962-8971101LA	5962-89711023A
Description	Correlator, 1-Bit, CMOS, CDIP24	Correlator, 1-Bit, CMOS, CDIP24	Correlator, 1-Bit, CMOS, CDIP24	Correlator, 1-Bit, CMOS, CQCC28	Correlator, 1-Bit, CMOS, CDIP24	Correlator, 1-Bit, CMOS, CQCC28
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown
ECCN code	3A001.A.2.C	3A001.A.2.C	3A001.A.2.C	3A001.A.2.C	3A001.A.2.C	3A001.A.2.C
Other features	2 X 1 BIT DATA INPUT BUS; 2 X 1 BIT DATA OUTPUT BUS; OPTEMP SPECIFIED AS TC	2 X 1 BIT DATA INPUT BUS; 2 X 1 BIT DATA OUTPUT BUS; OPTEMP SPECIFIED AS TC	2 X 1 BIT DATA INPUT BUS; 2 X 1 BIT DATA OUTPUT BUS; OPTEMP SPECIFIED AS TC; ICC SPECIFIED @ 30MHZ	2 X 1 BIT DATA INPUT BUS; 2 X 1 BIT DATA OUTPUT BUS; OPTEMP SPECIFIED AS TC; ICC SPECIFIED @ 30MHZ	2 X 1 BIT DATA INPUT BUS; 2 X 1 BIT DATA OUTPUT BUS; OPTEMP SPECIFIED AS TC; ICC SPECIFIED @ 30MHZ	2 X 1 BIT DATA INPUT BUS; 2 X 1 BIT DATA OUTPUT BUS; OPTEMP SPECIFIED AS TC
boundary scan	NO	NO	NO	NO	NO	NO
maximum clock frequency	30 MHz	30 MHz	25 MHz	25 MHz	25 MHz	30 MHz
External data bus width	1	1	1	1	1	1
JESD-30 code	R-CDIP-T24	R-CDIP-T24	R-CDIP-T24	S-CQCC-N28	R-CDIP-T24	S-CQCC-N28
JESD-609 code	e0	e0	e0	e0	e0	e0
low power mode	NO	NO	NO	NO	NO	NO
Number of terminals	24	24	24	28	24	28
Maximum operating temperature	125 °C	125 °C	125 °C	125 °C	125 °C	125 °C
Minimum operating temperature	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C
Output data bus width	1	1	1	1	1	1
Package body material	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	SQUARE	RECTANGULAR	SQUARE
Package form	IN-LINE	IN-LINE	IN-LINE	CHIP CARRIER	IN-LINE	CHIP CARRIER
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Maximum slew rate	35 mA	35 mA	35 mA	35 mA	35 mA	35 mA
Maximum supply voltage	5.5 V	5.5 V	5.5 V	5.5 V	5.5 V	5.5 V
Minimum supply voltage	4.5 V	4.5 V	4.5 V	4.5 V	4.5 V	4.5 V
Nominal supply voltage	5 V	5 V	5 V	5 V	5 V	5 V
surface mount	NO	NO	NO	YES	NO	YES
technology	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS
Temperature level	MILITARY	MILITARY	MILITARY	MILITARY	MILITARY	MILITARY
Terminal surface	TIN LEAD	TIN LEAD	TIN LEAD	TIN LEAD	TIN LEAD	TIN LEAD
Terminal form	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	NO LEAD	THROUGH-HOLE	NO LEAD
Terminal location	DUAL	DUAL	DUAL	QUAD	DUAL	QUAD
uPs/uCs/peripheral integrated circuit type	DSP PERIPHERAL, CORRELATOR	DSP PERIPHERAL, CORRELATOR	DSP PERIPHERAL, CORRELATOR	DSP PERIPHERAL, CORRELATOR	DSP PERIPHERAL, CORRELATOR	DSP PERIPHERAL, CORRELATOR
Base Number Matches	1	1	1	1	1	1
