5962R0623801VXC datasheet, PDF

Datasheet> All Categories > logic> logic> 5962R0623801VXC

5962R0623801VXC: DescriptionParallel In Parallel Out, AC Series, 8-Bit, Bidirectional, True Output, CMOS, DFP-20; Categorylogic logic; File Size157KB，14 Pages; ManufacturerCobham Semiconductor Solutions

Download Datasheet Parametric Compare View All

5962R0623801VXC Overview

Parallel In Parallel Out, AC Series, 8-Bit, Bidirectional, True Output, CMOS, DFP-20

5962R0623801VXC Parametric

Parameter Name	Attribute value
Parts packaging code	DFP
package instruction	DFP,
Contacts	20
Reach Compliance Code	unknown
Counting direction	BIDIRECTIONAL
series	AC
JESD-30 code	R-XDFP-F20
JESD-609 code	e4
length	13.081 mm
Logic integrated circuit type	PARALLEL IN PARALLEL OUT
Number of digits	8
Number of functions	1
Number of terminals	20
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Output characteristics	3-STATE
Output polarity	TRUE
Package body material	UNSPECIFIED
encapsulated code	DFP
Package shape	RECTANGULAR
Package form	FLATPACK
propagation delay (tpd)	14 ns
Certification status	Not Qualified
Filter level	MIL-PRF-38535 Class V
Maximum seat height	3.0988 mm
Maximum supply voltage (Vsup)	5.5 V
Minimum supply voltage (Vsup)	3 V
Nominal supply voltage (Vsup)	3.3 V
surface mount	YES
technology	CMOS
Temperature level	MILITARY
Terminal surface	GOLD
Terminal form	FLAT
Terminal pitch	1.27 mm
Terminal location	DUAL
total dose	100k Rad(Si) V
Trigger type	NEGATIVE EDGE
width	7.5 mm
minfmax	80 MHz
Base Number Matches	1

Preview

Download Datasheet

View All

Standard Products

UT54ACS299E

CMOS 8-bit Universal Shift/Storage Register with Three-State Outputs

Datasheet

July 2, 2013

www.aeroflex.com/Logic

FEATURES



Common parallel I/O for reduced pin count

Additional serial inputs and outputs for expansion

Three-state outputs for bus-oriented applications

Operate with outputs enabled or at high impedance

Four operating modes: shift left, shift right, load and store

Can be cascaded for n-bit word lengths

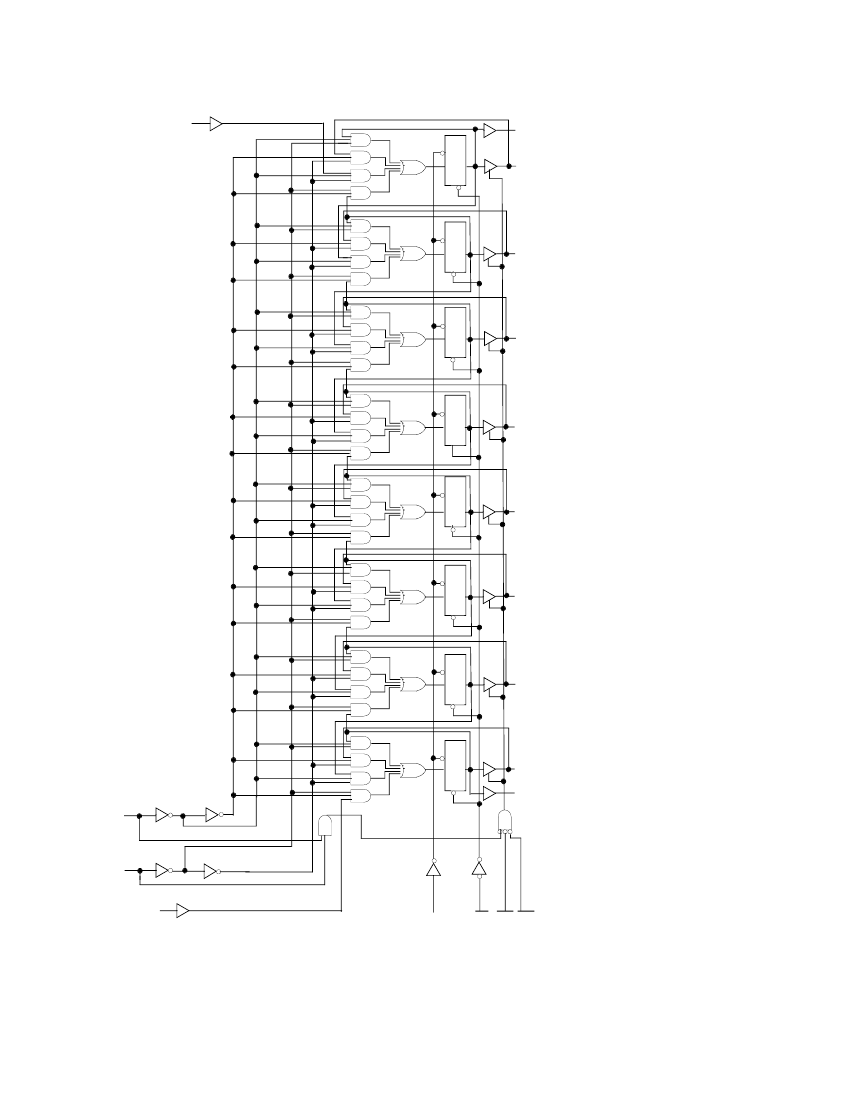

LOGIC SYMBOL

OE1

OE2

(9)

(2)

SRG8

3EN13

M 0

C4/1

(8)

(3)

S0 (1)

S1 (19)

CP (12)



0.6m Commercial RadHard

CMOS

- Total dose: 100K rad(Si)

- Single Event Latchup immune

- SEU Onset LET: 95 MeV-cm

/mg (4.5V) and

48MeV-cm

/mg (3.0V)



Applications:

- Stacked or push-down registers

- Buffer storage

- Accumulator registers



Output source/sink 24mA



Available QML Q or V processes



Standard Microcircuit Drawing 5962-06238



Package:

- 20-lead flatpack

DESCRIPTION

The UT54ACS299E 8-bit shift/storage register is built using

Aeroflex’s Commercial RadHard

epitaxial CMOS technolo-

gy and is ideal for space applications. The UT54ACS299E is an

8-bit universal shift/storage register featuring multiplexed I/O

ports to achieve full 8-bit data handling in a single 20-pin pack-

age. Two function-select (S0, S1) inputs and two output enable

(OE1, OE2) inputs can be used to choose the mode of operation

listed in the function table. Additional outputs are provided for

flip flops Q0, Q7 to allow easy serial cascading. A separate

active low master reset (MR) is used to reset the register, over-

riding the select and CP inputs. All flip-flops are brought out

through three-state buffers to separate I/O pins that also serve

as data inputs in the parallel load mode. All other state changes

are initiated by the rising edge of the clock.

DS0 (11)

I00

(7)

1, 4D

3, 4D

5, 13

3, 4D

6, 13

I01 (13)

I02

I04

I06

(6)

(5)

(4)

I03 (14)

I05 (15)

I07 (16)

DS7

(18)

3, 4D

12, 13

2, 4D

Z12

(17)

PIN DESCRIPTION

Pin Names

DS0

DS7

S0, S1

OE1, OE2

IO0-IO7

Q0, Q7

Clock Pulse Input

Serial Data Input for Right Shift

Serial Data Input for Left Shift

Mode Select Inputs

Asynchronous Master Reset

Three-State Output Enable Inputs

Parallel Data Inputs or Three-State Parallel Out-

puts

Serial Outputs

Description

5962R0623801VXC Related Products

	5962R0623801VXC	5962R0623801VXA	5962R0623801VXX	5962R0623801QXX	5962R0623801QXA	5962R0623801QXC
Description	Parallel In Parallel Out, AC Series, 8-Bit, Bidirectional, True Output, CMOS, DFP-20	Parallel In Parallel Out, AC Series, 8-Bit, Bidirectional, True Output, CMOS, DFP-20	Parallel In Parallel Out, AC Series, 8-Bit, Bidirectional, True Output, CMOS, DFP-20	Parallel In Parallel Out, AC Series, 8-Bit, Bidirectional, True Output, CMOS, DFP-20	Parallel In Parallel Out, AC Series, 8-Bit, Bidirectional, True Output, CMOS, DFP-20	Parallel In Parallel Out, AC Series, 8-Bit, Bidirectional, True Output, CMOS, DFP-20
Parts packaging code	DFP	DFP	DFP	DFP	DFP	DFP
package instruction	DFP,	DFP,	DFP,	DFP,	DFP,	DFP,
Contacts	20	20	20	20	20	20
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown
Counting direction	BIDIRECTIONAL	BIDIRECTIONAL	BIDIRECTIONAL	BIDIRECTIONAL	BIDIRECTIONAL	BIDIRECTIONAL
series	AC	AC	AC	AC	AC	AC
JESD-30 code	R-XDFP-F20	R-XDFP-F20	R-XDFP-F20	R-XDFP-F20	R-XDFP-F20	R-XDFP-F20
JESD-609 code	e4	e0	e0/e4	e0/e4	e0	e4
length	13.081 mm	13.081 mm	13.081 mm	13.081 mm	13.081 mm	13.081 mm
Logic integrated circuit type	PARALLEL IN PARALLEL OUT	PARALLEL IN PARALLEL OUT	PARALLEL IN PARALLEL OUT	PARALLEL IN PARALLEL OUT	PARALLEL IN PARALLEL OUT	PARALLEL IN PARALLEL OUT
Number of digits	8	8	8	8	8	8
Number of functions	1	1	1	1	1	1
Number of terminals	20	20	20	20	20	20
Maximum operating temperature	125 °C	125 °C	125 °C	125 °C	125 °C	125 °C
Minimum operating temperature	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C
Output characteristics	3-STATE	3-STATE	3-STATE	3-STATE	3-STATE	3-STATE
Output polarity	TRUE	TRUE	TRUE	TRUE	TRUE	TRUE
Package body material	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED
encapsulated code	DFP	DFP	DFP	DFP	DFP	DFP
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	FLATPACK	FLATPACK	FLATPACK	FLATPACK	FLATPACK	FLATPACK
propagation delay (tpd)	14 ns	14 ns	14 ns	14 ns	14 ns	14 ns
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Filter level	MIL-PRF-38535 Class V	MIL-PRF-38535 Class V	MIL-PRF-38535 Class V	MIL-PRF-38535 Class Q	MIL-PRF-38535 Class Q	MIL-PRF-38535 Class Q
Maximum seat height	3.0988 mm	3.0988 mm	3.0988 mm	3.0988 mm	3.0988 mm	3.0988 mm
Maximum supply voltage (Vsup)	5.5 V	5.5 V	5.5 V	5.5 V	5.5 V	5.5 V
Minimum supply voltage (Vsup)	3 V	3 V	3 V	3 V	3 V	3 V
Nominal supply voltage (Vsup)	3.3 V	3.3 V	3.3 V	3.3 V	3.3 V	3.3 V
surface mount	YES	YES	YES	YES	YES	YES
technology	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS
Temperature level	MILITARY	MILITARY	MILITARY	MILITARY	MILITARY	MILITARY
Terminal surface	GOLD	TIN LEAD	TIN LEAD/GOLD	TIN LEAD/GOLD	TIN LEAD	GOLD
Terminal form	FLAT	FLAT	FLAT	FLAT	FLAT	FLAT
Terminal pitch	1.27 mm	1.27 mm	1.27 mm	1.27 mm	1.27 mm	1.27 mm
Terminal location	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL
total dose	100k Rad(Si) V	100k Rad(Si) V	100k Rad(Si) V	100k Rad(Si) V	100k Rad(Si) V	100k Rad(Si) V
Trigger type	NEGATIVE EDGE	NEGATIVE EDGE	NEGATIVE EDGE	NEGATIVE EDGE	NEGATIVE EDGE	NEGATIVE EDGE
width	7.5 mm	7.5 mm	7.5 mm	7.5 mm	7.5 mm	7.5 mm
Base Number Matches	1	1	1	1	1	1
