5962-8868902YA datasheet, PDF - EEWORLD Datasheet

5962-8868902YA: DescriptionSerial I/O Controller, 2 Channel(s), 0.5125MBps, CMOS, CQCC44, CERAMIC, LCC-44; CategoryThe embedded processor and controller Microcontrollers and processors; File Size1MB，44 Pages; ManufacturerZilog, Inc.; Websitehttps://www.zilog.com/

Download Datasheet Parametric View All

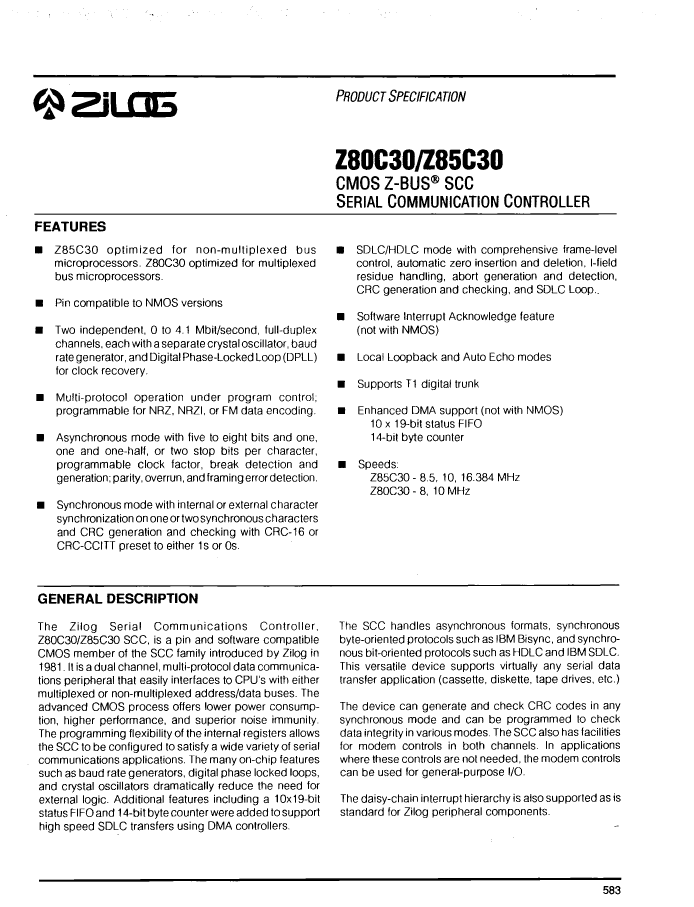

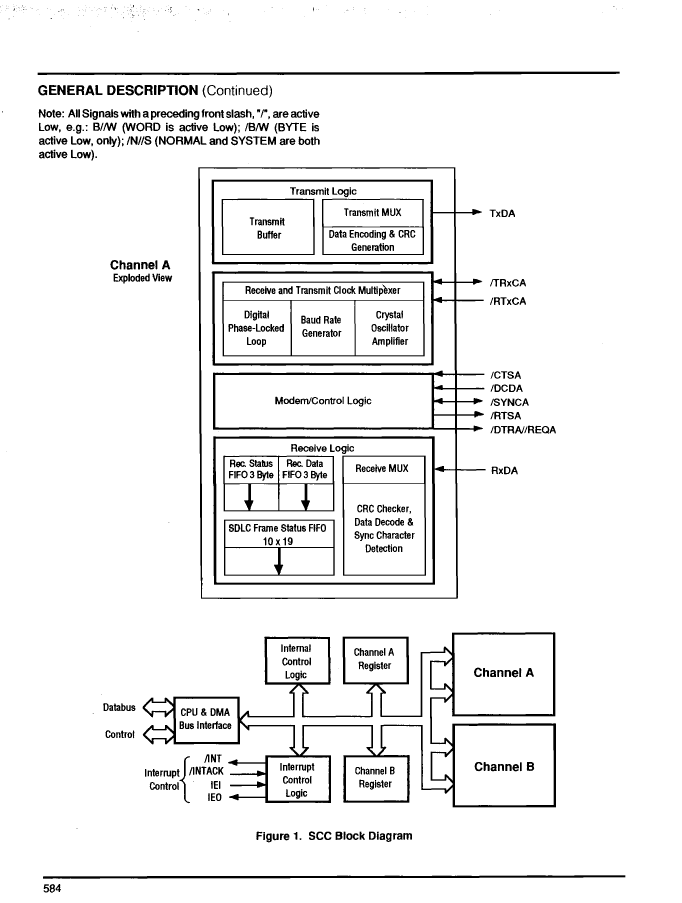

5962-8868902YA Overview

Serial I/O Controller, 2 Channel(s), 0.5125MBps, CMOS, CQCC44, CERAMIC, LCC-44

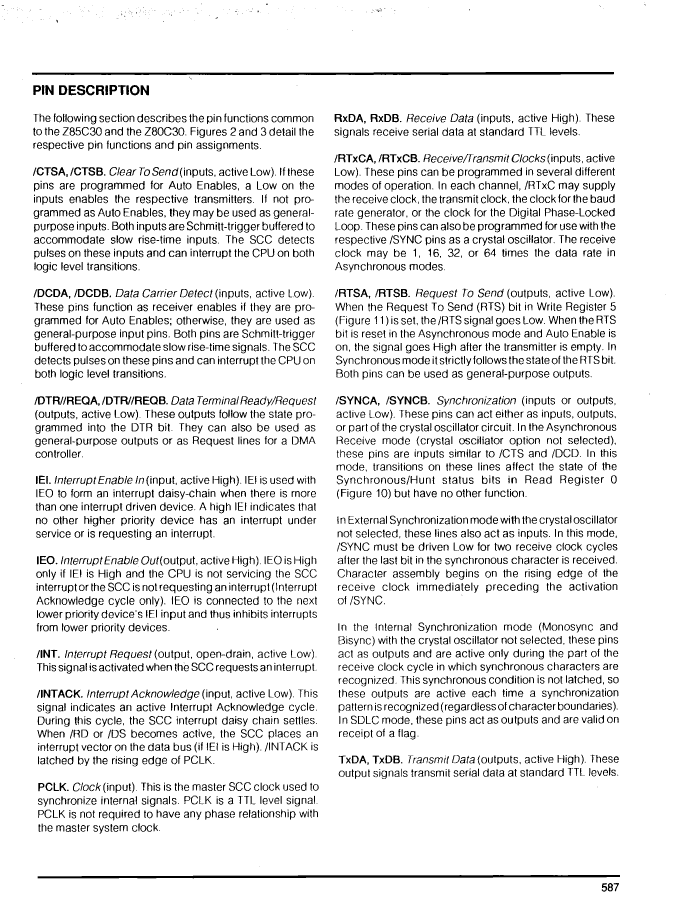

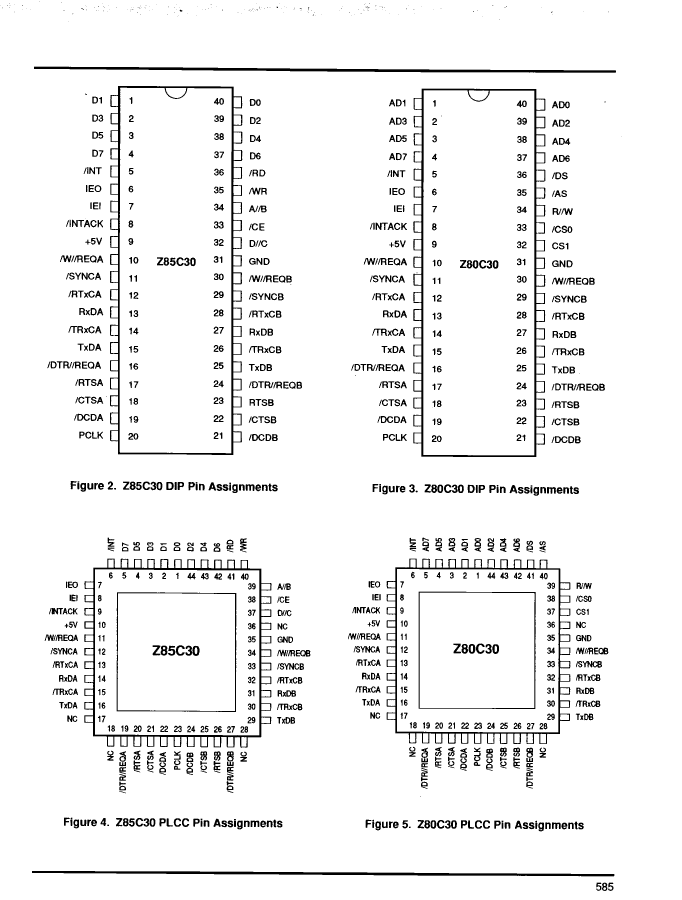

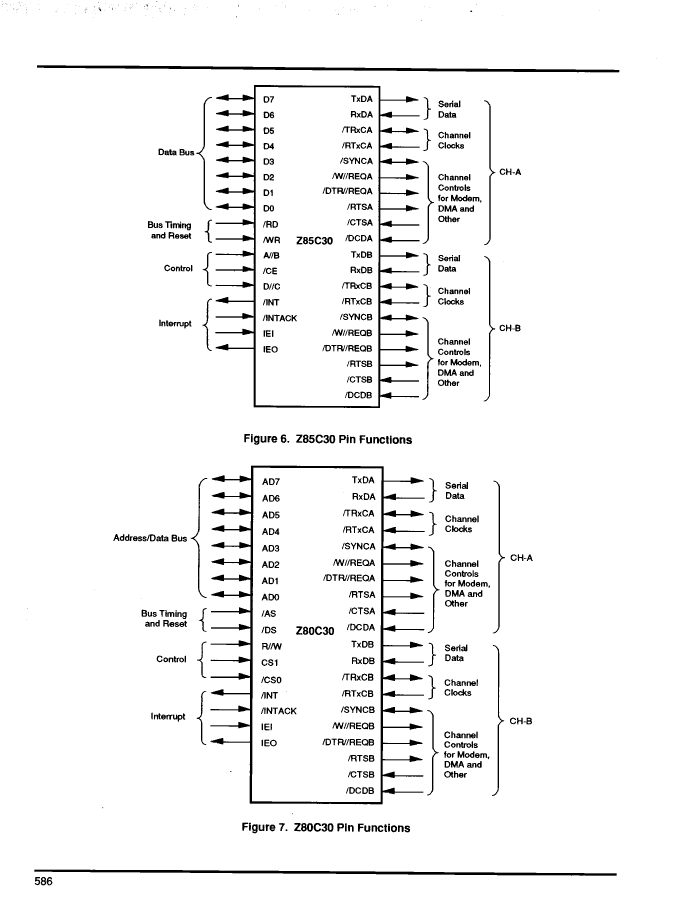

Parameter Name	Attribute value
Parts packaging code	LCC
package instruction	QCCN,
Contacts	44
Reach Compliance Code	unknown
boundary scan	NO
letter of agreement	SYNC, HDLC; SYNC, SDLC
Data encoding/decoding methods	NRZ; NRZI; BIPH-MARK(FM1); BIPH-SPACE(FM0)
Maximum data transfer rate	0.5125 MBps
External data bus width	8
JESD-30 code	S-CQCC-N44
JESD-609 code	e0
length	16.51 mm
low power mode	NO
Number of serial I/Os	2
Number of terminals	44
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Package body material	CERAMIC, METAL-SEALED COFIRED
encapsulated code	QCCN
Package shape	SQUARE
Package form	CHIP CARRIER
Certification status	Not Qualified
Maximum seat height	2.286 mm
Maximum supply voltage	5.5 V
Minimum supply voltage	4.5 V
Nominal supply voltage	5 V
surface mount	YES
technology	CMOS
Temperature level	MILITARY
Terminal surface	TIN LEAD
Terminal form	NO LEAD
Terminal pitch	1.27 mm
Terminal location	QUAD
width	16.51 mm
uPs/uCs/peripheral integrated circuit type	SERIAL IO/COMMUNICATION CONTROLLER, SERIAL
Base Number Matches	1
