3907-0-57-15-30-84-10-0 datasheet, PDF

Datasheet> All Categories > The connector> terminals> 3907-0-57-15-30-84-10-0

3907-0-57-15-30-84-10-0: DescriptionPCB Terminal, ROHS COMPLIANT; CategoryThe connector terminals; File Size137KB，1 Pages; ManufacturerMill-Max; Websitehttps://www.mill-max.com; Environmental Compliance

Download Datasheet Parametric Compare View All

3907-0-57-15-30-84-10-0 Overview

PCB Terminal, ROHS COMPLIANT

3907-0-57-15-30-84-10-0 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
package instruction	ROHS COMPLIANT
Reach Compliance Code	compliant
ECCN code	EAR99
Manufacturer's serial number	3907
terminal gender	FEMALE
Terminal and terminal strip types	PCB TERMINAL
Base Number Matches	1

Preview

Download Datasheet

View All

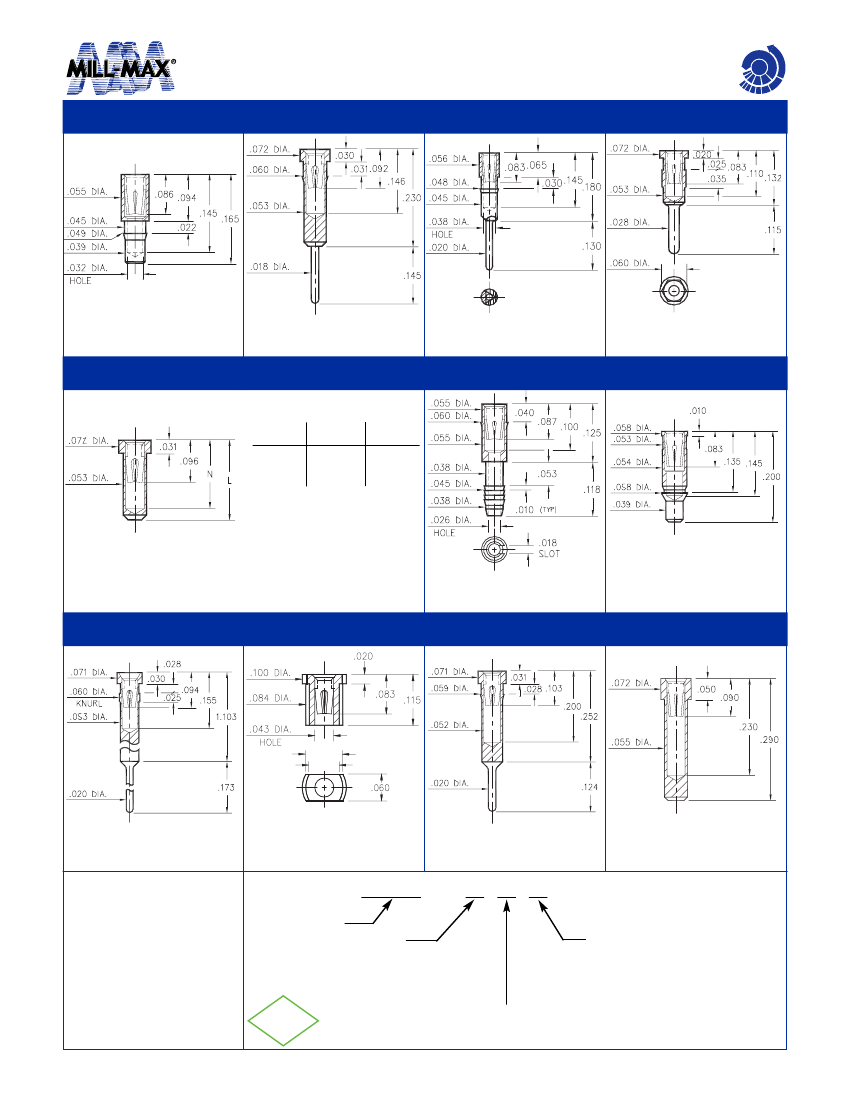

PIN RECEPTACLES

for .015” - .025” diameter pins

CHI

PINS

0385

4001

1782

5960

0385-0-15-XX-43-XX-10-0

Press-fit in .046 mounting hole

4001-0-15-XX-43-XX-04-0

Press-fit in .057 mounting hole

1782-0-15-XX-43-XX-04-0

Press-fit in .045 mounting hole

5960-0-15-XX-43-XX-04-0

Hex press-fit in .057 plated

thru hole

1401/3185

Basic Part

Number

Depth

Length

4310

1385

1401-0

3185-0

.145

.109

.165

.130

XXXX-0-15-XX-30-XX-10-0

Solder mount in .055 min.

mounting hole

4310-0-31-XX-43-XX-04-0

Compliant press-fit in .040±.003 plated

hole. For .090→.130 thick board.

1385-0-15-XX-43-XX-10-0

Surface mount

3018

3907

8852

8363

.080

.059

3907-0-18-XX-30-XX-10-0

3018-0-15-XX-30-XX-04-0

Press-fit in .057 mounting hole

Surface mount

Also available on 12mm wide carrier

tape: 4,000 parts per 13” reel.

Order as: 3907-0-57-XX-30-XX-10-0

8852-0-15-XX-30-XX-04-0

Press-fit in .056 mounting hole

8363-0-15-XX-35-XX-10-0

Solder mount in .057 min.

mounting hole

SPECIFICATIONS

SHELL MATERIAL:

Brass Alloy 360, 1/2 Hard

CONTACT MATERIAL:

Beryllium Copper Alloy 172, HT

DIMENSION IN INCHES

TOLERANCES ON:

LENGTHS:

±.005

DIAMETERS: ±.002

ANGLES:

± 2°

ORDER CODE: XXXX - X - XX - XX - XX - XX - XX - 0

BASIC PART #

SPECIFY SHELL FINISH:

200μ” TIN/LEAD OVER NICKEL

200μ” TIN OVER NICKEL

10μ” GOLD OVER NICKEL

SPECIFY CONTACT FINISH:

100μ” TIN/LEAD OVER NICKEL

100μ” TIN OVER NICKEL

30μ” GOLD OVER NICKEL

SELECT CONTACT

#30, #35 or #43

CONTACT (DATA ON PAGE 208 & 209)

w w w. m i l l - m a x . c o m

139

516-922-6000
