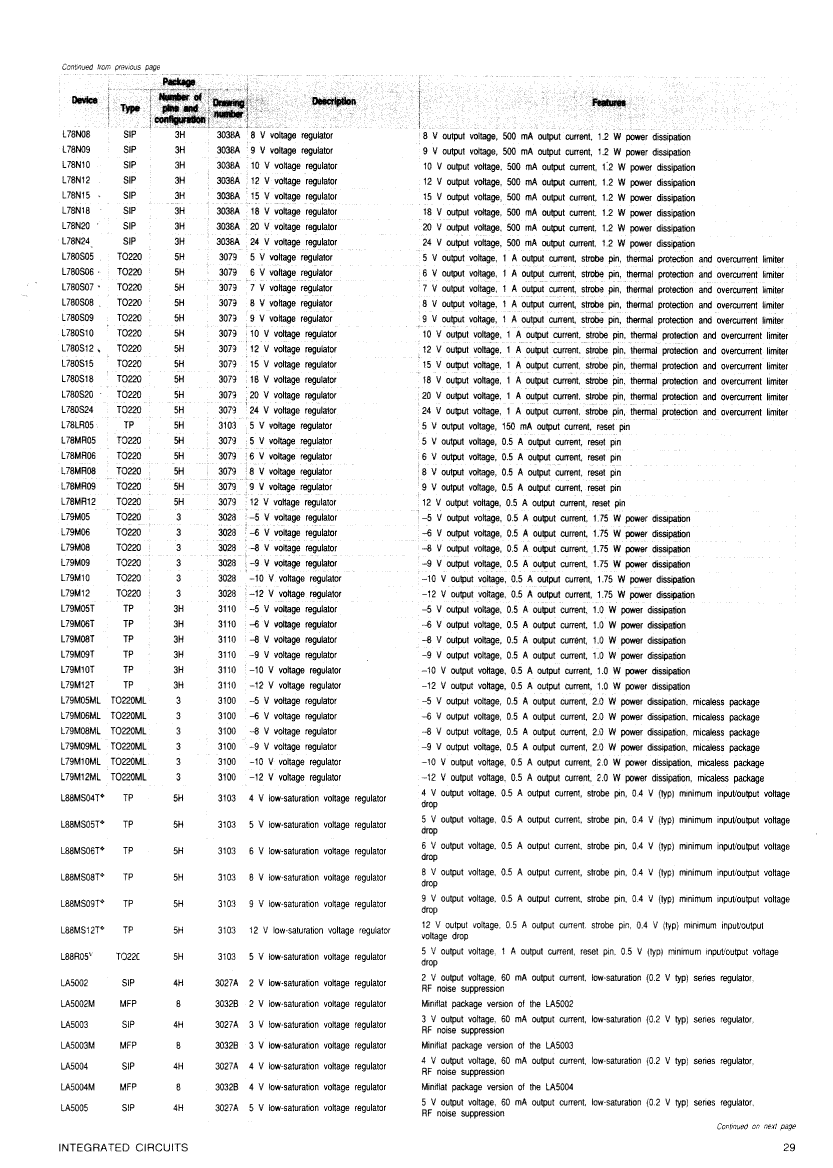

L78N20: DescriptionFixed Positive Standard Regulator, 20VPSIP3, SIP-3; CategoryPower/power management The power supply circuit; File Size136KB，1 Pages; ManufacturerSANYO; Websitehttp://www.semic.sanyo.co.jp/english/index-e.html

Download Datasheet Parametric Compare View All

L78N20 Overview

Fixed Positive Standard Regulator, 20VPSIP3, SIP-3

L78N20 Parametric

Parameter Name	Attribute value
Maker	SANYO
Parts packaging code	SIP
package instruction	SIP,
Contacts	3
Reach Compliance Code	unknown
ECCN code	EAR99
JESD-30 code	R-PSIP-T3
length	9.5 mm
Number of functions	1
Number of terminals	3
Maximum output current 1	0.5 A
Nominal output voltage 1	20 V
Package body material	PLASTIC/EPOXY
encapsulated code	SIP
Package shape	RECTANGULAR
Package form	IN-LINE
Certification status	Not Qualified
Regulator type	FIXED POSITIVE SINGLE OUTPUT STANDARD REGULATOR
Maximum seat height	14 mm
surface mount	NO
Terminal form	THROUGH-HOLE
Terminal pitch	2.4 mm
Terminal location	SINGLE
width	2.7 mm
Base Number Matches	1
