5962-8776201VX datasheet, PDF - EEWORLD Datasheet

5962-8776201VX: DescriptionIC 1-CH 8-BIT SUCCESSIVE APPROXIMATION ADC, PARALLEL ACCESS, CDIP18, 0.960 X 0.310 INCH, CERDIP-18, Analog to Digital Converter; CategoryAnalog mixed-signal IC converter; File Size220KB，7 Pages; ManufacturerADI; Websitehttps://www.analog.com

Download Datasheet Parametric View All

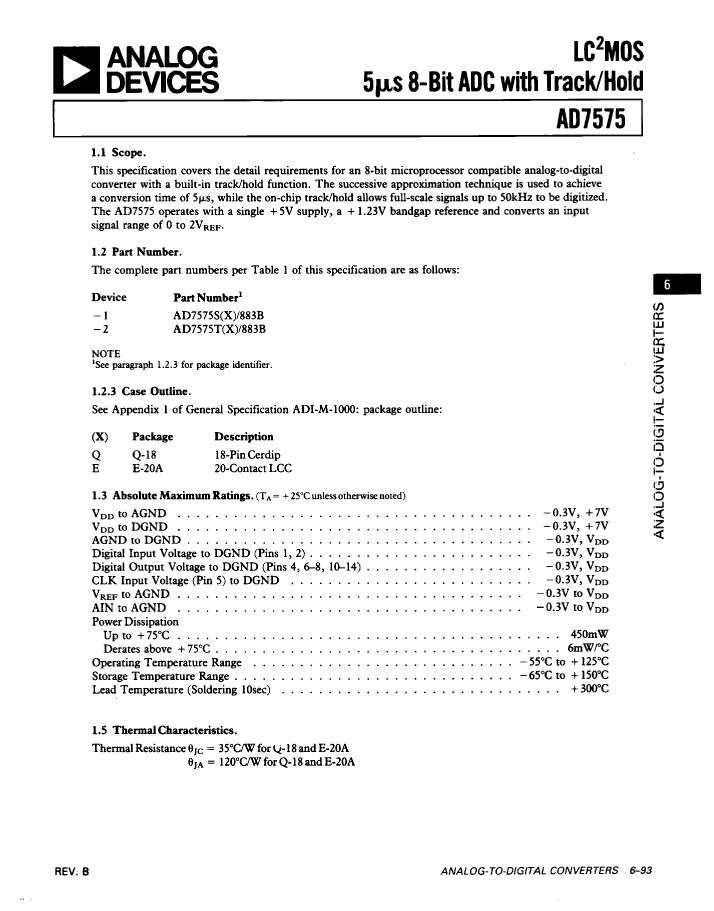

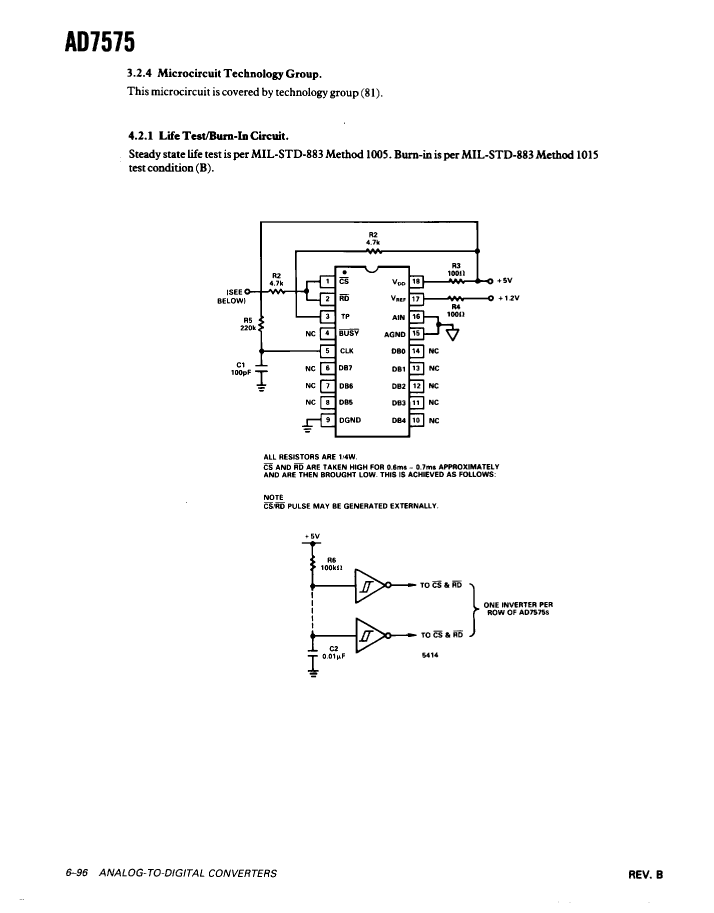

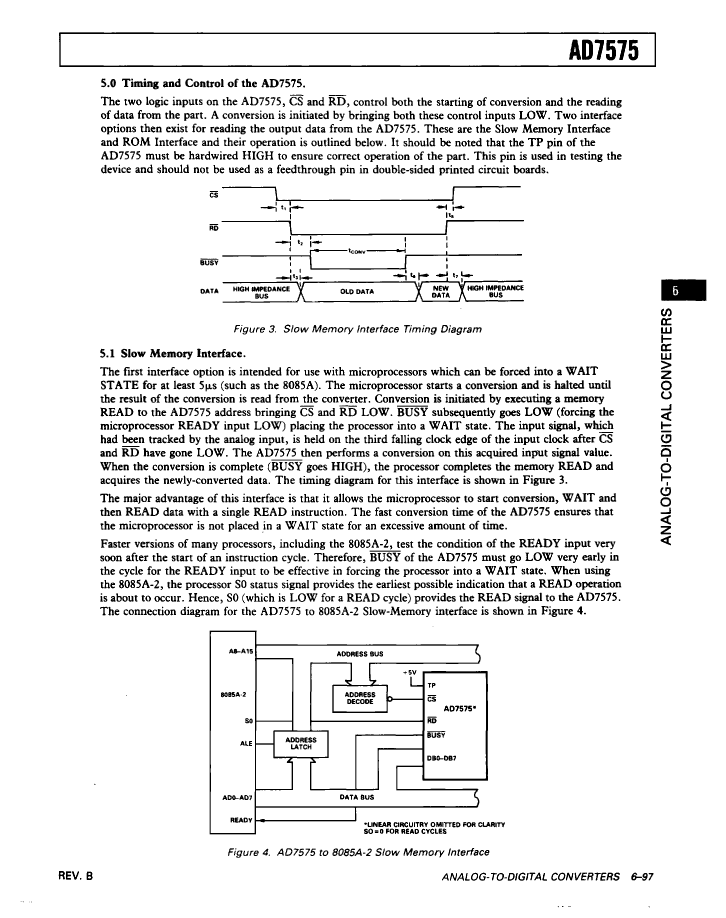

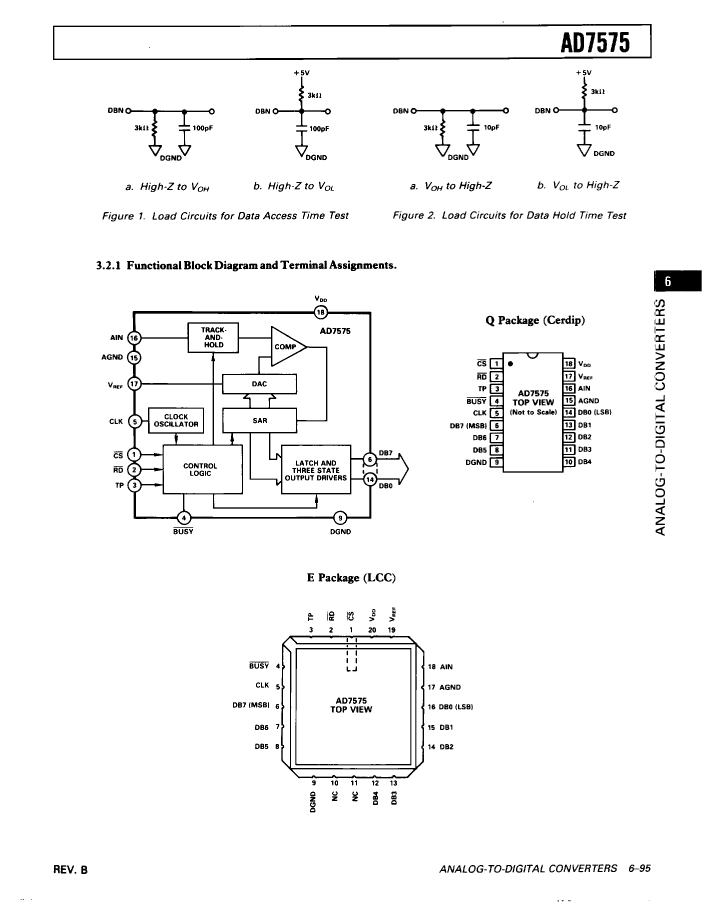

5962-8776201VX Overview

IC 1-CH 8-BIT SUCCESSIVE APPROXIMATION ADC, PARALLEL ACCESS, CDIP18, 0.960 X 0.310 INCH, CERDIP-18, Analog to Digital Converter

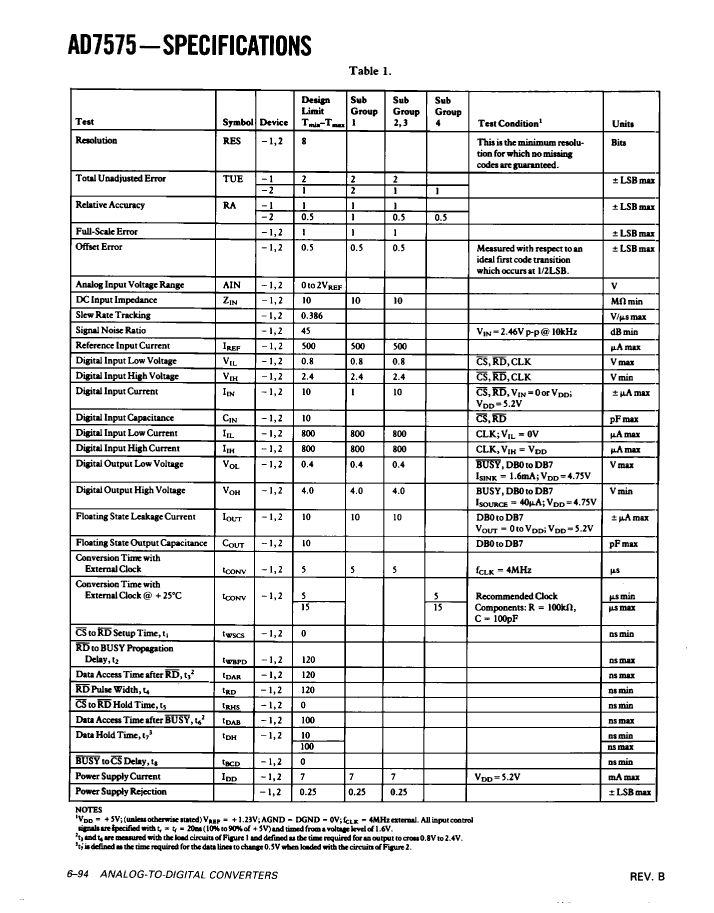

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Parts packaging code	DIP
package instruction	DIP, DIP18,.3
Contacts	18
Reach Compliance Code	compliant
ECCN code	3A001.A.2.C
Maximum analog input voltage	2.46 V
Minimum analog input voltage
Maximum conversion time	15 µs
Converter type	ADC, SUCCESSIVE APPROXIMATION
JESD-30 code	R-GDIP-T18
JESD-609 code	e0
Maximum linear error (EL)	0.2%
Number of analog input channels	1
Number of digits	8
Number of functions	1
Number of terminals	18
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Output bit code	BINARY
Output format	PARALLEL, 8 BITS
Package body material	CERAMIC, GLASS-SEALED
encapsulated code	DIP
Encapsulate equivalent code	DIP18,.3
Package shape	RECTANGULAR
Package form	IN-LINE
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
power supply	5 V
Certification status	Not Qualified
Sample and hold/Track and hold	TRACK
Filter level	38535Q/M;38534H;883B
Maximum seat height	5.08 mm
Maximum slew rate	7 mA
Nominal supply voltage	5 V
surface mount	NO
technology	BICMOS
Temperature level	MILITARY
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	THROUGH-HOLE
Terminal pitch	2.54 mm
Terminal location	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED
width	7.62 mm
Base Number Matches	1
