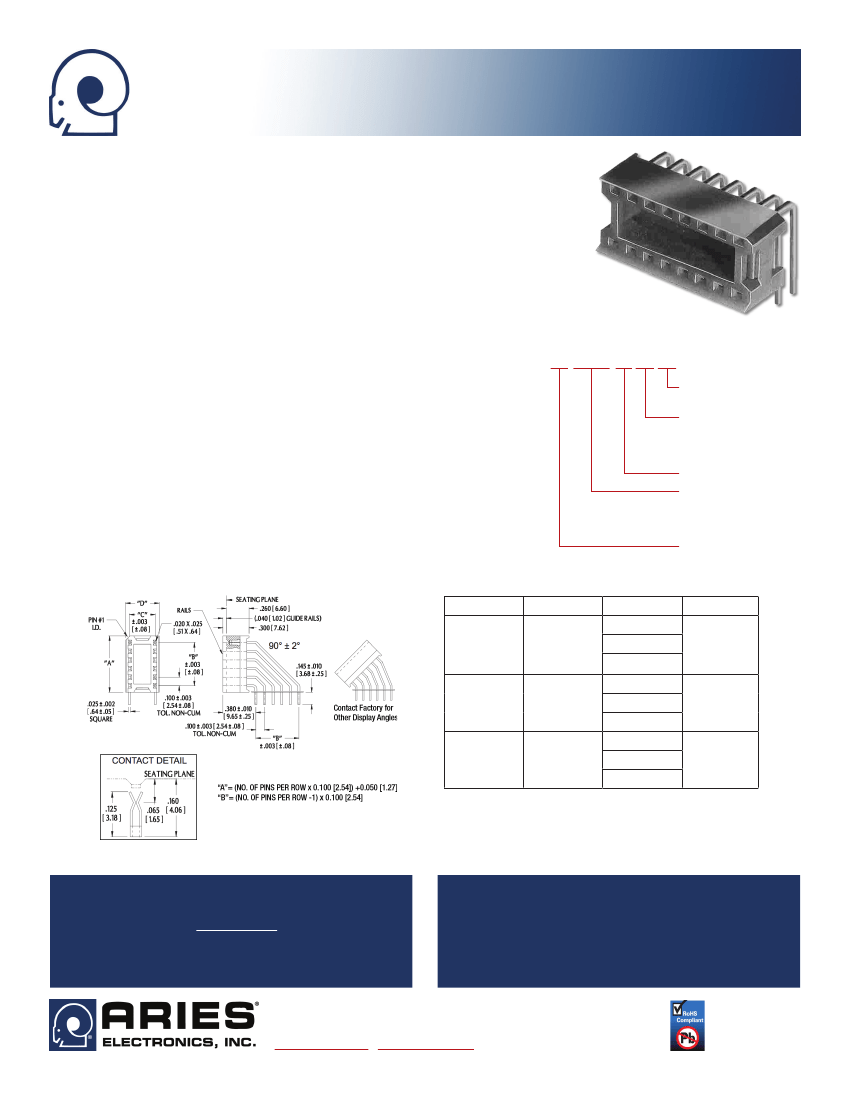

Series 800 Vertisocket DIP Socket
w/Bifurcated Contacts for Horizontal Mounting
™
FEATURES
• DIP Packaging of LEDs, Incandescent Lamps, DIP Switches, Test Points, etc.
• Variations of Mounting Position and Pin Configuration provide Exceptional Design Freedom
• Restricted Entry for Contact Protection
• Accepts Standard LEDs and Incandescent Displays as well as 0.500 [12.70] and 0.600 [15.24]
Tall Displays
GENERAL SPECIFICATIONS
•
STANDARD BODY MATERIAL: black UL 94V-0 4/6 Nylon
•
BIFURCATED CONTACTS: Grade A spring-tempered Phosphor Bronze per QQ-B-750
•
CONTACT PLATING: 10µ [0.25µ] min. Au per MIL-G-45204 over 50µ [1.27µ] min. Ni per QQ-N-
290
–OR–
200µ min. matte Sn per ASTM B545-97(2004)e1 over 50µ [1.27µ] min. Ni
ORDERING INFORMATION
per QQ-N-290 –OR– 200µ [5.08µ] min. bright 90/10 Sn/Pb per MIL-T-10727 Type 1 over
XX-XXXX-90 XX XX
50µ [1.27µ] min. Ni per QQ-N-290
•
SPACER: fish paper
Optional Rails
•
CONTACT CURRENT RATING: 1.5 amps
WR = Without Rails
•
OPERATING TEMPERATURE: 221°F [105°C] Sn & Sn/Pb plating; 257°F [125°C] Au plat-
Plating Options
ing
T = Sn
TL = Sn/Pb
•
INSERTION FORCE: 110g/pin average
(blank) = Au
•
WITHDRAWAL FORCE: 75g/pin average
Display Angle
•
FLAT LEADS: up to 0.014 [0.36] thick and 0.020 [0.51] wide
•
ROUND LEADS: up to 0.020 [0.51] dia.
C Series
282 = 0.200 [5.08]
•
LEAD LENGTHS: 0.075-0.160 [1.91-4.06]
MOUNTING CONSIDERATIONS
•
SUGGESTED PCB HOLE SIZE: 0.044 ±0.002 [1.12 ±0.05] dia.
Centers “C”
0.200 [5.08]
Dim. “D”
0.290 [7.37]
Dim. “X”
0.100 [2.54]
0.200 [5.08]
0.300 [7.62]
0.100 [2.54]
0.300 [7.62]
0.390 [9.91]
0.200 [5.08]
0.300 [7.62]
0.100 [2.54]
0.600 [15.24]
0.690 [17.53]
0.200 [5.08]
0.100 [2.54]
82 = 0.300 [7.62]
682 = 0.600 [15.24]
No. of Pins
(See Table)
No. of Pins
8, 10
8, 14 thru 20
8 thru 20
ALL DIMENSIONS: INCHES [MILLIMETERS]
ALL TOLERANCES: ±0.005 [0.13] UNLESS OTHERWISE SPECIFIED
FOR VERTICAL MOUNTING, SEE DATA SHEET 13002
CONSULT FACTORY FOR OTHER SIZES AND CONFIGURATIONS
CUSTOMIZATION: ARIES SPECIALIZES IN CUSTOM DESIGN AND PRODUCTION.
SPECIAL MATERIALS, PLATINGS, SIZES, AND CONFIGURATIONS CAN BE
FURNISHED, DEPENDING ON QUANTITY.
ARIES RESERVES THE RIGHT TO CHANGE PRODUCT GENERAL SPECIFICATIONS
WITHOUT NOTICE
PRINTOUTS OF THIS DOCUMENT MAY BE OUT-OF-DATE AND SHOULD BE
CONSIDERED UNCONTROLLED
2609 Bartram Road
•
Bristol, PA 19007-6810 USA
TEL 215-781-9956
•
FAX 215-781-9845
WWW.ARIESELEC.COM
•
INFO@ARIESELEC.COM
13001
Rev. 5.1
1 of 1
