1076.1000.01.501 datasheet, PDF

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > Mechanical and electronic products> switch> 1076.1000.01.501

Preview

1076.1000.01.501: DescriptionKeyboard Switch, 63 Switches, SPST, Momentary-tactile, 0.1A, 42VDC, 3N, Solder Terminal, Panel Mount; CategoryMechanical and electronic products switch; File Size123KB，2 Pages; ManufacturerSCHURTER; Websitehttp://www.schurterinc.com/

Download Datasheet Parametric View All

1076.1000.01.501 Overview

Keyboard Switch, 63 Switches, SPST, Momentary-tactile, 0.1A, 42VDC, 3N, Solder Terminal, Panel Mount

1076.1000.01.501 Parametric

Parameter Name	Attribute value
Reach Compliance Code	compli
ECCN code	EAR99
Other features	INTERFACE: USB, LETTERING: GERMAN
body width	80 mm
body height	24.5 mm
Body length or diameter	349.3 mm
Maximum contact bounce time	5 ms
Maximum contact current (DC)	0.1 A
Contact (DC) maximum rated R load	.1A@42VDC
Maximum contact voltage (DC)	42 V
Electrical life	2000000 Cycle(s)
Manufacturer's serial number	1076
Installation features	PANEL MOUNT
Number of switches	63
Maximum operating force	3 N
Maximum operating temperature	85 °C
Minimum operating temperature	-25 °C
seal	IK07; IP40; IP65
surface mount	NO
Switch action	MOMENTARY-TACTILE
switch function	SPST
Switch type	KEYBOARD
Termination type	SOLDER
Base Number Matches	1

Preview

Download Datasheet

View All

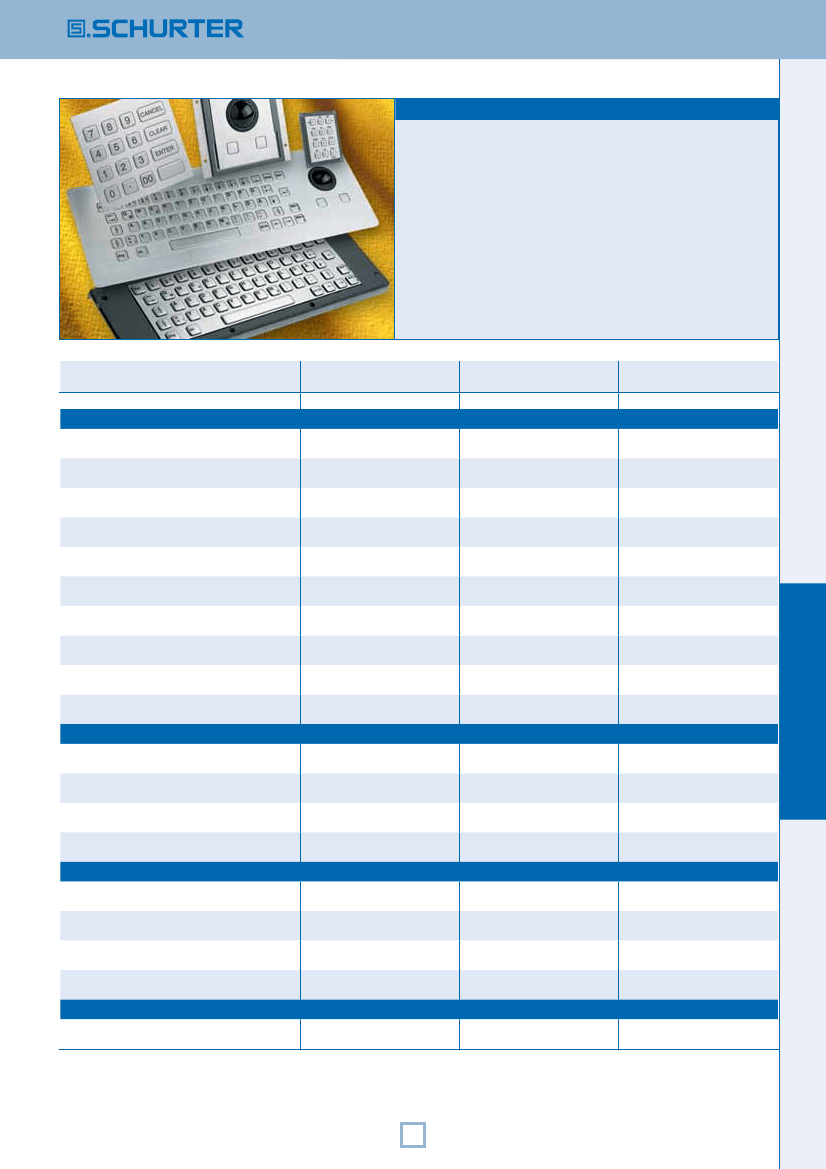

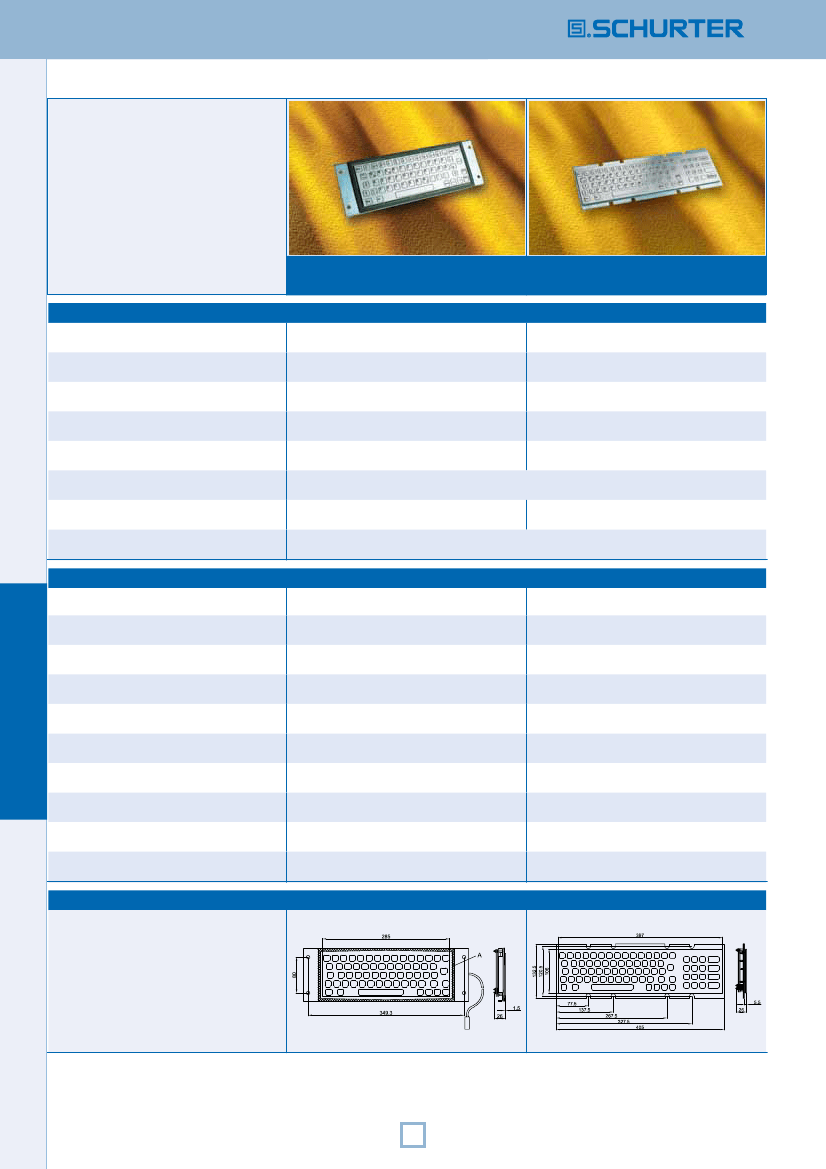

DATA METALLIC PANEL

FEATURES

Vandal-proof protection of switching element by

mechanical end stop of metal actuator

Functional principle protected by utility model

Long lifetime due to high mechanical load capacity

Pleasant tactile feedback

Wide range of possible designs

Type

Electrical Data

Switching Voltage min.

Switching Voltage max.

Operating Voltage of Interface

Switching Current min.

Switching Current max.

Lifetime electrical

Rated Breaking Capacity

Insulation Resistance

Dielectric Strength

Duration of Bounce

Mechanical Data

Actuating Force

Actuating Travel

Lifetime mechanical

[N]

[mm]

[mill.]

[VDC]

[mA]

[mill.]

[W]

[MΩ]

[V]

[ms]

Metallic Panel PCB

Metallic Panel flex

Metallic Trackball

20

30 / 42

20

30 / 42

5

0.1

100

2

1

> 100

500

<5

1

50

1

0.6

> 100

500

<5

KEYPADS WITH STROKE

2

-10 to +55

-20 to +80

IP 65 static

12

2

3

0.45

2

IK 07

3

0.45

2

IK 07

IK Protection Class (Shock Protection) [IK]

Climatical Data

Operating Temperature

Storage Temperature

IP Protection Class Front Side

IP Protection Class Contact Area

Other Data

Lettering

[°C]

[IP]

-25 to +85

-40 to +85

IP 40

IP 65

-25 to +85

-40 to +85

IP 40

IP 65

Laser Lettered

29
