54LS541FMQB datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > logic> logic> 54LS541FMQB

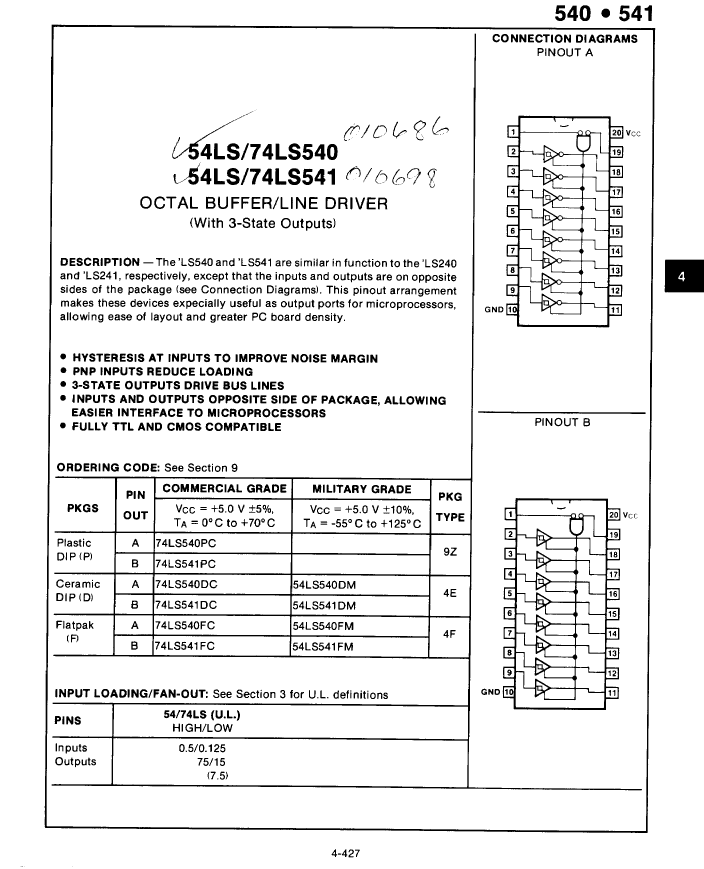

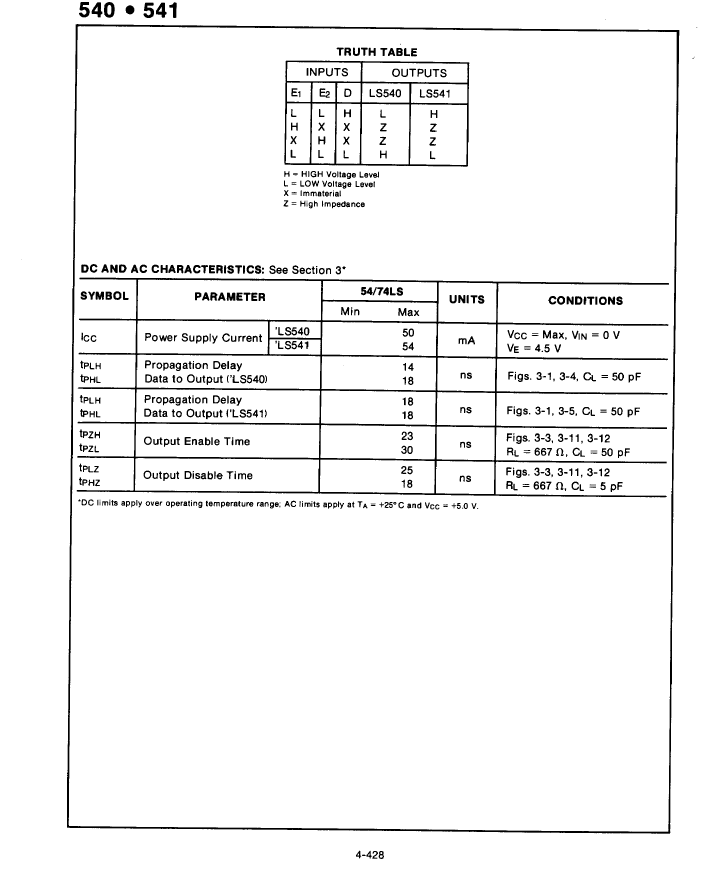

54LS541FMQB: DescriptionBus Driver, 1-Func, 8-Bit, True Output, TTL, CDFP20,; Categorylogic logic; File Size92KB，2 Pages; ManufacturerFairchild; Websitehttp://www.fairchildsemi.com/

Download Datasheet Parametric Compare View All

54LS541FMQB Overview

Bus Driver, 1-Func, 8-Bit, True Output, TTL, CDFP20,

54LS541FMQB Parametric

Parameter Name	Attribute value
Is it lead-free?	Contains lead
Is it Rohs certified?	incompatible
Maker	Fairchild
Reach Compliance Code	compliant
Control type	ENABLE LOW
JESD-30 code	R-XDFP-F20
JESD-609 code	e0
Logic integrated circuit type	BUS DRIVER
Humidity sensitivity level	2A
Number of digits	8
Number of functions	1
Number of terminals	20
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Output characteristics	3-STATE
Output polarity	TRUE
Package body material	CERAMIC
encapsulated code	DFP
Encapsulate equivalent code	FL20,.3
Package shape	RECTANGULAR
Package form	FLATPACK
Peak Reflow Temperature (Celsius)	250
power supply	5 V
Certification status	Not Qualified
Filter level	38535Q/M;38534H;883B
Nominal supply voltage (Vsup)	5 V
surface mount	YES
technology	TTL
Temperature level	MILITARY
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	FLAT
Terminal pitch	1.27 mm
Terminal location	DUAL
Maximum time at peak reflow temperature	30
Base Number Matches	1

Preview

Download Datasheet

View All

54LS541FMQB Related Products

	54LS541FMQB	5962-01-246-9949	54LS541DMQB	54LS540DMQB	54LS540FMQB	74LS540DCQM	74LS540DCQR	74LS540PCQM	74LS540PCQR
Description	Bus Driver, 1-Func, 8-Bit, True Output, TTL, CDFP20,	Bus Driver, 1-Func, 8-Bit, True Output, TTL, CDIP20,	Bus Driver, 1-Func, 8-Bit, True Output, TTL, CDIP20,	Bus Driver, 1-Func, 8-Bit, Inverted Output, TTL, CDIP20,	Bus Driver, 1-Func, 8-Bit, Inverted Output, TTL, CDFP20,	Bus Driver, 1-Func, 8-Bit, Inverted Output, TTL, CDIP20,	Bus Driver, 1-Func, 8-Bit, Inverted Output, TTL, CDIP20,	Bus Driver, 1-Func, 8-Bit, Inverted Output, TTL, PDIP20,	Bus Driver, 1-Func, 8-Bit, Inverted Output, TTL, PDIP20,
Is it lead-free?	Contains lead	Contains lead	Contains lead	Contains lead	Contains lead	Contains lead	Contains lead	Contains lead	Contains lead
Is it Rohs certified?	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible
Reach Compliance Code	compliant	compli	compliant	compliant	compliant	compliant	compliant	compliant	compliant
Control type	ENABLE LOW	ENABLE LOW	ENABLE LOW	ENABLE LOW	ENABLE LOW	ENABLE LOW	ENABLE LOW	ENABLE LOW	ENABLE LOW
JESD-30 code	R-XDFP-F20	R-XDIP-T20	R-XDIP-T20	R-XDIP-T20	R-XDFP-F20	R-XDIP-T20	R-XDIP-T20	R-PDIP-T20	R-PDIP-T20
Logic integrated circuit type	BUS DRIVER	BUS DRIVER	BUS DRIVER	BUS DRIVER	BUS DRIVER	BUS DRIVER	BUS DRIVER	BUS DRIVER	BUS DRIVER
Humidity sensitivity level	2A	2A	2A	2A	2A	2A	2A	2A	2A
Number of digits	8	8	8	8	8	8	8	8	8
Number of functions	1	1	1	1	1	1	1	1	1
Number of terminals	20	20	20	20	20	20	20	20	20
Maximum operating temperature	125 °C	125 °C	125 °C	125 °C	125 °C	70 °C	70 °C	70 °C	70 °C
Minimum operating temperature	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-	-	-	-
Output characteristics	3-STATE	3-STATE	3-STATE	3-STATE	3-STATE	3-STATE	3-STATE	3-STATE	3-STATE
Output polarity	TRUE	TRUE	TRUE	INVERTED	INVERTED	INVERTED	INVERTED	INVERTED	INVERTED
Package body material	CERAMIC	CERAMIC	CERAMIC	CERAMIC	CERAMIC	CERAMIC	CERAMIC	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	DFP	DIP	DIP	DIP	DFP	DIP	DIP	DIP	DIP
Encapsulate equivalent code	FL20,.3	DIP20,.3	DIP20,.3	DIP20,.3	FL20,.3	DIP20,.3	DIP20,.3	DIP20,.3	DIP20,.3
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	FLATPACK	IN-LINE	IN-LINE	IN-LINE	FLATPACK	IN-LINE	IN-LINE	IN-LINE	IN-LINE
Peak Reflow Temperature (Celsius)	250	250	250	250	250	250	250	250	250
power supply	5 V	5 V	5 V	5 V	5 V	5 V	5 V	5 V	5 V
Nominal supply voltage (Vsup)	5 V	5 V	5 V	5 V	5 V	5 V	5 V	5 V	5 V
surface mount	YES	NO	NO	NO	YES	NO	NO	NO	NO
technology	TTL	TTL	TTL	TTL	TTL	TTL	TTL	TTL	TTL
Temperature level	MILITARY	MILITARY	MILITARY	MILITARY	MILITARY	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL
Terminal form	FLAT	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	FLAT	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE
Terminal pitch	1.27 mm	2.54 mm	2.54 mm	2.54 mm	1.27 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm
Terminal location	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL
Maximum time at peak reflow temperature	30	30	30	30	30	30	30	30	30
Maker	Fairchild	-	Fairchild	Fairchild	Fairchild	Fairchild	Fairchild	Fairchild	Fairchild
JESD-609 code	e0	-	e0	e0	e0	e0	e0	e0	e0
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	-	Not Qualified	-
Filter level	38535Q/M;38534H;883B	38535Q/M;38534H;883B	38535Q/M;38534H;883B	38535Q/M;38534H;883B	38535Q/M;38534H;883B	-	-	-	-
Terminal surface	Tin/Lead (Sn/Pb)	-	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
Base Number Matches	1	1	1	1	1	-	-	-	-
package instruction	-	DIP, DIP20,.3	-	-	-	DIP, DIP20,.3	DIP, DIP20,.3	DIP, DIP20,.3	DIP, DIP20,.3
