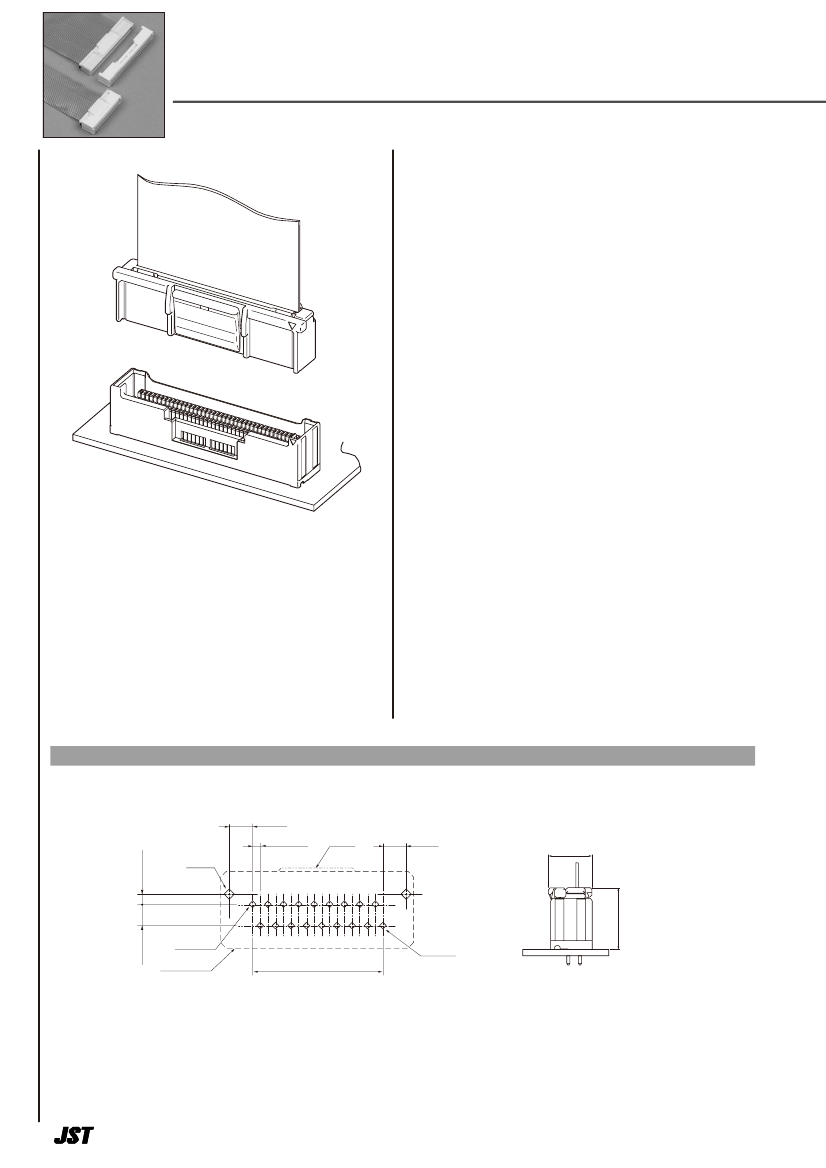

FCT
CONNECTOR
1.0mm pitch/Disconnectable connectors for flat cables
Specifications –––––––––––––––––––
This connector realizes high cost
performance, to be designed with the new
connector concept that the conductors of
flat cable that was fixed up in the plug
housing are directly touched to the base
contacts.
• Countermeasure to short circuit by whisker
• High reliability design by both side contact
• Low insertion force
• With secure locking device
• Current rating: 1.0A AC, DC
• Voltage rating: 50V AC, DC
• Temperature range:
-
25˚C to
+
85˚C
(including temperature rise in applying
electrical current)
• Recommended applicable FFC: Conductor pitch/1.0mm
Conductor width/0.6mm
Conductor thickness/0.1mm
Thickness with insulator/0.4mm
• PC board mounting direction: Top entry
* Compliant with RoHS.
* Refer to "General Instruction and Notice when using
Terminals and Connectors" at the end of this catalog.
* Contact JST for details.
PC board layout (viewed from component side) and Assembly layout
3.0
±0.03
P：1.0
±0.03
±0.03
Note）
2
3.0
±0.03
（10.1）
φ1.4
+0.1
0
1.275
±0.03
Circuit No.1
Header outline
A
±0.05
Note: 1. Dimension A in the above figure is the same as the dimensions A of the shrouded header.
2. Protrusion (narrow line part): The outline of the lock protrusion (operation part) of plug for mating connector is shown.
3. Tolerances are non-cumulative:
±
0.05mm for all centers.
4. Hole dimensions differ according to the kind of PC board and piercing method.
The dimensions above should serve as a guideline. Contact JST for details.
1
2.7
φ0.85
+0.1
0
（14.2）
FCT CONNECTOR
Shrouded header
<26, 34, 40 circuits>
B
A
1.0
11.8
Circuit No.1 mark
9.6
Circuits
26
34
40
60
Model No.
With boss
Without boss
26FCT-TDSS-B
26FCT-TDSS
34FCT-TDSS-B
34FCT-TDSS
40FCT-TDSS-B
40FCT-TDSS
60FCT-TDSS-B
60FCT-TDSS
Dimensions (mm)
A
B
25.0
33.0
39.0
59.0
33.0
41.0
47.0
67.0
Q’ty / box
1,008
784
672
448
Material and Finish
Contact: Copper alloy, copper-undercoated, tin-plated (reflow treatment)
Wafer: Glass-filled PBT, UL94V-0, natural (white)
（3.65）
3.0
RoHS compliance
This product displays (LF)(SN) on a label.
1.275 2.7
2.775
<60 circuits>
B
A
1.0
11.8
Circuit No.1 mark
9.6
3.0
（3.65）
1.275
2.7
2.775
Cable holder
<26, 34, 40, 60 circuits>
（5.0）
4.5
11.7
Circuits
26
34
40
60
Model No.
FCTH-26V-K
FCTH-34V-K
FCTH-40V-K
FCTH-60V-K
Material
Dimensions (mm)
A
B
25.0
33.0
39.0
59.0
31.3
39.3
45.3
65.3
Q’ty / box
5,000
4,000
3,000
2,000
A
B
1.0
PA 66, UL94V-0, black
RoHS compliance
Plug for mating connector
<26, 34, 40 circuits>
Circuit No.1 mark
B
6.7
（10.1）
Circuits
26
34
40
10.3
12.5
Model No.
FCTP-26V-S
FCTP-34V-S
FCTP-40V-S
FCTP-60V-S
Material
Dimensions (mm)
A
B
31.3
39.3
45.3
65.3
33.0
41.0
47.0
67.0
Q’ty / box
2,000
2,000
2,000
1,200
60
A
PA 66, UL94V-0, natural (white)
RoHS compliance
<60 circuits>
Circuit No.1 mark
B
6.7
（10.1）
A
10.3
12.5
2
FCT CONNECTOR
Dimensions of recommended applicable flat cable
Circuits(n)
26
34
40
Strip length：17.35
Sheath length：4.5
±0.5
A
25.0
33.0
39.0
59.0
W
26.0
34.0
40.0
60.0
Insulator
t：0.4
Cutting sheath
±0.03
±0.1
±0.02
60
±0.5
Conductor
t：0.1
Note: Confirm the applicability of the connector with the flat cable used, before use.
Contact JST for applicable flat cable.
Conductor width
0.6
±0.1
±0.05
A：PX
（n−1）
Insulator
Conductor
Insulator (Sheath)
Harness assembly jig
Jig name
Cable bending jig
Jig for flat cable
Conductor forced-bending jig
Model No.
H-VD-FCT60
H-IT-FCT60
Plug inserting jig
3
0.5
Insulator (Cutting sheath)
P：1.0
W：n
±0.1
