REVISIONS
DESCRIPTION
ECN 3165: UPDATE DWG FORMAT
ECN 3179: CHANGE ELECTRICAL IMPEDANCE FROM 75 TO 50 OHM
1
DATE
1/21/08
1/29/08
CHANGED BY
D.GRIFFIN
D.GRIFFIN
THE INFORMATION CONTAINED IN THIS DRAWING IS THE SOLE PROPERTY OF
L-COM, INC. ANY REPRODUCTIONS IN PART OR WHOLE WITHOUT THE WRITTEN
PERMISSION OF L-COM, INC. IS PROHIBITED.
D
.9 23.6
.50 12.7
D
.21 .05 [5.2 0.254]
.041 1
.650 16.5
C
.329 8.4
.196 5
.213 5.4
.068 1.7
CENTER CONDUCTOR
DIELECTRIC
CABLE STRIPPING
DIMENSIONS
C
BRAID
RECOMMENDED
FERRULE & PIN
CRIMP SIZES
FERRULE
B
B
PIN
NOTES:
MATERIAL:
BODY: BRASS
FERRULE: BRASS OR COPPER ALLOY
PIN: BRASS
INSULATOR: ACETAL
FINISH:
BODY: NICKEL PLAE
FERRULE: NICKEL PLATE
PIN: GOLD PLATE
HOUSING
A
ELECTRICAL:
IMPEDANCE: 50 OHM
PACKAGING:
INDIVIDUALLY PACKAGE EACH ASSEMBLY UTILIZING APPROPRIATE SIZED BAG.
APPLICATION:
RG58 PLENUM CABLE ASSEMBLIES
RoHS Compliant
APPROVALS
UNLESS OTHERWISE SPECIFIED,
DIMENSIONS ARE IN INCHES [mm] DRAWN BY
TOLERANCES TO BE:
C.MCCORMICK
ANGLES 2
.X .1 [2.5]
.XX .01 [.25]
CHECKED BY
.XXX .005 [.13]
D.PARHAM
OVERALL CABLE LENGTH TOL:
APPROVED BY
≤
60 [1524] +3 [76.2] / - 0
R.CARRICK
> 60 [1524] +5% / -0%
PROJ
DATE
01/17/2002
PRODUCT DESCRIPTION
01/17/2002
01/17/2002
SIZE
CATEGORY
45 BEECHWOOD DRIVE
NORTH ANDOVER, MA
01845
A
COAXIAL

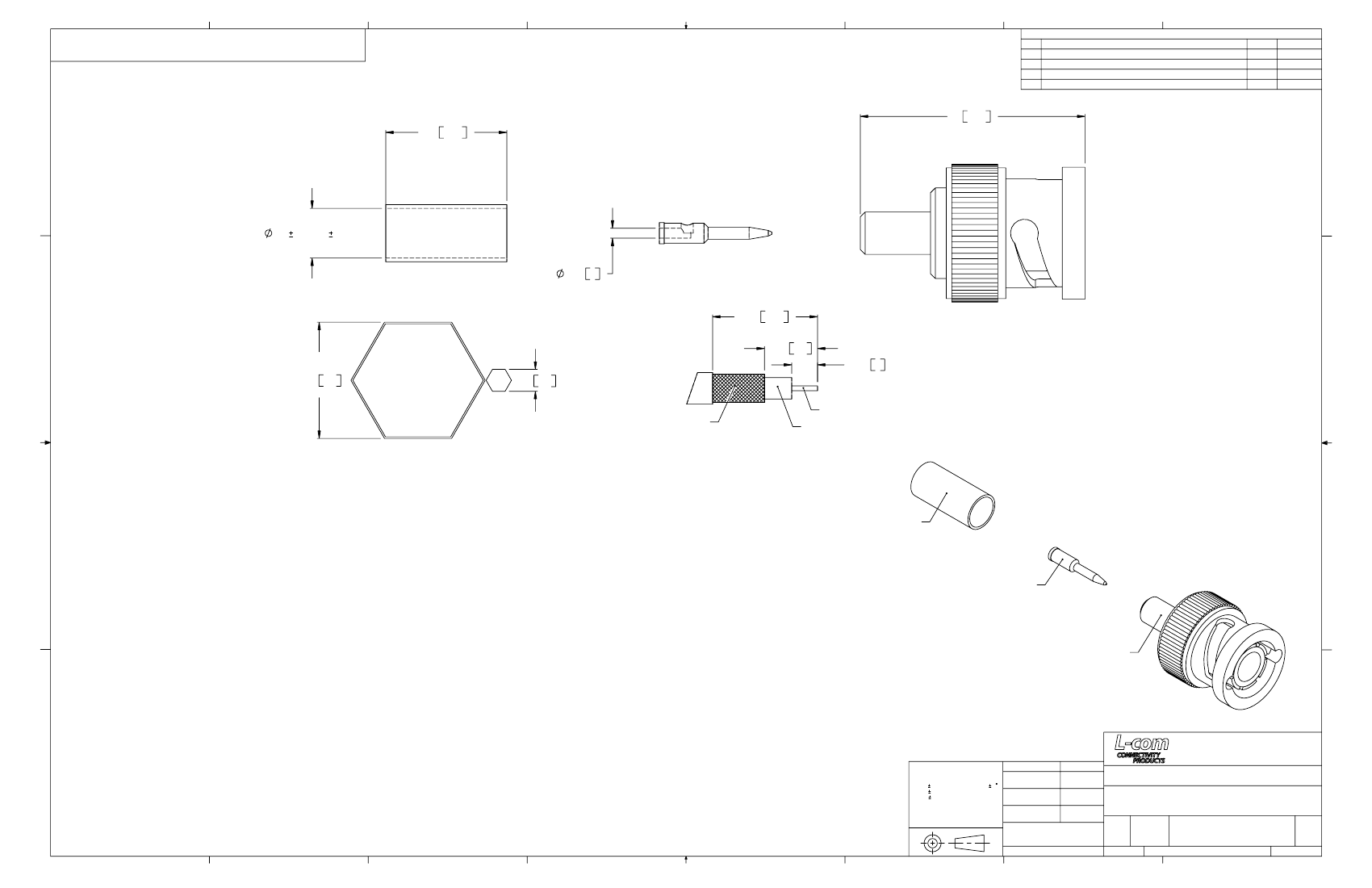

STRAIGHT BNC PLUG, CRIMP,50 OHM
CONFIGURATION DETAILS OF
UNDIMENSIONED FEATURES
MAY VARY
B
FSCM NO.
43321
DWG. NO.
REV.
BAC836A-58P
1
F
8
7
6
5
4
3
2
SCALE: 1:1
CAD FILE: BAC836A-58P.SLDDRW
SHEET 1 OF 1
