5962R9571401VXX datasheet, PDF

Datasheet> All Categories > logic> logic> 5962R9571401VXX

5962R9571401VXX: DescriptionCMOS SERIES, 8-BIT TRANSCEIVER, TRUE OUTPUT, CDFP20, CERAMIC, DFP-20; Categorylogic logic; File Size54KB，4 Pages; ManufacturerRenesas Electronics Corporation; Websitehttps://www.renesas.com/

Download Datasheet Parametric Compare View All

5962R9571401VXX Overview

CMOS SERIES, 8-BIT TRANSCEIVER, TRUE OUTPUT, CDFP20, CERAMIC, DFP-20

5962R9571401VXX Parametric

Parameter Name	Attribute value
Parts packaging code	DFP
package instruction	DFP,
Contacts	20
Reach Compliance Code	unknown
series	CMOS
JESD-609 code	e4
Logic integrated circuit type	BUS TRANSCEIVER
Number of digits	8
Number of functions	1
Number of ports	2
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Output characteristics	3-STATE
Output polarity	TRUE
Package body material	CERAMIC, METAL-SEALED COFIRED
encapsulated code	DFP
Package form	FLATPACK
Certification status	Not Qualified
Filter level	MIL-PRF-38535 Class V
Maximum seat height	2.92 mm
Maximum supply voltage (Vsup)	5.25 V
Minimum supply voltage (Vsup)	4.75 V
Nominal supply voltage (Vsup)	5 V
surface mount	YES
technology	CMOS
Temperature level	MILITARY
Terminal surface	GOLD
Terminal form	FLAT
Terminal pitch	1.27 mm
Terminal location	DUAL
total dose	100k Rad(Si) V
width	6.92 mm
Base Number Matches	1

Preview

Download Datasheet

View All

HS-82C08RH

Data Sheet

August 2000

File Number

3040.3

Radiation Hardened 8-Bit Bus Transceiver

The Intersil HS-82C08RH is a radiation-hardened octal bus

transceiver with three-state outputs. It is manufactured using

a self-aligned, junction isolated CMOS process and is

designed for use with the HS-80C08RH radiation-hardened

microprocessor. The HS-82C08RH allows asynchronous

two-way communication between data buses. The direction

of data ﬂow is determined by the logic level on the

transmit/receive (T/R) input. A logic high on the T/R input

speciﬁes data ﬂow from Port A to Port B of the device.

Conversely, a logic low on the T/R input speciﬁes data ﬂow

from Port B to Port A. The Output Enable input disables both

ports by placing them in the high impedance state.

The HS-82C08RH is ideally suited for a wide variety of

buffering applications in radiation-hardened microcomputer

systems.

Speciﬁcations for Rad Hard QML devices are controlled

by the Defense Supply Center in Columbus (DSCC). The

SMD numbers listed here must be used when ordering.

Detailed Electrical Speciﬁcations for these devices are

contained in SMD 5962-95714. A “hot-link” is provided

on our homepage for downloading.

www.intersil.com/spacedefense/space.asp

Features

• Electrically Screened to SMD # 5962-95714

• QML Qualiﬁed per MIL-PRF-38535 Requirements

• Radiation Performance

- Total Dose. . . . . . . . . . . . . . . . . . . . . 100 krad(Si) (Max)

- Latch-Up Immune EPI-CMOS . . . . . >1 x 10

rad(Si)/s

• Bidirectional Three-State Input/Outputs

• Low Propagation Delay Time

• Low Power Consumption

• Single Power Supply . . . . . . . . . . . . . . . . . . . . . . . . . +5V

• Electrically Equivalent to Sandia SA2997

• Military Temperature Range . . . . . . . . . . . -55

C to 125

Ordering Information

ORDERING NUMBER

5962R9571401QRC

5962R9571401QXC

5962R9571401VRC

5962R9571401VXC

INTERNAL

MKT. NUMBER

HS1-82C08RH-8

HS9-82C08RH-8

HS1-82C08RH-Q

HS9-82C08RH-Q

TRUTH TABLE

INPUTS

OPERATION

TRANSMIT

/RECEIVE

PORT A

Out

High Z

PORT B

Out

High Z

TEMP. RANGE

(

-55 to 125

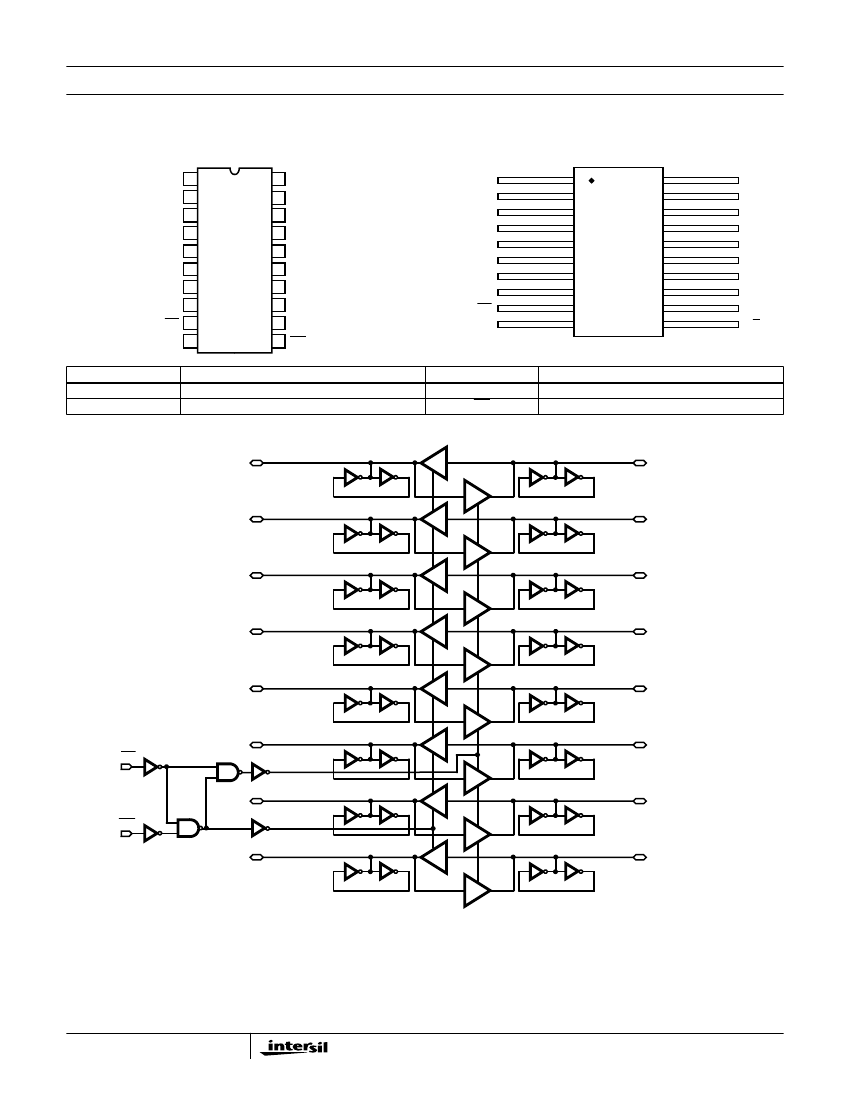

Functional Diagram

OUTPUT

ENABLE

PORT A4

B4 PORT

X = Don’t Care

T/R

CAUTION: These devices are sensitive to electrostatic discharge; follow proper IC Handling Procedures.

1-888-INTERSIL or 321-724-7143

Intersil and Design is a trademark of Intersil Corporation.

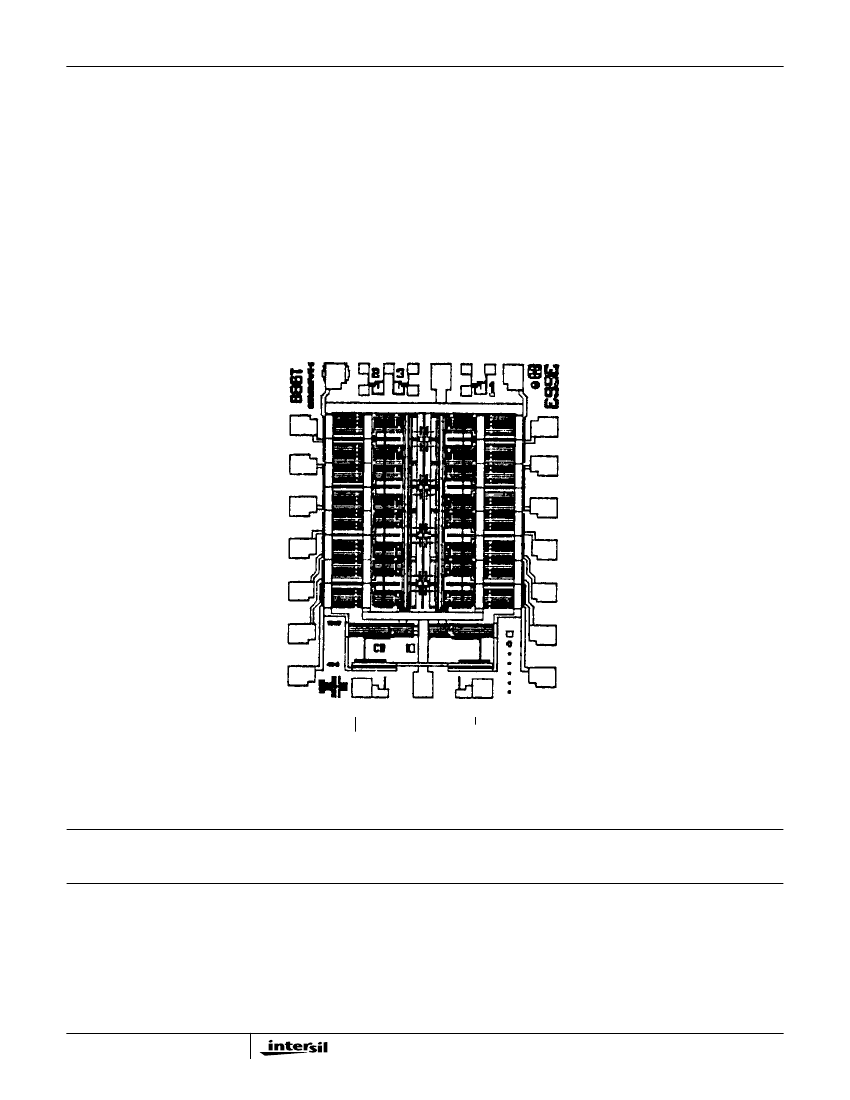

5962R9571401VXX Related Products

	5962R9571401VXX	5962R9571401QRX	5962R9571401VRX	5962R9571401QXX
Description	CMOS SERIES, 8-BIT TRANSCEIVER, TRUE OUTPUT, CDFP20, CERAMIC, DFP-20	CMOS SERIES, 8-BIT TRANSCEIVER, TRUE OUTPUT, CDIP20, CERAMIC, DIP-20	CMOS SERIES, 8-BIT TRANSCEIVER, TRUE OUTPUT, CDIP20, CERAMIC, DIP-20	CMOS SERIES, 8-BIT TRANSCEIVER, TRUE OUTPUT, CDFP20, CERAMIC, DFP-20
Parts packaging code	DFP	DIP	DIP	DFP
package instruction	DFP,	DIP,	DIP,	DFP,
Contacts	20	20	20	20
Reach Compliance Code	unknown	unknown	unknown	unknown
series	CMOS	CMOS	CMOS	CMOS
JESD-609 code	e4	e4	e4	e4
Logic integrated circuit type	BUS TRANSCEIVER	BUS TRANSCEIVER	BUS TRANSCEIVER	BUS TRANSCEIVER
Number of digits	8	8	8	8
Number of functions	1	1	1	1
Number of ports	2	2	2	2
Maximum operating temperature	125 °C	125 °C	125 °C	125 °C
Minimum operating temperature	-55 °C	-55 °C	-55 °C	-55 °C
Output characteristics	3-STATE	3-STATE	3-STATE	3-STATE
Output polarity	TRUE	TRUE	TRUE	TRUE
Package body material	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED
encapsulated code	DFP	DIP	DIP	DFP
Package form	FLATPACK	IN-LINE	IN-LINE	FLATPACK
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Filter level	MIL-PRF-38535 Class V	MIL-PRF-38535 Class Q	MIL-PRF-38535 Class V	MIL-PRF-38535 Class Q
Maximum seat height	2.92 mm	5.08 mm	5.08 mm	2.92 mm
Nominal supply voltage (Vsup)	5 V	5 V	5 V	5 V
surface mount	YES	NO	NO	YES
technology	CMOS	CMOS	CMOS	CMOS
Temperature level	MILITARY	MILITARY	MILITARY	MILITARY
Terminal surface	GOLD	GOLD	GOLD	GOLD
Terminal form	FLAT	THROUGH-HOLE	THROUGH-HOLE	FLAT
Terminal pitch	1.27 mm	2.54 mm	2.54 mm	1.27 mm
Terminal location	DUAL	DUAL	DUAL	DUAL
total dose	100k Rad(Si) V	100k Rad(Si) V	100k Rad(Si) V	100k Rad(Si) V
width	6.92 mm	7.62 mm	7.62 mm	6.92 mm
Base Number Matches	1	1	1	1
Maximum supply voltage (Vsup)	5.25 V	5.25 V	5.25 V	-
Minimum supply voltage (Vsup)	4.75 V	4.75 V	4.75 V	-
