HX6364/1XSHZC datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > storage> storage> HX6364/1XSHZC

HX6364/1XSHZC: DescriptionStandard SRAM, 8KX8, 45ns, CMOS, CDFP36, CERAMIC, FP-36; Categorystorage storage; File Size103KB，2 Pages; ManufacturerHoneywell; Websitehttp://www.ssec.honeywell.com/

Download Datasheet Parametric Compare View All

HX6364/1XSHZC Overview

Standard SRAM, 8KX8, 45ns, CMOS, CDFP36, CERAMIC, FP-36

HX6364/1XSHZC Parametric

Parameter Name	Attribute value
Is it lead-free?	Contains lead
Is it Rohs certified?	incompatible
Objectid	1401377879
Parts packaging code	DFP
package instruction	DFP, FL36,.6,25
Contacts	36
Reach Compliance Code	unknown
ECCN code	3A001.A.2.C
YTEOL	0
Maximum access time	45 ns
I/O type	COMMON
JESD-30 code	S-CDFP-F36
JESD-609 code	e0
length	16.002 mm
memory density	65536 bit
Memory IC Type	STANDARD SRAM
memory width	8
Number of functions	1
Number of ports	1
Number of terminals	36
word count	8192 words
character code	8000
Operating mode	ASYNCHRONOUS
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
organize	8KX8
Output characteristics	3-STATE
Exportable	YES
Package body material	CERAMIC, METAL-SEALED COFIRED
encapsulated code	DFP
Encapsulate equivalent code	FL36,.6,25
Package shape	SQUARE
Package form	FLATPACK
Parallel/Serial	PARALLEL
Certification status	Not Qualified
Filter level	MIL-STD-883 Class S (Modified)
Maximum seat height	3.5052 mm
Minimum standby current	2.5 V
Maximum slew rate	0.008 mA
Maximum supply voltage (Vsup)	5.5 V
Minimum supply voltage (Vsup)	4.5 V
Nominal supply voltage (Vsup)	5 V
surface mount	YES
technology	CMOS
Temperature level	MILITARY
Terminal surface	TIN LEAD
Terminal form	FLAT
Terminal pitch	0.635 mm
Terminal location	DUAL
total dose	1M Rad(Si) V
width	16.002 mm

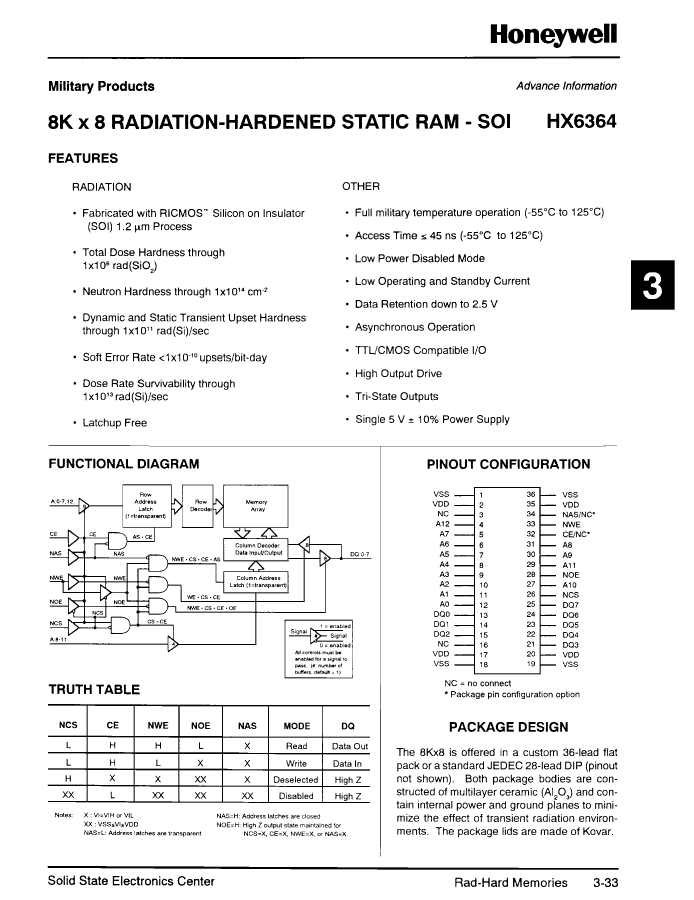

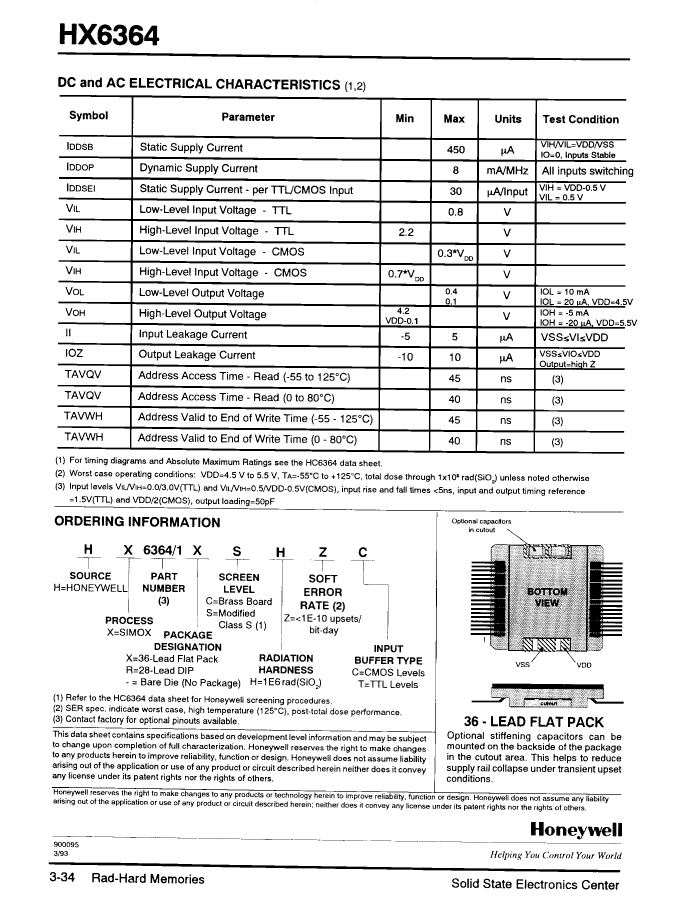

Preview

Download Datasheet

View All

HX6364/1XSHZC Related Products

	HX6364/1XSHZC	HX6364/1RCHC	HX6364/1RSHZT	HX6364/1XCHC	HX6364/1RCHT	HX6364/1XCHT	HX6364/1RSHZC	HX6364/1XSHZT
Description	Standard SRAM, 8KX8, 45ns, CMOS, CDFP36, CERAMIC, FP-36	Standard SRAM, 8KX8, 45ns, CMOS, CDIP28, CERAMIC, DIP-28	Standard SRAM, 8KX8, 45ns, CMOS, CDIP28, CERAMIC, DIP-28	Standard SRAM, 8KX8, 45ns, CMOS, CDFP36, CERAMIC, FP-36	Standard SRAM, 8KX8, 45ns, CMOS, CDIP28, CERAMIC, DIP-28	Standard SRAM, 8KX8, 45ns, CMOS, CDFP36, CERAMIC, FP-36	Standard SRAM, 8KX8, 45ns, CMOS, CDIP28, CERAMIC, DIP-28	Standard SRAM, 8KX8, 45ns, CMOS, CDFP36, CERAMIC, FP-36
Is it Rohs certified?	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible
Parts packaging code	DFP	DIP	DIP	DFP	DIP	DFP	DIP	DFP
package instruction	DFP, FL36,.6,25	DIP, DIP28,.6	DIP, DIP28,.6	DFP, FL36,.6,25	DIP, DIP28,.6	DFP, FL36,.6,25	DIP, DIP28,.6	DFP, FL36,.6,25
Contacts	36	28	28	36	28	36	28	36
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknown
ECCN code	3A001.A.2.C	3A001.A.2.C	3A001.A.2.C	3A001.A.2.C	3A001.A.2.C	3A001.A.2.C	3A001.A.2.C	3A001.A.2.C
Maximum access time	45 ns	45 ns	45 ns	45 ns	45 ns	45 ns	45 ns	45 ns
I/O type	COMMON	COMMON	COMMON	COMMON	COMMON	COMMON	COMMON	COMMON
JESD-30 code	S-CDFP-F36	R-CDIP-T28	R-CDIP-T28	S-CDFP-F36	R-CDIP-T28	S-CDFP-F36	R-CDIP-T28	S-CDFP-F36
JESD-609 code	e0	e0	e0	e0	e0	e0	e0	e0
length	16.002 mm	35.56 mm	35.56 mm	16.002 mm	35.56 mm	16.002 mm	35.56 mm	16.002 mm
memory density	65536 bit	65536 bit	65536 bit	65536 bit	65536 bit	65536 bit	65536 bit	65536 bit
Memory IC Type	STANDARD SRAM	STANDARD SRAM	STANDARD SRAM	STANDARD SRAM	STANDARD SRAM	STANDARD SRAM	STANDARD SRAM	STANDARD SRAM
memory width	8	8	8	8	8	8	8	8
Number of functions	1	1	1	1	1	1	1	1
Number of ports	1	1	1	1	1	1	1	1
Number of terminals	36	28	28	36	28	36	28	36
word count	8192 words	8192 words	8192 words	8192 words	8192 words	8192 words	8192 words	8192 words
character code	8000	8000	8000	8000	8000	8000	8000	8000
Operating mode	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS
Maximum operating temperature	125 °C	125 °C	125 °C	125 °C	125 °C	125 °C	125 °C	125 °C
Minimum operating temperature	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C
organize	8KX8	8KX8	8KX8	8KX8	8KX8	8KX8	8KX8	8KX8
Output characteristics	3-STATE	3-STATE	3-STATE	3-STATE	3-STATE	3-STATE	3-STATE	3-STATE
Exportable	YES	YES	YES	YES	YES	YES	YES	YES
Package body material	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED
encapsulated code	DFP	DIP	DIP	DFP	DIP	DFP	DIP	DFP
Encapsulate equivalent code	FL36,.6,25	DIP28,.6	DIP28,.6	FL36,.6,25	DIP28,.6	FL36,.6,25	DIP28,.6	FL36,.6,25
Package shape	SQUARE	RECTANGULAR	RECTANGULAR	SQUARE	RECTANGULAR	SQUARE	RECTANGULAR	SQUARE
Package form	FLATPACK	IN-LINE	IN-LINE	FLATPACK	IN-LINE	FLATPACK	IN-LINE	FLATPACK
Parallel/Serial	PARALLEL	PARALLEL	PARALLEL	PARALLEL	PARALLEL	PARALLEL	PARALLEL	PARALLEL
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Maximum seat height	3.5052 mm	4.445 mm	4.445 mm	3.5052 mm	4.445 mm	3.5052 mm	4.445 mm	3.5052 mm
Minimum standby current	2.5 V	2.5 V	2.5 V	2.5 V	2.5 V	2.5 V	2.5 V	2.5 V
Maximum slew rate	0.008 mA	0.008 mA	0.008 mA	0.008 mA	0.008 mA	0.008 mA	0.008 mA	0.008 mA
Maximum supply voltage (Vsup)	5.5 V	5.5 V	5.5 V	5.5 V	5.5 V	5.5 V	5.5 V	5.5 V
Minimum supply voltage (Vsup)	4.5 V	4.5 V	4.5 V	4.5 V	4.5 V	4.5 V	4.5 V	4.5 V
Nominal supply voltage (Vsup)	5 V	5 V	5 V	5 V	5 V	5 V	5 V	5 V
surface mount	YES	NO	NO	YES	NO	YES	NO	YES
technology	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS
Temperature level	MILITARY	MILITARY	MILITARY	MILITARY	MILITARY	MILITARY	MILITARY	MILITARY
Terminal surface	TIN LEAD	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	TIN LEAD	Tin/Lead (Sn/Pb)
Terminal form	FLAT	THROUGH-HOLE	THROUGH-HOLE	FLAT	THROUGH-HOLE	FLAT	THROUGH-HOLE	FLAT
Terminal pitch	0.635 mm	2.54 mm	2.54 mm	0.635 mm	2.54 mm	0.635 mm	2.54 mm	0.635 mm
Terminal location	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL
total dose	1M Rad(Si) V	1M Rad(Si) V	1M Rad(Si) V	1M Rad(Si) V	1M Rad(Si) V	1M Rad(Si) V	1M Rad(Si) V	1M Rad(Si) V
width	16.002 mm	15.24 mm	15.24 mm	16.002 mm	15.24 mm	16.002 mm	15.24 mm	16.002 mm
Maker	-	Honeywell	Honeywell	Honeywell	Honeywell	Honeywell	-	Honeywell
Peak Reflow Temperature (Celsius)	-	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	-	NOT SPECIFIED
power supply	-	5 V	5 V	5 V	5 V	5 V	-	5 V
Maximum time at peak reflow temperature	-	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	-	NOT SPECIFIED
Base Number Matches	-	1	1	1	1	1	-	1
