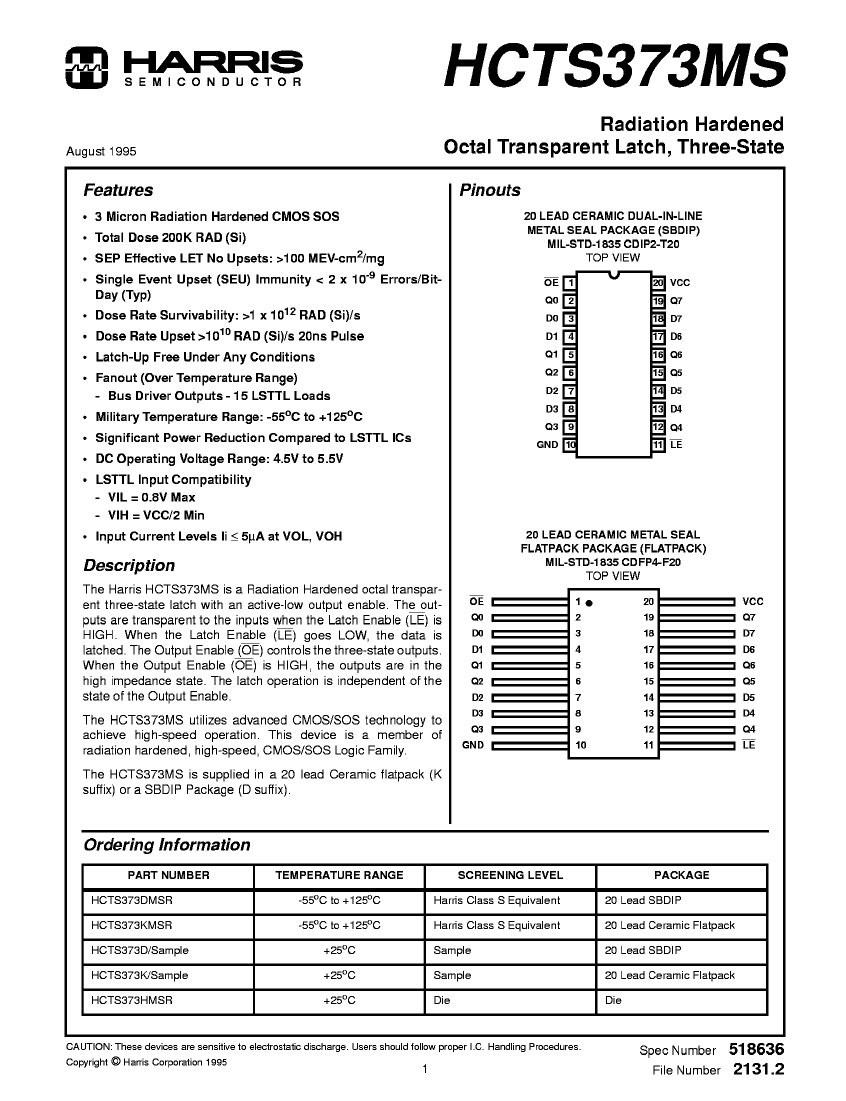

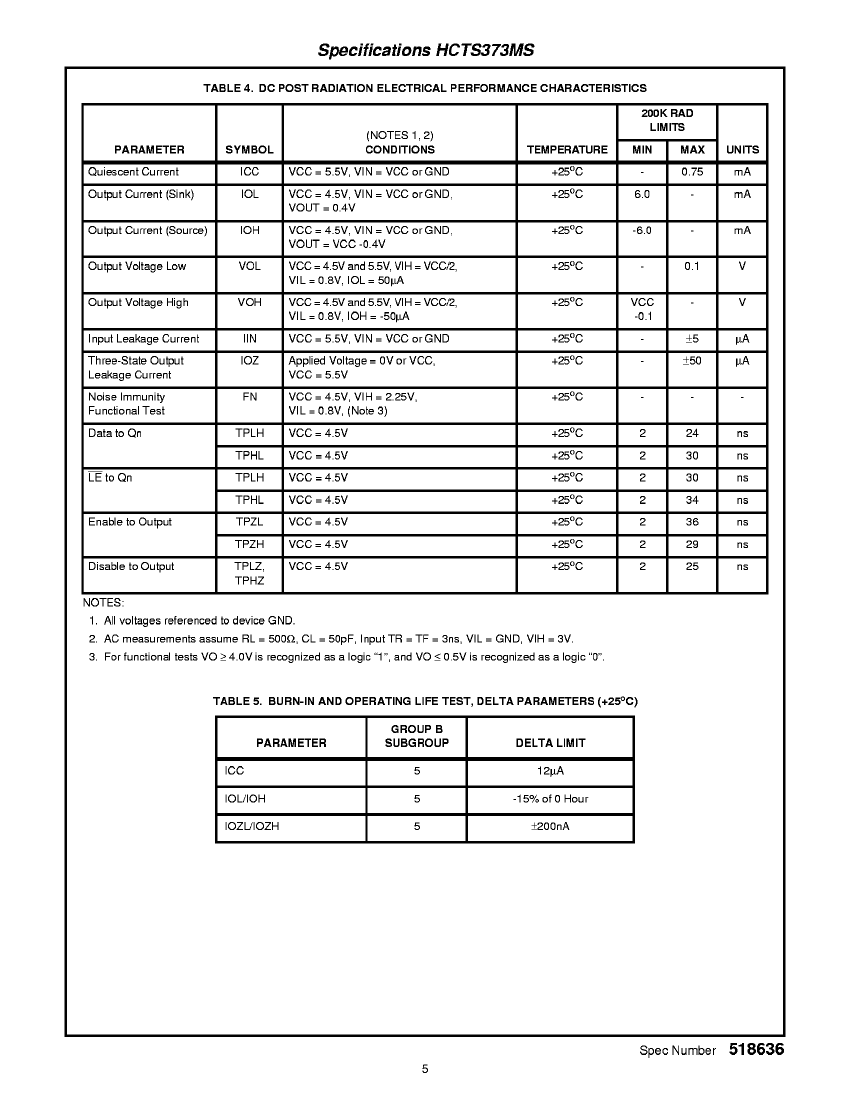

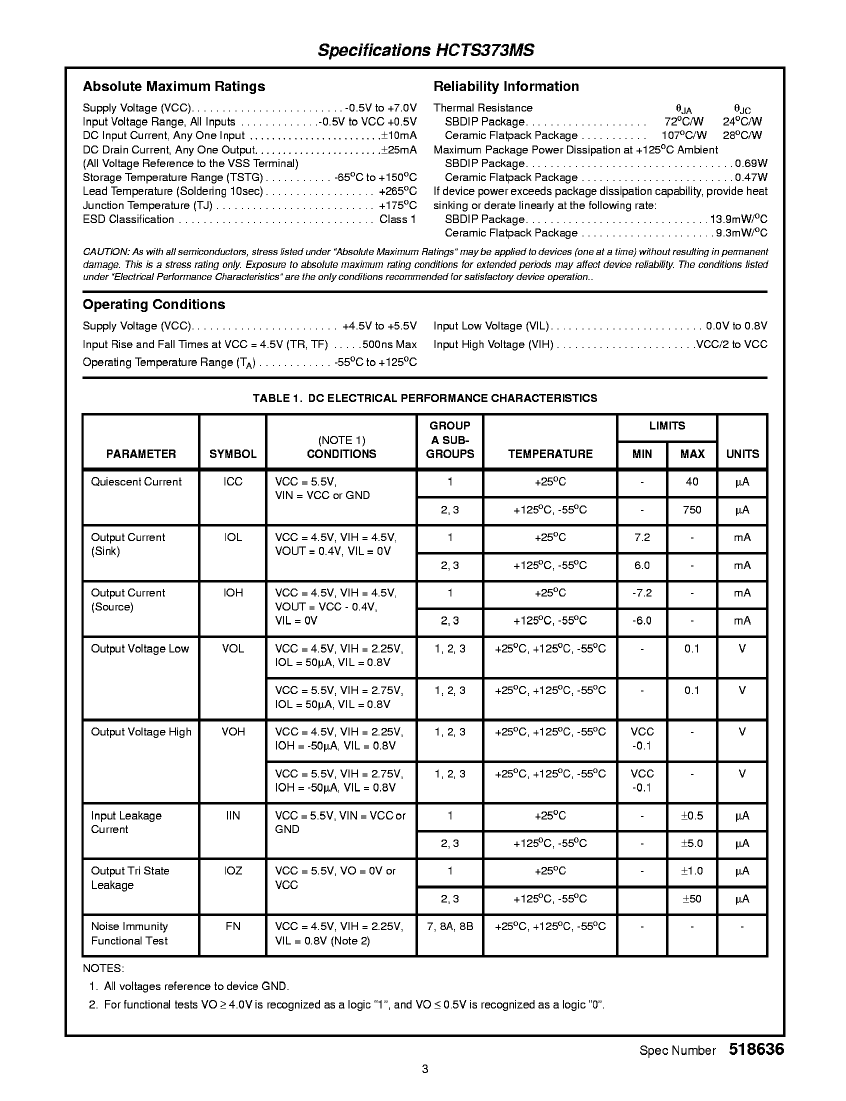

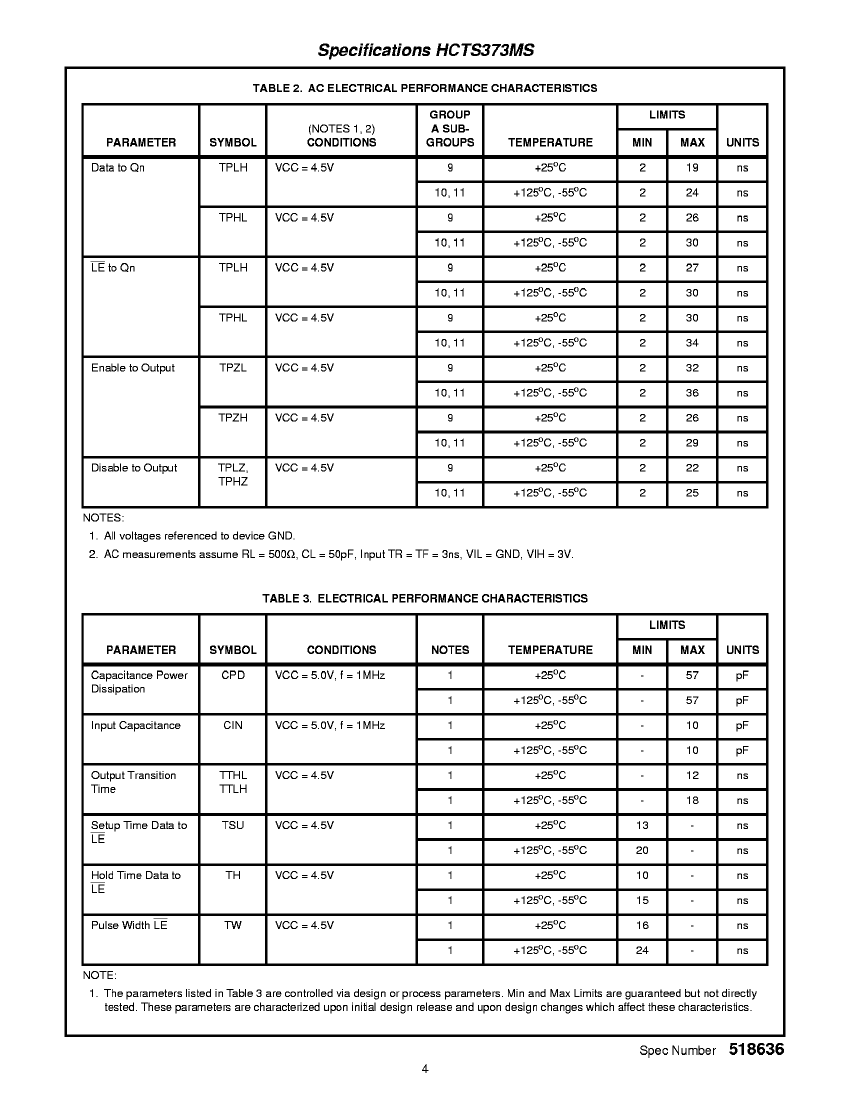

Bus Driver, HCT Series, 1-Func, 8-Bit, True Output, CMOS
| Parameter Name | Attribute value |
| Maker | Harris |
| package instruction | DIE, |
| Reach Compliance Code | unknown |
| series | HCT |
| JESD-30 code | X-XUUC-N20 |
| Load capacitance (CL) | 50 pF |
| Logic integrated circuit type | BUS DRIVER |
| Number of digits | 8 |
| Number of functions | 1 |
| Number of ports | 2 |
| Number of terminals | 20 |
| Maximum operating temperature | 125 °C |
| Minimum operating temperature | -55 °C |
| Output characteristics | 3-STATE |
| Output polarity | TRUE |
| Package body material | UNSPECIFIED |
| encapsulated code | DIE |
| Package shape | UNSPECIFIED |
| Package form | UNCASED CHIP |
| propagation delay (tpd) | 34 ns |
| Certification status | Not Qualified |
| Maximum supply voltage (Vsup) | 5.5 V |
| Minimum supply voltage (Vsup) | 4.5 V |
| Nominal supply voltage (Vsup) | 5 V |
| surface mount | YES |
| technology | CMOS |
| Temperature level | MILITARY |
| Terminal form | NO LEAD |
| Terminal location | UPPER |
| Base Number Matches | 1 |
| HCTS373HMSR | 5962R9574701VXC | 5962R9574701VRC | HCTS373KMSR | HCTS373DMSR | |
|---|---|---|---|---|---|
| Description | Bus Driver, HCT Series, 1-Func, 8-Bit, True Output, CMOS | Bus Driver, HCT Series, 1-Func, 8-Bit, True Output, CMOS, CDFP20 | Bus Driver, HCT Series, 1-Func, 8-Bit, True Output, CMOS, CDIP20 | Bus Driver, HCT Series, 1-Func, 8-Bit, True Output, CMOS, CDFP20 | Bus Driver, HCT Series, 1-Func, 8-Bit, True Output, CMOS, CDIP20 |
| package instruction | DIE, | , | , | DFP, FL20,.3 | DIP, DIP20,.3 |
| Reach Compliance Code | unknown | unknown | unknown | unknown | unknown |
| series | HCT | HCT | HCT | HCT | HCT |
| JESD-30 code | X-XUUC-N20 | R-CDFP-F20 | R-CDIP-T20 | R-CDFP-F20 | R-CDIP-T20 |
| Load capacitance (CL) | 50 pF | 50 pF | 50 pF | 50 pF | 50 pF |
| Logic integrated circuit type | BUS DRIVER | BUS DRIVER | BUS DRIVER | BUS DRIVER | BUS DRIVER |
| Number of digits | 8 | 8 | 8 | 8 | 8 |
| Number of functions | 1 | 1 | 1 | 1 | 1 |
| Number of ports | 2 | 2 | 2 | 2 | 2 |
| Number of terminals | 20 | 20 | 20 | 20 | 20 |
| Maximum operating temperature | 125 °C | 125 °C | 125 °C | 125 °C | 125 °C |
| Minimum operating temperature | -55 °C | -55 °C | -55 °C | -55 °C | -55 °C |
| Output characteristics | 3-STATE | 3-STATE | 3-STATE | 3-STATE | 3-STATE |
| Output polarity | TRUE | TRUE | TRUE | TRUE | TRUE |
| Package body material | UNSPECIFIED | CERAMIC, METAL-SEALED COFIRED | CERAMIC, METAL-SEALED COFIRED | CERAMIC, METAL-SEALED COFIRED | CERAMIC, METAL-SEALED COFIRED |
| Package shape | UNSPECIFIED | RECTANGULAR | RECTANGULAR | RECTANGULAR | RECTANGULAR |
| Package form | UNCASED CHIP | FLATPACK | IN-LINE | FLATPACK | IN-LINE |
| propagation delay (tpd) | 34 ns | 34 ns | 34 ns | 34 ns | 34 ns |
| Certification status | Not Qualified | Not Qualified | Not Qualified | Not Qualified | Not Qualified |
| Maximum supply voltage (Vsup) | 5.5 V | 5.5 V | 5.5 V | 5.5 V | 5.5 V |
| Minimum supply voltage (Vsup) | 4.5 V | 4.5 V | 4.5 V | 4.5 V | 4.5 V |
| Nominal supply voltage (Vsup) | 5 V | 5 V | 5 V | 5 V | 5 V |
| surface mount | YES | YES | NO | YES | NO |
| technology | CMOS | CMOS | CMOS | CMOS | CMOS |
| Temperature level | MILITARY | MILITARY | MILITARY | MILITARY | MILITARY |
| Terminal form | NO LEAD | FLAT | THROUGH-HOLE | FLAT | THROUGH-HOLE |
| Terminal location | UPPER | DUAL | DUAL | DUAL | DUAL |
| Base Number Matches | 1 | 1 | 1 | 1 | 1 |
| Maker | Harris | - | - | Harris | Harris |
| encapsulated code | DIE | - | - | DFP | DIP |
| JESD-609 code | - | e4 | e4 | e0 | e0 |
| Terminal surface | - | GOLD | GOLD | Tin/Lead (Sn/Pb) | Tin/Lead (Sn/Pb) |
| total dose | - | 100k Rad(Si) V | 100k Rad(Si) V | 200k Rad(Si) V | 200k Rad(Si) V |
