CY7C1032-7JCR datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > storage> storage> CY7C1032-7JCR

CY7C1032-7JCR: DescriptionCache SRAM, 64KX18, 7ns, CMOS, PQCC52, PLASTIC, LCC-52; Categorystorage storage; File Size383KB，12 Pages; ManufacturerCypress Semiconductor

Download Datasheet Parametric Compare View All

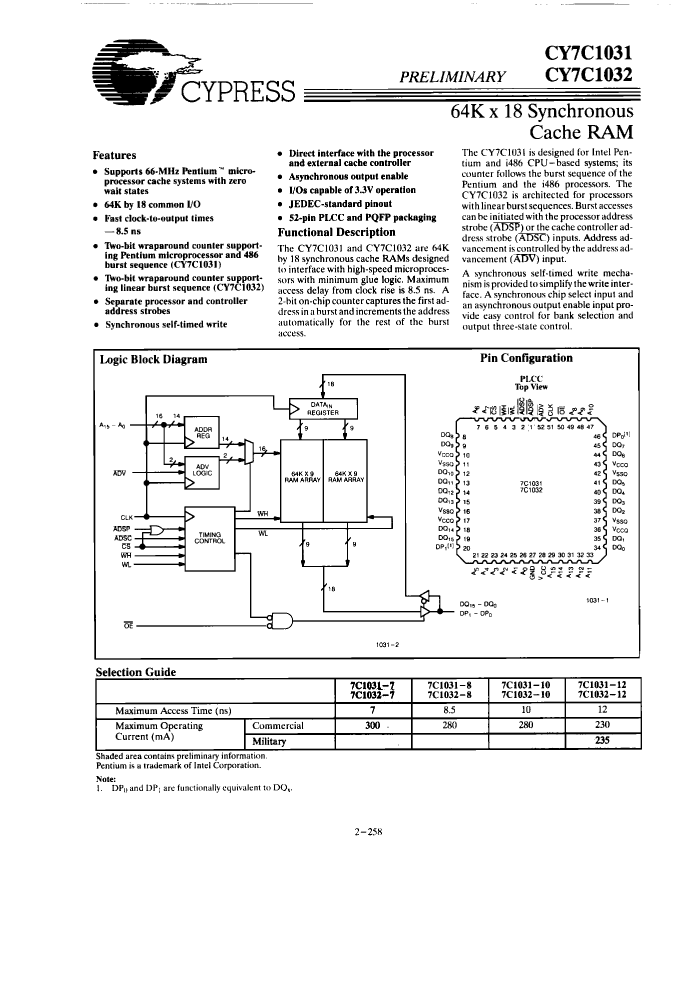

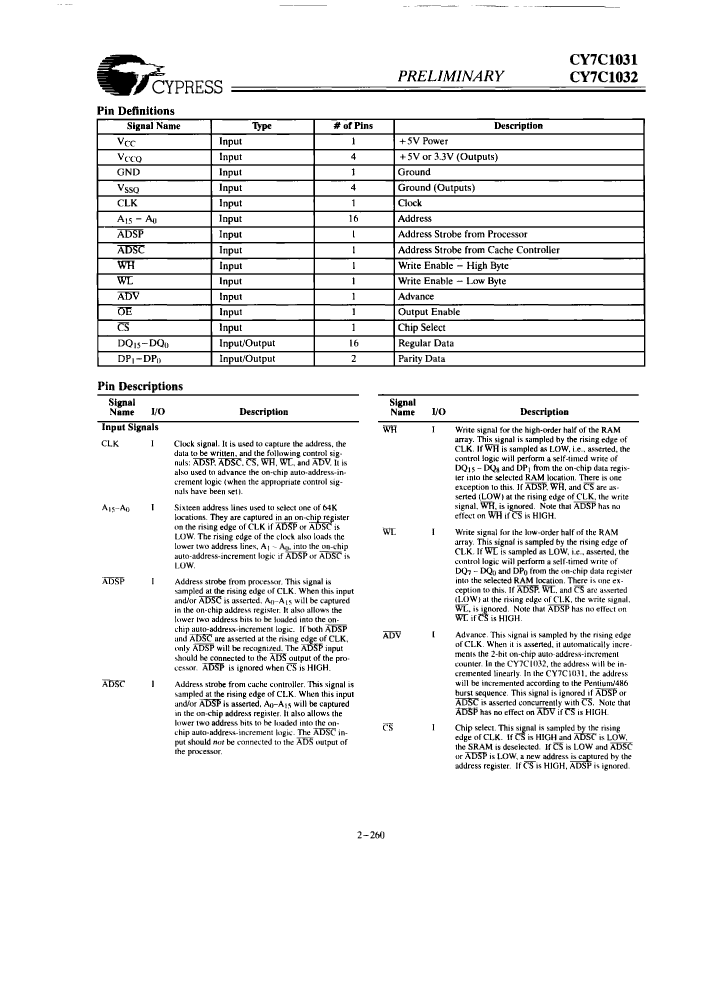

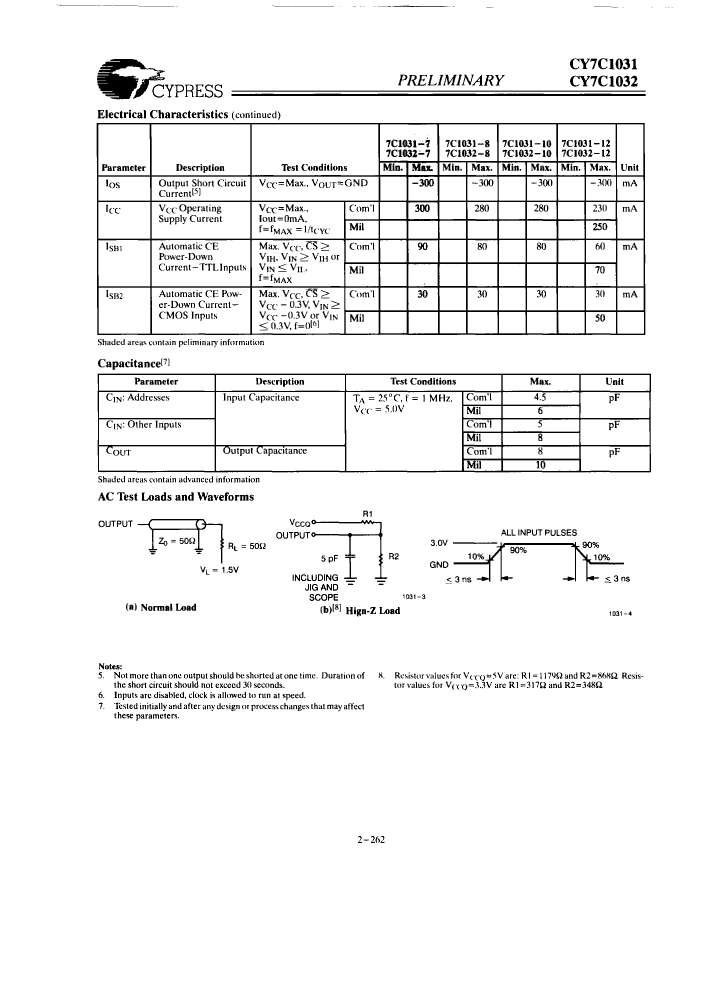

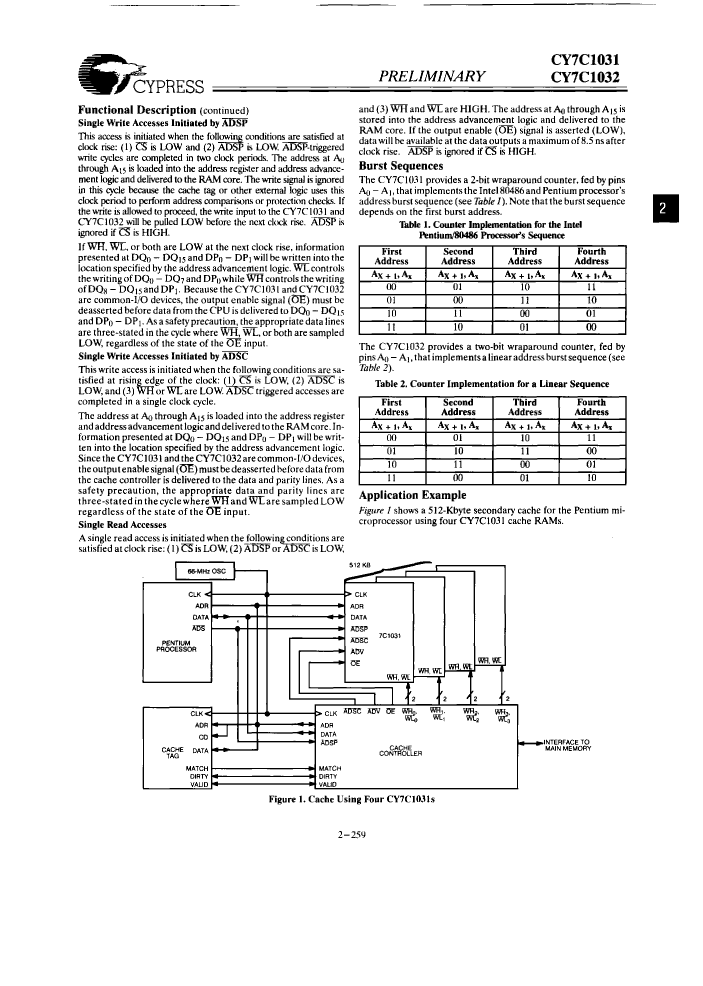

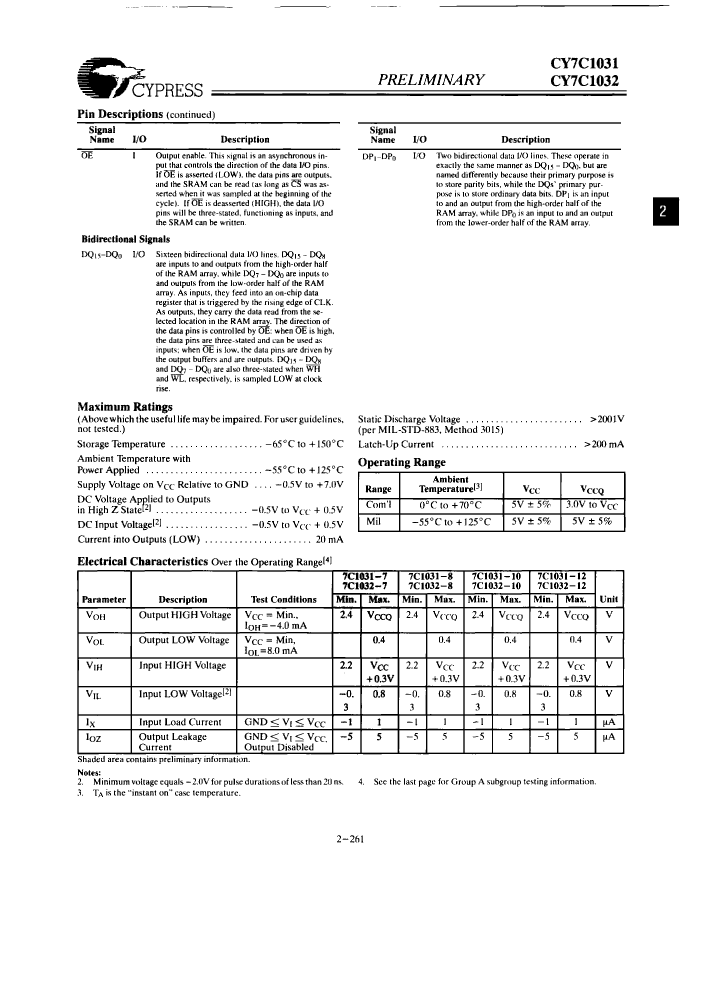

CY7C1032-7JCR Overview

Cache SRAM, 64KX18, 7ns, CMOS, PQCC52, PLASTIC, LCC-52

CY7C1032-7JCR Parametric

Parameter Name	Attribute value
Is it lead-free?	Contains lead
Is it Rohs certified?	incompatible
Maker	Cypress Semiconductor
Parts packaging code	LCC
package instruction	QCCJ,
Contacts	52
Reach Compliance Code	compliant
ECCN code	3A991.B.2.A
Maximum access time	7 ns
Other features	TWO BIT WRAPAROUND COUNTER
JESD-30 code	S-PQCC-J52
JESD-609 code	e0
length	19.1262 mm
memory density	1179648 bit
Memory IC Type	CACHE SRAM
memory width	18
Humidity sensitivity level	1
Number of functions	1
Number of ports	1
Number of terminals	52
word count	65536 words
character code	64000
Operating mode	SYNCHRONOUS
Maximum operating temperature	70 °C
Minimum operating temperature
organize	64KX18
Output characteristics	3-STATE
Exportable	YES
Package body material	PLASTIC/EPOXY
encapsulated code	QCCJ
Package shape	SQUARE
Package form	CHIP CARRIER
Parallel/Serial	PARALLEL
Peak Reflow Temperature (Celsius)	225
Certification status	Not Qualified
Maximum seat height	5.08 mm
Maximum supply voltage (Vsup)	5.25 V
Minimum supply voltage (Vsup)	4.75 V
Nominal supply voltage (Vsup)	5 V
surface mount	YES
technology	CMOS
Temperature level	COMMERCIAL
Terminal surface	TIN LEAD
Terminal form	J BEND
Terminal pitch	1.27 mm
Terminal location	QUAD
Maximum time at peak reflow temperature	30
width	19.1262 mm
Base Number Matches	1
