BZY97C10GP datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Discrete semiconductor> diode> BZY97C10GP

BZY97C10GP: DescriptionZener Diode, 10V V(Z), 6%, 1.5W, Silicon, Unidirectional, DO-41, PLASTIC PACKAGE-2; CategoryDiscrete semiconductor diode; File Size62KB，5 Pages; ManufacturerFagor Electrónica; Environmental Compliance

Download Datasheet Parametric View All

BZY97C10GP Overview

Zener Diode, 10V V(Z), 6%, 1.5W, Silicon, Unidirectional, DO-41, PLASTIC PACKAGE-2

BZY97C10GP Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	Fagor Electrónica
Parts packaging code	DO-41
package instruction	PLASTIC PACKAGE-2
Contacts	2
Reach Compliance Code	not_compliant
ECCN code	EAR99
Shell connection	ISOLATED
Configuration	SINGLE
Diode component materials	SILICON
Diode type	ZENER DIODE
Maximum dynamic impedance	4 Ω
JEDEC-95 code	DO-41
JESD-30 code	O-PALF-W2
JESD-609 code	e3
Humidity sensitivity level	1
Number of components	1
Number of terminals	2
Maximum operating temperature	175 °C
Minimum operating temperature	-55 °C
Package body material	PLASTIC/EPOXY
Package shape	ROUND
Package form	LONG FORM
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
polarity	UNIDIRECTIONAL
Maximum power dissipation	1.5 W
Certification status	Not Qualified
Nominal reference voltage	10 V
surface mount	NO
technology	ZENER
Terminal surface	TIN
Terminal form	WIRE
Terminal location	AXIAL
Maximum time at peak reflow temperature	NOT SPECIFIED
Maximum voltage tolerance	6%
Working test current	50 mA
Base Number Matches	1

Preview

Download Datasheet

View All

BZY97C10 GP........ BZY97C200 GP

1.5 W Zener Diodes

Dimensions in mm.

DO-41

(Plastic)

Voltage

10 to 200 V

Power

1.5 W

± 0.2

58.5

±0.5

Mounting instructions

1. Min. distance from body to soldering point,

4 mm.

2. Max. solder temperature, 350 °C.

3. Max. soldering time, 3.5 sec.

4. Do not bend lead at a point closer than

2 mm. to the body.

•

Diffused junction

•

The plastic material carries

U/L recognition 94 V-0

•

Terminals: Axial Leads

•

Polarity: Color band denotes cathode

Maximum Ratings, according to IEC publication No. 134

tot

ZSM

stg

Power dissipation at Tamb = 60

Non repetitive peak zener dissipation

(t = 10 ms.)

Operating temperature range

Storage temperature range

1.5 W

40 W

– 55 to + 175 °C

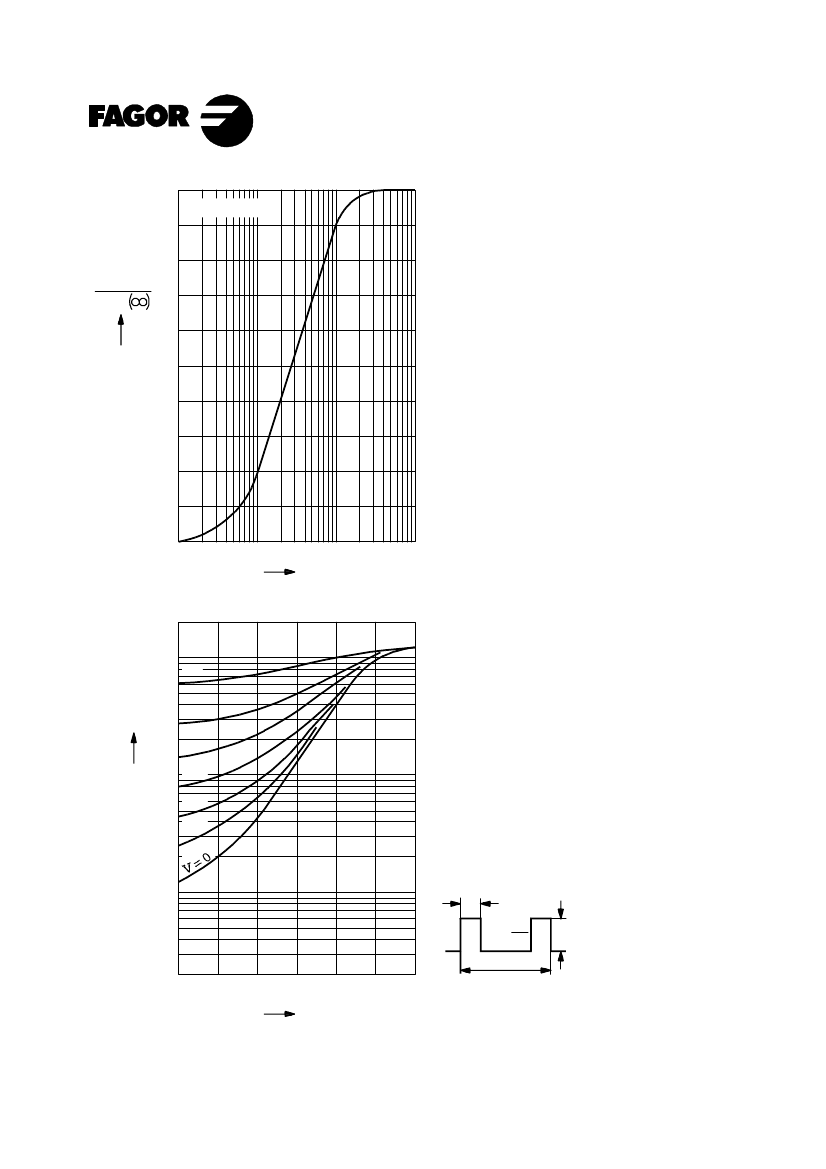

Electrical Characteristics at Tamb = 25°C

thj-a

Max. forward voltage drop at I

= 1.0 A

Max. thermal resistance at 10 mm.

lead length

1.1 V

50° C/W

Apr - 04
