AM27S03A/BFA datasheet, PDF - EEWORLD Datasheet

AM27S03A/BFA: DescriptionStandard SRAM, 16X4, 30ns, TTL, CDFP16, CERAMIC, FP-16; Categorystorage storage; File Size401KB，7 Pages; ManufacturerAMD; Websitehttp://www.amd.com

Download Datasheet Parametric View All

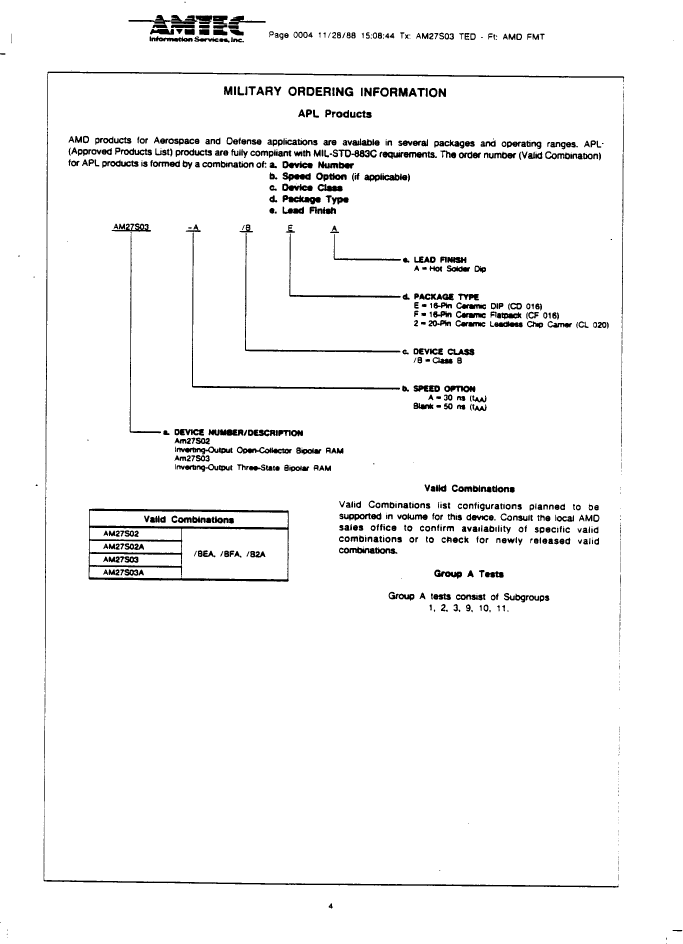

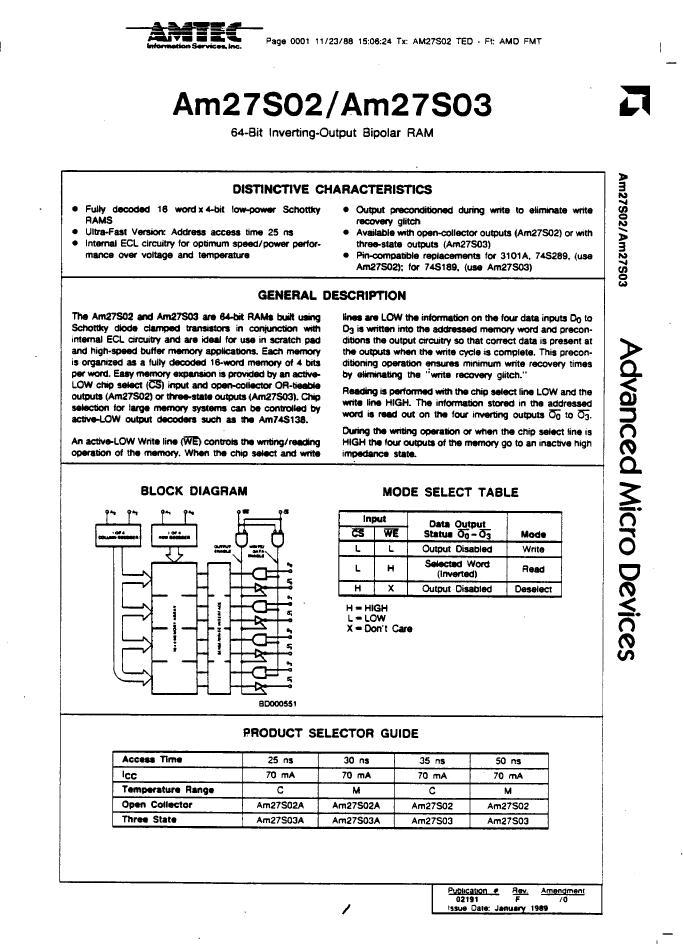

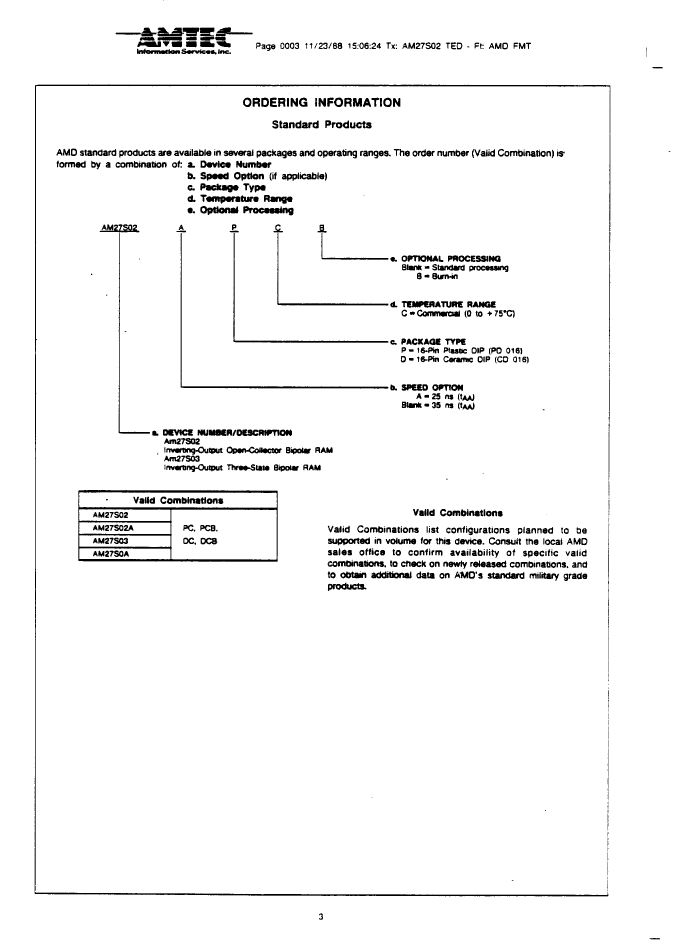

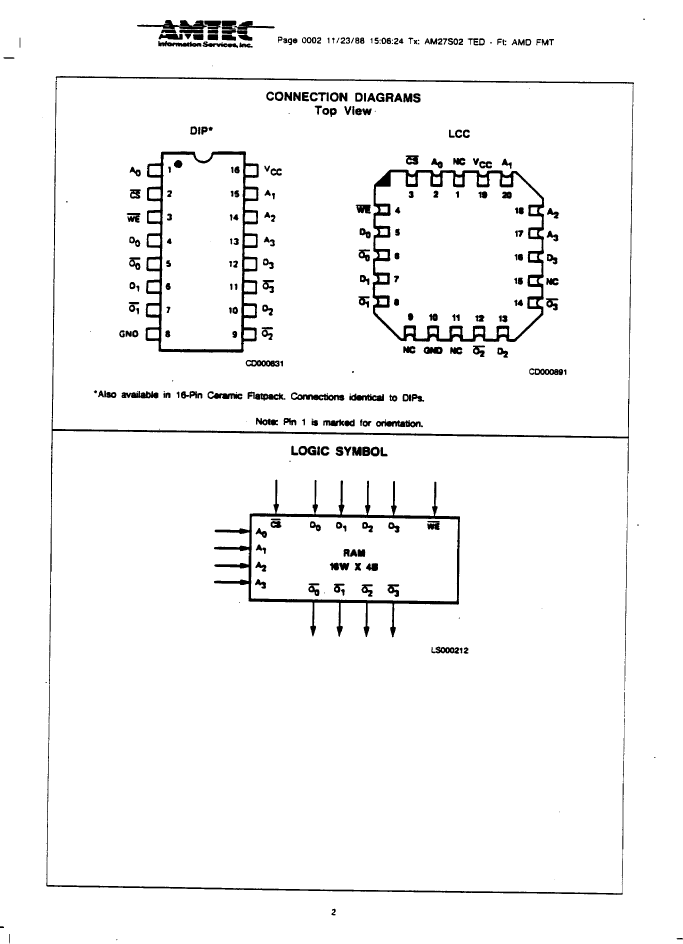

AM27S03A/BFA Overview

Standard SRAM, 16X4, 30ns, TTL, CDFP16, CERAMIC, FP-16

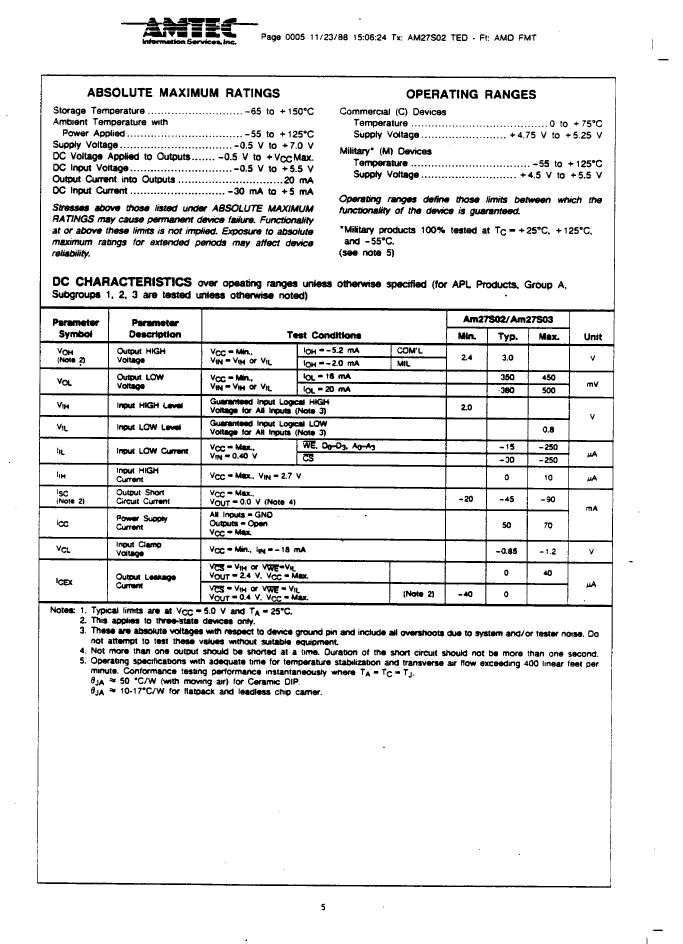

Parameter Name	Attribute value
Is it lead-free?	Contains lead
Is it Rohs certified?	incompatible
Parts packaging code	DFP
package instruction	DFP, FL16,.3
Contacts	16
Reach Compliance Code	unknown
ECCN code	3A001.A.2.C
Maximum access time	30 ns
JESD-30 code	R-GDFP-F16
JESD-609 code	e0
length	10.16 mm
memory density	64 bit
Memory IC Type	STANDARD SRAM
memory width	4
Number of functions	1
Number of ports	1
Number of terminals	16
word count	16 words
character code	16
Operating mode	ASYNCHRONOUS
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
organize	16X4
Output characteristics	3-STATE
Exportable	NO
Package body material	CERAMIC, GLASS-SEALED
encapsulated code	DFP
Encapsulate equivalent code	FL16,.3
Package shape	RECTANGULAR
Package form	FLATPACK
Parallel/Serial	PARALLEL
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
Certification status	Not Qualified
Filter level	38535Q/M;38534H;883B
Maximum seat height	2.159 mm
Maximum supply voltage (Vsup)	5.5 V
Minimum supply voltage (Vsup)	4.5 V
Nominal supply voltage (Vsup)	5 V
surface mount	YES
technology	TTL
Temperature level	MILITARY
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	FLAT
Terminal pitch	1.27 mm
Terminal location	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED
width	6.731 mm
Base Number Matches	1
