204328: DescriptionD Subminiature Connector, 15 Contact(s), Female, Press Fit Terminal, #4-40, Plug, ROHS COMPLIANT; CategoryThe connector The connector; File Size81KB，1 Pages; ManufacturerProvertha Connectors Cables & Solutions GmbH; Environmental Compliance

Download Datasheet Parametric Compare View All

204328 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	204328	-	-	View	Buy Now

204328 Overview

D Subminiature Connector, 15 Contact(s), Female, Press Fit Terminal, #4-40, Plug, ROHS COMPLIANT

204328 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	Provertha Connectors Cables & Solutions GmbH
package instruction	ROHS COMPLIANT
Reach Compliance Code	compliant
Other features	STANDARDS: DIN 41652; IEC 807-3; MIL-C-24308
body width	0.496 inch
subject depth	0.248 inch
body length	1.547 inch
Body/casing type	PLUG
Connector type	D SUBMINIATURE CONNECTOR
Contact to complete cooperation	NOT SPECIFIED
Contact point gender	FEMALE
Contact material	NOT SPECIFIED
contact mode	STAGGERED
Contact resistance	25 mΩ
Contact style	RND PIN-SKT
DIN compliance	YES
Dielectric withstand voltage	1400VAC V
empty shell	NO
Filter function	NO
IEC compliance	YES
maximum insertion force	3.336 N
Insulation resistance	5000000000 Ω
insulator material	POLYBUTYLENE TEREPHTHALATE
MIL compliance	YES
Plug information	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO
Installation option 1	#4-40
Installation option 2	SCREW
Installation method	STRAIGHT
Installation type	BOARD AND PANEL
PCB row number	2
Number of rows loaded	2
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Options	GENERAL PURPOSE
PCB contact pattern	STAGGERED
PCB contact row spacing	2.8448 mm
Rated current (signal)	5 A
Guideline	UL
reliability	COMMERCIAL
Shell surface	TIN
Shell material	STEEL
Housing size	2/A
Terminal length	0.118 inch
Terminal pitch	2.7432 mm
Termination type	PRESS FIT
Total number of contacts	15
UL Flammability Code	94V-0
Evacuation force-minimum value	.278 N
Base Number Matches	1

Preview

Download Datasheet

View All

Verpackt in Tray

Verpackungseinheit 36 St.

6,3

-0,25

tray packaging

packaging unit 36 pcs

5 x 18 = 90

6,3

Leiterplattte

PCB

+0,2

0,6

39,3

-0,4

max. 138

24,75

-0,2

46,2

Pin 1

5 x 46,2 = 231

max. 325

12,6

±0,3

-0,2

Sonstige Angaben siehe Zeichnung 204628 /

Additional indications according to drawing 204628

33,3

±0,1

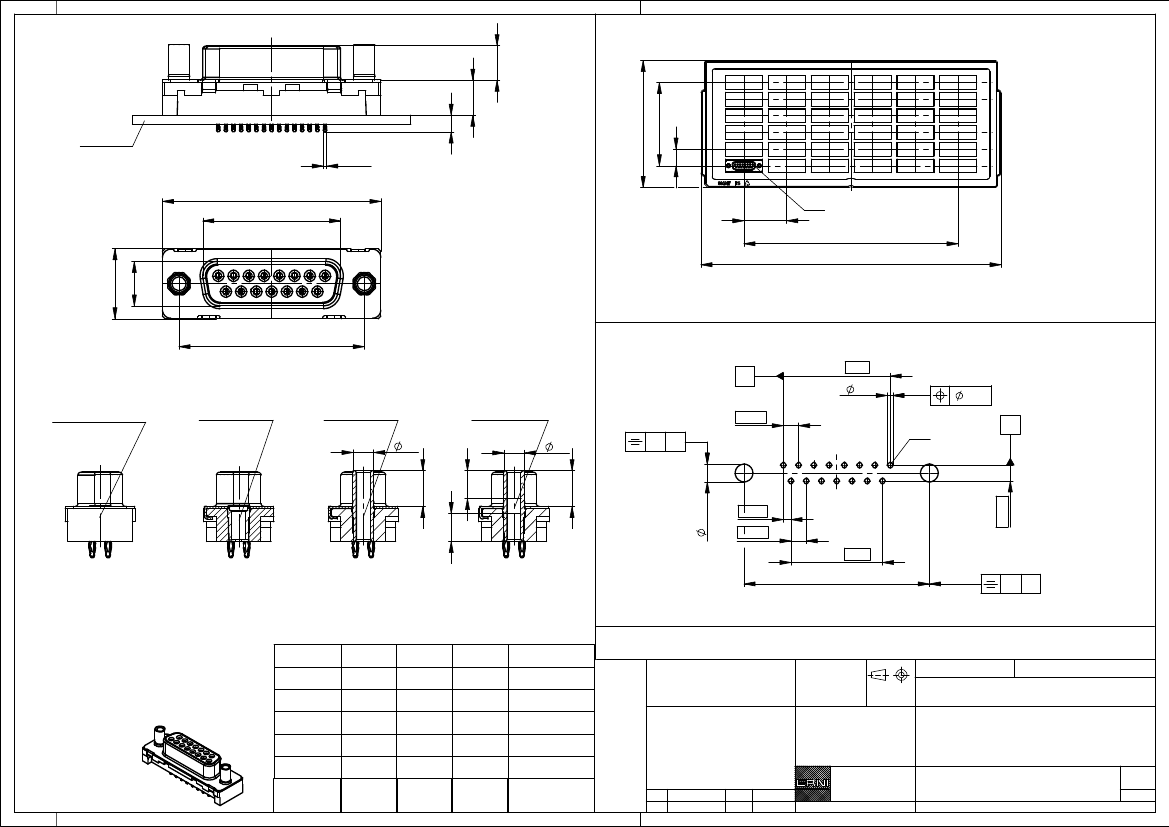

L a y o u tv o rs c h la g :

Bolzen /

bolt

Gewinde /

thread

M3 / #4-40

3,7

ohne /

without

Durchgangsloch

3,5

Mutter /

thread

Gewinde /

thread

M3 / #4-40

Bolzen /

bolt

Gewinde / thread

M3 - #4-40

#4-40 - M3

re c o m m e n d e d

la y o u t:

7 x 2,74 = 19,18

-0,06

+0,09

0,05 15 x

Pin 1

through hole

3,5

2,74

3,7

0,1

6,4

3,2

±0,1

1,37

2,74

6 x 2,74 = 16,44

33,3

±0,05

2,84

0,1

Tolerances

All Dimensions

in mm

Lochaufbau siehe ERNI - Spezifikation 164062 /

hole design according to ERNI - specification 164062

Anschlussbereich verzinnt

terminal area tin plating

Anforderungsstufe: 2

204324

204328

204327

M 1:1

3,5

Fehlende Masse und Angaben siehe DIN 41652 /

Missing information and dimensions according to DIN 41652

Sonstige Angaben siehe Fertigungsunterlagen /

Additional indications according to the production documentation

#4-40

#4-40-M3

#4-40

Proprietary notice pursuant to ISO 16016 to be observed.

Information:

Scale

2:1

class: 2

214589

204326

204293

Ident.-Nr.

ohne

Only for Information.

To ensure that this is the latest

version of this drawing, please

contact one of the ERNI companies

before using.

Index

03.05.2012

Date

Designation

Subject to modification without

prior notice.

Drawing will not be updated.

TMC-S 15-EESV-3,0-6,3-BA8-ZV

TMC-S 15-EESV-3,0-6,3-type 8-ZV

part-no.

without

Mutter

thread

Bolzen

bolt

Bemerkung

www.ERNI.com

Class

remark

144946

TMCS
