RP32525R0100JTTR datasheet, PDF

Datasheet> All Categories > Passive components> The resistor> RP32525R0100JTTR

RP32525R0100JTTR: DescriptionFixed Resistor, Thin Film, 60W, 100ohm, 5% +/-Tol, 150ppm/Cel, Surface Mount, 2525, CHIP, ROHS COMPLIANT; CategoryPassive components The resistor; File Size202KB，2 Pages; ManufacturerAVX; Environmental Compliance

Download Datasheet Parametric Compare View All

RP32525R0100JTTR Overview

Fixed Resistor, Thin Film, 60W, 100ohm, 5% +/-Tol, 150ppm/Cel, Surface Mount, 2525, CHIP, ROHS COMPLIANT

RP32525R0100JTTR Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	AVX
package instruction	SMT, 2525
Reach Compliance Code	compliant
ECCN code	EAR99
structure	Rectangular
JESD-609 code	e4
Installation features	SURFACE MOUNT
Number of terminals	2
Maximum operating temperature	150 °C
Minimum operating temperature	-55 °C
Package height	1.02 mm
Package length	6.22 mm
Package form	SMT
Package width	6.22 mm
method of packing	TR
Rated power dissipation(P)	60 W
Rated temperature	100 °C
resistance	100 Ω
Resistor type	FIXED RESISTOR
size code	2525
surface mount	YES
technology	THIN FILM
Temperature Coefficient	150 ppm/°C
Terminal surface	Silver (Ag)
Terminal shape	ONE SURFACE
Tolerance	5%
Base Number Matches	1

Preview

Download Datasheet

View All

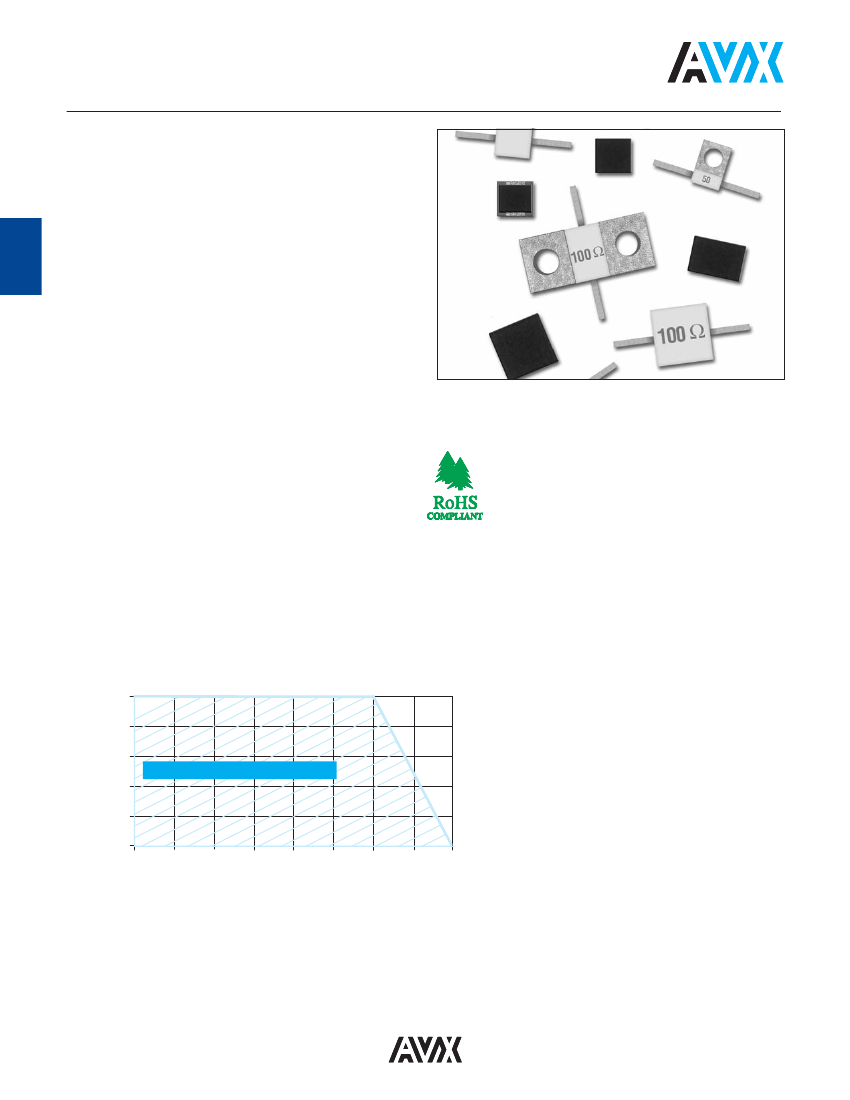

High Power Resistive Products

Resistors

AVX introduces its line of High Power Resistive Products.

All products are designed and manufactured at our ISO

9001 Facilities.

All products are tested in accordance with MIL-PRF-55342.

ELECTRICAL SPECIFICATIONS

Resistance:

50 and 100 Ω standard (10 Ω - 200 Ω available)

Resistance Tolerance:

±5% standard (±2% available)

Power:

2 Watts through 250 Watts

Operating Temperature Range:

-55ºC to +150ºC

Temperature Coefficient:

< 150 ppm/ºC

Low Capacitance

MECHANICAL SPECIFICATIONS

Package:

Surface Mount Chips, Chips, Leaded Chips, Flanged

Substrate Material:

Aluminum Nitride

Process:

Thin Film

Resistive Material:

Tantalum

Terminals:

Silver

Cover:

Alumina

Mounting Flange:

100% Cu, Ni or Ag Plated

Mechanical Tolerance:

±0.13 (0.005)

SMT and Chip products, supplied on Tape and Reel

Non-Magnetic

(exception RP4 and RP5 Style Surface Mount Resistors)

RoHS Compliant

POWER DERATING

100%

Power Dissipation

Rated Safe Operating Range

-50˚C

-25˚C

0˚C

+25˚C

+50˚C

75˚C

100˚C

125˚C

150˚C

Heat Sink Temperature (°C)

RP32525R0100JTTR Related Products

	RP32525R0100JTTR	RP32525R0050GTTR	RP32525R0100GTTR	RP31005R0050JTTR	RP32525R0050JTTR	RP31005R0050GTTR	RP31005R0100GTTR
Description	Fixed Resistor, Thin Film, 60W, 100ohm, 5% +/-Tol, 150ppm/Cel, Surface Mount, 2525, CHIP, ROHS COMPLIANT	Fixed Resistor, Thin Film, 60W, 50ohm, 2% +/-Tol, 150ppm/Cel, Surface Mount, 2525, CHIP, ROHS COMPLIANT	Fixed Resistor, Thin Film, 60W, 100ohm, 2% +/-Tol, 150ppm/Cel, Surface Mount, 2525, CHIP, ROHS COMPLIANT	Fixed Resistor, Thin Film, 5W, 50ohm, 5% +/-Tol, 150ppm/Cel, Surface Mount, 1005, CHIP, ROHS COMPLIANT	Fixed Resistor, Thin Film, 60W, 50ohm, 5% +/-Tol, 150ppm/Cel, Surface Mount, 2525, CHIP, ROHS COMPLIANT	Fixed Resistor, Thin Film, 5W, 50ohm, 2% +/-Tol, 150ppm/Cel, Surface Mount, 1005, CHIP, ROHS COMPLIANT	Fixed Resistor, Thin Film, 5W, 100ohm, 2% +/-Tol, 150ppm/Cel, Surface Mount, 1005, CHIP, ROHS COMPLIANT
Is it lead-free?	Lead free	Lead free	Lead free	Lead free	Lead free	Lead free	Lead free
Is it Rohs certified?	conform to	conform to	conform to	conform to	conform to	conform to	conform to
Maker	AVX	AVX	AVX	AVX	AVX	AVX	AVX
package instruction	SMT, 2525	SMT, 2525	SMT, 2525	SMT, 1005	SMT, 2525	SMT, 1005	SMT, 1005
Reach Compliance Code	compliant	compliant	compliant	compliant	compliant	compliant	compliant
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99
structure	Rectangular	Chip	Chip	Rectangular	Rectangular	Chip	Chip
JESD-609 code	e4	e4	e4	e4	e4	e4	e4
Installation features	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT
Number of terminals	2	2	2	2	2	2	2
Maximum operating temperature	150 °C	150 °C	150 °C	150 °C	150 °C	150 °C	150 °C
Minimum operating temperature	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C
Package height	1.02 mm	1.02 mm	1.02 mm	0.64 mm	1.02 mm	0.64 mm	0.64 mm
Package length	6.22 mm	6.22 mm	6.22 mm	2.54 mm	6.22 mm	2.54 mm	2.54 mm
Package form	SMT	SMT	SMT	SMT	SMT	SMT	SMT
Package width	6.22 mm	6.22 mm	6.22 mm	1.27 mm	6.22 mm	1.27 mm	1.27 mm
method of packing	TR	TR	TR	TR	TR	TR	TR
Rated power dissipation(P)	60 W	60 W	60 W	5 W	60 W	5 W	5 W
Rated temperature	100 °C	100 °C	100 °C	100 °C	100 °C	100 °C	100 °C
resistance	100 Ω	50 Ω	100 Ω	50 Ω	50 Ω	50 Ω	100 Ω
Resistor type	FIXED RESISTOR	FIXED RESISTOR	FIXED RESISTOR	FIXED RESISTOR	FIXED RESISTOR	FIXED RESISTOR	FIXED RESISTOR
size code	2525	2525	2525	1005	2525	1005	1005
surface mount	YES	YES	YES	YES	YES	YES	YES
technology	THIN FILM	THIN FILM	THIN FILM	THIN FILM	THIN FILM	THIN FILM	THIN FILM
Temperature Coefficient	150 ppm/°C	150 ppm/°C	150 ppm/°C	150 ppm/°C	150 ppm/°C	150 ppm/°C	150 ppm/°C
Terminal surface	Silver (Ag)	Silver (Ag)	Silver (Ag)	Silver (Ag)	Silver (Ag)	Silver (Ag)	Silver (Ag)
Terminal shape	ONE SURFACE	ONE SURFACE	ONE SURFACE	ONE SURFACE	ONE SURFACE	ONE SURFACE	ONE SURFACE
Tolerance	5%	2%	2%	5%	5%	2%	2%
Base Number Matches	1	1	1	1	1	1	1
Manufacturer's serial number	-	RP3	RP3	-	-	RP3	RP3
Package shape	-	RECTANGULAR PACKAGE	RECTANGULAR PACKAGE	-	-	RECTANGULAR PACKAGE	RECTANGULAR PACKAGE
Guideline	-	MIL-PRF-55342	MIL-PRF-55342	-	-	MIL-PRF-55342	MIL-PRF-55342
series	-	RP3	RP3	-	-	RP3	RP3
