Specifications

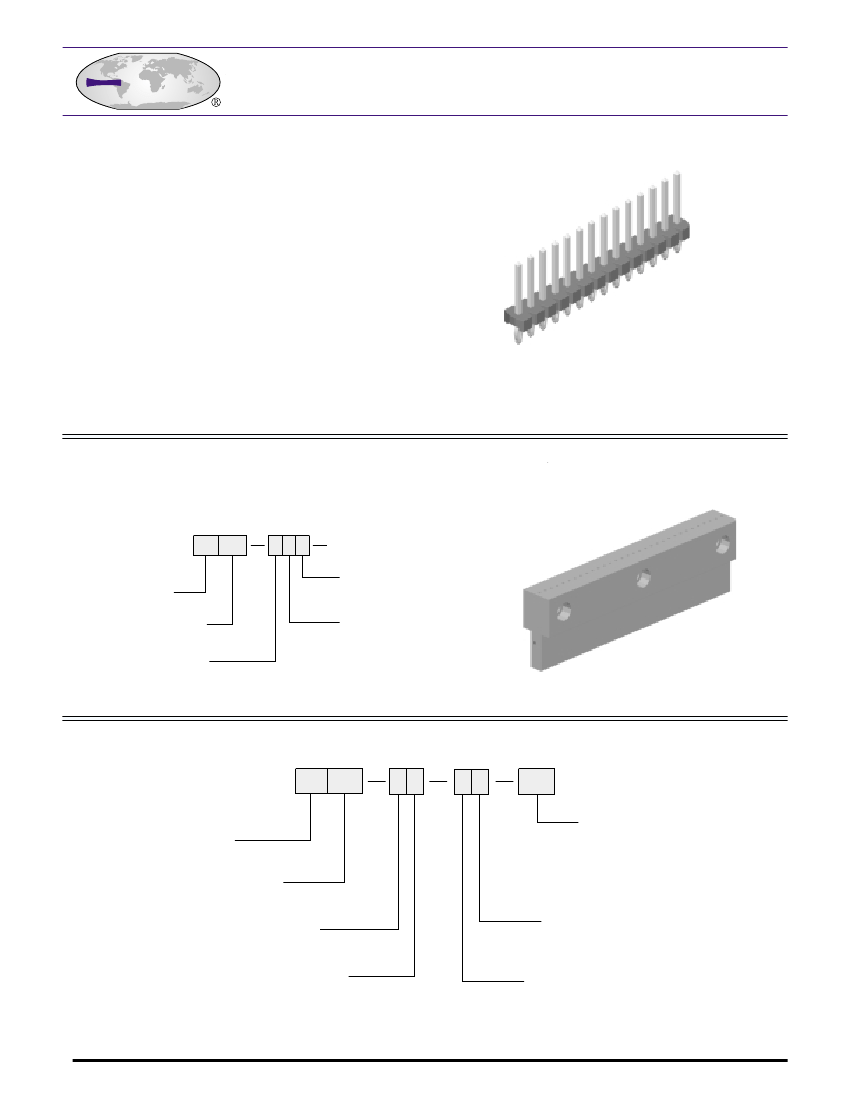

.045 Square Strip Headers
9000 Series Header
Insulator Material: Glass filled polyester, Type PBT,
94V-O, UL Recognized.
Contact Material: Copper Alloy
Contact Plating: Gold and Tin over .000050” Ni
(See contact plating options.)
Insulation Resistance:
5000 M ohms min.
Dielectric Withstand Voltage: 1500 VAC
Current Rating:
5 AMPS at 30°C
Operating Temperature:
-40°C To +105°C
Hole Size Requirements:
Drilled Hole Diameter: .0773±.001
Plating: .001 to .003 copper and
.0001 to .0008 solder
Finished Hole Diameter:
.072±.003
UL File Numbers: E146967 & E176234
APPLICATION TOOLING FOR PRESS-FIT HEADERS
PART NUMBERING
90 XX
SERIES CODE
NO. OF CONTACTS
SINGLE ROW =
01 - 20
DUAL ROW =
02 - 40
XX X
T
CONTACT HEIGHT
1
= .300
2
= .510
NO. OF ROWS
1
= SINGLE ROW
2
= DUAL ROW
CONTACT SPACING
1
= .156
2
= .200
PART NUMBERING
90 XX
SERIES CODE
NO. OF CONTACTS
SINGLE ROW =
01 - 20
DUAL ROW =
02 - 40
XX
XX
XX
CONTACT PLATING
.000050” Nickel underplate
CONTACT
TAIL
00
= 100µ”Sn
100µ”Sn
01
= Au Flash
100µ”Sn
20
= 15µ”Au
100µ”Sn
30
= 30µ”Au
100µ”Sn
CONTACT SPACING
1
= .156 CENTERS
2
= .200 CENTERS
TERMINATION
1
= PRESS-FIT
2
= SOLDER
NO. OF ROWS
1
= SINGLE ROW
2
= DUAL ROW
CONTACT HEIGHT
1
= .300±.015
2
= .510±.015
CONSULT FACTORY FOR CONNECTORS BUILT TO YOUR SPECIFICATION
WWW.ECSCONN.COM
