3521-20412

Description
Board Connector, 4 Contact(s), Male, Right Angle, Surface Mount Terminal, Locking
CategoryThe connector    The connector
File Size87KB，1 Pages
ManufacturerConexcon Group
Download Datasheet Parametric Compare View All

3521-20412 Overview

Board Connector, 4 Contact(s), Male, Right Angle, Surface Mount Terminal, Locking

3521-20412 Parametric

Parameter NameAttribute value
Reach Compliance Codeunknown
body width0.126 inch
subject depth0.347 inch
body length0.709 inch
Connector typeBOARD CONNECTOR
Contact arrangementS0P4
Contact to complete cooperationSN
Contact completed and terminatedTIN
Contact point genderMALE
Contact materialBRASS
Contact styleSQ PIN-SKT
Manufacturer's serial number3521
Mixed contactsYES
Installation option 1LOCKING
Installation methodRIGHT ANGLE
Installation typeBOARD
Number of connectorsONE
GuidelineUL
reliabilityCOMMERCIAL
Termination typeSURFACE MOUNT
Total number of contacts4
Base Number Matches1

Preview

Download Datasheet

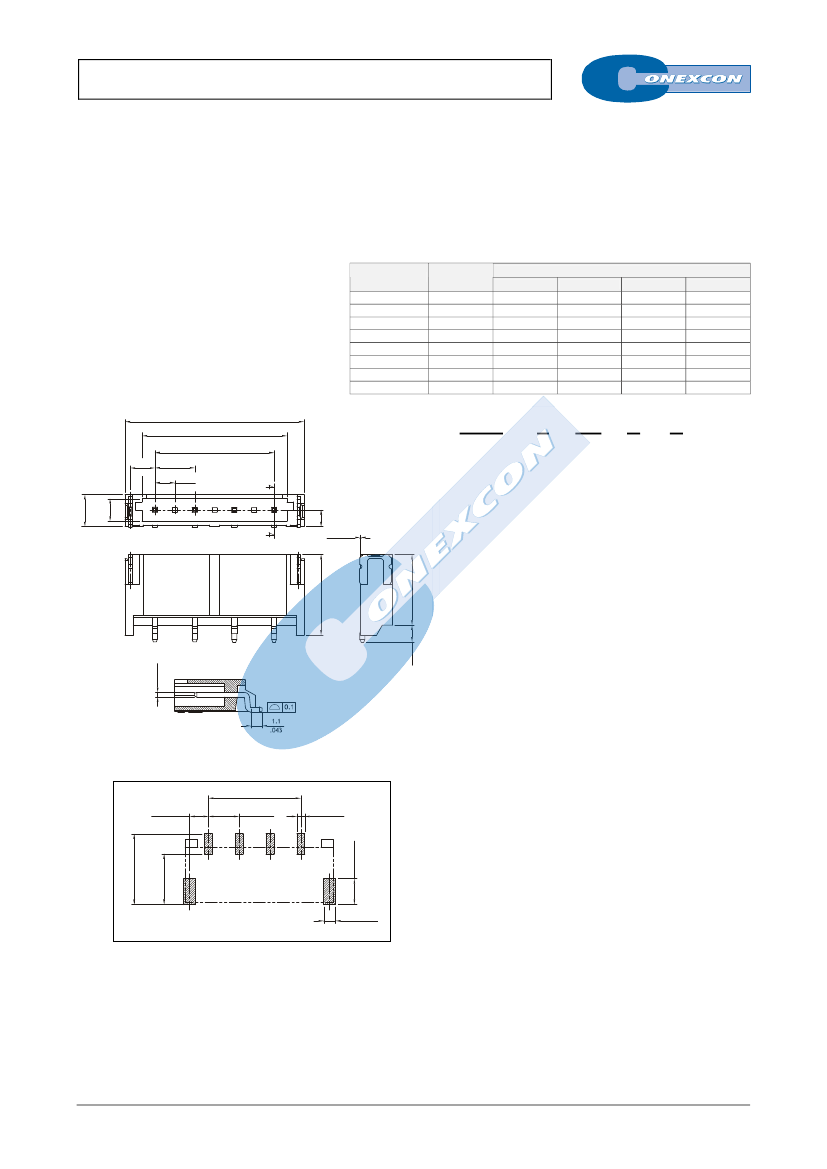

S/ ROW SHROUDED R/ ANGLE HEADER SMT
3521 SERIES.
4.00 / 8.00 / 12.00 / 16.00 mm. ( 0.157 / 0.315 / 0.72 / 0.630 ”).
Features
Available in 2 through 5 circuits
Insulator: High temperatura plastic UL 94V-0
Mates with 3520 series socket
Terminal: Tin plated Brass
Shrouded headers with Fixed Tabs
Low profile with polarising device
Ordering and Dimensional Information
Dimensional Information
Circuit Size
02
02
02
02
03
03
04
05
B
C
D
2.45
.096
A
2.0
.079
E
1.67
Part Number
3521-2021E
3521-2022E
3521-2023E
3521-2024E
3521-2031E
3521-2032E
3521-2041E
3521-2051E
Dimensions
A
4.0 (.157)
8.0 (.315)
12.0 (.472)
16.0 (.630)
4.0 (.157)
8.0 (.315)
4.0 (.157)
4.0 (.157)
B
10.0 (.394)
14.0 (.551)
18.0 (.709)
22.0 (.866)
14.0 (.551)
22.0 (.866)
18.0 (.709)
22.0 (.866)
C
6.5 (.256)
10.5 (.413)
14.5 (.571)
18.5 (.728)
10.5 (.413)
18.5 (.728)
14.5 (.571)
18.5 (.728)
D
4.0 (.157)
8.0 (3.15)
12.0 (.472)
16.0 (.630)
8.0 (.315)
16.0 (.630)
12.0 (.472)
16.0 (.630)
3521 -
1
T-
2
XX-
3
P-
4
E
5
1. Connector Series
.067
3.2
.126
2.3
.091
2. (T) Plating Options
E
0~0.1
0~.004
T =
2.
Tin Plated.
3. (XX) Circuit Size
8.1
.319
7.1
.280
Available in 2, 3, 4 and 5 circuits
4. (P) Connector Pitch
P =
1.
(4.00 mm.)
P =
2.
(8.00 mm.)
P =
3.
(12.00 mm.)
P =
4.
(16.00 mm.)
0.5
.020
1.7
.067
5. (E) Packing Options
Sec. E-E
E =
1.
Tube+ Plastic Pad
E =
2.
Reel+ Plastic Pad
D±0.1
2.45±0.05
0.96±.002
A±0.05
1.0±0.1
.039±.004
3.4±0.1
.134±.004
RECOMMENDED PCB LAYOUT
1.5±0.1
.059±.004
9.0 min.
.354
FULL LINE CATALOGUE
6.6±0.1
.260±.004
X-X

3521-20412 Related Products

3521-20412 3521-20311 3521-20232 3521-20211 3521-20212 3521-20512 3521-20411 3521-20312 3521-20321 3521-20322
Description Board Connector, 4 Contact(s), Male, Right Angle, Surface Mount Terminal, Locking Board Connector, 3 Contact(s), Male, Right Angle, Surface Mount Terminal, Locking Board Connector, 2 Contact(s), Male, Right Angle, Surface Mount Terminal, Locking Board Connector, 2 Contact(s), Male, Right Angle, Surface Mount Terminal, Locking Board Connector, 2 Contact(s), Male, Right Angle, Surface Mount Terminal, Locking Board Connector, 5 Contact(s), Male, Right Angle, Surface Mount Terminal, Locking Board Connector, 4 Contact(s), Male, Right Angle, Surface Mount Terminal, Locking Board Connector, 3 Contact(s), Male, Right Angle, Surface Mount Terminal, Locking Board Connector, 3 Contact(s), Male, Right Angle, Surface Mount Terminal, Locking Board Connector, 3 Contact(s), Male, Right Angle, Surface Mount Terminal, Locking
Reach Compliance Code unknown unknown unknown unknown unknown unknown unknown unknown unknown unknown
body width 0.126 inch 0.126 inch 0.126 inch 0.126 inch 0.126 inch 0.126 inch 0.126 inch 0.126 inch 0.126 inch 0.126 inch
subject depth 0.347 inch 0.347 inch 0.347 inch 0.347 inch 0.347 inch 0.347 inch 0.347 inch 0.347 inch 0.347 inch 0.347 inch
body length 0.709 inch 0.551 inch 0.709 inch 0.394 inch 0.394 inch 0.866 inch 0.709 inch 0.551 inch 0.866 inch 0.866 inch
Connector type BOARD CONNECTOR BOARD CONNECTOR BOARD CONNECTOR BOARD CONNECTOR BOARD CONNECTOR BOARD CONNECTOR BOARD CONNECTOR BOARD CONNECTOR BOARD CONNECTOR BOARD CONNECTOR
Contact arrangement S0P4 S0P3 S0P2 S0P2 S0P2 S0P5 S0P4 S0P3 S0P3 S0P3
Contact to complete cooperation SN SN SN SN SN SN SN SN SN SN
Contact completed and terminated TIN TIN TIN TIN TIN TIN TIN TIN TIN TIN
Contact point gender MALE MALE MALE MALE MALE MALE MALE MALE MALE MALE
Contact material BRASS BRASS BRASS BRASS BRASS BRASS BRASS BRASS BRASS BRASS
Contact style SQ PIN-SKT SQ PIN-SKT SQ PIN-SKT SQ PIN-SKT SQ PIN-SKT SQ PIN-SKT SQ PIN-SKT SQ PIN-SKT SQ PIN-SKT SQ PIN-SKT
Manufacturer's serial number 3521 3521 3521 3521 3521 3521 3521 3521 3521 3521
Mixed contacts YES YES YES YES YES YES YES YES YES YES
Installation option 1 LOCKING LOCKING LOCKING LOCKING LOCKING LOCKING LOCKING LOCKING LOCKING LOCKING
Installation method RIGHT ANGLE RIGHT ANGLE RIGHT ANGLE RIGHT ANGLE RIGHT ANGLE RIGHT ANGLE RIGHT ANGLE RIGHT ANGLE RIGHT ANGLE RIGHT ANGLE
Installation type BOARD BOARD BOARD BOARD BOARD BOARD BOARD BOARD BOARD BOARD
Number of connectors ONE ONE ONE ONE ONE ONE ONE ONE ONE ONE
Guideline UL UL UL UL UL UL UL UL UL UL
reliability COMMERCIAL COMMERCIAL COMMERCIAL COMMERCIAL COMMERCIAL COMMERCIAL COMMERCIAL COMMERCIAL COMMERCIAL COMMERCIAL
Termination type SURFACE MOUNT SURFACE MOUNT SURFACE MOUNT SURFACE MOUNT SURFACE MOUNT SURFACE MOUNT SURFACE MOUNT SURFACE MOUNT SURFACE MOUNT SURFACE MOUNT
Total number of contacts 4 3 2 2 2 5 4 3 3 3
Base Number Matches 1 1 1 1 1 1 1 1 1 1
Maker - Conexcon Group Conexcon Group Conexcon Group Conexcon Group - - Conexcon Group - Conexcon Group
