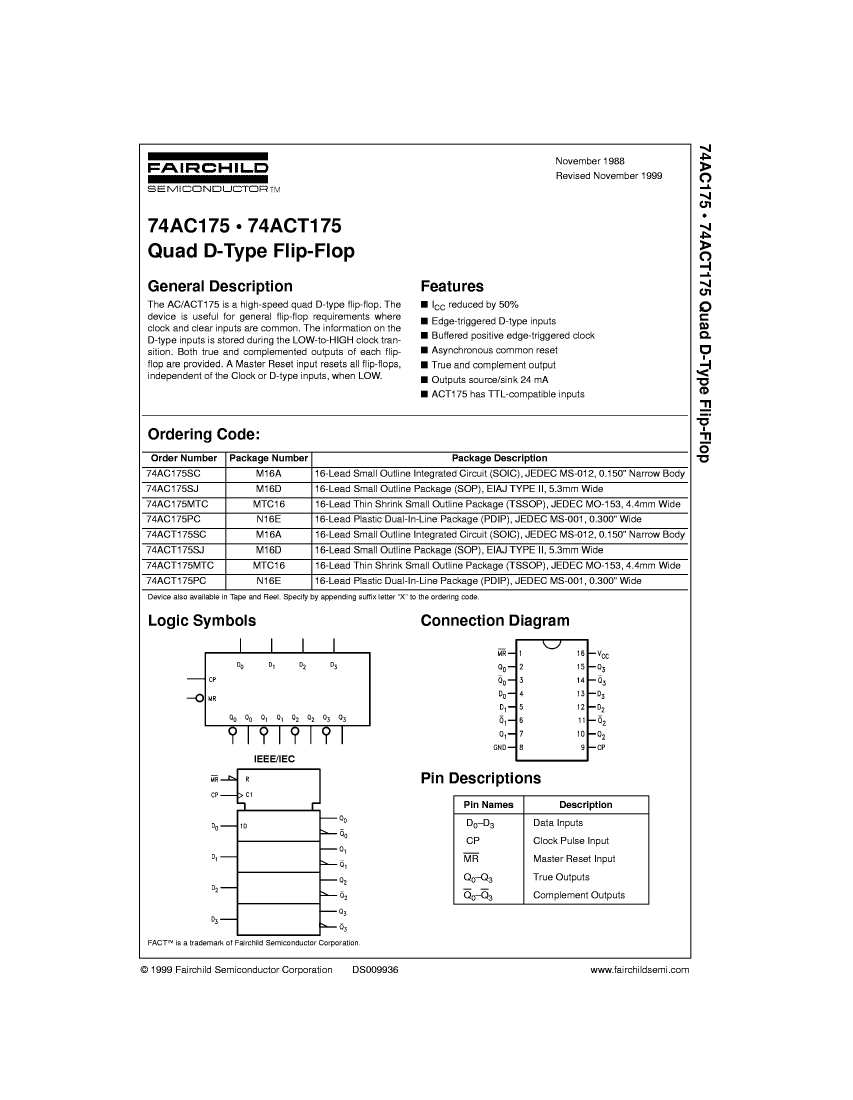

D Flip-Flop, ACT Series, 1-Func, Positive Edge Triggered, 4-Bit, Complementary Output, CMOS, CDIP16, CERAMIC, DIP-16

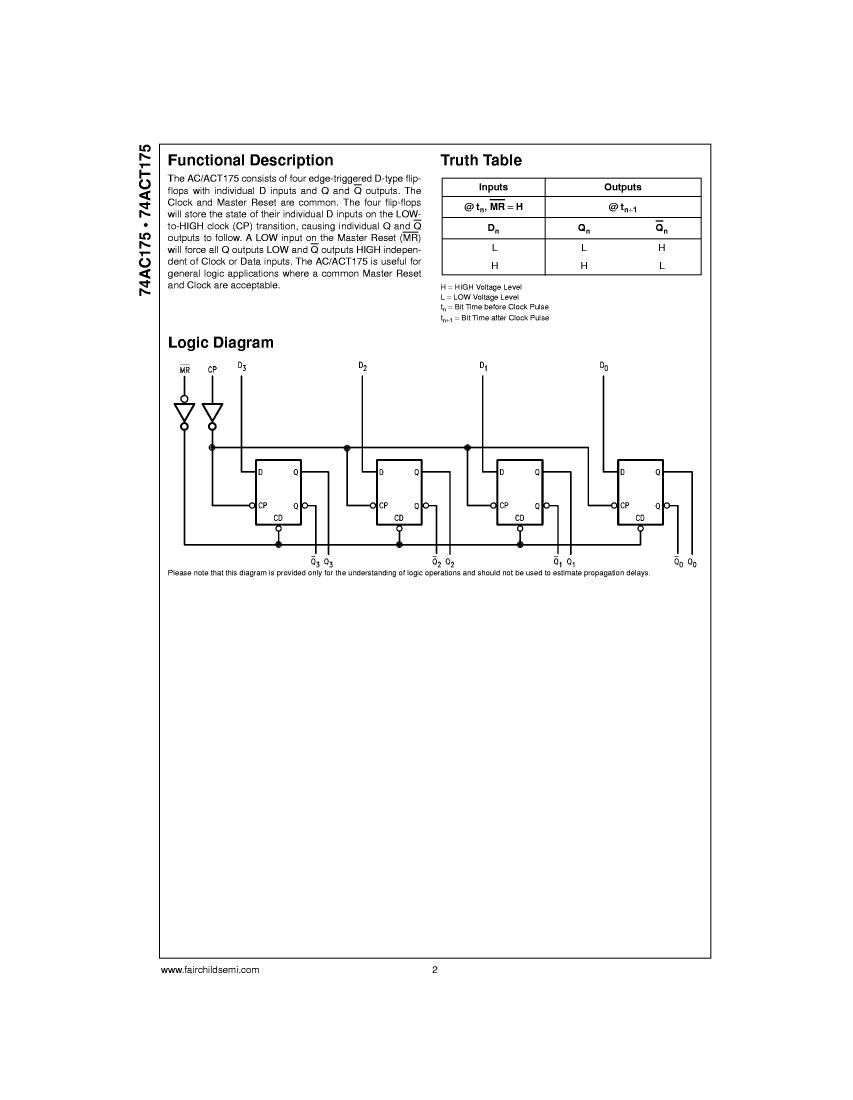

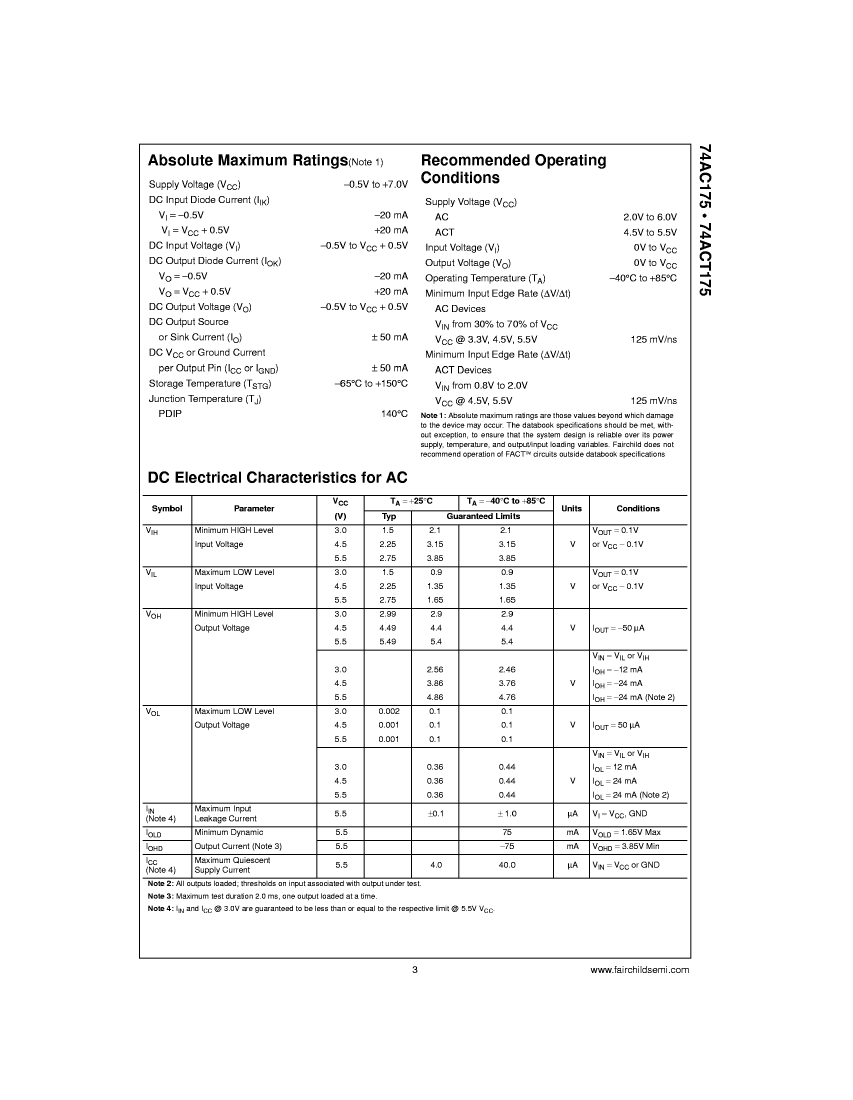

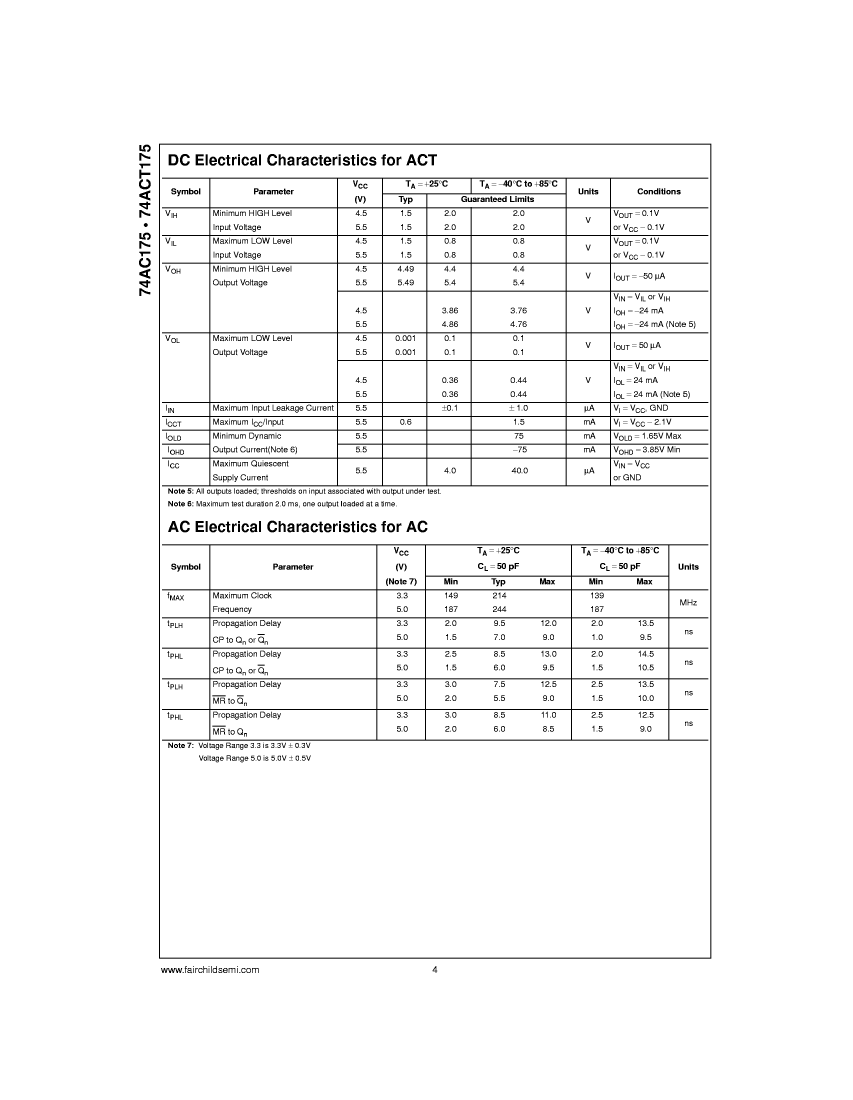

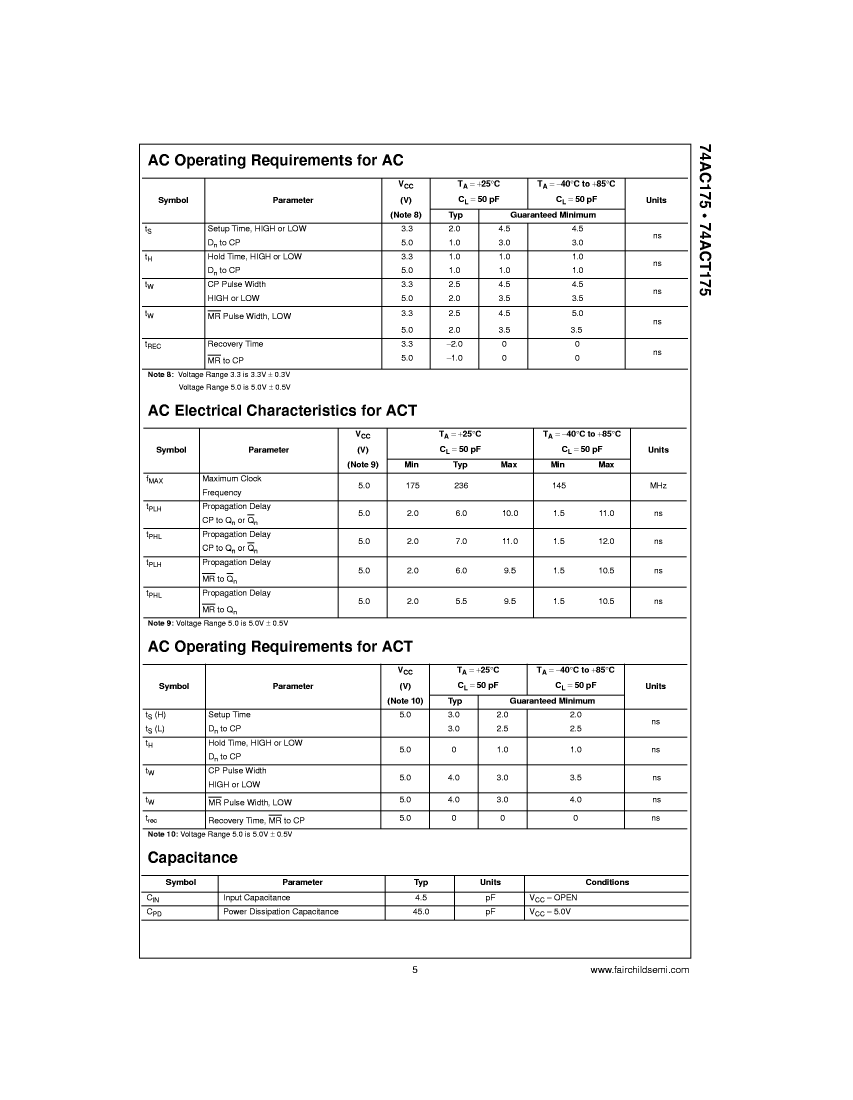

| Parameter Name | Attribute value |
| package instruction | DIP, |
| Reach Compliance Code | unknown |
| series | ACT |
| JESD-30 code | R-GDIP-T16 |
| length | 19.43 mm |
| Logic integrated circuit type | D FLIP-FLOP |
| Number of digits | 4 |
| Number of functions | 1 |
| Number of terminals | 16 |
| Maximum operating temperature | 125 °C |
| Minimum operating temperature | -55 °C |
| Output polarity | COMPLEMENTARY |
| Package body material | CERAMIC, GLASS-SEALED |
| encapsulated code | DIP |
| Package shape | RECTANGULAR |
| Package form | IN-LINE |
| propagation delay (tpd) | 13 ns |
| Maximum seat height | 5.08 mm |
| Maximum supply voltage (Vsup) | 5.5 V |
| Minimum supply voltage (Vsup) | 4.5 V |
| Nominal supply voltage (Vsup) | 5 V |
| surface mount | NO |
| technology | CMOS |
| Temperature level | MILITARY |
| Terminal form | THROUGH-HOLE |
| Terminal pitch | 2.54 mm |
| Terminal location | DUAL |
| Trigger type | POSITIVE EDGE |
| width | 7.62 mm |
| minfmax | 95 MHz |
| Base Number Matches | 1 |
| 54ACT175DM | 54ACT175LM | 54ACT175FM | 74ACT175DC | |
|---|---|---|---|---|
| Description | D Flip-Flop, ACT Series, 1-Func, Positive Edge Triggered, 4-Bit, Complementary Output, CMOS, CDIP16, CERAMIC, DIP-16 | D Flip-Flop, ACT Series, 1-Func, Positive Edge Triggered, 4-Bit, Complementary Output, CMOS, CQCC20, CERAMIC, LCC-20 | D Flip-Flop, ACT Series, 1-Func, Positive Edge Triggered, 4-Bit, Complementary Output, CMOS, CDFP16, CERAMIC, FP-16 | D Flip-Flop, ACT Series, 1-Func, Positive Edge Triggered, 4-Bit, Complementary Output, CMOS, CDIP16, CERAMIC, DIP-16 |
| package instruction | DIP, | QCCN, | DFP, | DIP, |
| Reach Compliance Code | unknown | unknown | unknown | unknown |
| series | ACT | ACT | ACT | ACT |
| JESD-30 code | R-GDIP-T16 | S-CQCC-N20 | R-CDFP-F16 | R-GDIP-T16 |
| Logic integrated circuit type | D FLIP-FLOP | D FLIP-FLOP | D FLIP-FLOP | D FLIP-FLOP |
| Number of digits | 4 | 4 | 4 | 4 |
| Number of functions | 1 | 1 | 1 | 1 |
| Number of terminals | 16 | 20 | 16 | 16 |
| Maximum operating temperature | 125 °C | 125 °C | 125 °C | 85 °C |
| Minimum operating temperature | -55 °C | -55 °C | -55 °C | -40 °C |
| Output polarity | COMPLEMENTARY | COMPLEMENTARY | COMPLEMENTARY | COMPLEMENTARY |
| Package body material | CERAMIC, GLASS-SEALED | CERAMIC, METAL-SEALED COFIRED | CERAMIC, METAL-SEALED COFIRED | CERAMIC, GLASS-SEALED |
| encapsulated code | DIP | QCCN | DFP | DIP |
| Package shape | RECTANGULAR | SQUARE | RECTANGULAR | RECTANGULAR |
| Package form | IN-LINE | CHIP CARRIER | FLATPACK | IN-LINE |
| propagation delay (tpd) | 13 ns | 13 ns | 13 ns | 12 ns |
| Maximum seat height | 5.08 mm | 2.54 mm | 2.159 mm | 5.08 mm |
| Maximum supply voltage (Vsup) | 5.5 V | 5.5 V | 5.5 V | 5.5 V |
| Minimum supply voltage (Vsup) | 4.5 V | 4.5 V | 4.5 V | 4.5 V |
| Nominal supply voltage (Vsup) | 5 V | 5 V | 5 V | 5 V |
| surface mount | NO | YES | YES | NO |
| technology | CMOS | CMOS | CMOS | CMOS |
| Temperature level | MILITARY | MILITARY | MILITARY | INDUSTRIAL |
| Terminal form | THROUGH-HOLE | NO LEAD | FLAT | THROUGH-HOLE |
| Terminal pitch | 2.54 mm | 1.27 mm | 1.27 mm | 2.54 mm |
| Terminal location | DUAL | QUAD | DUAL | DUAL |
| Trigger type | POSITIVE EDGE | POSITIVE EDGE | POSITIVE EDGE | POSITIVE EDGE |
| width | 7.62 mm | 8.89 mm | 6.731 mm | 7.62 mm |
| minfmax | 95 MHz | 95 MHz | 95 MHz | 175 MHz |
| length | 19.43 mm | 8.89 mm | - | 19.43 mm |
| Base Number Matches | 1 | 1 | 1 | - |
