54F148/BFA: DescriptionIC F/FAST SERIES, 8-BIT ENCODER, CDFP16, Arithmetic Circuit; Categorylogic logic; File Size125KB，6 Pages; ManufacturerNXP; Websitehttps://www.nxp.com

Download Datasheet Parametric Compare View All

54F148/BFA Overview

IC F/FAST SERIES, 8-BIT ENCODER, CDFP16, Arithmetic Circuit

54F148/BFA Parametric

Parameter Name	Attribute value
Maker	NXP
package instruction	DFP,
Reach Compliance Code	unknown
Other features	8 TO 3 LINE PRIORITY ENCODER; CASCADABLE; WITH GROUP SELECT OUTPUT
series	F/FAST
JESD-30 code	R-CDFP-F16
Load capacitance (CL)	50 pF
Logic integrated circuit type	ENCODER
Number of digits	8
Number of functions	1
Number of terminals	16
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Package body material	CERAMIC, METAL-SEALED COFIRED
encapsulated code	DFP
Package shape	RECTANGULAR
Package form	FLATPACK
Maximum supply current (ICC)	35 mA
propagation delay (tpd)	13 ns
Certification status	Not Qualified
Maximum supply voltage (Vsup)	5.5 V
Minimum supply voltage (Vsup)	4.5 V
Nominal supply voltage (Vsup)	5 V
surface mount	YES
technology	TTL
Temperature level	MILITARY
Terminal form	FLAT
Terminal location	DUAL
Base Number Matches	1

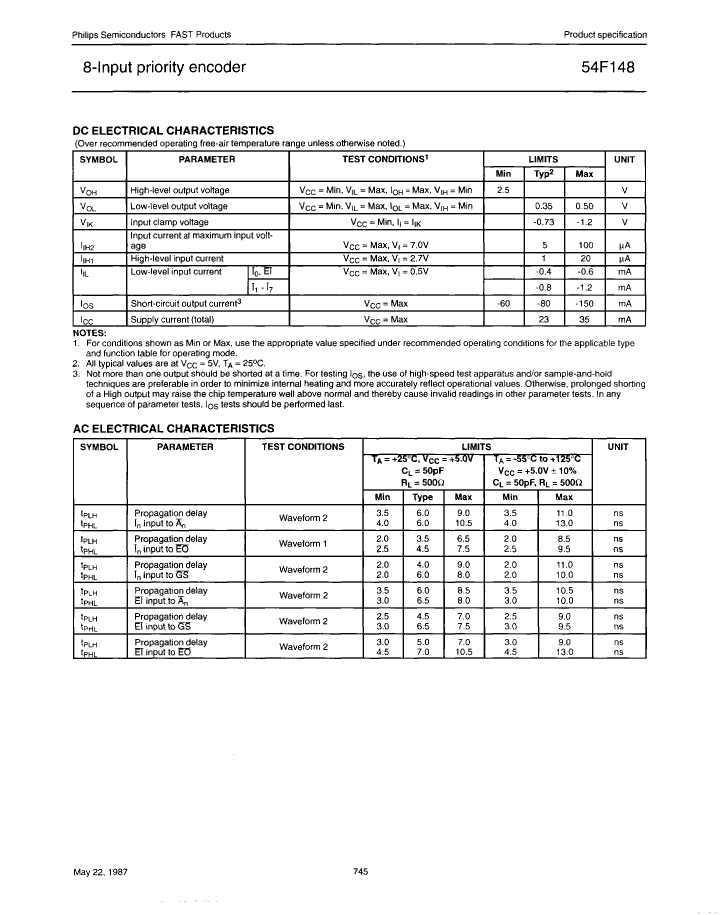

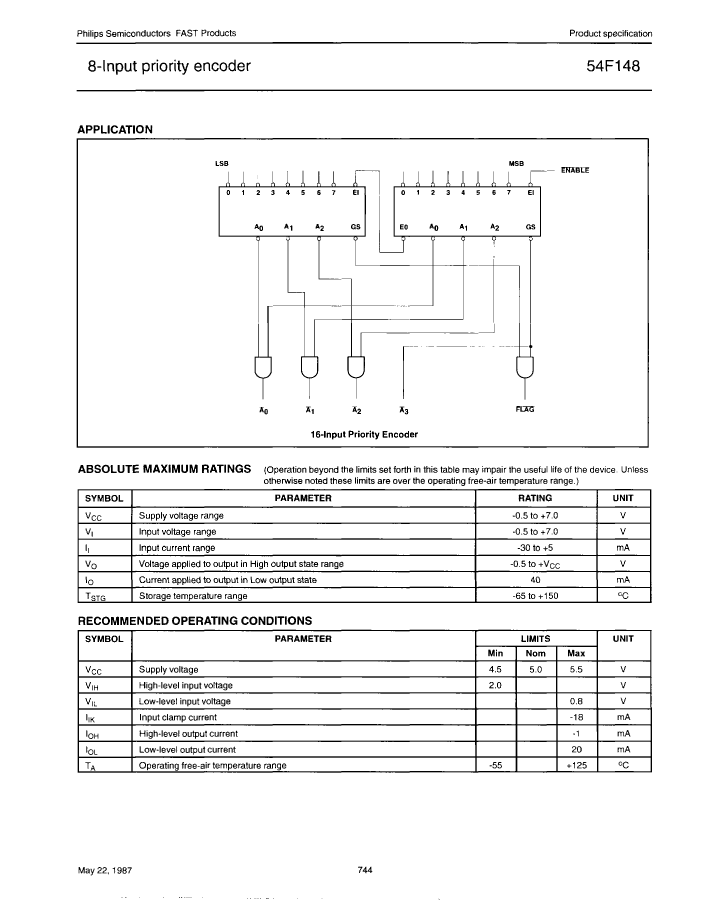

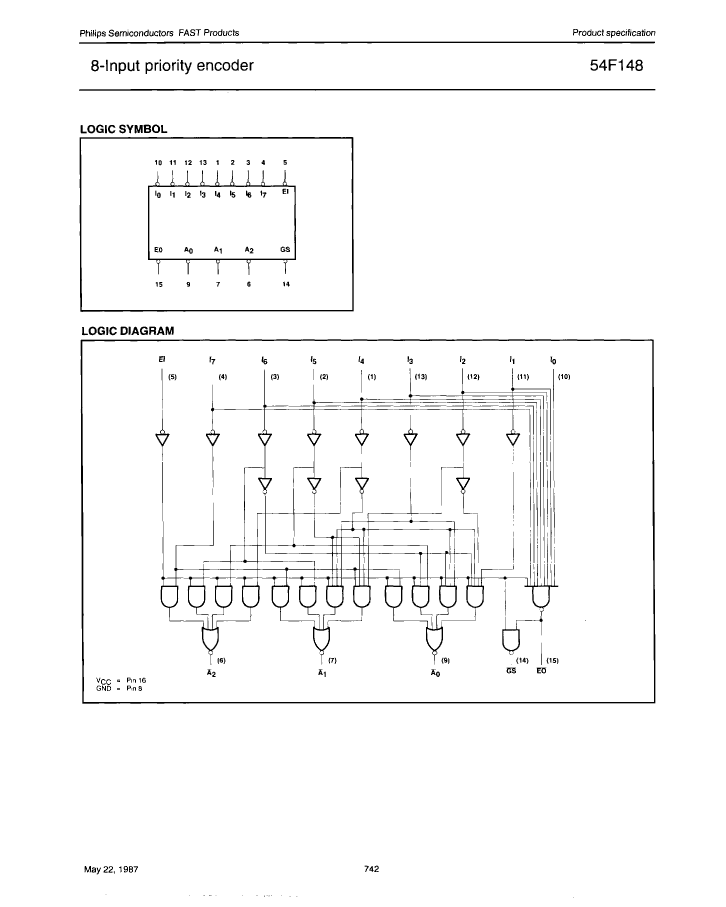

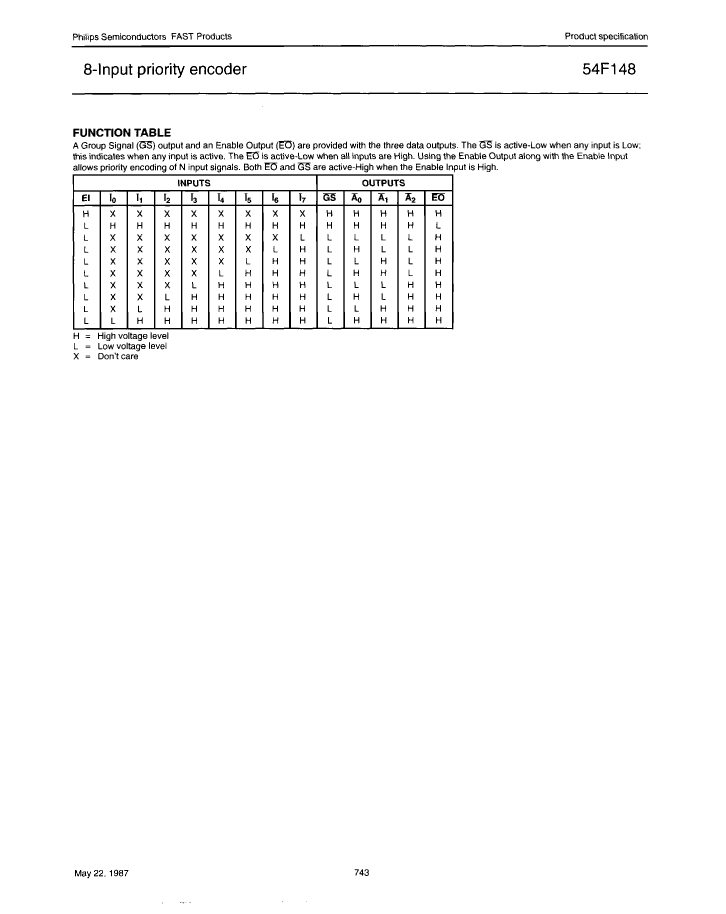

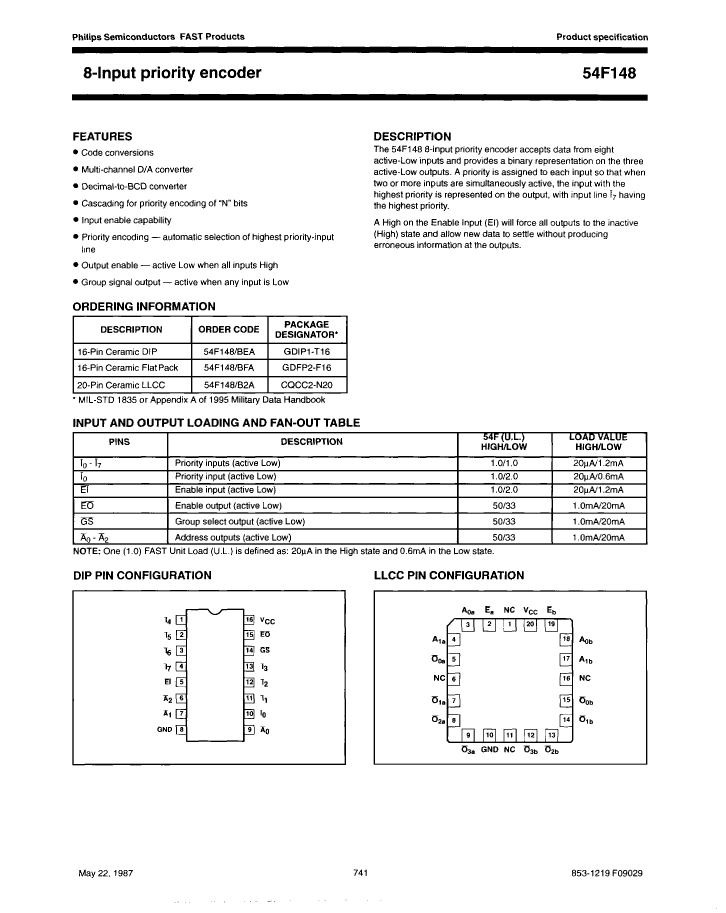

Preview

Download Datasheet

View All

54F148/BFA Related Products

	54F148/BFA	5962-86070012A	5962-8607001EA	54F148/B2A	54F148/BEA	5962-8607001FA
Description	IC F/FAST SERIES, 8-BIT ENCODER, CDFP16, Arithmetic Circuit	IC F/FAST SERIES, 8-BIT ENCODER, CQCC20, Arithmetic Circuit	IC F/FAST SERIES, 8-BIT ENCODER, CDIP16, Arithmetic Circuit	IC F/FAST SERIES, 8-BIT ENCODER, CQCC20, Arithmetic Circuit	IC F/FAST SERIES, 8-BIT ENCODER, CDIP16, Arithmetic Circuit	IC F/FAST SERIES, 8-BIT ENCODER, CDFP16, Arithmetic Circuit
package instruction	DFP,	QCCN,	DIP,	QCCN,	DIP,	DFP,
Reach Compliance Code	unknown	unknow	unknown	unknown	unknown	unknown
Other features	8 TO 3 LINE PRIORITY ENCODER; CASCADABLE; WITH GROUP SELECT OUTPUT	8 TO 3 LINE PRIORITY ENCODER; CASCADABLE; WITH GROUP SELECT OUTPUT	8 TO 3 LINE PRIORITY ENCODER; CASCADABLE; WITH GROUP SELECT OUTPUT	8 TO 3 LINE PRIORITY ENCODER; CASCADABLE; WITH GROUP SELECT OUTPUT	8 TO 3 LINE PRIORITY ENCODER; CASCADABLE; WITH GROUP SELECT OUTPUT	8 TO 3 LINE PRIORITY ENCODER; CASCADABLE; WITH GROUP SELECT OUTPUT
series	F/FAST	F/FAST	F/FAST	F/FAST	F/FAST	F/FAST
JESD-30 code	R-CDFP-F16	S-CQCC-N20	R-GDIP-T16	S-CQCC-N20	R-GDIP-T16	R-CDFP-F16
Load capacitance (CL)	50 pF	50 pF	50 pF	50 pF	50 pF	50 pF
Logic integrated circuit type	ENCODER	ENCODER	ENCODER	ENCODER	ENCODER	ENCODER
Number of digits	8	8	8	8	8	8
Number of functions	1	1	1	1	1	1
Number of terminals	16	20	16	20	16	16
Maximum operating temperature	125 °C	125 °C	125 °C	125 °C	125 °C	125 °C
Minimum operating temperature	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C
Package body material	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED	CERAMIC, GLASS-SEALED	CERAMIC, METAL-SEALED COFIRED	CERAMIC, GLASS-SEALED	CERAMIC, METAL-SEALED COFIRED
encapsulated code	DFP	QCCN	DIP	QCCN	DIP	DFP
Package shape	RECTANGULAR	SQUARE	RECTANGULAR	SQUARE	RECTANGULAR	RECTANGULAR
Package form	FLATPACK	CHIP CARRIER	IN-LINE	CHIP CARRIER	IN-LINE	FLATPACK
Maximum supply current (ICC)	35 mA	35 mA	35 mA	35 mA	35 mA	35 mA
propagation delay (tpd)	13 ns	13 ns	13 ns	13 ns	13 ns	13 ns
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Maximum supply voltage (Vsup)	5.5 V	5.5 V	5.5 V	5.5 V	5.5 V	5.5 V
Minimum supply voltage (Vsup)	4.5 V	4.5 V	4.5 V	4.5 V	4.5 V	4.5 V
Nominal supply voltage (Vsup)	5 V	5 V	5 V	5 V	5 V	5 V
surface mount	YES	YES	NO	YES	NO	YES
technology	TTL	TTL	TTL	TTL	TTL	TTL
Temperature level	MILITARY	MILITARY	MILITARY	MILITARY	MILITARY	MILITARY
Terminal form	FLAT	NO LEAD	THROUGH-HOLE	NO LEAD	THROUGH-HOLE	FLAT
Terminal location	DUAL	QUAD	DUAL	QUAD	DUAL	DUAL
Base Number Matches	1	1	1	1	1	1
Maker	NXP	-	NXP	NXP	-	NXP
