54F173/BEA datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > logic> logic> 54F173/BEA

54F173/BEA: DescriptionD Flip-Flop, F/FAST Series, 1-Func, Positive Edge Triggered, 4-Bit, True Output, TTL, CDIP16; Categorylogic logic; File Size220KB，6 Pages; ManufacturerYAGEO; Websitehttp://www.yageo.com/

Download Datasheet Parametric Compare View All

54F173/BEA Overview

D Flip-Flop, F/FAST Series, 1-Func, Positive Edge Triggered, 4-Bit, True Output, TTL, CDIP16

54F173/BEA Parametric

Parameter Name	Attribute value
Maker	YAGEO
package instruction	,
Reach Compliance Code	unknown
Other features	WITH HOLD MODE
series	F/FAST
JESD-30 code	R-CDIP-T16
Load capacitance (CL)	50 pF
Logic integrated circuit type	D FLIP-FLOP
Number of digits	4
Number of functions	1
Number of terminals	16
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Output characteristics	3-STATE
Output polarity	TRUE
Package body material	CERAMIC, METAL-SEALED COFIRED
Package shape	RECTANGULAR
Package form	IN-LINE
Maximum supply current (ICC)	37 mA
propagation delay (tpd)	11.5 ns
Certification status	Not Qualified
Maximum supply voltage (Vsup)	5.5 V
Minimum supply voltage (Vsup)	4.5 V
Nominal supply voltage (Vsup)	5 V
surface mount	NO
technology	TTL
Temperature level	MILITARY
Terminal form	THROUGH-HOLE
Terminal location	DUAL
Trigger type	POSITIVE EDGE
minfmax	80 MHz
Base Number Matches	1

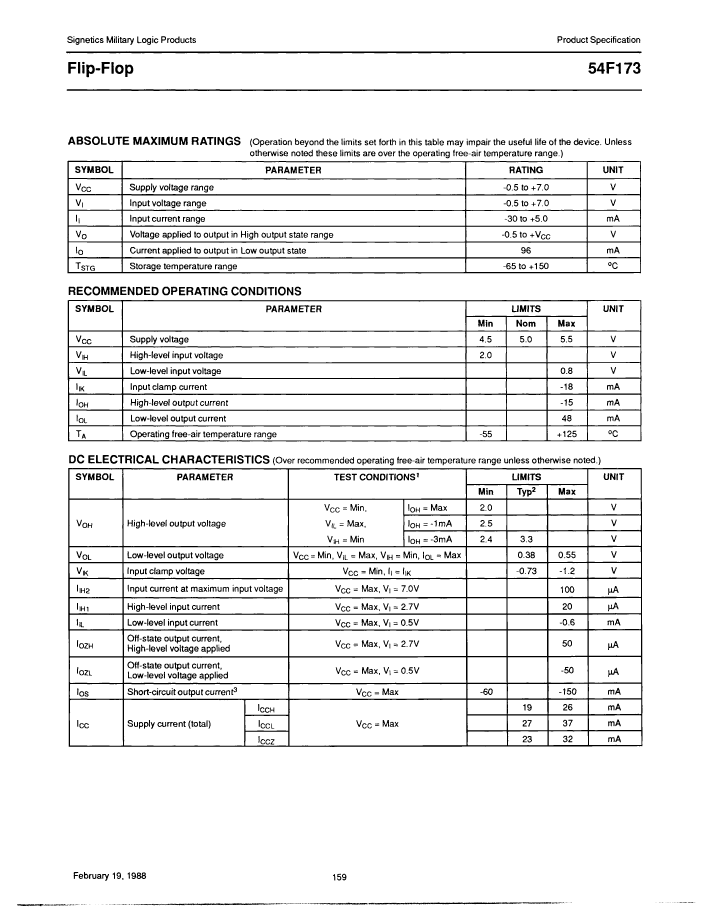

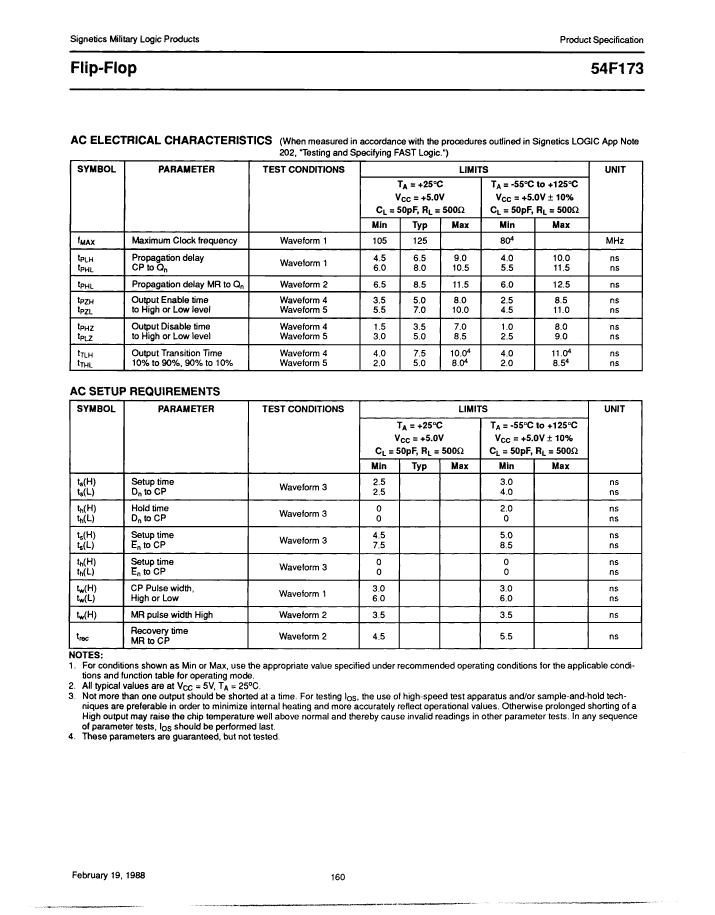

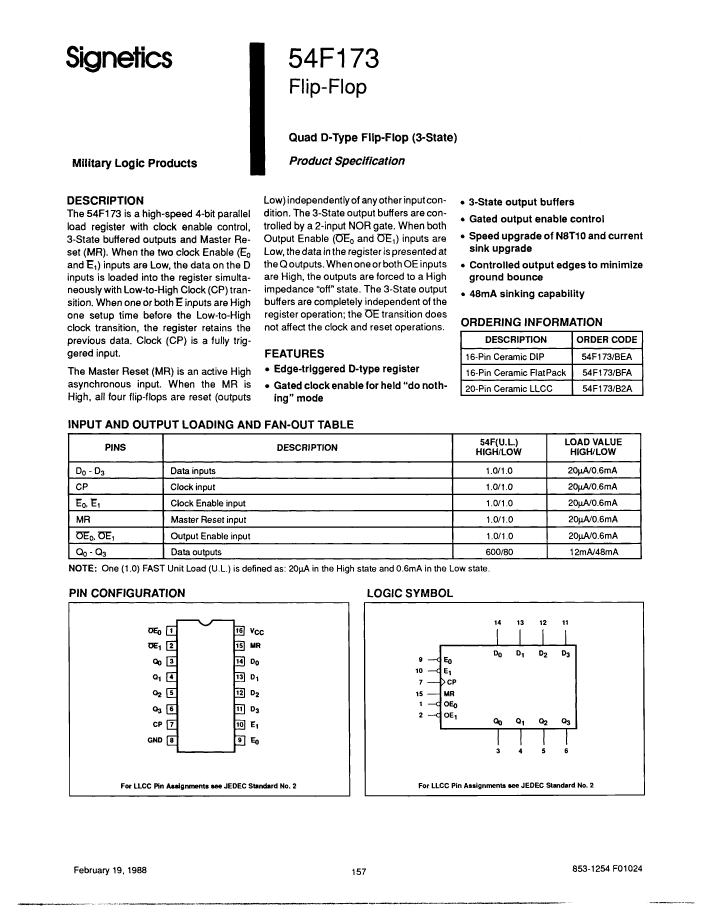

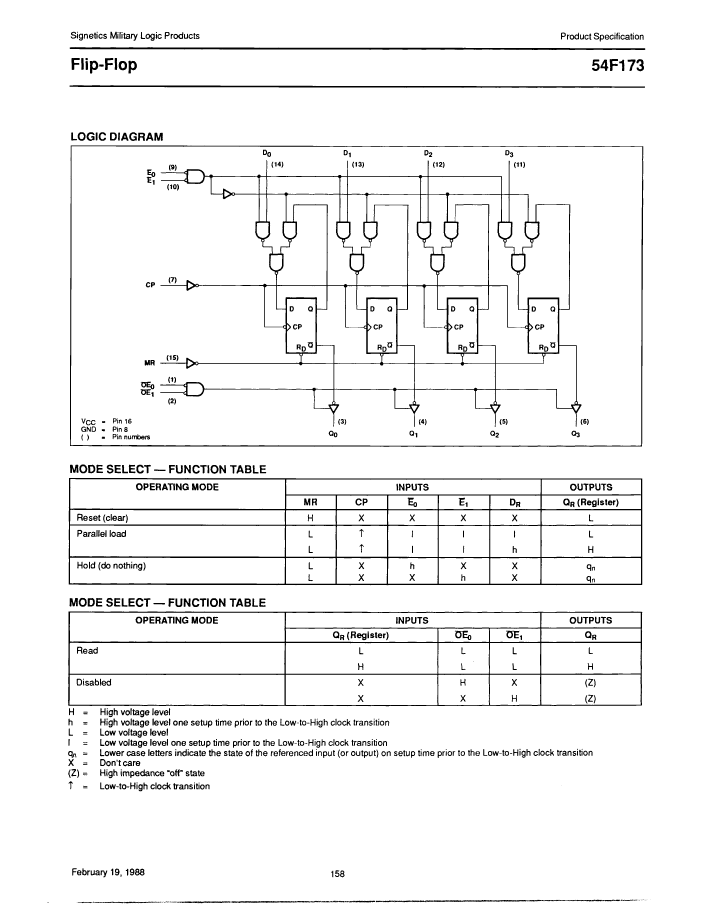

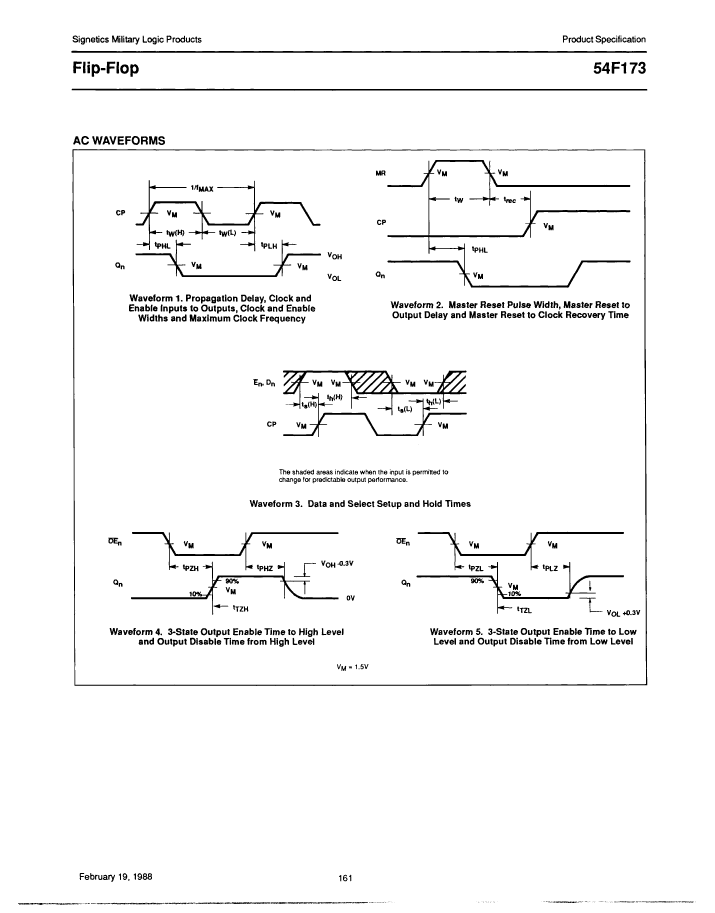

Preview

Download Datasheet

View All

54F173/BEA Related Products

	54F173/BEA	54F173/BFA	54F173/B2A
Description	D Flip-Flop, F/FAST Series, 1-Func, Positive Edge Triggered, 4-Bit, True Output, TTL, CDIP16	D Flip-Flop, F/FAST Series, 1-Func, Positive Edge Triggered, 4-Bit, True Output, TTL, CDFP16	D Flip-Flop, F/FAST Series, 1-Func, Positive Edge Triggered, 4-Bit, True Output, TTL, CQCC20
Maker	YAGEO	YAGEO	YAGEO
Reach Compliance Code	unknown	unknown	unknown
Other features	WITH HOLD MODE	WITH HOLD MODE	WITH HOLD MODE
series	F/FAST	F/FAST	F/FAST
JESD-30 code	R-CDIP-T16	R-CDFP-F16	S-CQCC-N20
Load capacitance (CL)	50 pF	50 pF	50 pF
Logic integrated circuit type	D FLIP-FLOP	D FLIP-FLOP	D FLIP-FLOP
Number of digits	4	4	4
Number of functions	1	1	1
Number of terminals	16	16	20
Maximum operating temperature	125 °C	125 °C	125 °C
Minimum operating temperature	-55 °C	-55 °C	-55 °C
Output characteristics	3-STATE	3-STATE	3-STATE
Output polarity	TRUE	TRUE	TRUE
Package body material	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED
Package shape	RECTANGULAR	RECTANGULAR	SQUARE
Package form	IN-LINE	FLATPACK	CHIP CARRIER
Maximum supply current (ICC)	37 mA	37 mA	37 mA
propagation delay (tpd)	11.5 ns	11.5 ns	11.5 ns
Certification status	Not Qualified	Not Qualified	Not Qualified
Maximum supply voltage (Vsup)	5.5 V	5.5 V	5.5 V
Minimum supply voltage (Vsup)	4.5 V	4.5 V	4.5 V
Nominal supply voltage (Vsup)	5 V	5 V	5 V
surface mount	NO	YES	YES
technology	TTL	TTL	TTL
Temperature level	MILITARY	MILITARY	MILITARY
Terminal form	THROUGH-HOLE	FLAT	NO LEAD
Terminal location	DUAL	DUAL	QUAD
Trigger type	POSITIVE EDGE	POSITIVE EDGE	POSITIVE EDGE
minfmax	80 MHz	80 MHz	80 MHz
Base Number Matches	1	1	1
