R128.609.701 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> R128.609.701

R128.609.701: DescriptionBlindmate Connector, Receptacle; CategoryThe connector The connector; File Size59KB，3 Pages; ManufacturerRadiall; Websitehttps://www.radiall.com/

Download Datasheet Parametric View All

R128.609.701 Overview

Blindmate Connector, Receptacle

R128.609.701 Parametric

Parameter Name	Attribute value
Maker	Radiall
Reach Compliance Code	unknown
Body/casing type	RECEPTACLE
Connector type	BLINDMATE CONNECTOR
DIN compliance	NO
IEC compliance	NO
MIL compliance	NO
Manufacturer's serial number	BMA
Options	GENERAL PURPOSE
Base Number Matches	1

Preview

Download Datasheet

View All

TECHNICAL DATA SHEET

1/3

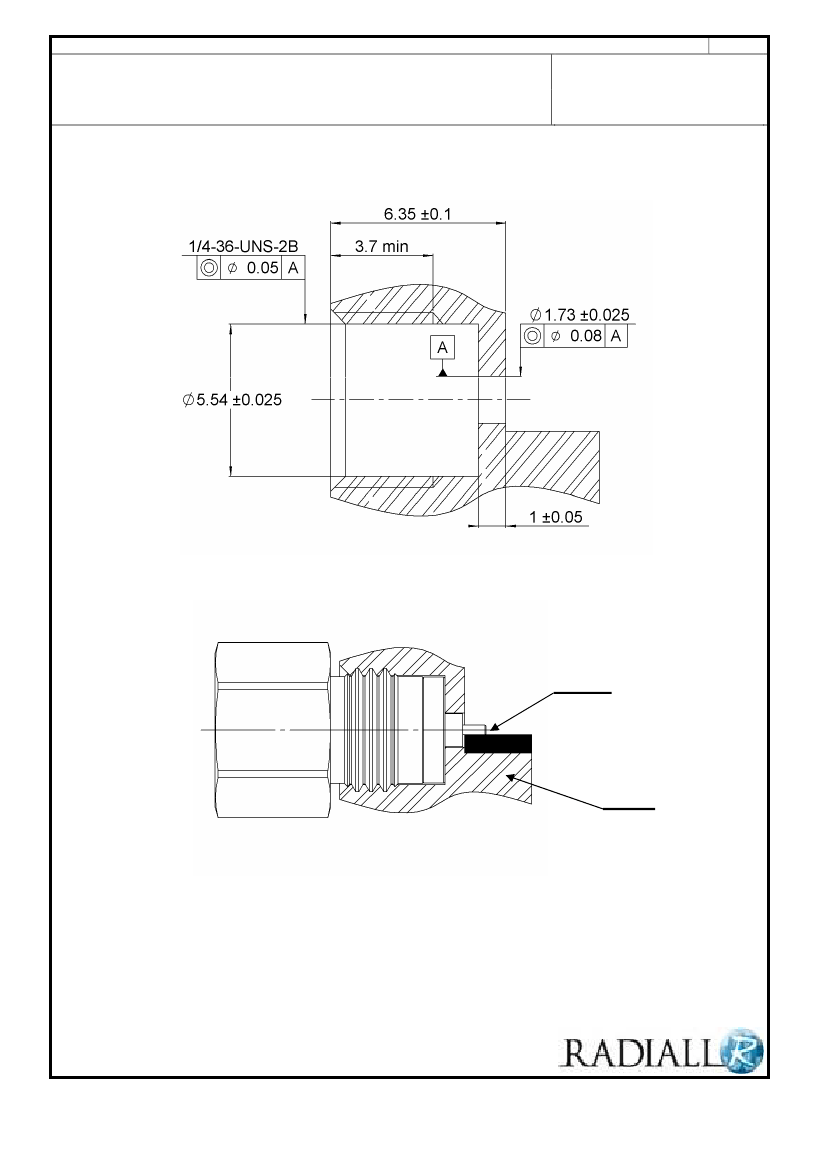

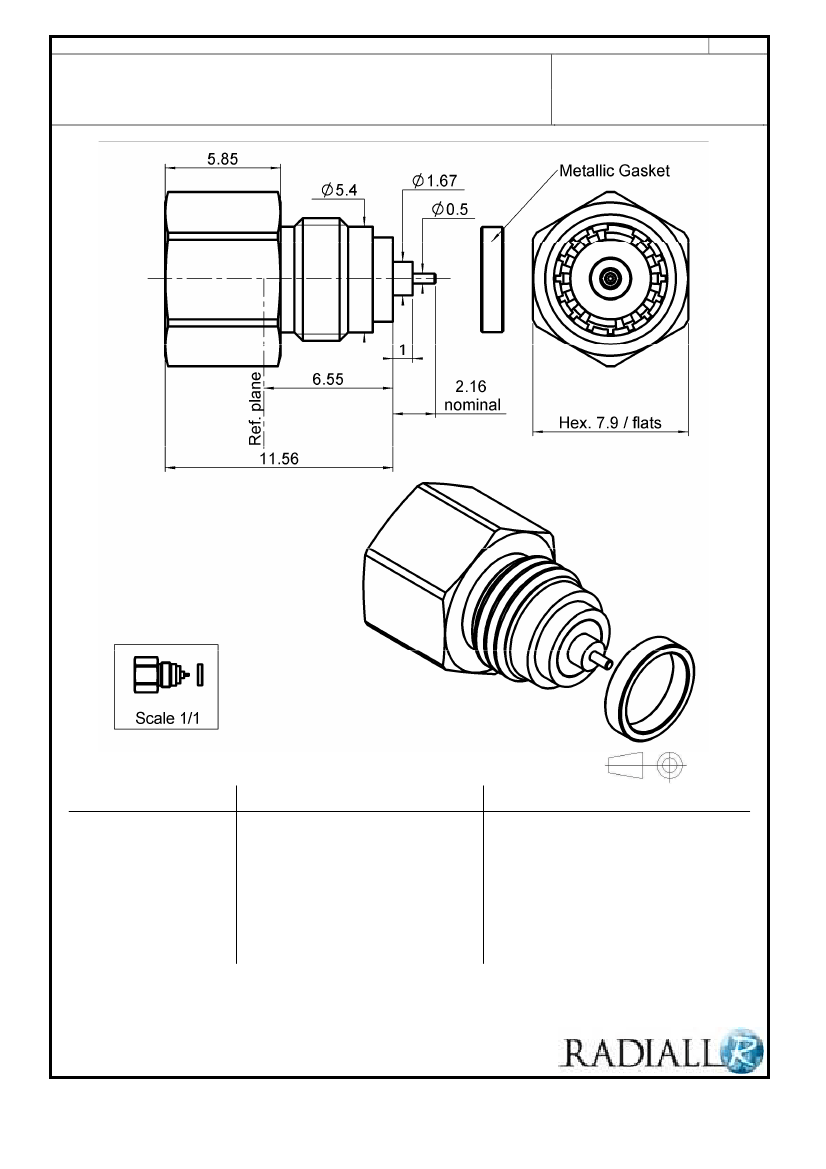

SCREW ON FEMALE RECEPTACLE

HERMETIC

R128.609.701

Series :

BMA

All dimensions are in mm.

COMPONENTS

BODY

CENTER CONTACT

OUTER CONTACT

INSULATOR

GASKET

OTHERS PARTS

MATERIALS

STAINLESS STEEL

BERYLLIUM COPPER

PTFE+GLASS BEAD

DILVER P1

PLATING (

µm

)

PASSIVATION

GOLD 1.3 OVER NICKEL2

NPGR

GOLD 1.3 OVER NICKEL 2

Issue :

0941 B

In the effort to improve our products, we reserve the right to make changes judged to be

necessary.
