CD4029BDMSH datasheet, PDF - EEWORLD Datasheet

CD4029BDMSH: DescriptionBinary Counter, 4000/14000/40000 Series, Synchronous, Positive Edge Triggered, 4-Bit, Bidirectional, CMOS, CDIP16,; Categorylogic logic; File Size416KB，11 Pages; ManufacturerHarris; Websitehttp://www.harris.com/

Download Datasheet Parametric View All

CD4029BDMSH Overview

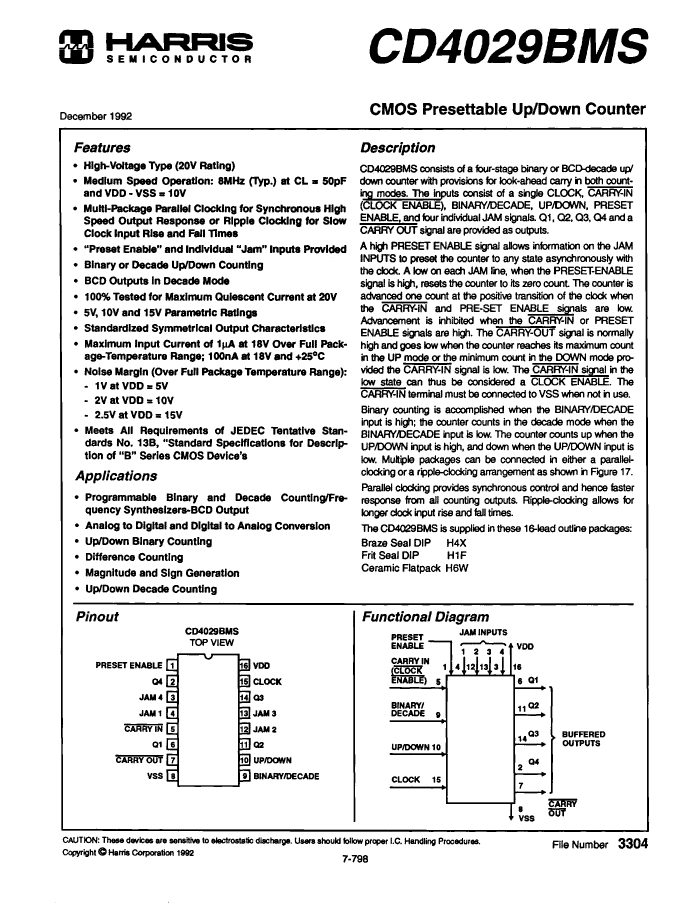

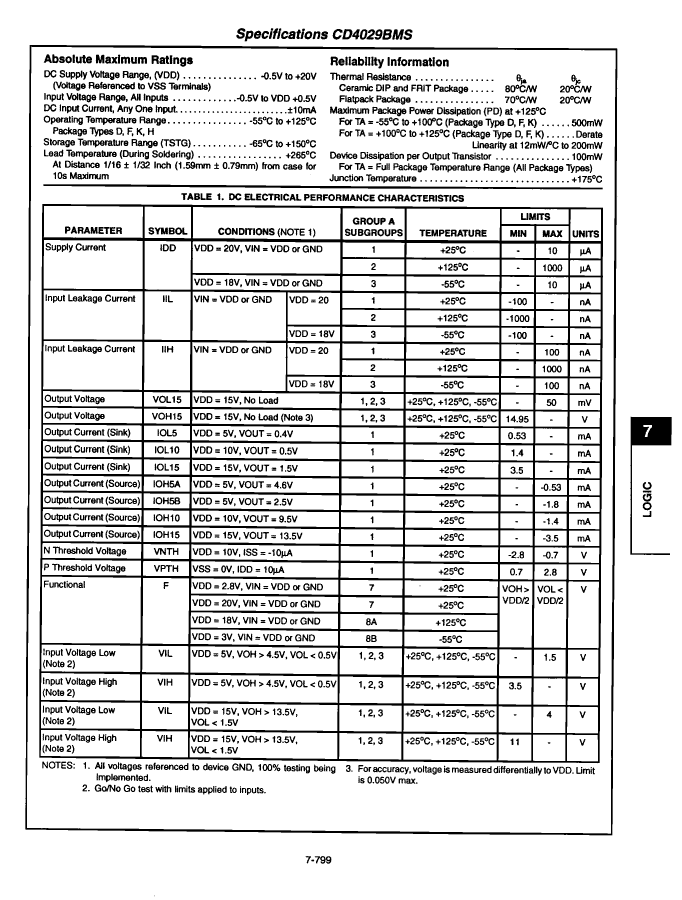

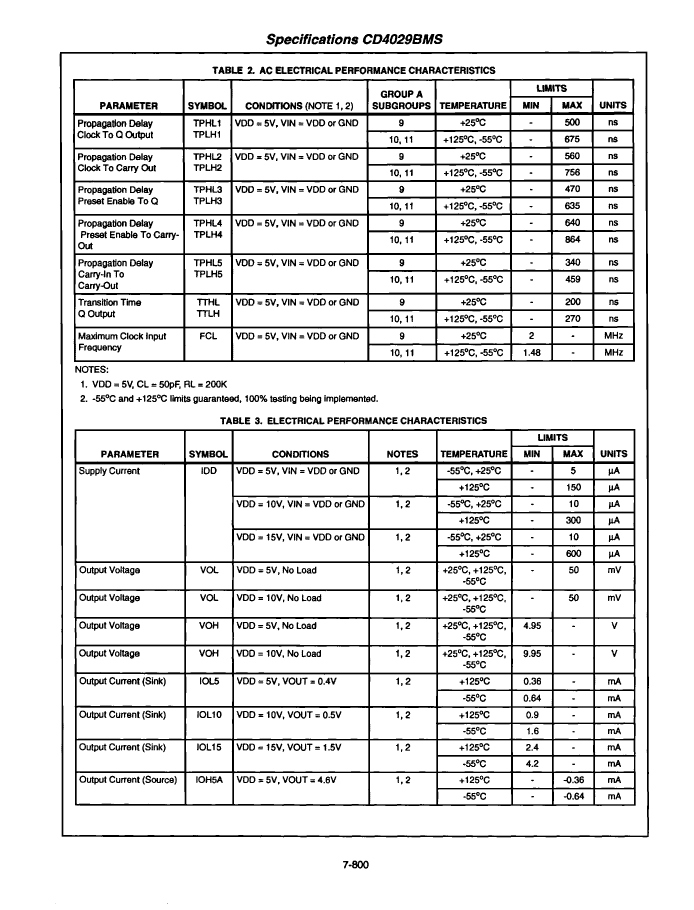

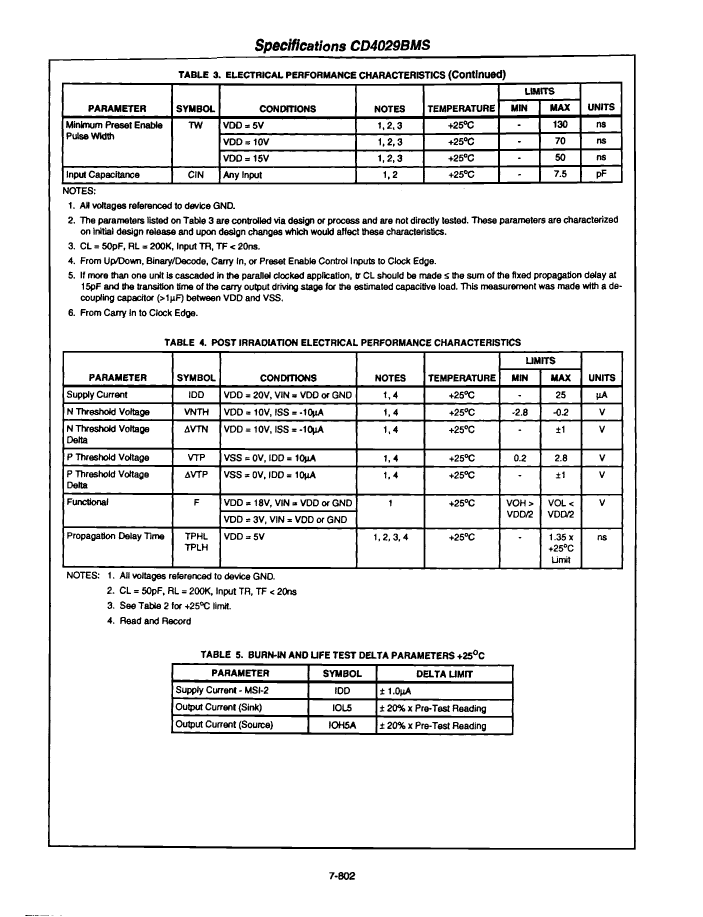

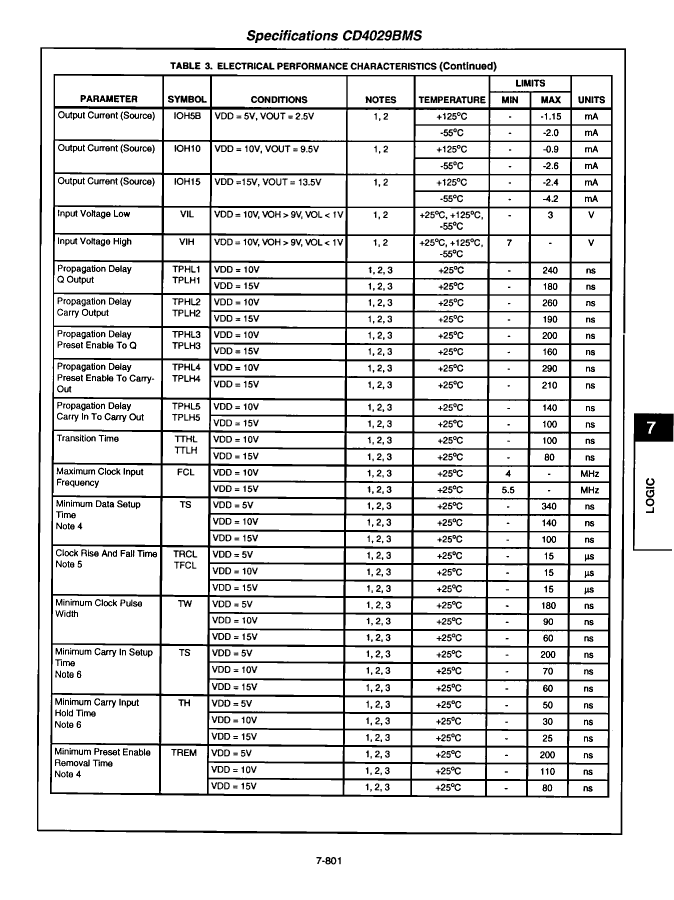

Binary Counter, 4000/14000/40000 Series, Synchronous, Positive Edge Triggered, 4-Bit, Bidirectional, CMOS, CDIP16,

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	Harris
Reach Compliance Code	unknown
Other features	BINARY/BCD COUNT OPTION; COUNT ENABLE INPUT
Counting direction	BIDIRECTIONAL
series	4000/14000/40000
JESD-30 code	R-CDIP-T16
JESD-609 code	e0
Load capacitance (CL)	50 pF
Load/preset input	YES
Logic integrated circuit type	BINARY COUNTER
MaximumI(ol)	0.00036 A
Operating mode	SYNCHRONOUS
Number of digits	4
Number of functions	1
Number of terminals	16
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Package body material	CERAMIC, METAL-SEALED COFIRED
encapsulated code	DIP
Encapsulate equivalent code	DIP16,.3
Package shape	RECTANGULAR
Package form	IN-LINE
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
power supply	5/15 V
Prop。Delay @ Nom-Sup	675 ns
propagation delay (tpd)	675 ns
Certification status	Not Qualified
Filter level	38535V;38534K;883S
Maximum supply voltage (Vsup)	18 V
Minimum supply voltage (Vsup)	3 V
Nominal supply voltage (Vsup)	5 V
surface mount	NO
technology	CMOS
Temperature level	MILITARY
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	THROUGH-HOLE
Terminal pitch	2.54 mm
Terminal location	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED
total dose	1M Rad(Si) V
Trigger type	POSITIVE EDGE
minfmax	1.48 MHz
Base Number Matches	1
