54F32LMQB datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > logic> logic> 54F32LMQB

54F32LMQB: DescriptionOR Gate, F/FAST Series, 4-Func, 2-Input, TTL, CQCC20, CERAMIC, LCC-20; Categorylogic logic; File Size106KB，8 Pages; ManufacturerFairchild; Websitehttp://www.fairchildsemi.com/

Download Datasheet Parametric Compare View All

54F32LMQB Overview

OR Gate, F/FAST Series, 4-Func, 2-Input, TTL, CQCC20, CERAMIC, LCC-20

54F32LMQB Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Parts packaging code	QLCC
package instruction	QCCN, LCC20,.35SQ
Contacts	20
Reach Compliance Code	unknown
series	F/FAST
JESD-30 code	S-CQCC-N20
JESD-609 code	e0
length	8.89 mm
Load capacitance (CL)	50 pF
Logic integrated circuit type	OR GATE
MaximumI(ol)	0.02 A
Number of functions	4
Number of entries	2
Number of terminals	20
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Package body material	CERAMIC, METAL-SEALED COFIRED
encapsulated code	QCCN
Encapsulate equivalent code	LCC20,.35SQ
Package shape	SQUARE
Package form	CHIP CARRIER
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
power supply	5 V
Maximum supply current (ICC)	15.5 mA
Prop。Delay @ Nom-Sup	7.5 ns
propagation delay (tpd)	7.5 ns
Certification status	Not Qualified
Schmitt trigger	NO
Filter level	38535Q/M;38534H;883B
Maximum seat height	1.905 mm
Maximum supply voltage (Vsup)	5.5 V
Minimum supply voltage (Vsup)	4.5 V
Nominal supply voltage (Vsup)	5 V
surface mount	YES
technology	TTL
Temperature level	MILITARY
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	NO LEAD
Terminal pitch	1.27 mm
Terminal location	QUAD
Maximum time at peak reflow temperature	NOT SPECIFIED
width	8.89 mm
Base Number Matches	1

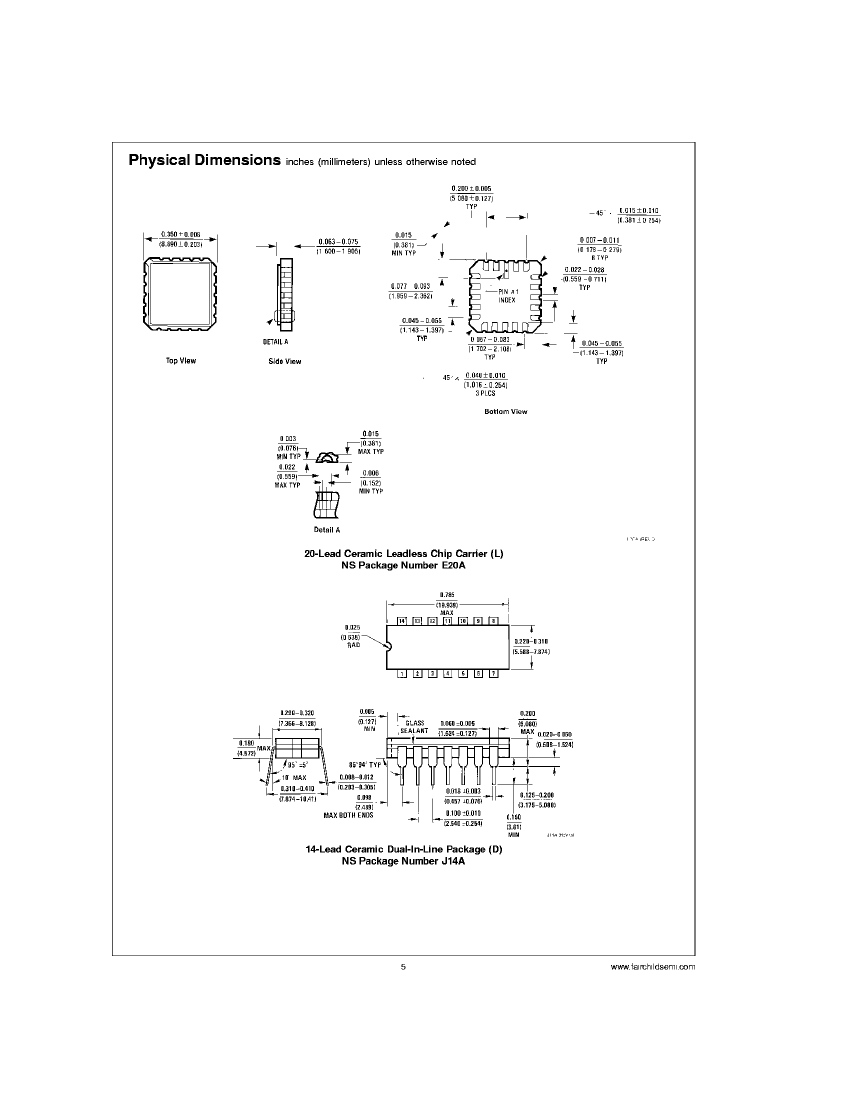

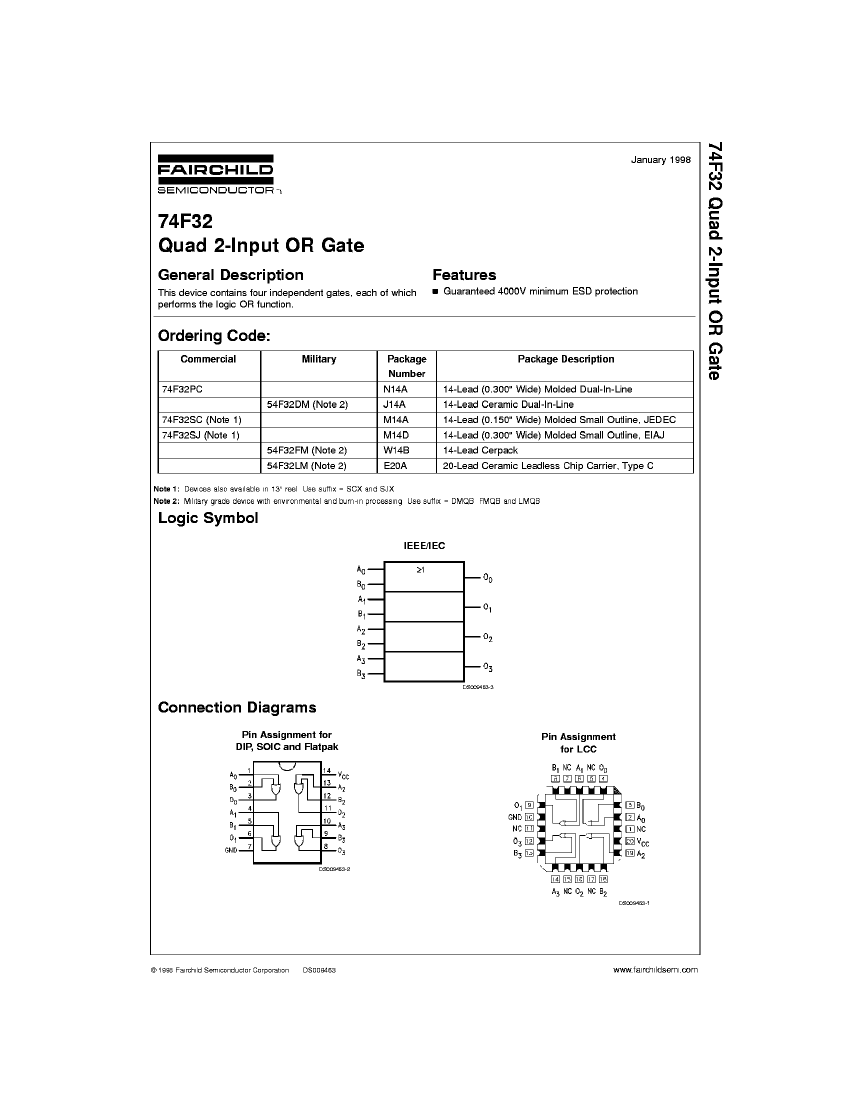

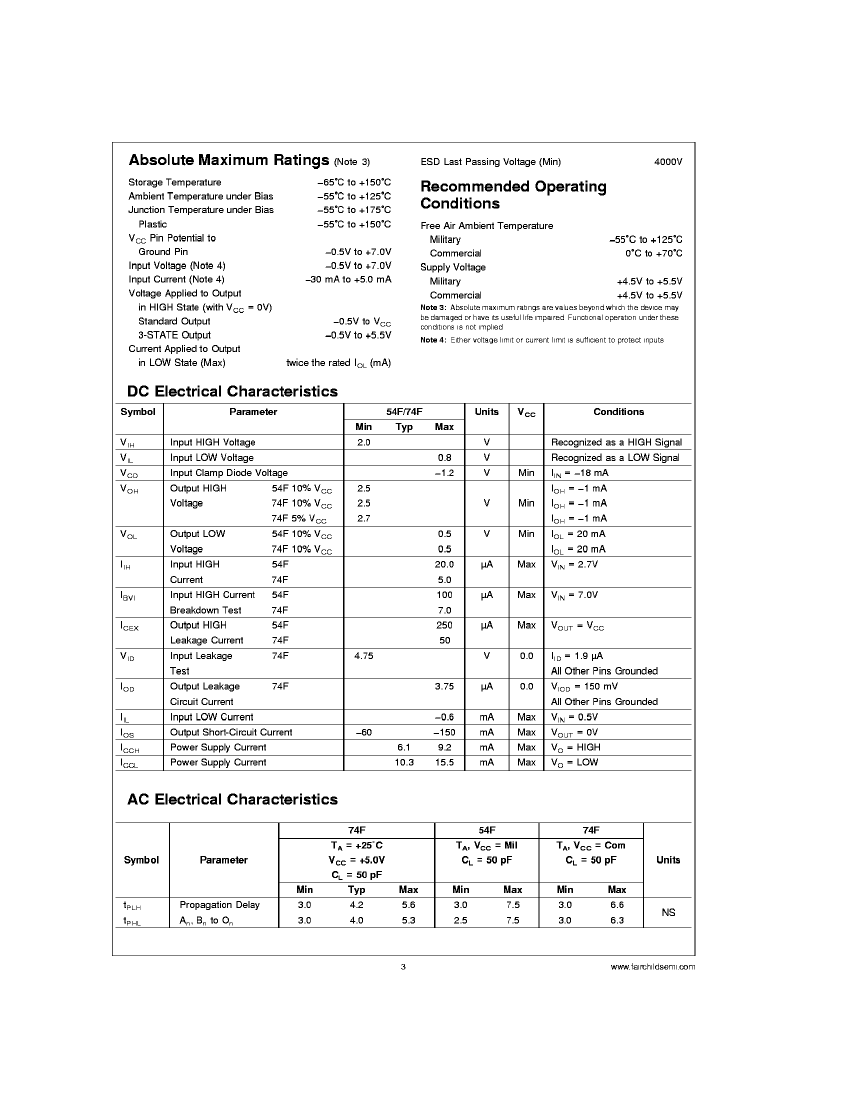

Preview

Download Datasheet

View All

54F32LMQB Related Products

	54F32LMQB	54F32DM	54F32DMQB	54F32FM	54F32FMQB	54F32LM
Description	OR Gate, F/FAST Series, 4-Func, 2-Input, TTL, CQCC20, CERAMIC, LCC-20	OR Gate, F/FAST Series, 4-Func, 2-Input, TTL, CDIP14, CERAMIC, DIP-14	OR Gate, F/FAST Series, 4-Func, 2-Input, TTL, CDIP14, CERAMIC, DIP-14	OR Gate, F/FAST Series, 4-Func, 2-Input, TTL, CDFP14, CERPACK-14	OR Gate, F/FAST Series, 4-Func, 2-Input, TTL, CDFP14, CERPACK-14	OR Gate, F/FAST Series, 4-Func, 2-Input, TTL, CQCC20, CERAMIC, LCC-20
Parts packaging code	QLCC	DIP	DIP	DFP	DFP	QLCC
package instruction	QCCN, LCC20,.35SQ	DIP, DIP14,.3	DIP, DIP14,.3	DFP, FL14,.3	DFP, FL14,.3	CERAMIC, LCC-20
Contacts	20	14	14	14	14	20
Reach Compliance Code	unknown	unknow	unknown	unknown	unknown	unknown
series	F/FAST	F/FAST	F/FAST	F/FAST	F/FAST	F/FAST
JESD-30 code	S-CQCC-N20	R-GDIP-T14	R-GDIP-T14	R-GDFP-F14	R-GDFP-F14	S-CQCC-N20
Load capacitance (CL)	50 pF	50 pF	50 pF	50 pF	50 pF	50 pF
Logic integrated circuit type	OR GATE	OR GATE	OR GATE	OR GATE	OR GATE	OR GATE
Number of functions	4	4	4	4	4	4
Number of entries	2	2	2	2	2	2
Number of terminals	20	14	14	14	14	20
Maximum operating temperature	125 °C	125 °C	125 °C	125 °C	125 °C	125 °C
Minimum operating temperature	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C
Package body material	CERAMIC, METAL-SEALED COFIRED	CERAMIC, GLASS-SEALED	CERAMIC, GLASS-SEALED	CERAMIC, GLASS-SEALED	CERAMIC, GLASS-SEALED	CERAMIC, METAL-SEALED COFIRED
encapsulated code	QCCN	DIP	DIP	DFP	DFP	QCCN
Package shape	SQUARE	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	SQUARE
Package form	CHIP CARRIER	IN-LINE	IN-LINE	FLATPACK	FLATPACK	CHIP CARRIER
Maximum supply current (ICC)	15.5 mA	15.5 mA	15.5 mA	15.5 mA	15.5 mA	15.5 mA
propagation delay (tpd)	7.5 ns	7.5 ns	7.5 ns	7.5 ns	7.5 ns	7.5 ns
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Maximum seat height	1.905 mm	5.08 mm	5.08 mm	2.032 mm	2.032 mm	1.905 mm
Maximum supply voltage (Vsup)	5.5 V	5.5 V	5.5 V	5.5 V	5.5 V	5.5 V
Minimum supply voltage (Vsup)	4.5 V	4.5 V	4.5 V	4.5 V	4.5 V	4.5 V
Nominal supply voltage (Vsup)	5 V	5 V	5 V	5 V	5 V	5 V
surface mount	YES	NO	NO	YES	YES	YES
technology	TTL	TTL	TTL	TTL	TTL	TTL
Temperature level	MILITARY	MILITARY	MILITARY	MILITARY	MILITARY	MILITARY
Terminal form	NO LEAD	THROUGH-HOLE	THROUGH-HOLE	FLAT	FLAT	NO LEAD
Terminal pitch	1.27 mm	2.54 mm	2.54 mm	1.27 mm	1.27 mm	1.27 mm
Terminal location	QUAD	DUAL	DUAL	DUAL	DUAL	QUAD
width	8.89 mm	7.62 mm	7.62 mm	6.2865 mm	6.2865 mm	8.89 mm
Base Number Matches	1	1	1	1	1	1
Is it Rohs certified?	incompatible	incompatible	incompatible	incompatible	incompatible	-
JESD-609 code	e0	e0	e0	e0	e0	-
length	8.89 mm	19.43 mm	19.43 mm	-	-	8.89 mm
Encapsulate equivalent code	LCC20,.35SQ	DIP14,.3	DIP14,.3	FL14,.3	FL14,.3	-
Peak Reflow Temperature (Celsius)	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	-
power supply	5 V	5 V	5 V	5 V	5 V	-
Schmitt trigger	NO	NO	NO	NO	NO	-
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	-
Maximum time at peak reflow temperature	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	-
